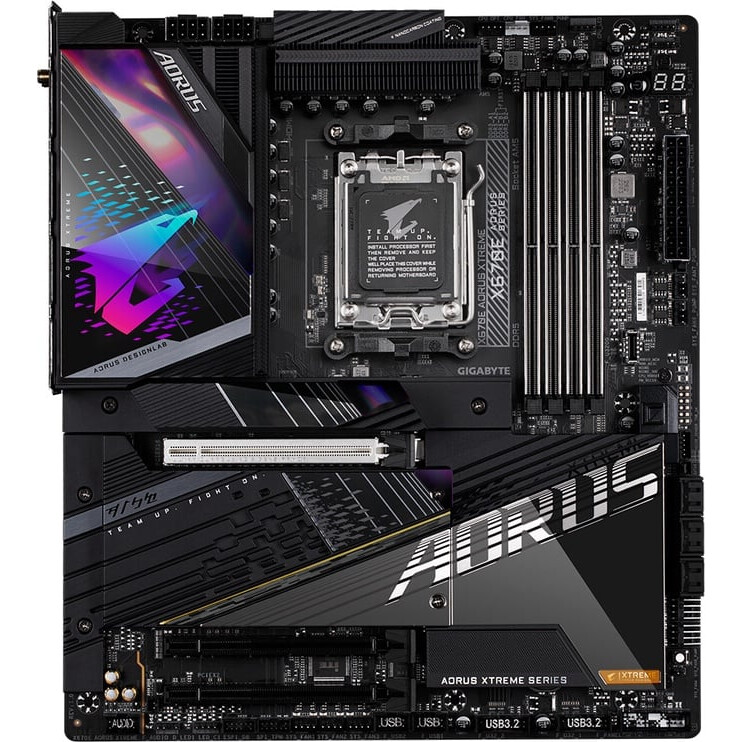

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME)

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME)

Name: Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME)
Brand: Gigabyte
SKU: 1326
Price: 580.60 EUR
Availability: InStock

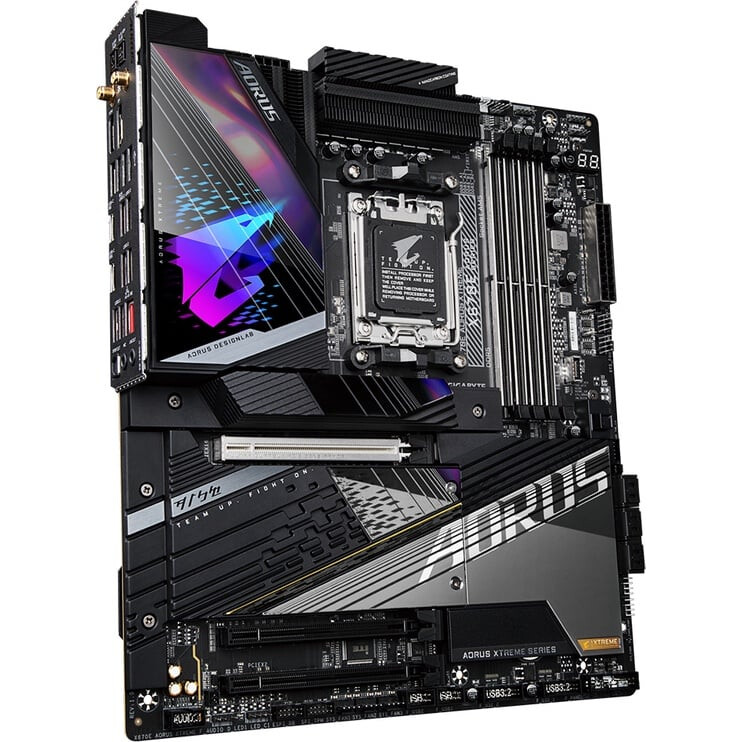

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME) - foto 2

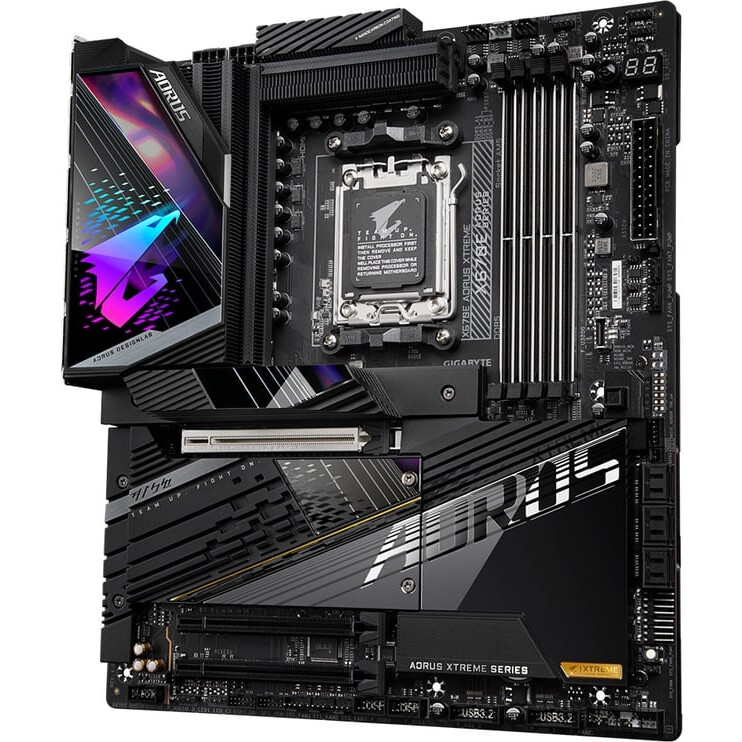

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME) - foto 3

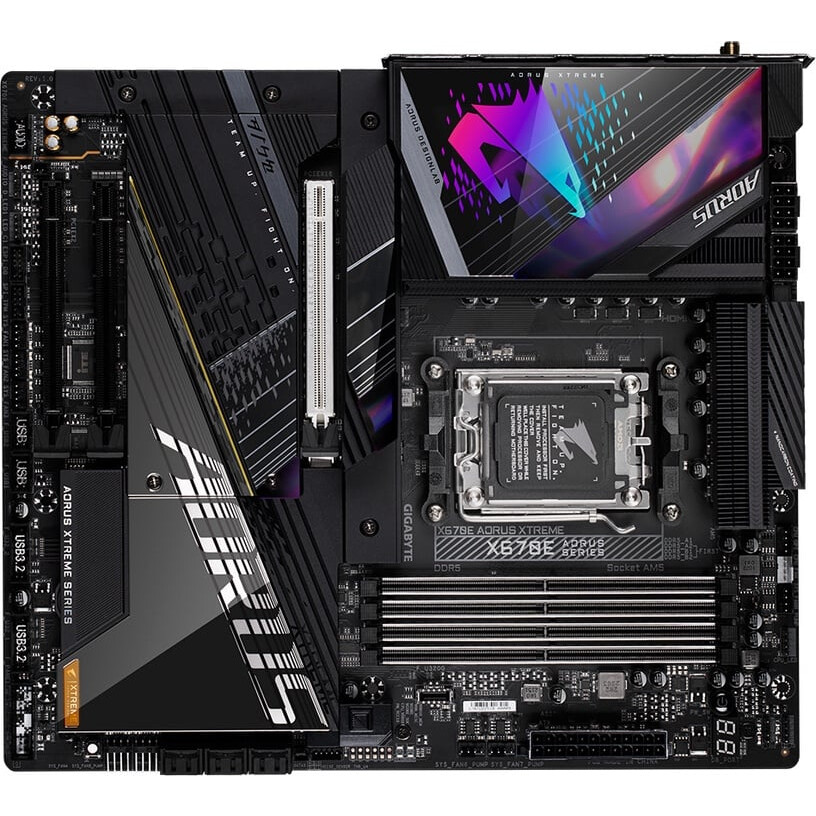

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME) - foto 4

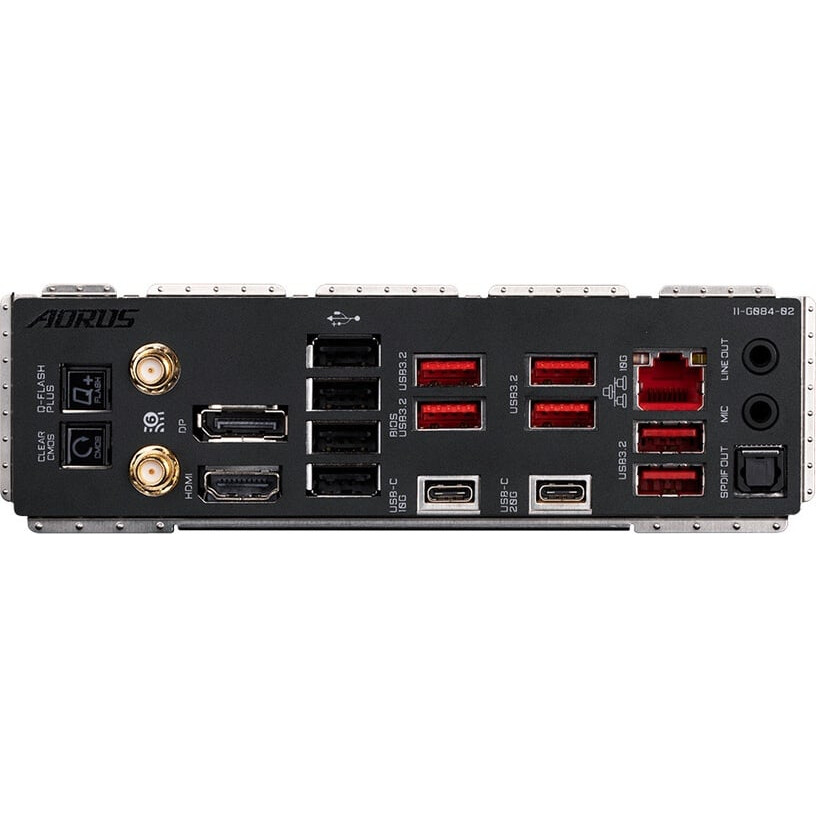

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME) - foto 5

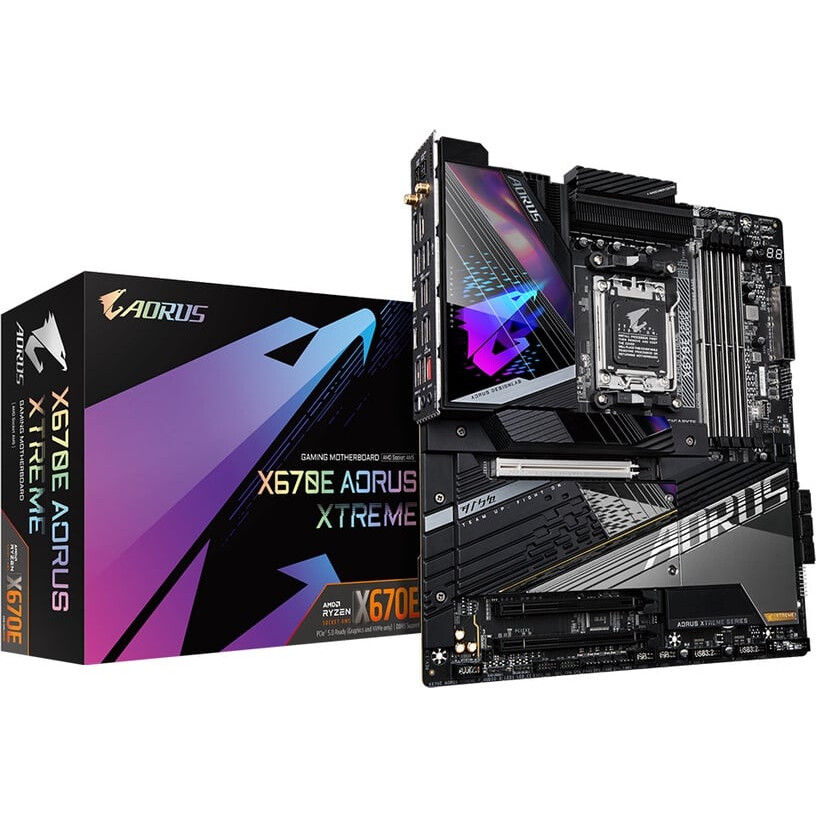

Pamatplate GIGABYTE X670E AORUS XTREME AM5 MB (X670E AORUS XTREME) - foto 6

ID: 1326

Īsi par preci

Ligzda: AM5
Mikroshēmu kopa (Chipset): AMD X670
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E x16, x4 x PCI-E x4, PCI-E M.2
Ligzdas aizmugurējā panelī: USB 2.0, USB 3.0, HDMI, DisplayPort, RJ-45
Formfaktors: E-ATX

Pilnas specifikācijas

580,⁶⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

36 mēn. x 23,⁴⁷ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

36 mēn. x 26,⁵³ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

X670E AORUS XTREME

Ligzda ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD X670

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 2.0, USB 3.0, HDMI, DisplayPort, RJ-45

Papildu

Formfaktors ........................................................................................................................................................................................................

E-ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1220-VB

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E x16, x4 x PCI-E x4, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3,M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connectors is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
