- Pamatplate ASUS Intel Z790 LGA1700 ATX (TUFGAMINGZ790-PLUSWIFI)

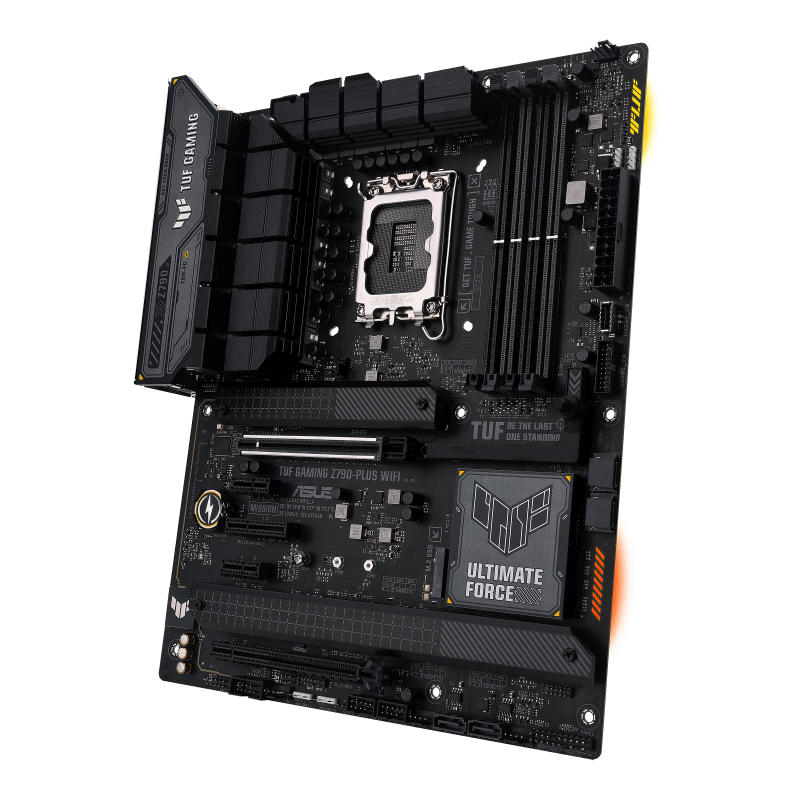

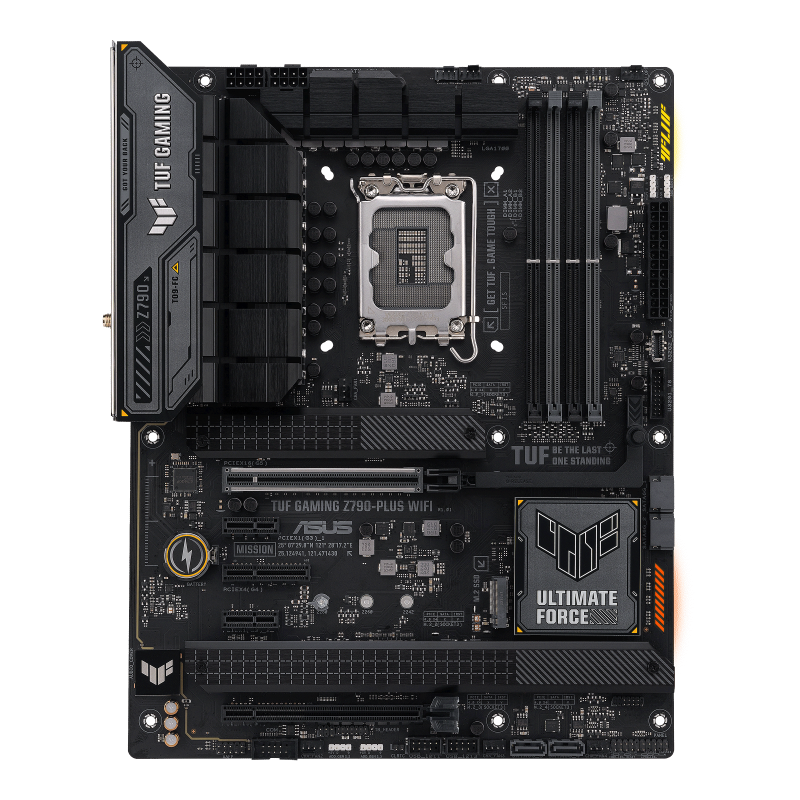

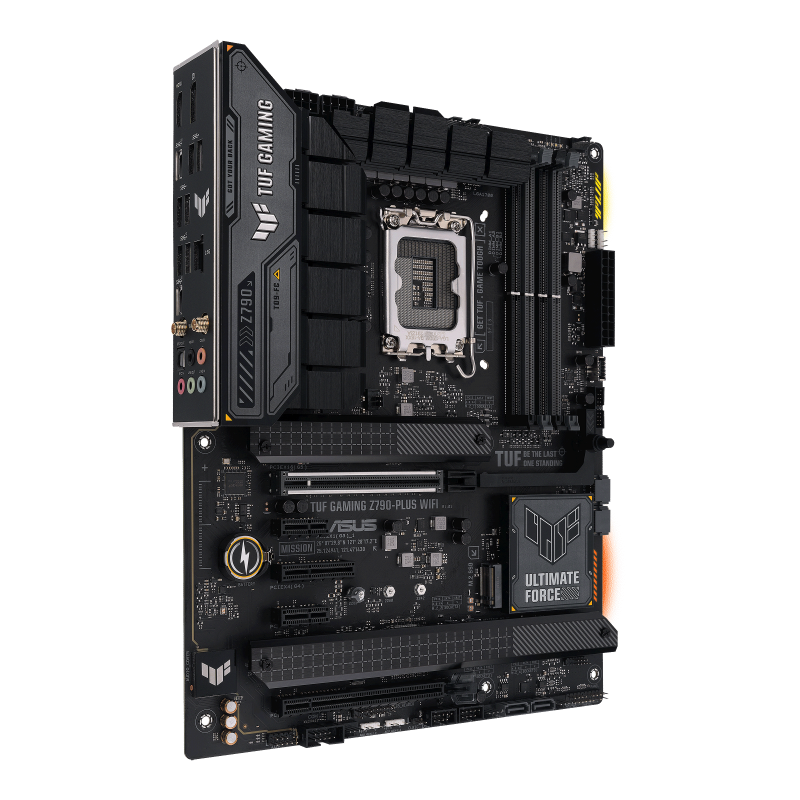

Pamatplate ASUS Intel Z790 LGA1700 ATX (TUFGAMINGZ790-PLUSWIFI)
ID: 1374
Product Summary
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel Z790
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E x4, PCI-E M.2
- Tīkla saskarne: Wi-Fi
- Ligzdas aizmugurējā panelī: USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
TUFGAMINGZ790-PLUSWIFI
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel Z790
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC S1200A
Papildu
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C
Formfaktors ........................................................................................................................................................................................................
ATX
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
x4 x SATA-III (6 Gb/s)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E x4, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
