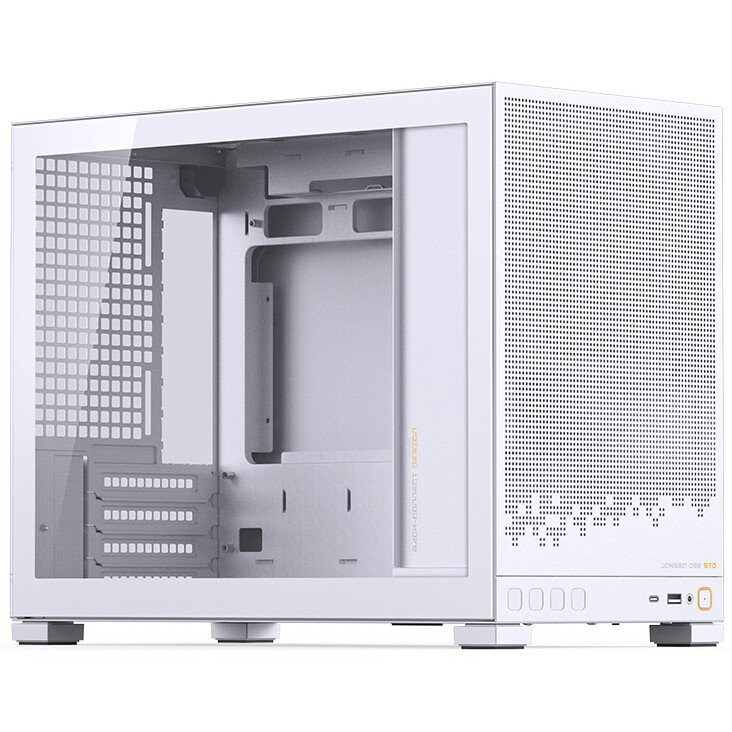

Case Jonsbo D32 STD White
ID: 14625
Modification
Product Summary
- Case type: Mini-Tower
- Motherboard form factor: mATX, Mini-ITX
- Power supply: without PSU
- Maximum GPU Length: 365 mm
- Maximum cooler height: 164 mm
- Front Panel Interfaces: USB 3.0, USB Type-C, audio
Full Specifications
54,10 €54,10 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
D32 STD WHITE
Case type ........................................................................................................................................................................................................
Motherboard form factor ........................................................................................................................................................................................................
mATX, Mini-ITX
Power supply ........................................................................................................................................................................................................
PSU form factor ........................................................................................................................................................................................................
ATX, SFX, SFX-L
Power supply location ........................................................................................................................................................................................................
Radiator mounting locations
Liquid Cooling Support ........................................................................................................................................................................................................
yes
AIO Cooler Mounting Size on Top Panel ........................................................................................................................................................................................................
120 mm, 240 mm
Features
Support for back-connect motherboards ........................................................................................................................................................................................................
yes
Board Form Factor with Hidden Connection ........................................................................................................................................................................................................
mATX
Dust filter ........................................................................................................................................................................................................
on the lower panel
Colors used in design ........................................................................................................................................................................................................
white
Additional fan mounts
Fan Mounting Locations ........................................................................................................................................................................................................
yes
Top Panel ........................................................................................................................................................................................................
2 x 120 mm или 2 x 140 mm
Rear Panel ........................................................................................................................................................................................................
120 mm
Bottom panel ........................................................................................................................................................................................................
2 x 140 mm или 3 x 120 mm
Installed Fans
Included Fans ........................................................................................................................................................................................................
no
Case Construction
Case material ........................................................................................................................................................................................................
ABS, steel
Case Body Wall Thickness ........................................................................................................................................................................................................
0.7 mm

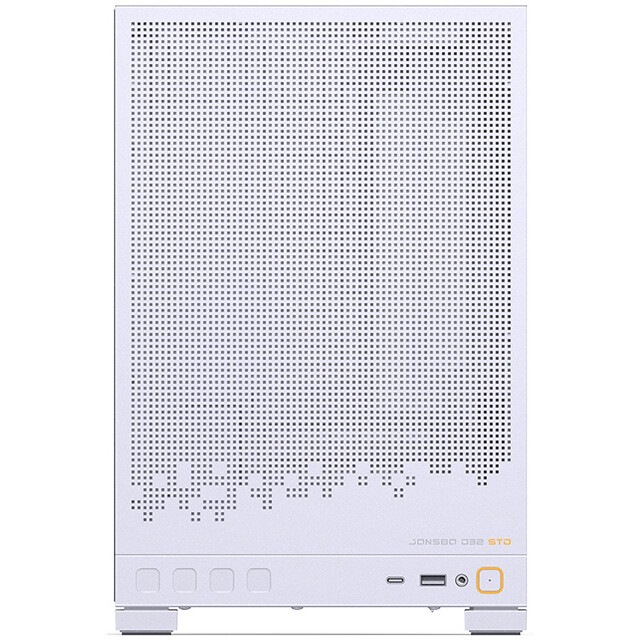

Front Panel ........................................................................................................................................................................................................
with perforation
Window Material ........................................................................................................................................................................................................
Internal 3.5"/2.5" Bays (Convertible) ........................................................................................................................................................................................................
1
Internal 2.5" Bays ........................................................................................................................................................................................................
Number of Expansion Slots ........................................................................................................................................................................................................
HDD Placement ........................................................................................................................................................................................................
Vertical SSD/HDD Mounting ........................................................................................................................................................................................................
yes
Maximum GPU Length ........................................................................................................................................................................................................
365 mm
Maximum cooler height ........................................................................................................................................................................................................
164 mm, for Intel processors; 163 mm, for AMD processors
Maximum PSU Length ........................................................................................................................................................................................................
200 mm, Maximum length of the video card is limited to 288 mm during installation.
Front Panel Interfaces ........................................................................................................................................................................................................
USB 3.0, USB Type-C, audio
USB port location ........................................................................................................................................................................................................
front panel (bottom)
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
207 x 314 x 395 mm
Weight ........................................................................................................................................................................................................
4.5 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
