- Case Logic Concept Dart Pro Mini Black

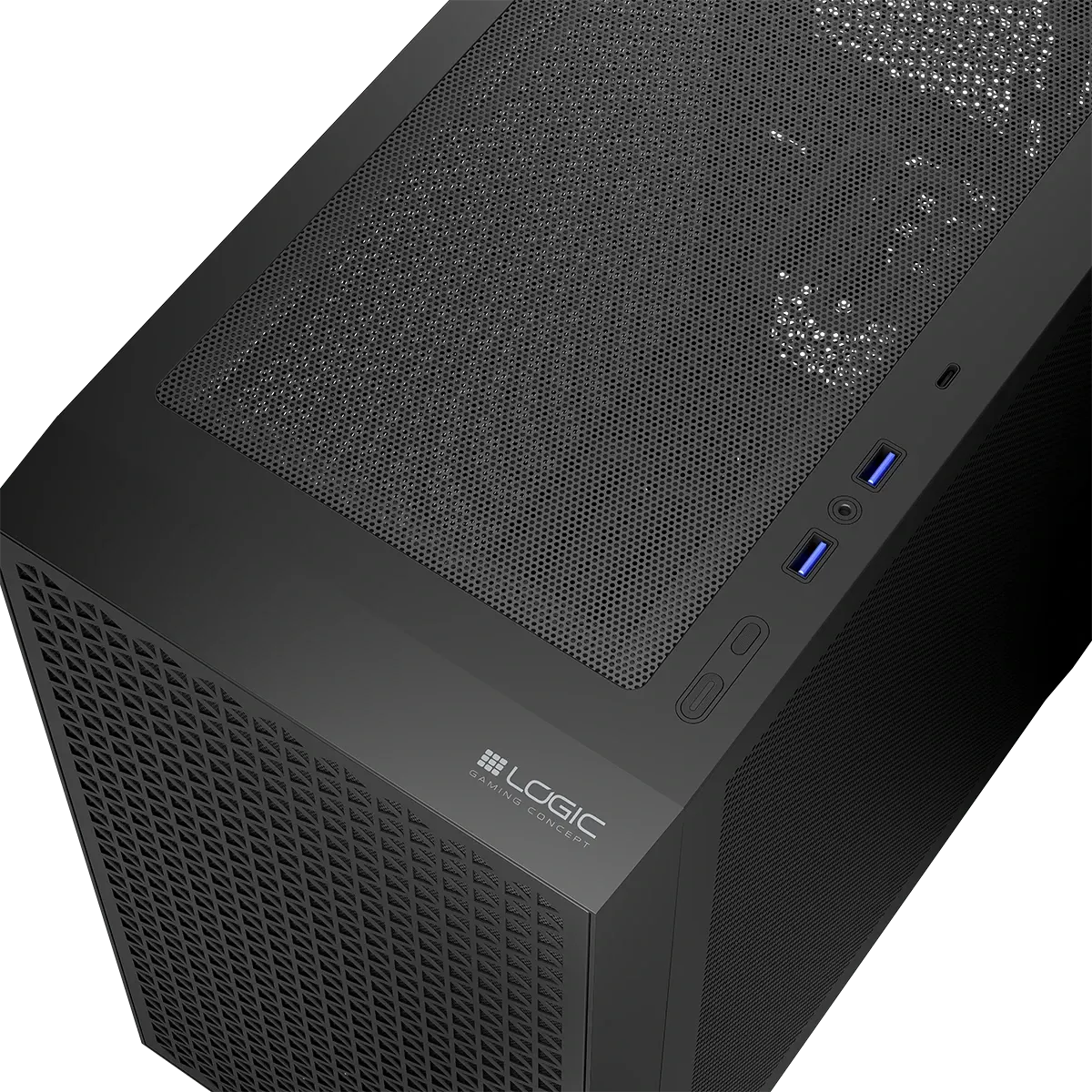

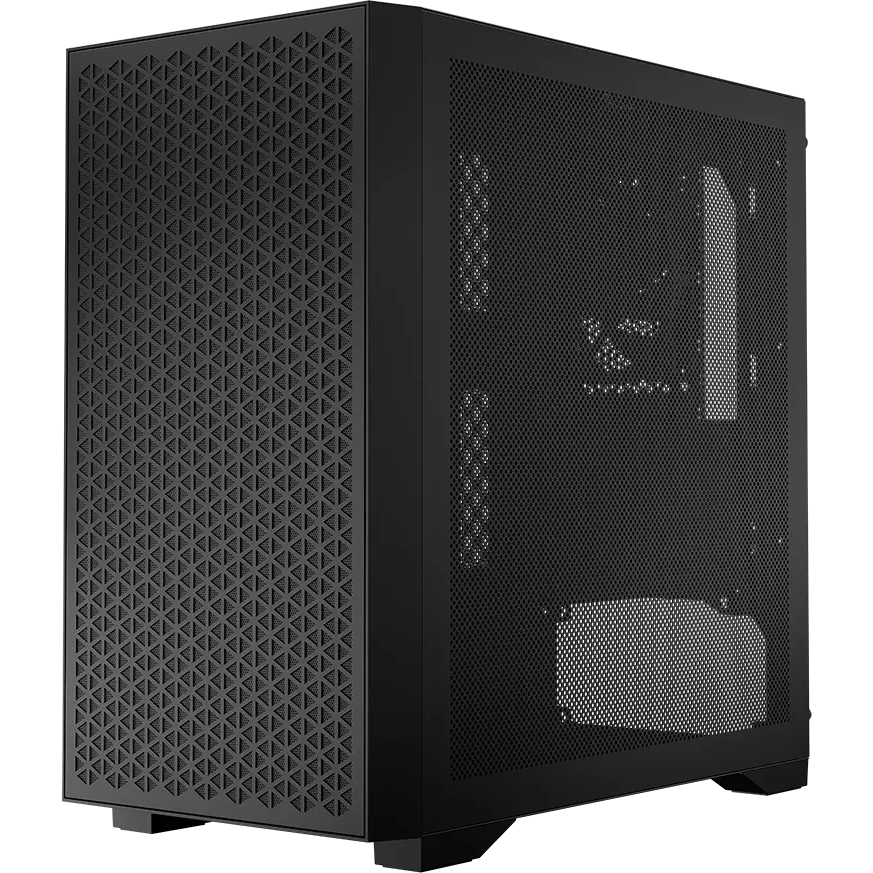

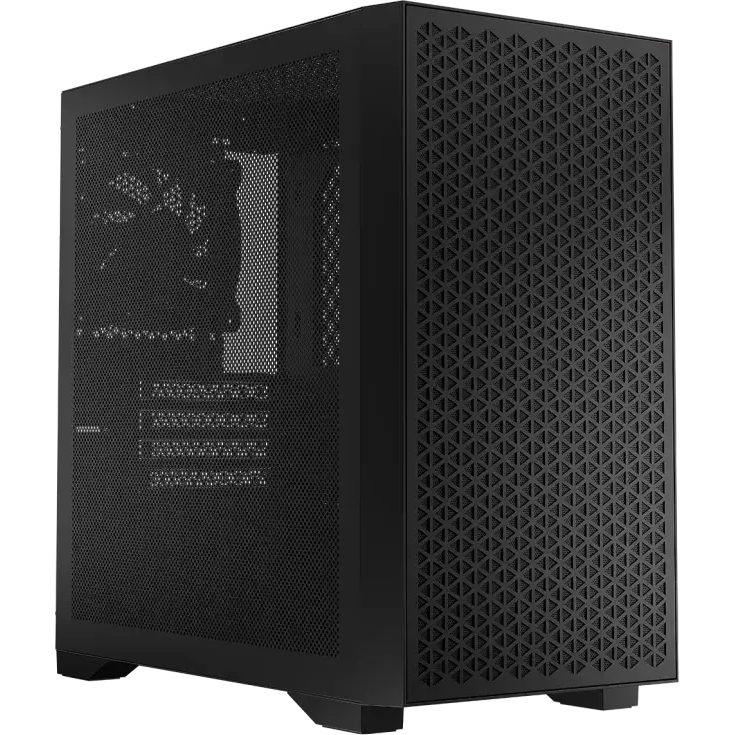

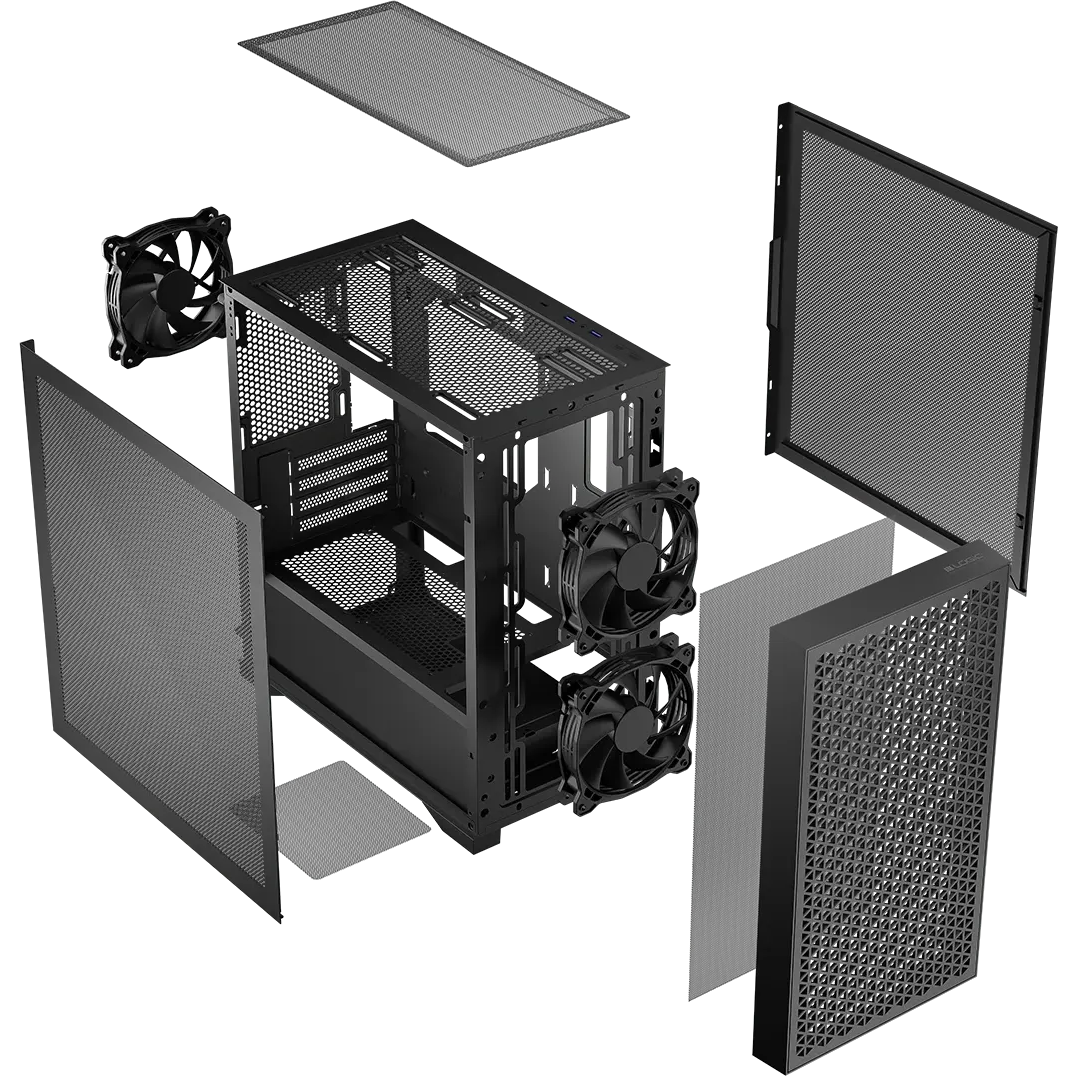

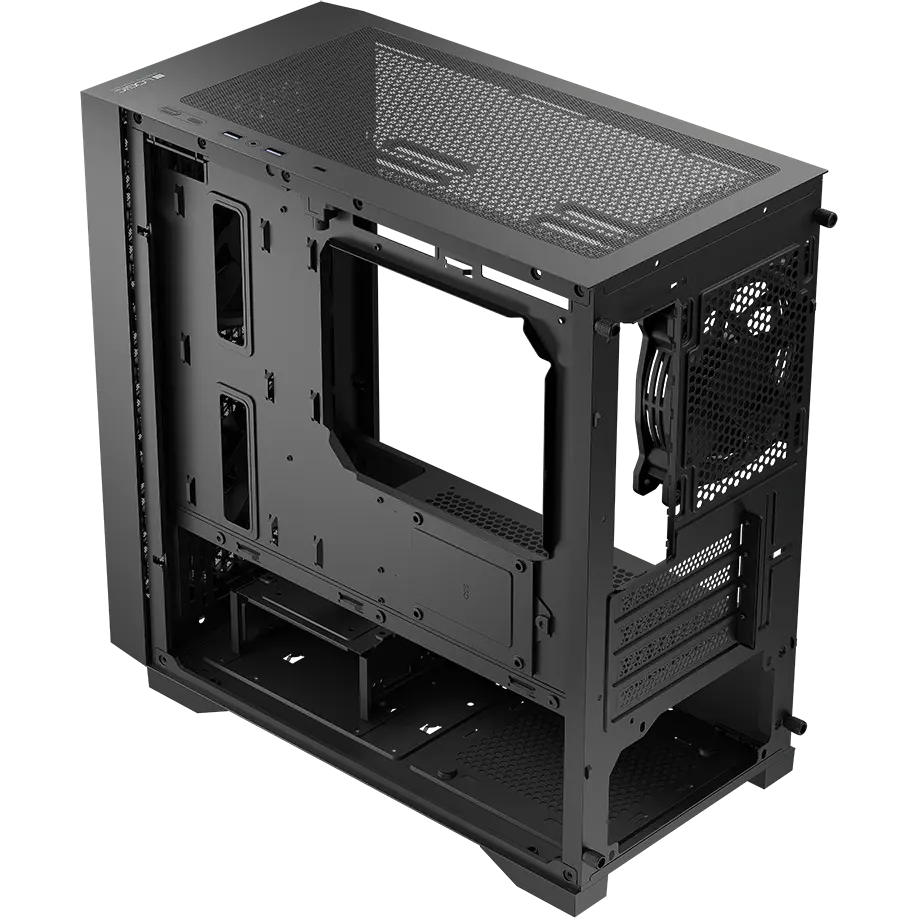

Case Logic Concept Dart Pro Mini Black
ID: 14818
Product Summary
- Case type: Mini-Tower
- Motherboard form factor: ATX, mATX, Mini-ITX
- Power supply: without PSU
- Maximum GPU Length: 340 mm
- Maximum cooler height: 155 mm
- Front Panel Interfaces: 2 x USB 3.0, USB Type-C, audio
Full Specifications
50,60 €50,60 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
AM-DART-PRO-0000-10
Case type ........................................................................................................................................................................................................
Motherboard form factor ........................................................................................................................................................................................................
ATX, mATX, Mini-ITX
Power supply ........................................................................................................................................................................................................
PSU form factor ........................................................................................................................................................................................................
ATX
Power supply location ........................................................................................................................................................................................................
Radiator mounting locations
Liquid Cooling Support ........................................................................................................................................................................................................
yes
Liquid Cooling Mounting Size on Rear Panel ........................................................................................................................................................................................................
120 mm
Front Panel Liquid Cooling System Mounting Size ........................................................................................................................................................................................................
120 mm, 140 mm, 240 mm, 280 mm
Additional fan mounts
Fan Mounting Locations ........................................................................................................................................................................................................
yes
Top Panel ........................................................................................................................................................................................................
2 x 120 mm или 2 x 140 mm
PSU shroud ........................................................................................................................................................................................................
2 x 120 mm
Installed Fans
Included Fans ........................................................................................................................................................................................................
yes
Rear Panel ........................................................................................................................................................................................................
120 mm
Front panel ........................................................................................................................................................................................................
2 x 120 mm
Features
Dust filter ........................................................................................................................................................................................................
on the front panel, on the lower panel, on the top panel
Colors used in design ........................................................................................................................................................................................................
Black
Case Construction
Case material ........................................................................................................................................................................................................
ABS, steel
Front Panel ........................................................................................................................................................................................................
with perforation
Internal 3.5"/2.5" Bays (Convertible) ........................................................................................................................................................................................................
1
Internal 2.5" Bays ........................................................................................................................................................................................................
Internal 3.5" Bays ........................................................................................................................................................................................................
Number of Expansion Slots ........................................................................................................................................................................................................
HDD Placement ........................................................................................................................................................................................................
Vertical SSD/HDD Mounting ........................................................................................................................................................................................................
yes
Maximum GPU Length ........................................................................................................................................................................................................
340 mm
Maximum cooler height ........................................................................................................................................................................................................
155 mm
Maximum PSU Length ........................................................................................................................................................................................................
200 mm
Front Panel Interfaces ........................................................................................................................................................................................................
2 x USB 3.0, USB Type-C, audio
USB port location ........................................................................................................................................................................................................
top panel
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
200 x 375 x 350 mm
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
