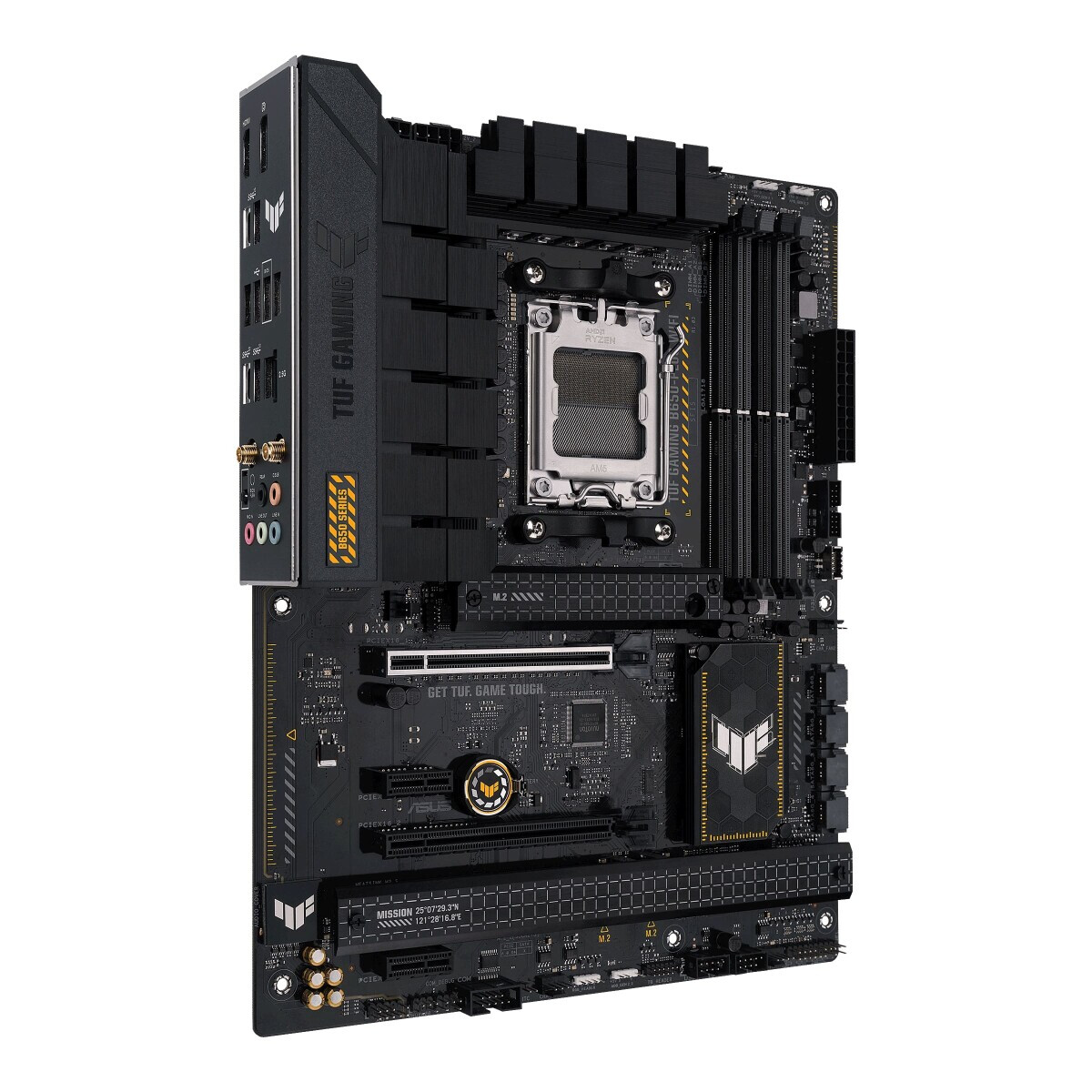

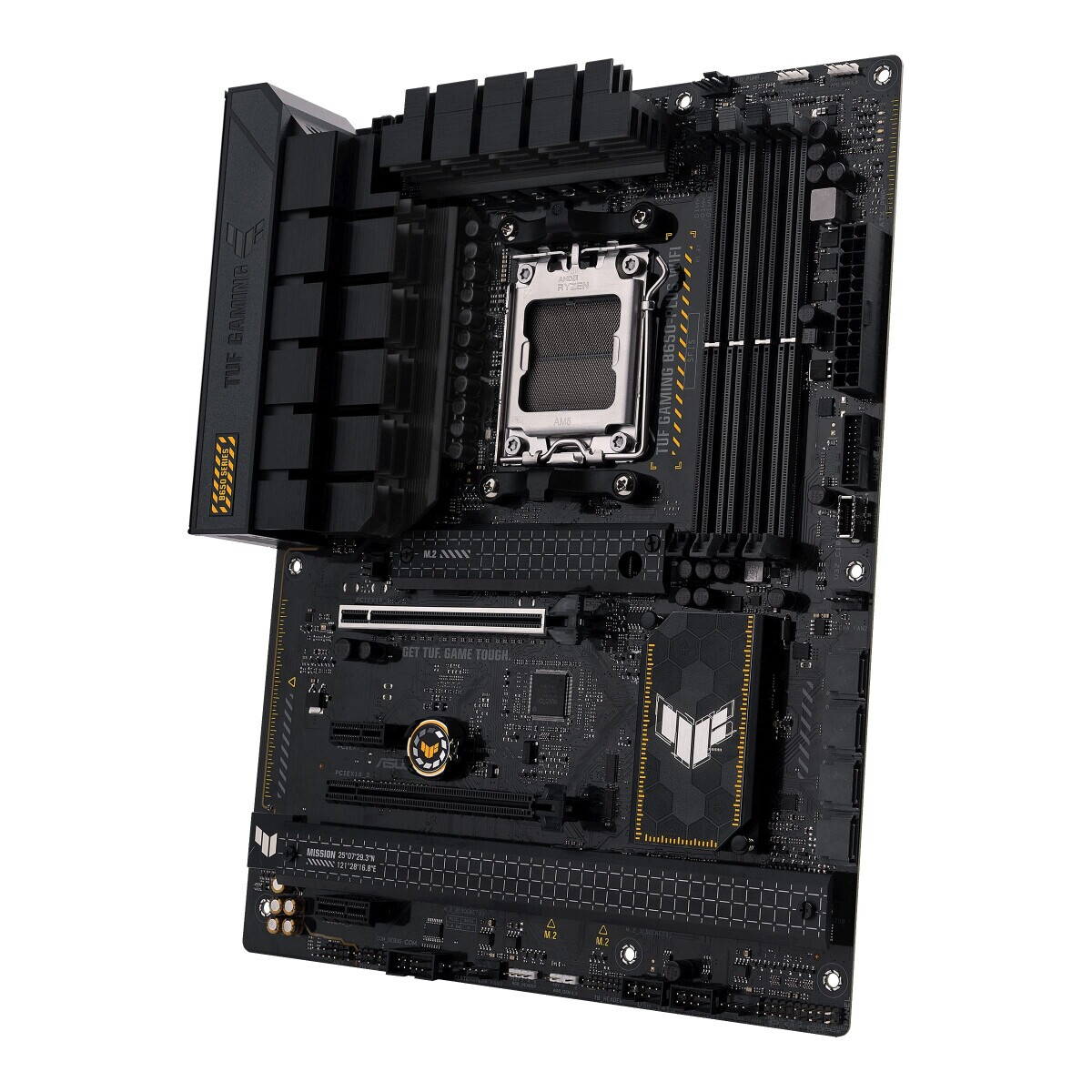

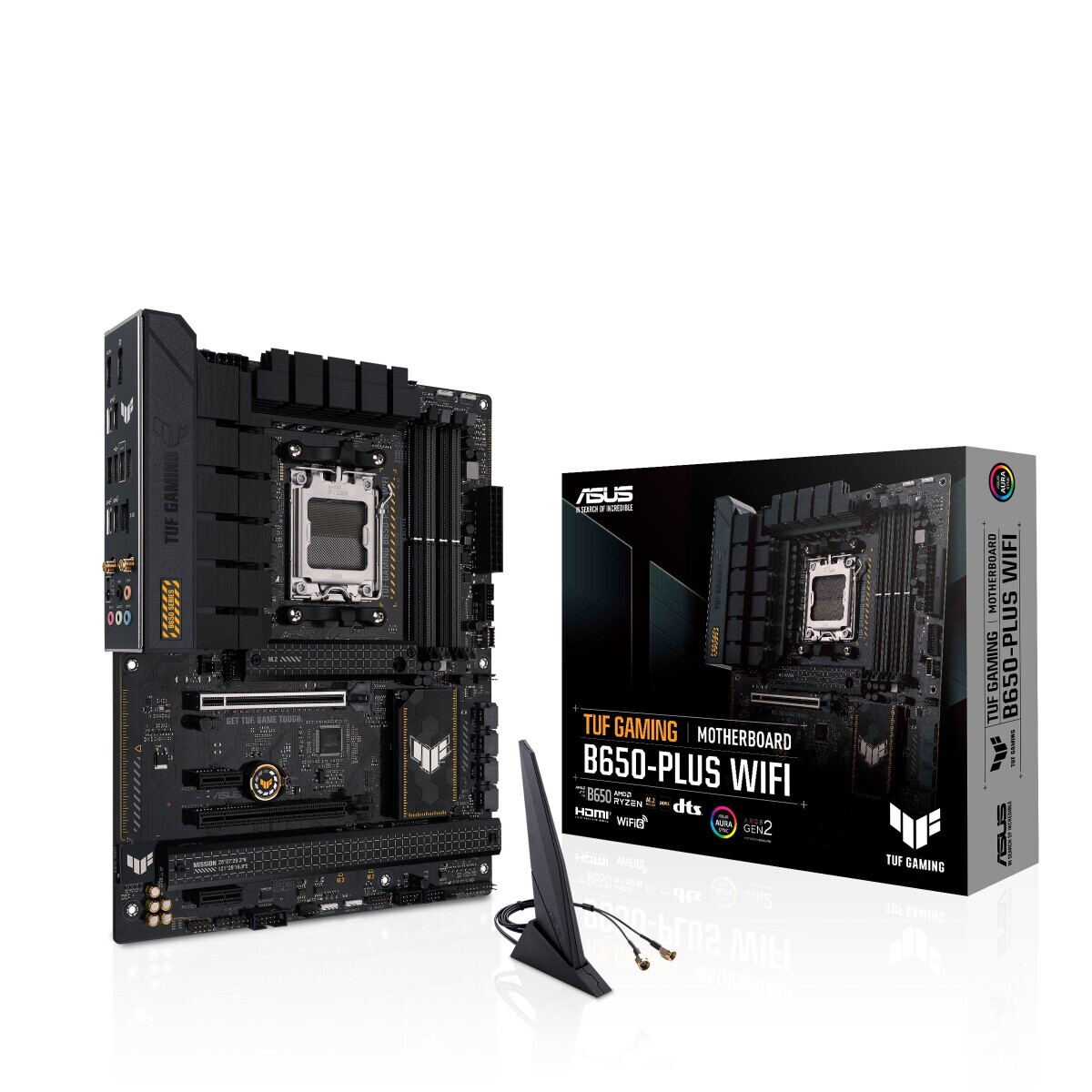

Pamatplate ASUS TUF GAMING B650-PLUS WIFI (90MB1BZ0-M0EAY0)
ID: 1497
Modification
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: 2 x PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 5 x audio jacks, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1BZ0-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Saskarnes

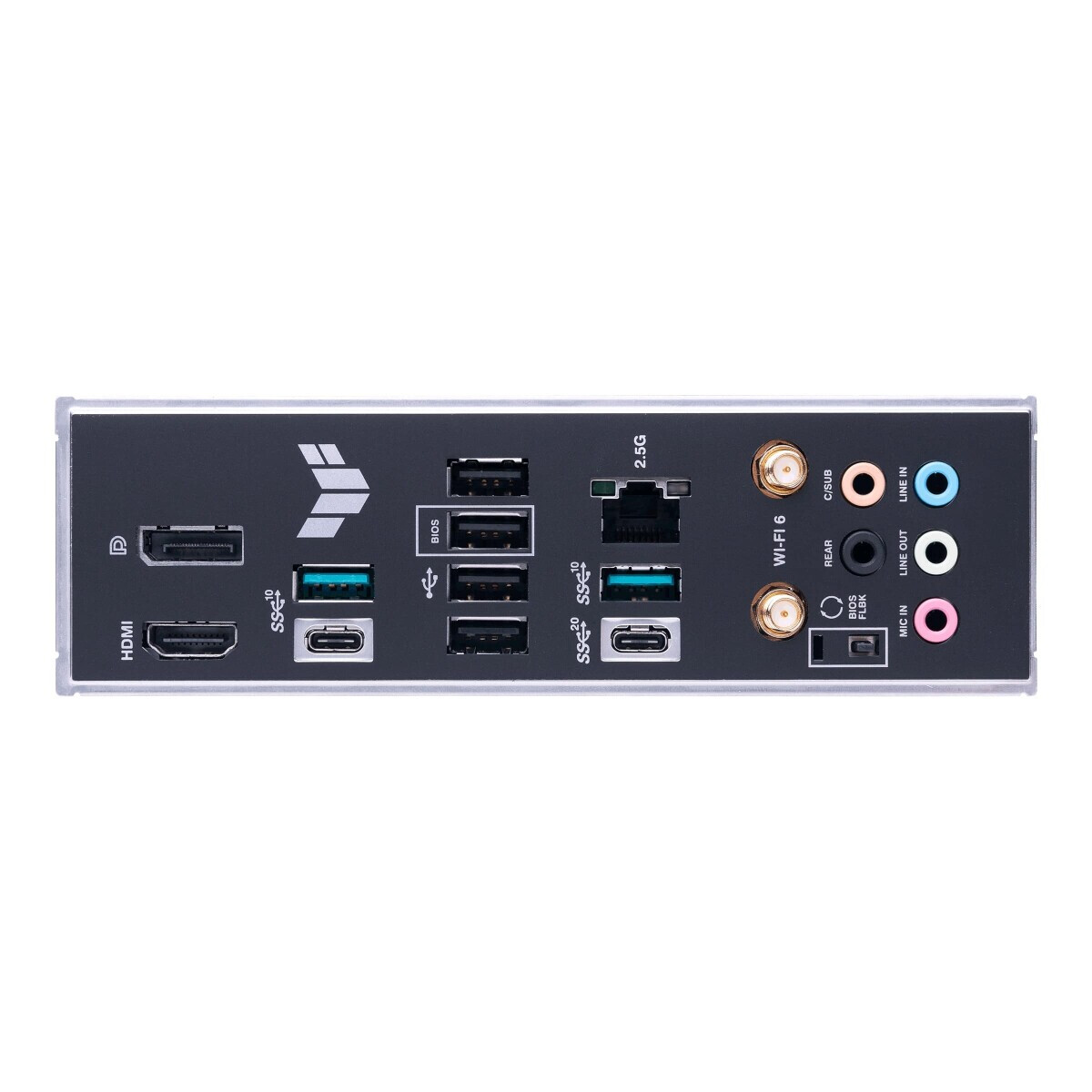

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 5 x audio jacks, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
2 x PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
4-pin, 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C
Papildu informācija ........................................................................................................................................................................................................
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
