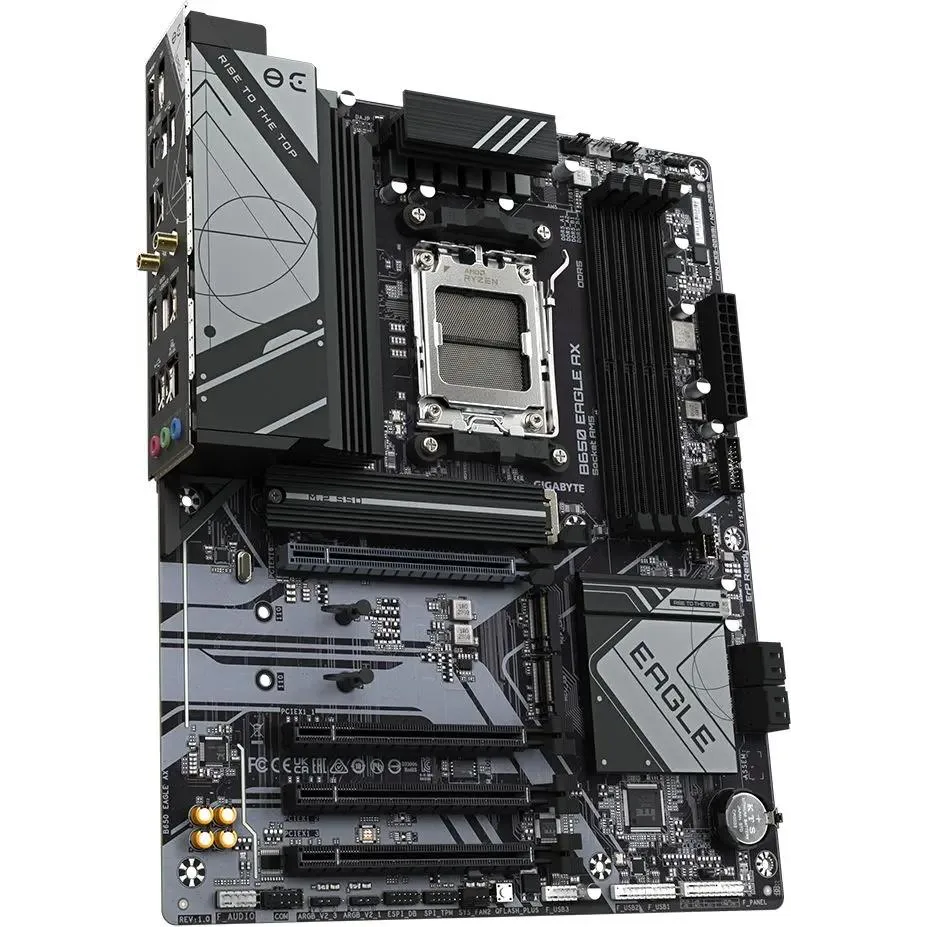

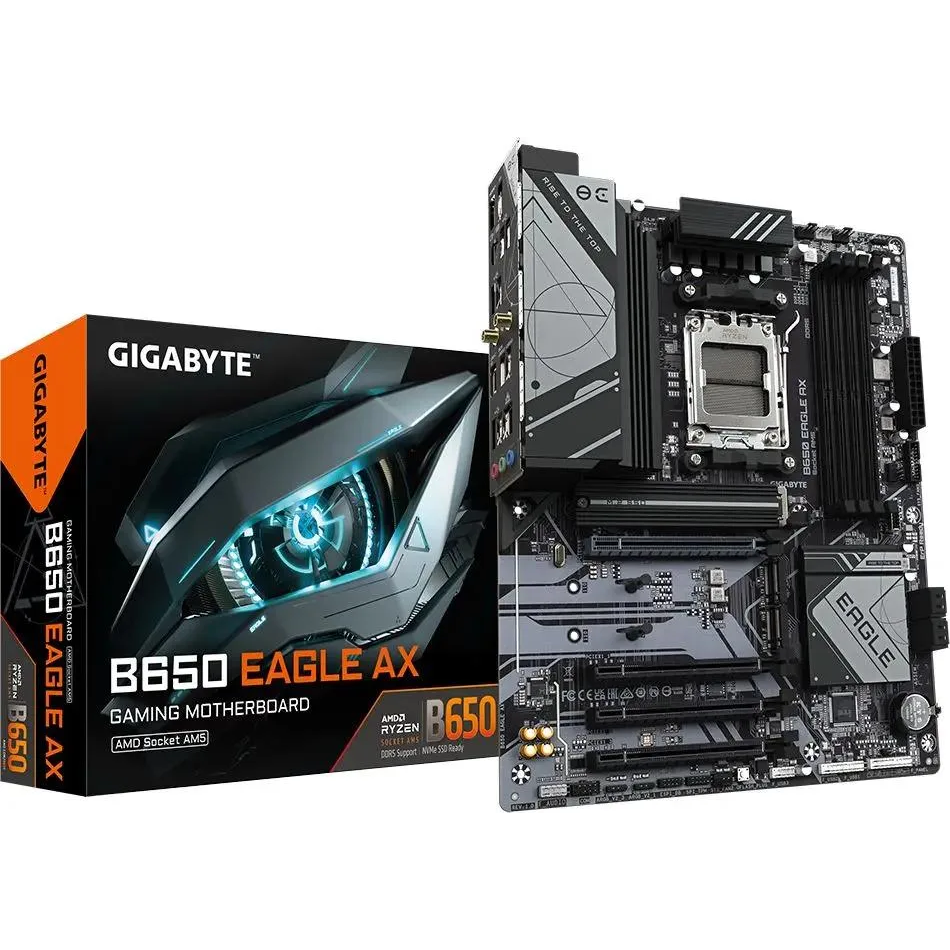

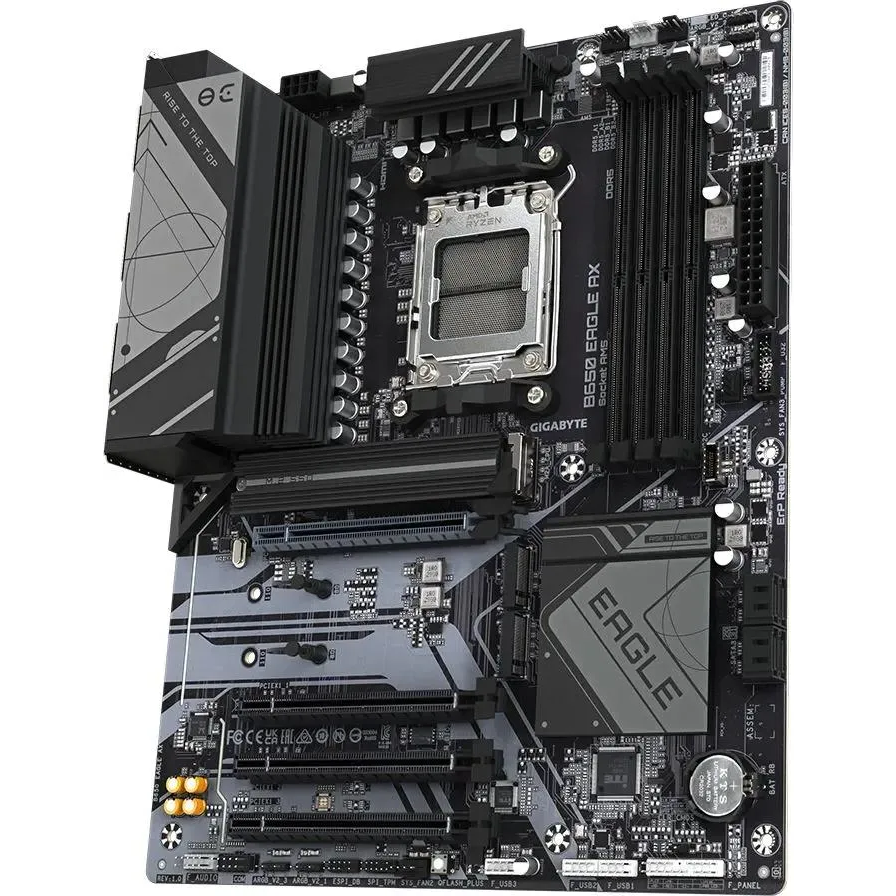

Pamatplate GIGABYTE B650 EAGLE AX AM5 (B650 EAGLE AX)
ID: 1516
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB Type-C, USB 3.0, USB 3.1, HDMI, DisplayPort
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B650 EAGLE AX
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mb/c)
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Saskarnes

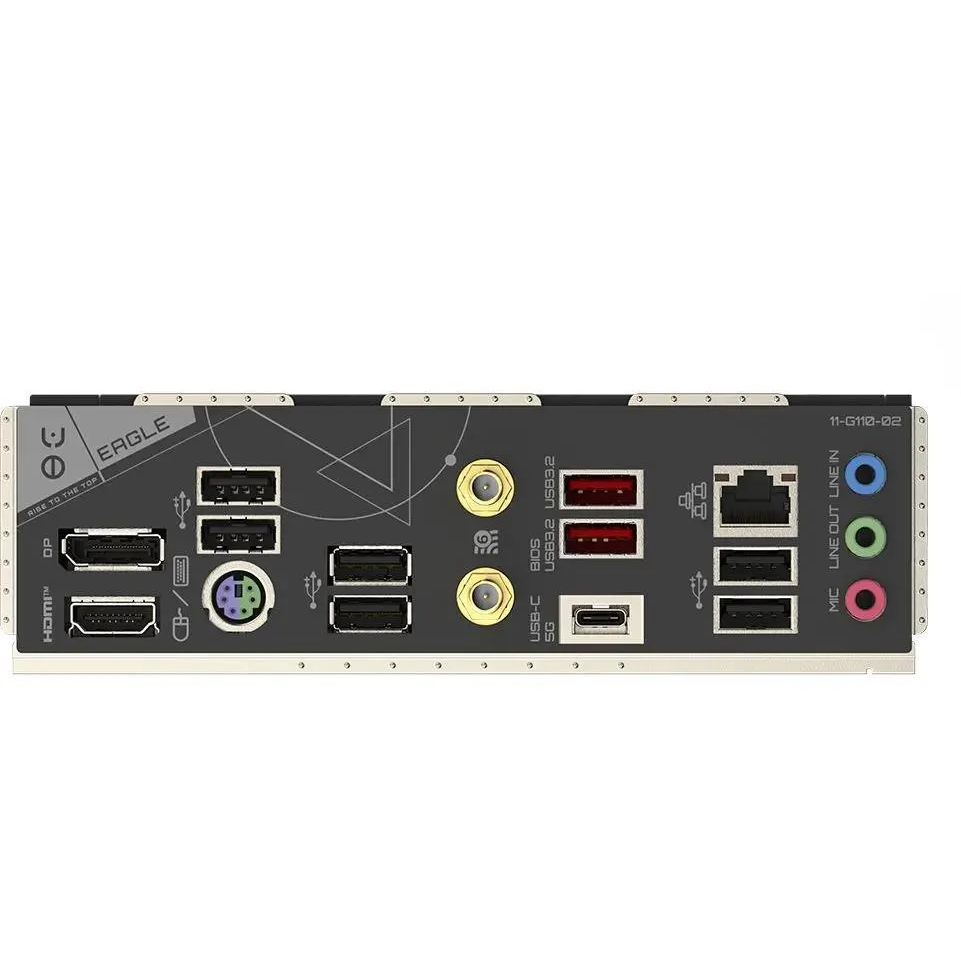

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB Type-C, USB 3.0, USB 3.1, HDMI, DisplayPort
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
