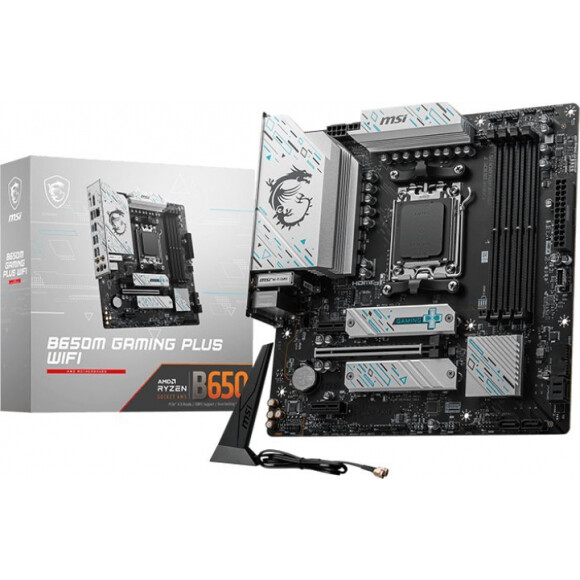

Pamatplate MSI B650M GAMING PLUS WIFI (7E24-001R)

ID: 1634

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B650
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E x16, PCI-E x1, PCI-E M.2
Tīkla saskarne: Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, DisplayPort
Formfaktors: mATX

Full Specifications

140,⁰⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

7E24-001R

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B650

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, DisplayPort

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Formfaktors ........................................................................................................................................................................................................

mATX

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E x16, PCI-E x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
