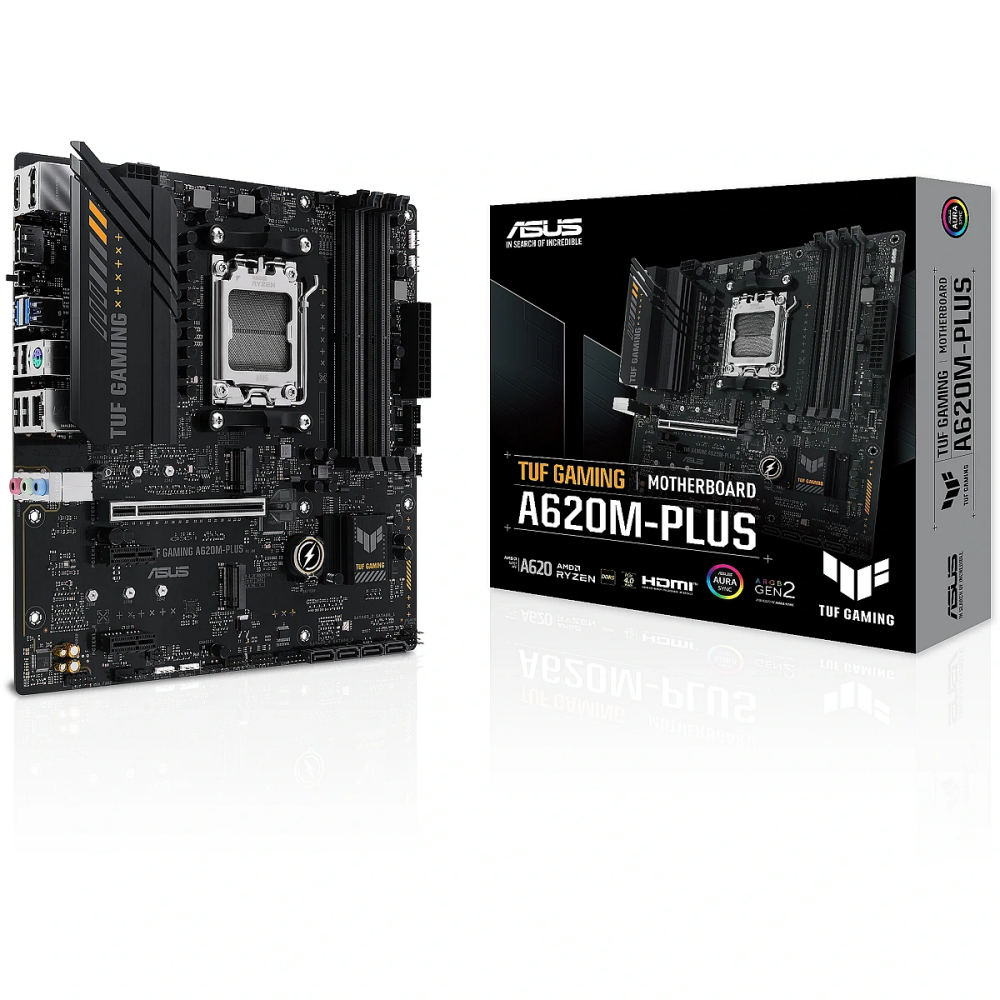

Pamatplate ASUS TUF GAMING A620M-PLUS (90MB1EZ0-M0EAY0)
ID: 1701
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD A620
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCIe 3.0 x1
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.2 Gen1, HDMI, DisplayPort
- Formfaktors: mATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1EZ0-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD A620
Papildu
Formfaktors ........................................................................................................................................................................................................
mATX
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 3.2 Gen1, HDMI, DisplayPort
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCIe 3.0 x1
M.2. slotu veids ........................................................................................................................................................................................................
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620 Chipset
2 x PCIe 3.0 x1 slots
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
