Pamatplate GIGABYTE X870E AORUS PRO

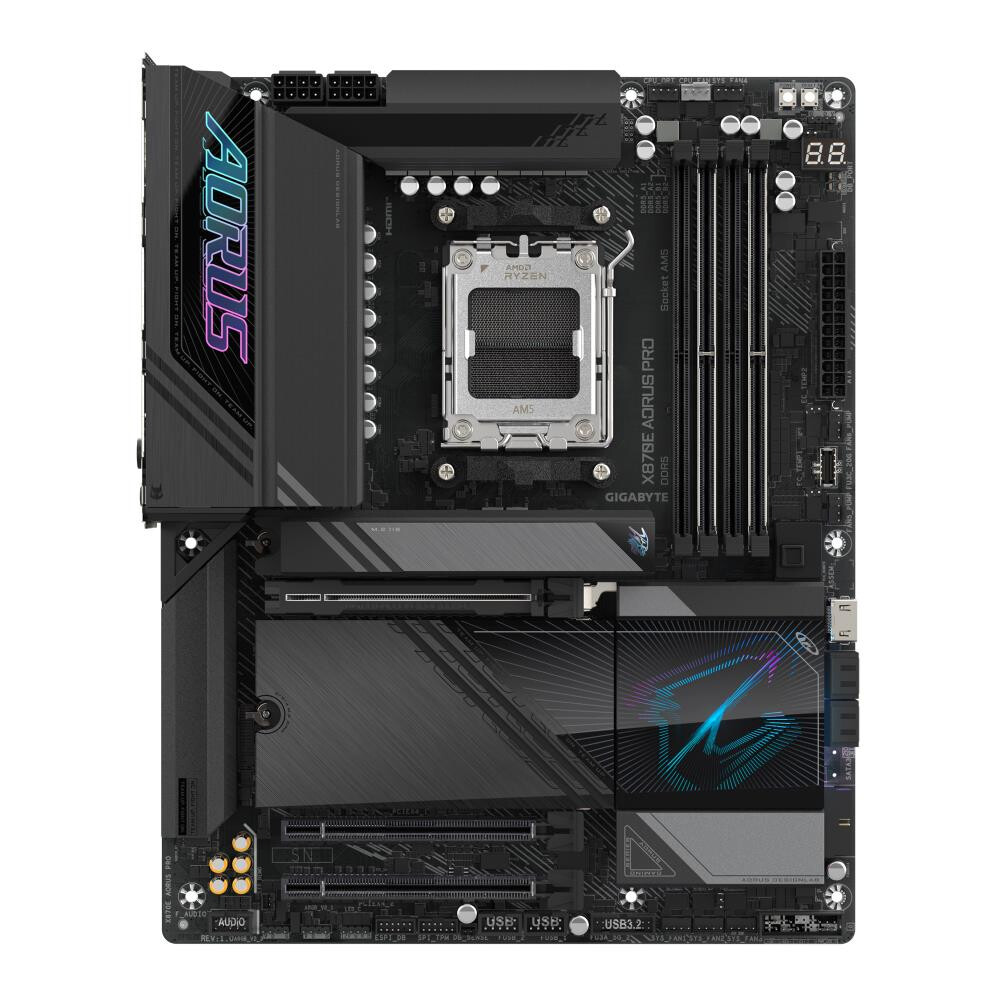

Pamatplate GIGABYTE X870E AORUS PRO

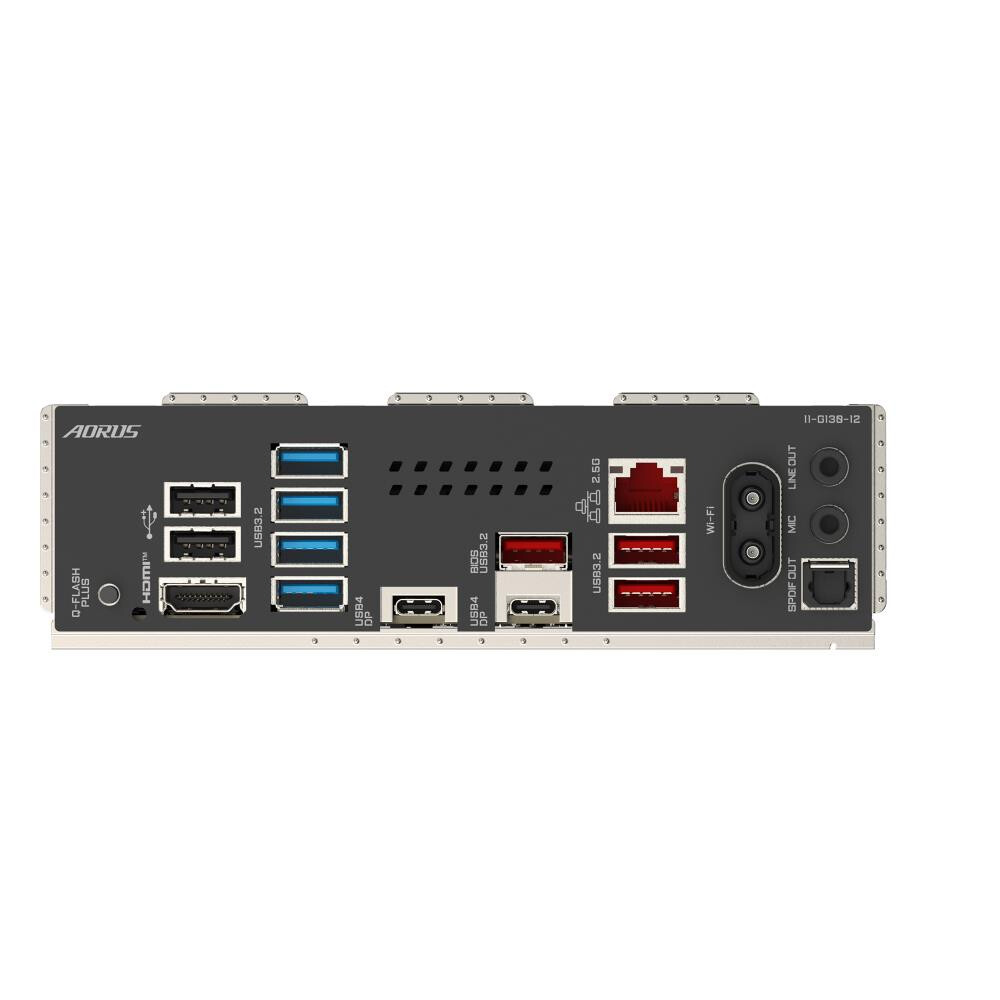

Pamatplate GIGABYTE X870E AORUS PRO - photo 2
Pamatplate GIGABYTE X870E AORUS PRO - photo 3
Pamatplate GIGABYTE X870E AORUS PRO
Pamatplate GIGABYTE X870E AORUS PRO - photo 2
Pamatplate GIGABYTE X870E AORUS PRO - photo 3

ID: 1739

Product Summary
  • Socket: AM5
  • Mikroshēmu kopa (Chipset): AMD X870E
  • Atmiņas slotu skaits: 4
  • Atmiņas veids: DDR5
  • Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x16, 4 x PCI-E M.2
  • Ligzdas aizmugurējā panelī: 2 x USB 2.0, 4 x USB 3.2 Gen1, 3 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)
  • Formfaktors: ATX
Full Specifications

Pamata

Ražotājs  ........................................................................................................................................................................................................
Ražotāja kods  ........................................................................................................................................................................................................
X870E AORUS PRO
Socket  ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset)  ........................................................................................................................................................................................................
AMD X870E

Saskarnes

Ligzdas aizmugurējā panelī  ........................................................................................................................................................................................................
2 x USB 2.0, 4 x USB 3.2 Gen1, 3 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)

Diska kontrolieri

SATA kontrolieris  ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts  ........................................................................................................................................................................................................
0, 1, 5, 10

Audio/Video

Integrētais video  ........................................................................................................................................................................................................
Skaņa  ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris  ........................................................................................................................................................................................................
Realtek ALC1220

Papildu

Formfaktors  ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas  ........................................................................................................................................................................................................
melns

Atmiņa

Atmiņas veids  ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits  ........................................................................................................................................................................................................
4

Paplašināšanas sloti

Paplašināšanas sloti  ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x16, 4 x PCI-E M.2
M.2. slotu veids  ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi  ........................................................................................................................................................................................................
1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Papildus

Garantija  ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa  ........................................................................................................................................................................................................

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
