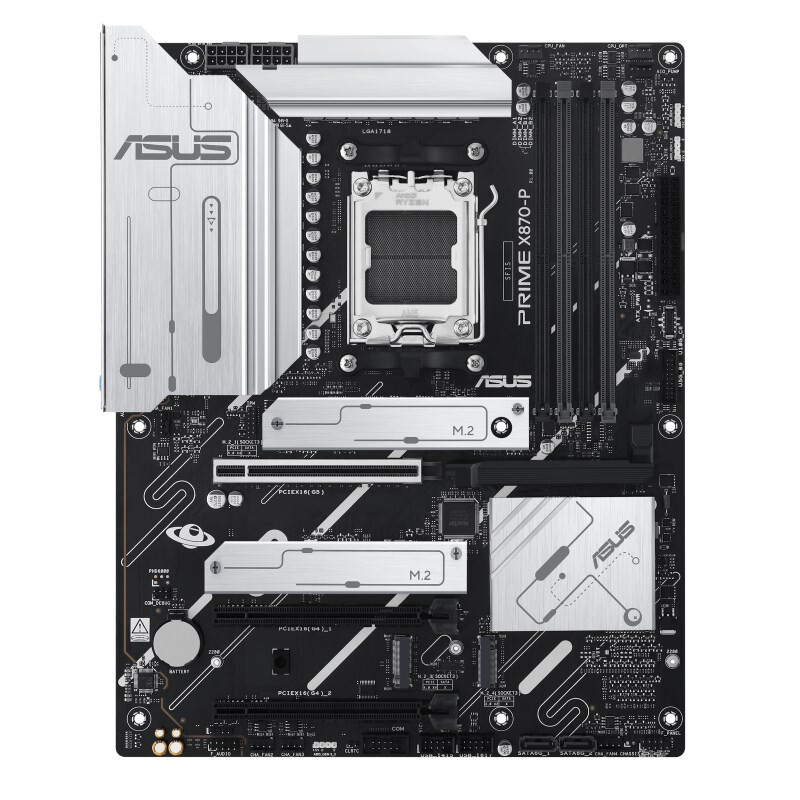

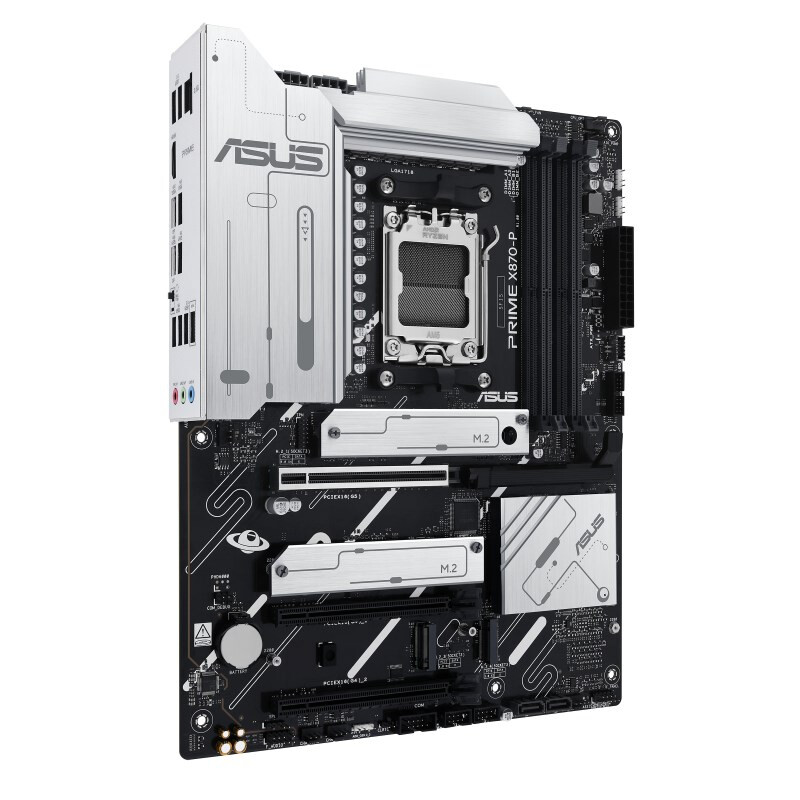

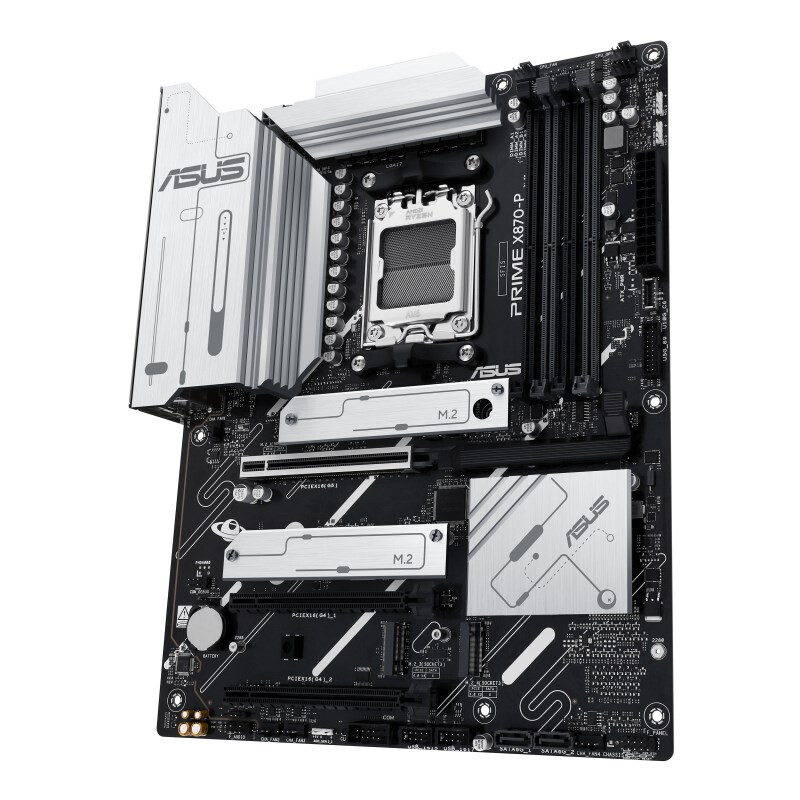

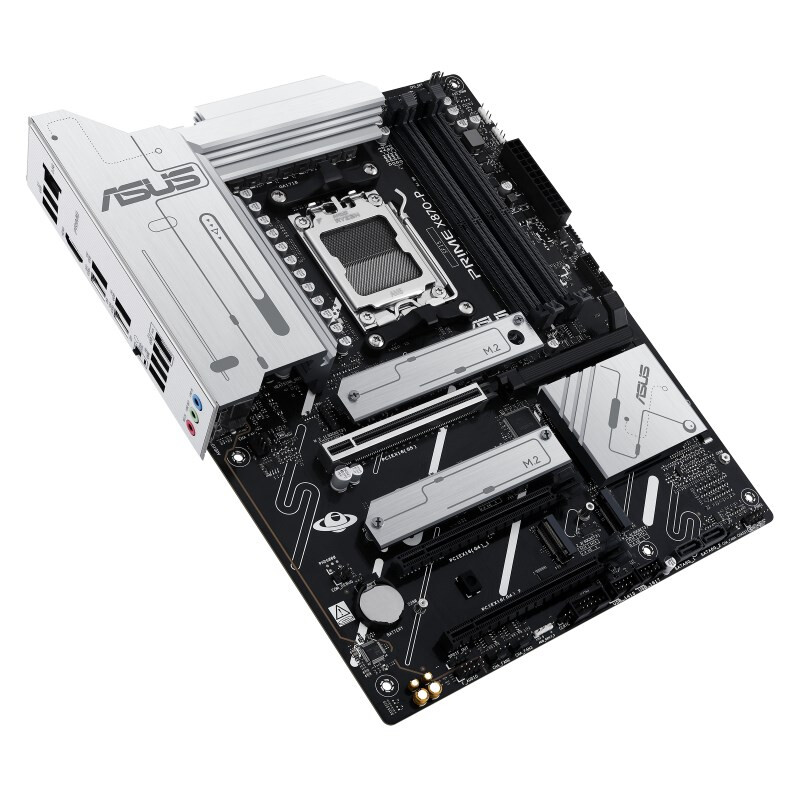

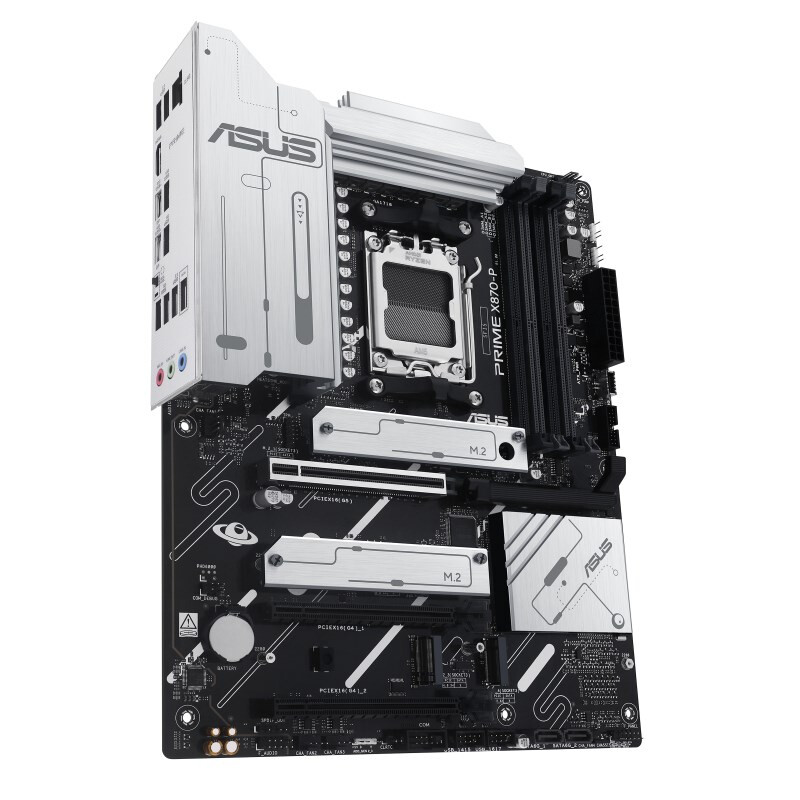

Pamatplate ASUS PRIME X870-P (90MB1IT0-M0EAY0)
ID: 1749
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD X870
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 4 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1IT0-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Saskarnes

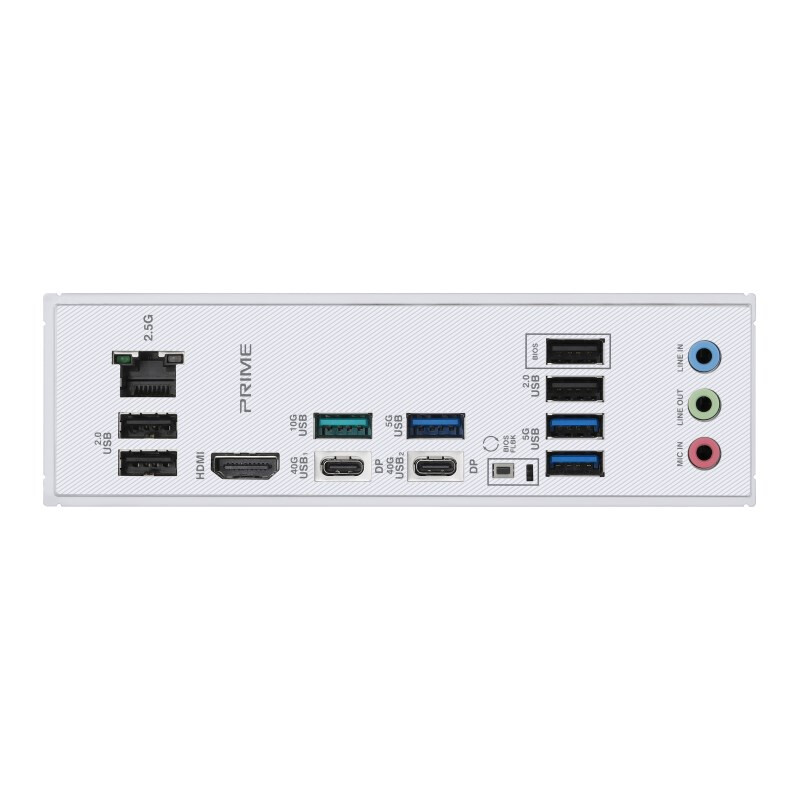

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, DisplayPort, RJ-45
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
2 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 4 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
