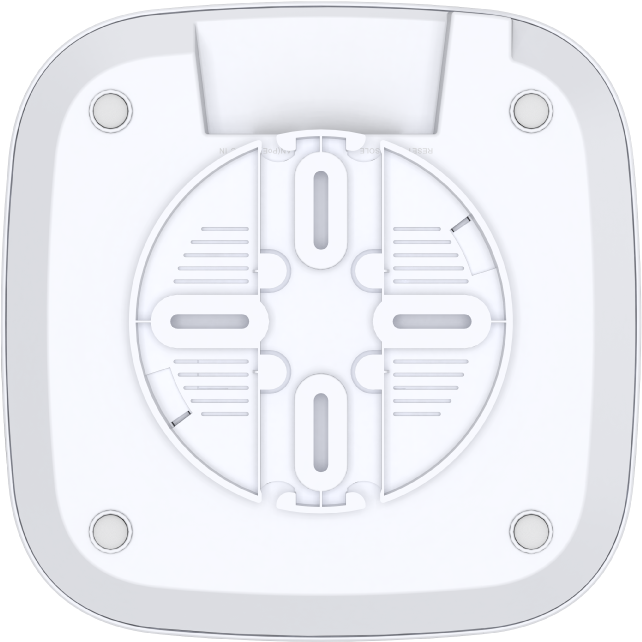

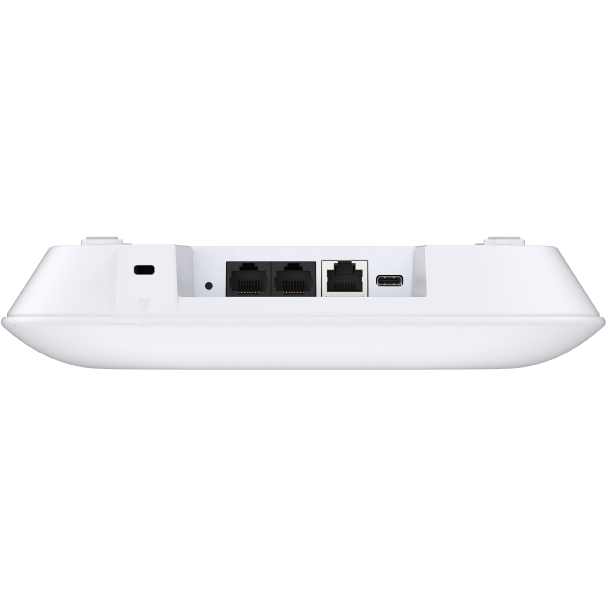

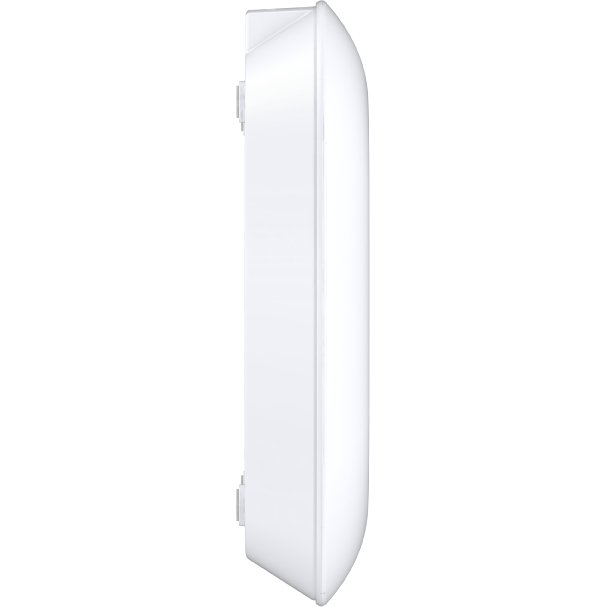

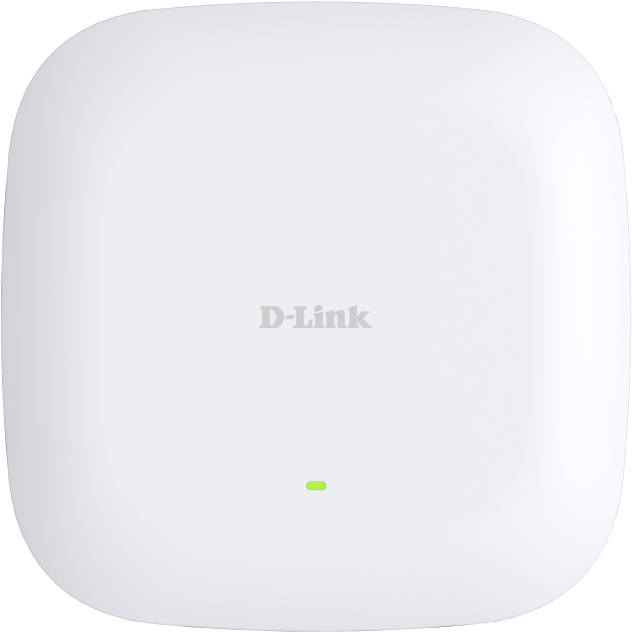

Point d'accès Wi-Fi D-Link DAP-E9560

ID: 17678

Product Summary

Wireless Standard: Wi-Fi 7 (802.11be)
Frequency Range: 2.4 GHz, 5 GHz, 6 GHz
Maximum Wireless Connection Speed: 9334 Mbps
Number of WAN Ports: 1
WAN Port Type: RJ-45 (10 Gbps)
Number of LAN ports: 1
LAN port type: RJ-45 (2.5 Gbps)

Full Specifications

276,⁷⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

D-Link

Manufacturer Code ........................................................................................................................................................................................................

DAP-E9560

Wireless Standard ........................................................................................................................................................................................................

Wi-Fi 7 (802.11be)

Frequency Range ........................................................................................................................................................................................................

2.4 GHz, 5 GHz, 6 GHz

Maximum speed at 2.4 GHz ........................................................................................................................................................................................................

688 Mbps

Maximum speed at 5 GHz ........................................................................................................................................................................................................

2882 Mbps

Maximum speed at 6 GHz frequency ........................................................................................................................................................................................................

5764 Mbps

Maximum Wireless Connection Speed ........................................................................................................................................................................................................

9334 Mbps

Simultaneous Dual-Band Support ........................................................................................................................................................................................................

yes

Number of Simultaneously Operating Bands ........................................................................................................................................................................................................

Power over PoE ........................................................................................................................................................................................................

yes

Mounting Option ........................................................................................................................................................................................................

Wall mounting

Antenna

Antenna Gain ........................................................................................................................................................................................................

3.3 dBi, 4.8 dBi, 4.6 dBi

Functions and technologies

Information Protection ........................................................................................................................................................................................................

802.1x, WPA, WPA2, WPA3

Bridge Mode (WDS) ........................................................................................................................................................................................................

yes

Management

Web Interface ........................................................................................................................................................................................................

yes

SNMP Support ........................................................................................................................................................................................................

yes

Telnet Support ........................................................................................................................................................................................................

yes

SSH Support ........................................................................................................................................................................................................

yes

Interfaces

Number of WAN Ports ........................................................................................................................................................................................................

WAN Port Type ........................................................................................................................................................................................................

RJ-45 (10 Gbps)

Number of LAN ports ........................................................................................................................................................................................................

LAN port type ........................................................................................................................................................................................................

RJ-45 (2.5 Gbps)

Console Port (CLI) ........................................................................................................................................................................................................

RJ-45

Special Feature

Dimensions (WxHxD) ........................................................................................................................................................................................................

223 x 47 x 223 mm

Weight ........................................................................................................................................................................................................

1.167 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.dlink.com
