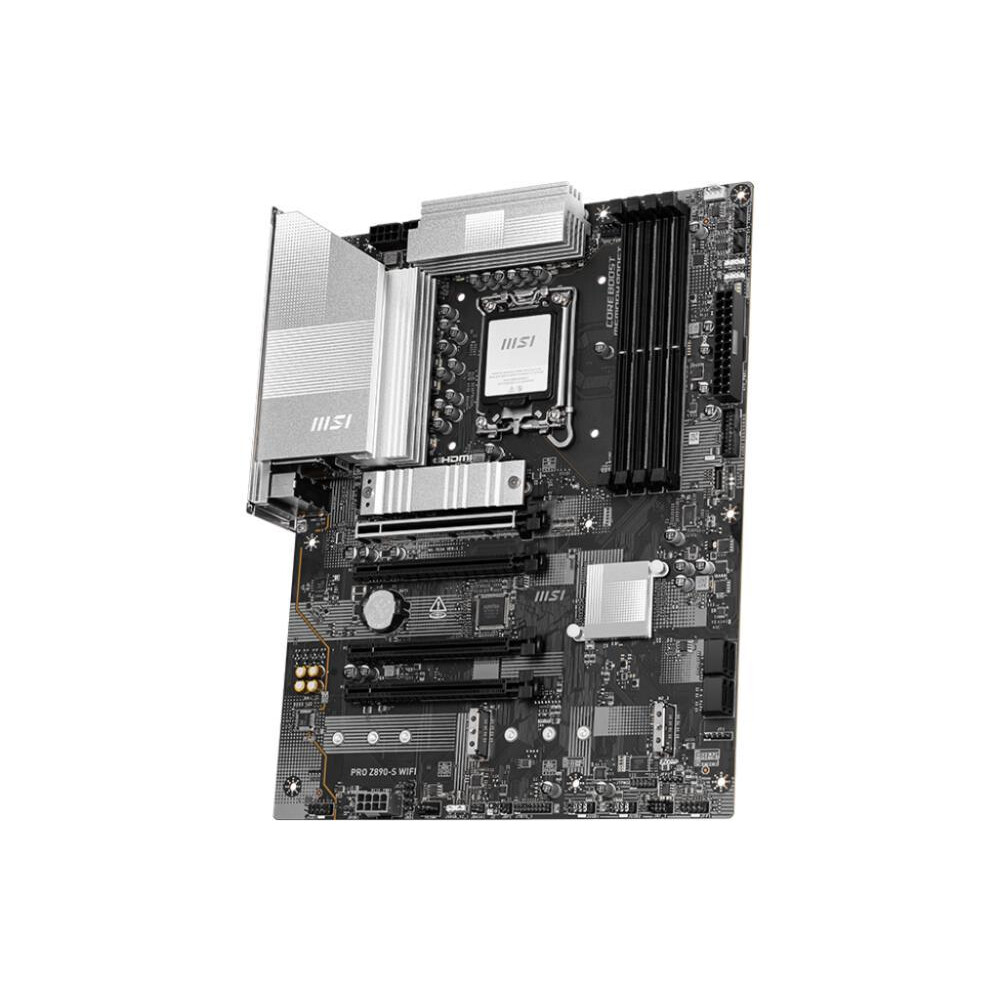

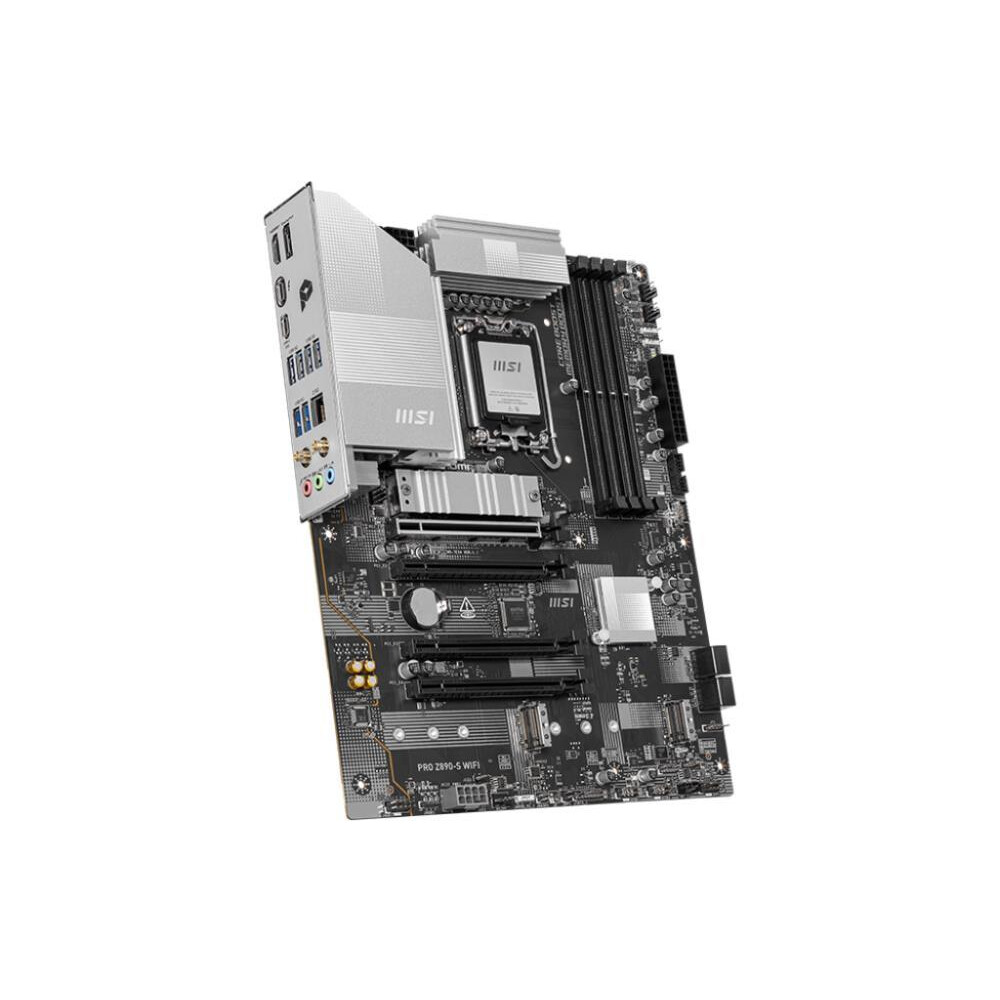

Pamatplate MSI PRO Z890-S WIFI (PROZ890-SWIFI)

ID: 1794

Product Summary

Socket: LGA1851
Mikroshēmu kopa (Chipset): Intel Z890
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 4 x PCI-E x16, 3 x PCI-E M.2
Tīkla saskarne: Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, USB Type-C, 2 x USB 3.0, HDMI, DisplayPort, Thunderbolt 4/USB-C
Formfaktors: ATX

Full Specifications

188,⁷⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

PROZ890-SWIFI

Socket ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z890

Saskarnes

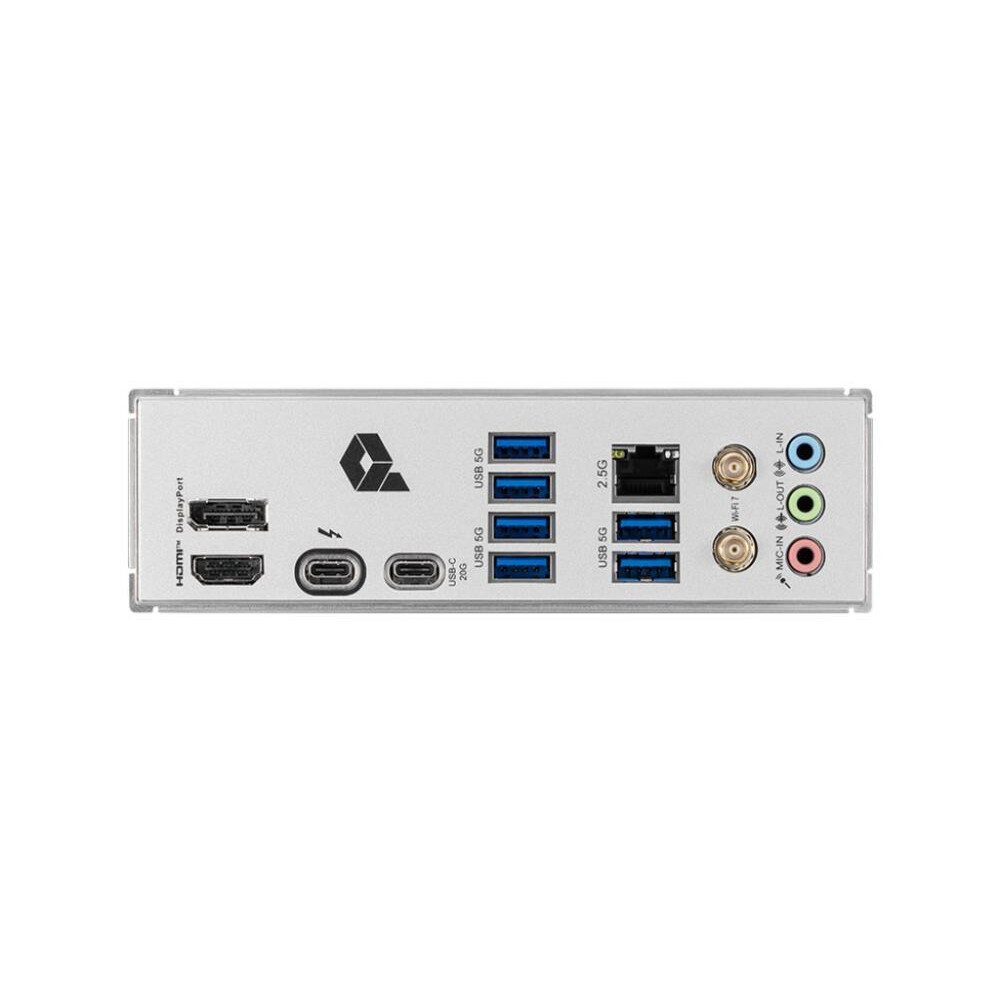

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, USB Type-C, 2 x USB 3.0, HDMI, DisplayPort, Thunderbolt 4/USB-C

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Formfaktors ........................................................................................................................................................................................................

ATX

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

4 x PCI-E x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
