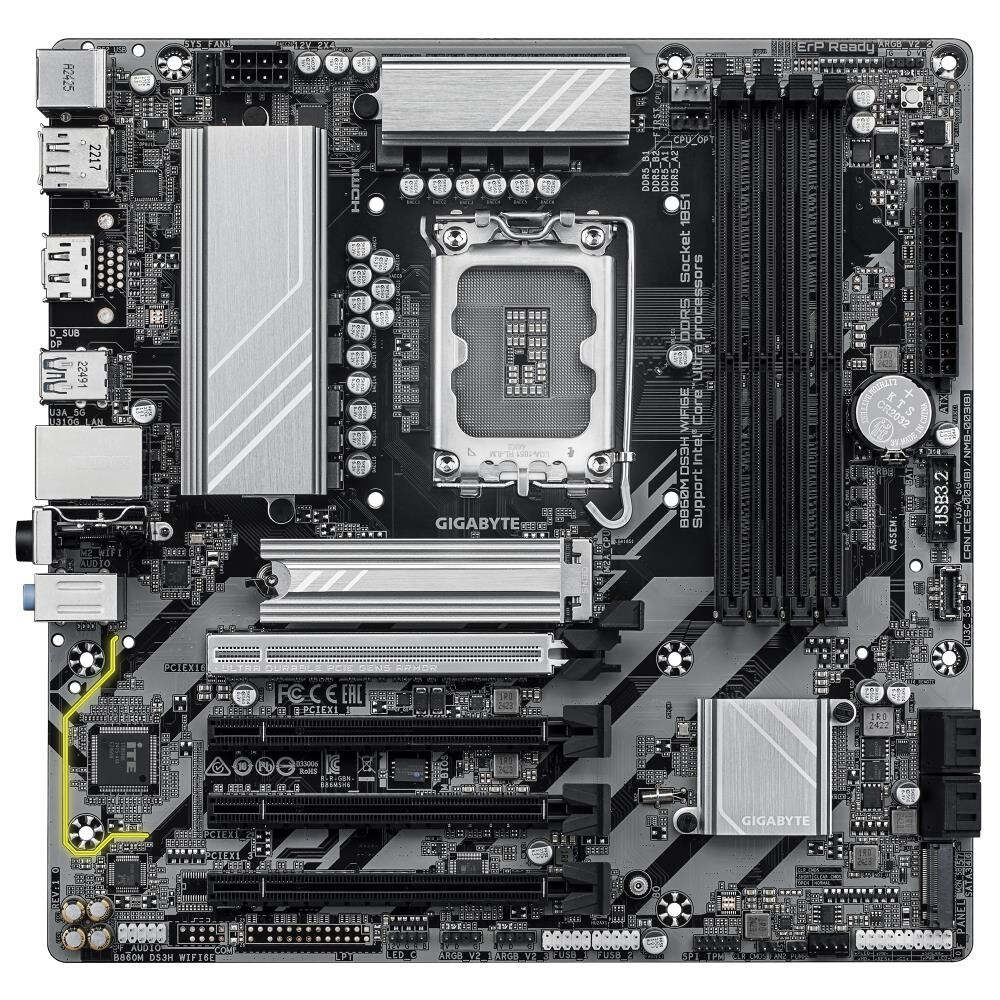

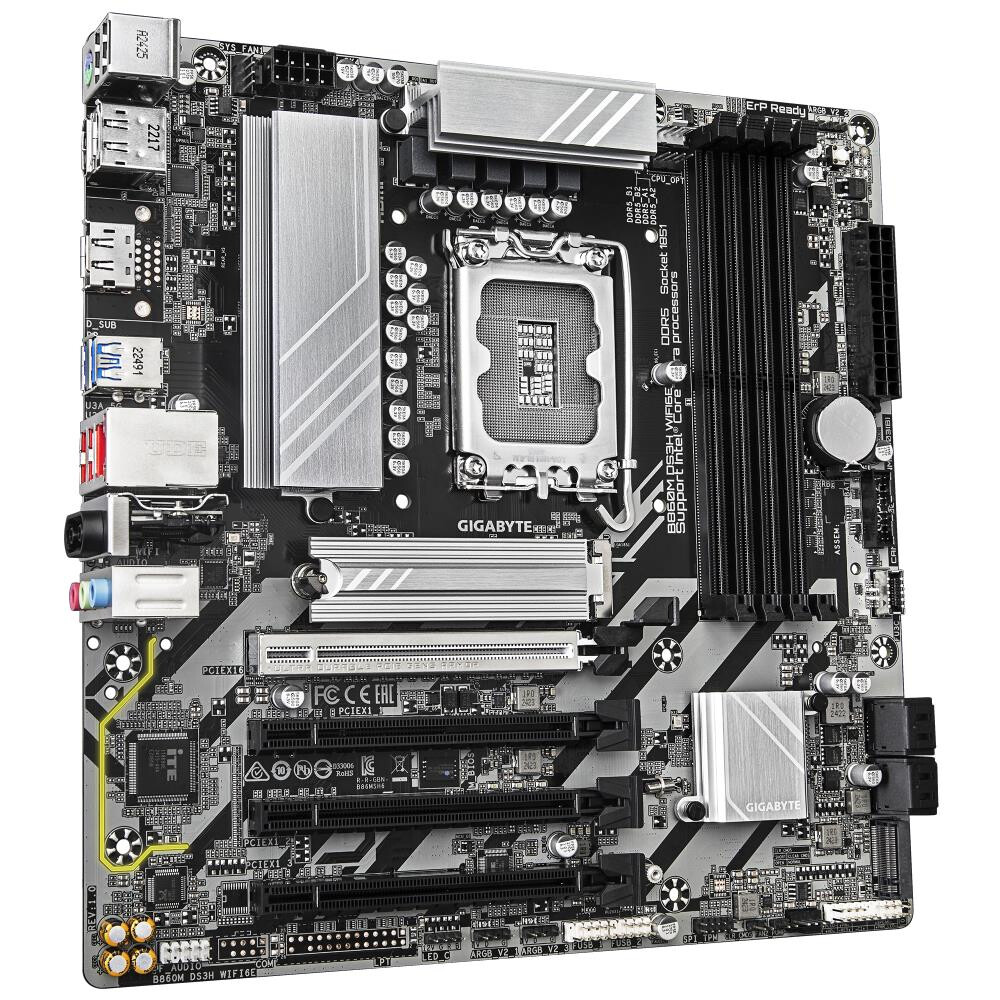

Pamatplate GIGABYTE B860M DS3H WIFI6E (B860M DS3H WIFI6E 1.0)
ID: 1807
Product Summary
- Socket: LGA1851
- Mikroshēmu kopa (Chipset): Intel B860
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 2 x PCI-E M.2
- Grafiskā mikroshēmas kopa: Intel HD Graphics
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: PS/2, 3 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, 2 x DisplayPort, RJ-45
- Formfaktors: mATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B860M DS3H WIFI6E 1.0
Socket ........................................................................................................................................................................................................
LGA1851
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B860
Saskarnes

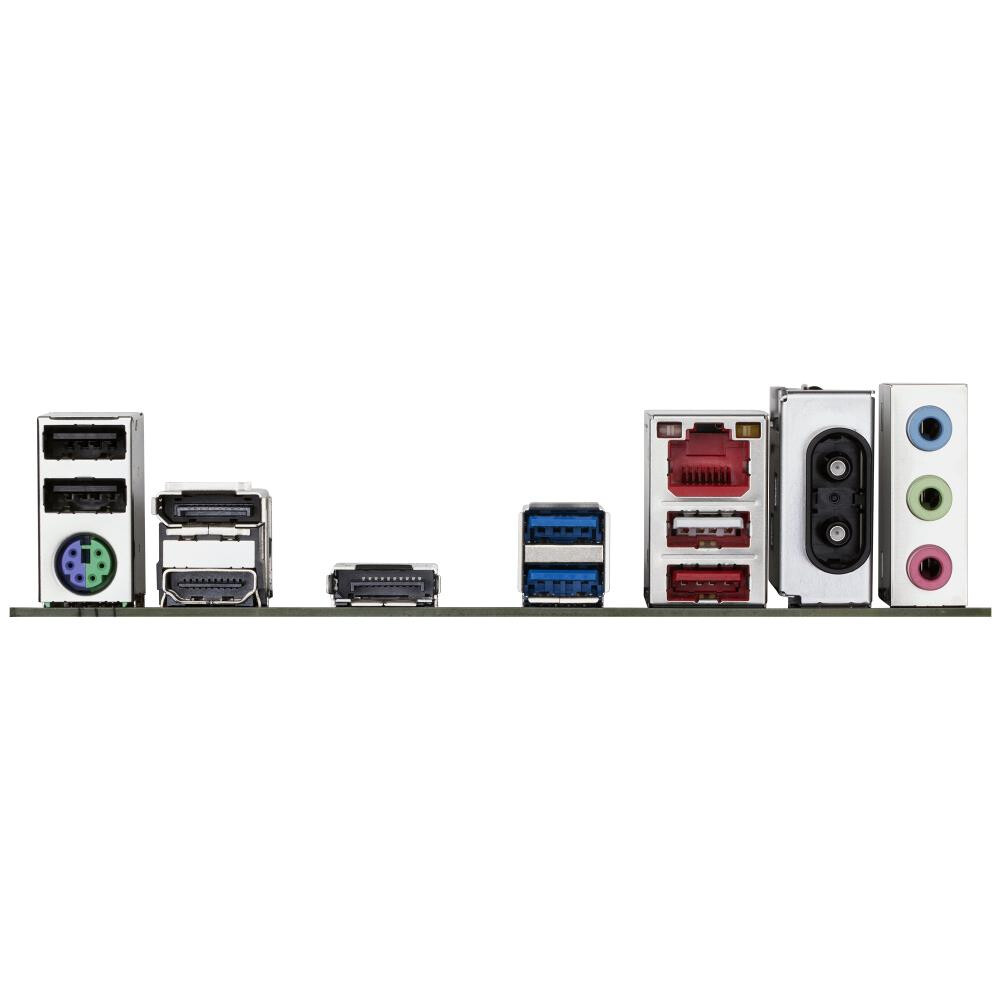

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, 3 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, 2 x DisplayPort, RJ-45
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Intel HD Graphics
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Papildu
Formfaktors ........................................................................................................................................................................................................
mATX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
