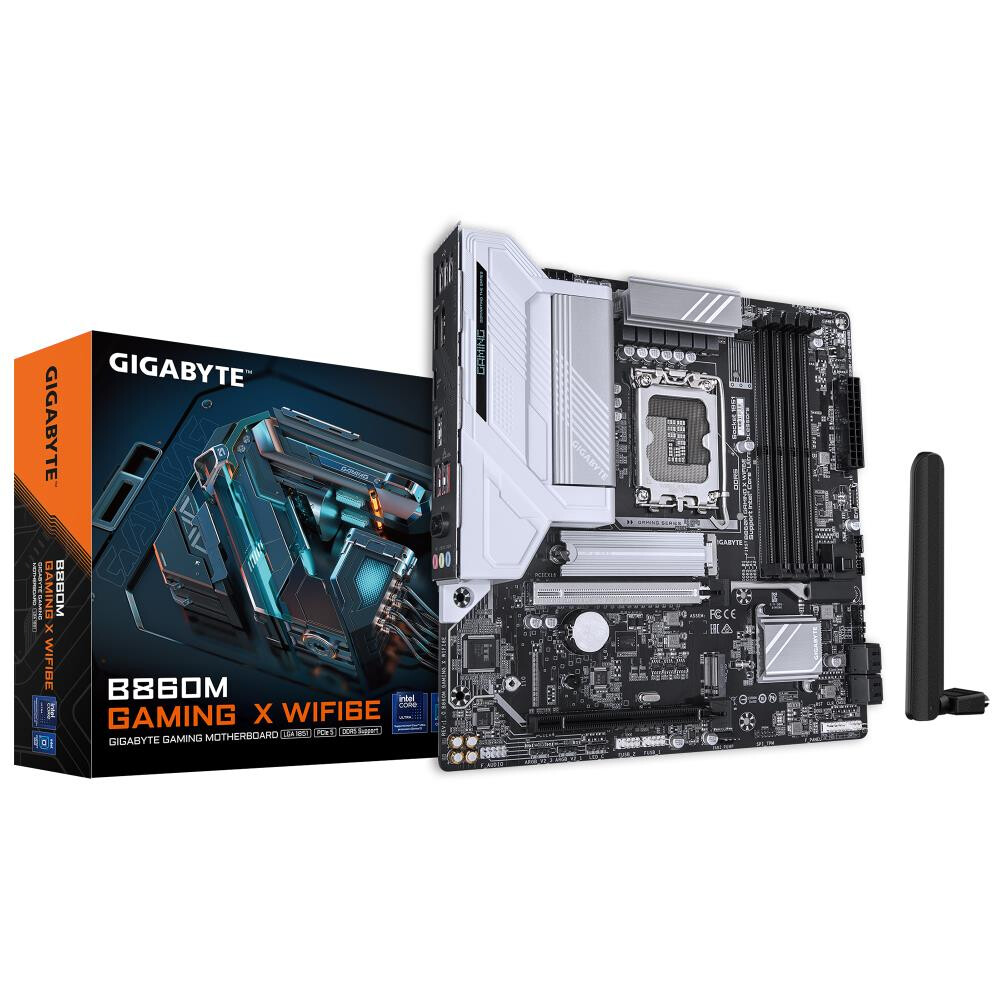

Motherboard GIGABYTE B860M GAMING X WIFI6E

ID: 1825

Product Summary

Socket: LGA1851
Chipset: Intel B860
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Rear panel connectors: 5 x USB 2.0, 3 x USB 32 Gen1, USB 4 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Form factor: mATX

Full Specifications

169,⁵⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

B860M GAMING X WIFI6E 1.0

Socket ........................................................................................................................................................................................................

LGA1851

Chipset ........................................................................................................................................................................................................

Intel B860

Interfaces

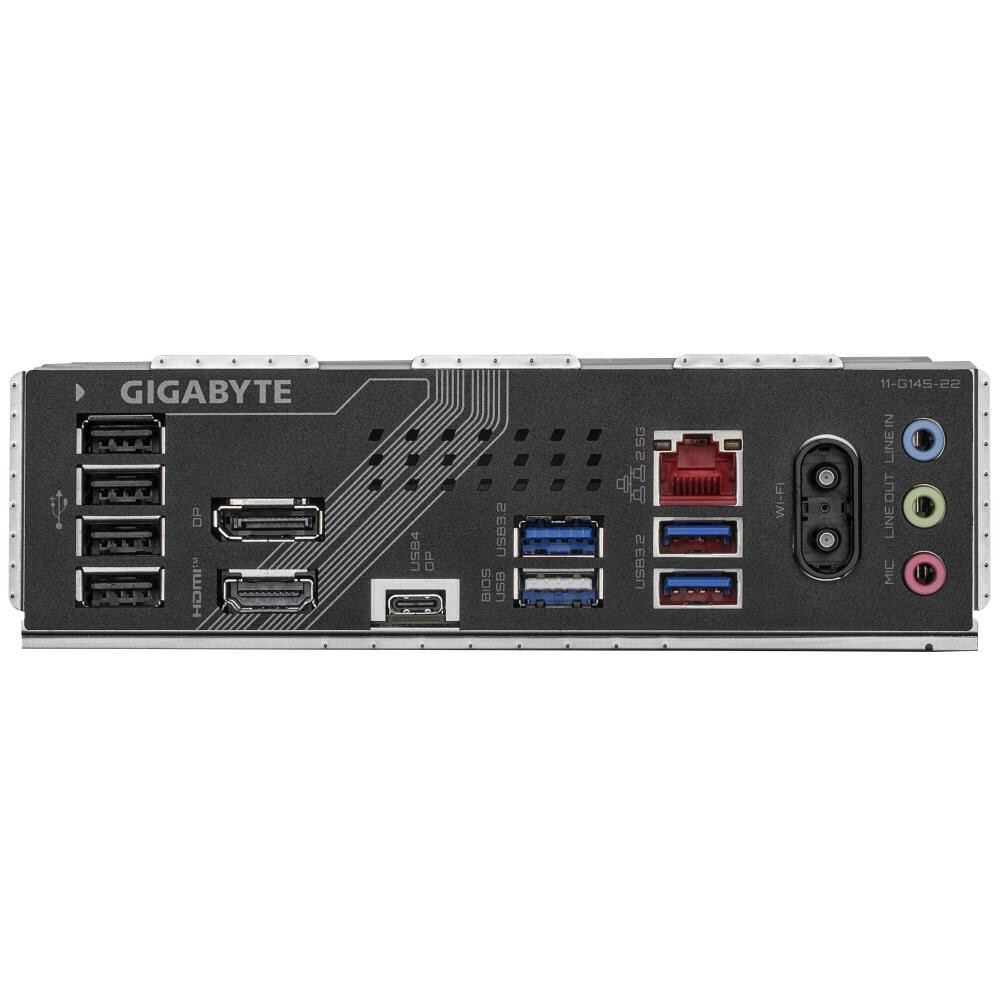

Rear panel connectors ........................................................................................................................................................................................................

5 x USB 2.0, 3 x USB 32 Gen1, USB 4 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45

Audio/Video

Built-in video ........................................................................................................................................................................................................

yes

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Learn more

Form factor ........................................................................................................................................................................................................

mATX

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 5, 10

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)

Supported PCI Express Modes ........................................................................................................................................................................................................

CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

gigabyte.com
