Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R)

Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R)

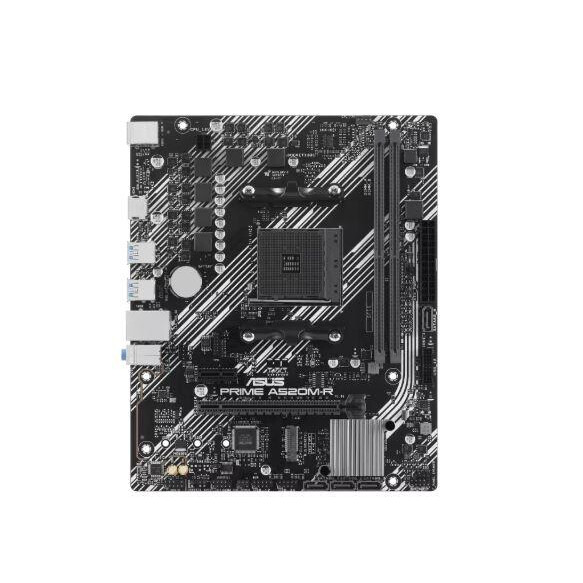

Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 2

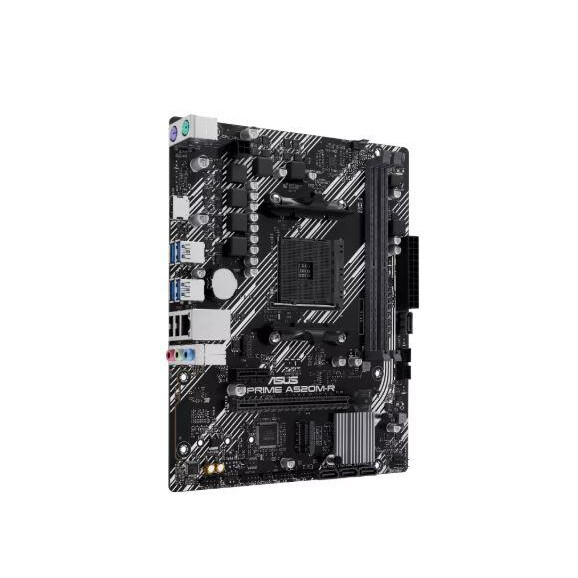

Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 3

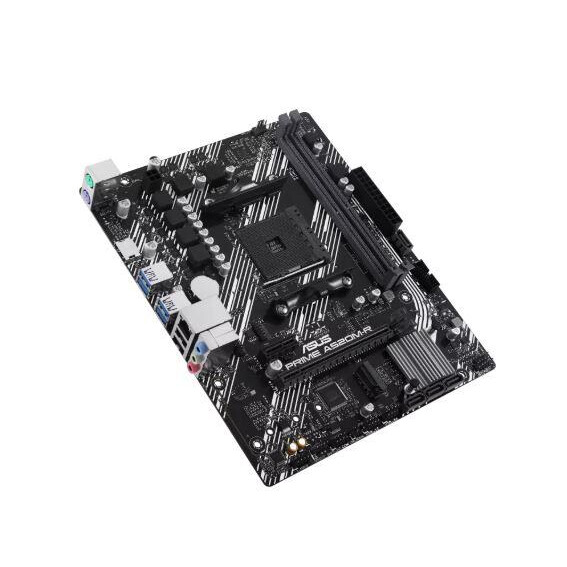

Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 4

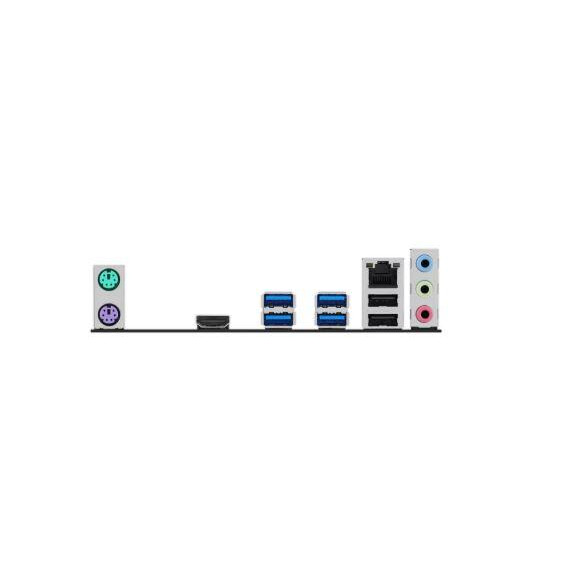

Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 5
Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R)
Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 2
Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 3
Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 4
Pamatplate ASUS PRIME A520M-R (PRIMEA520M-R) - photo 5

ID: 1828

Product Summary
  • Socket: AM4
  • Mikroshēmu kopa (Chipset): AMD A520
  • Atmiņas slotu skaits: 2
  • Atmiņas veids: DDR4
  • Paplašināšanas sloti: PCI-E 3.0 x16, PCIe 3.0 x1, PCI-E M.2
  • Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)
  • Ligzdas aizmugurējā panelī: 2 x PS/2, 2 x USB 2.0, 4 x USB 3.1, RJ-45
  • Formfaktors: mATX
Full Specifications

Pamata

Ražotājs  ........................................................................................................................................................................................................
Ražotāja kods  ........................................................................................................................................................................................................
PRIMEA520M-R
Socket  ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset)  ........................................................................................................................................................................................................
AMD A520

Papildu

Formfaktors  ........................................................................................................................................................................................................
mATX

Tīkls

Tīkla saskarne  ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mb/c)

Audio/Video

Skaņa  ........................................................................................................................................................................................................
8 kanāli (7.1)

Atmiņa

Atmiņas veids  ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits  ........................................................................................................................................................................................................
2

Saskarnes

Ligzdas aizmugurējā panelī  ........................................................................................................................................................................................................
2 x PS/2, 2 x USB 2.0, 4 x USB 3.1, RJ-45

Diska kontrolieri

SATA kontrolieris  ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts  ........................................................................................................................................................................................................
0, 1, 10

Paplašināšanas sloti

Paplašināšanas sloti  ........................................................................................................................................................................................................
PCI-E 3.0 x16, PCIe 3.0 x1, PCI-E M.2
M.2. slotu veids  ........................................................................................................................................................................................................
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Atbalstītie PCI-Express režīmi  ........................................................................................................................................................................................................
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot

Papildus

Garantija  ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa  ........................................................................................................................................................................................................

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
