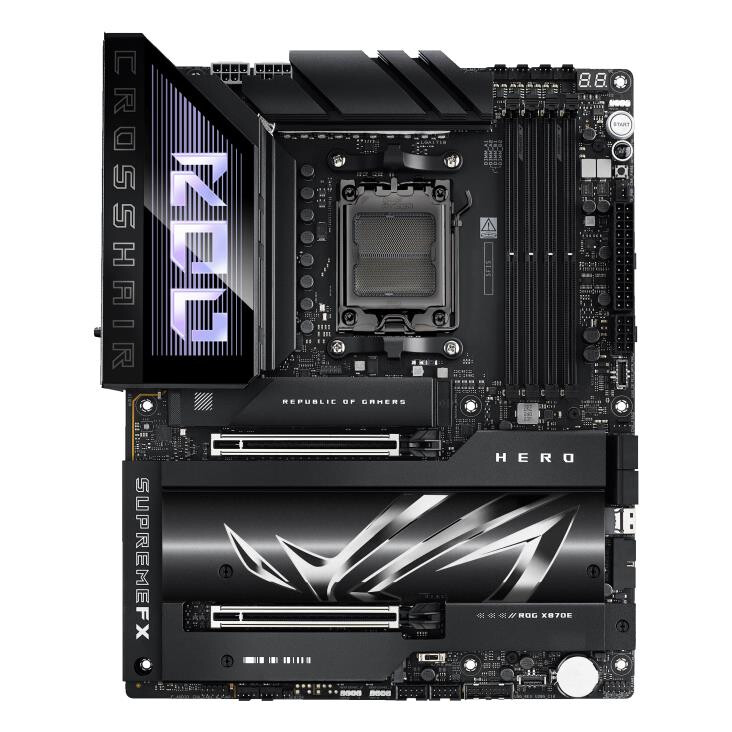

Pamatplate ASUS ROG CROSSHAIR X870E HERO (ROGCROSSHAIRX870EHERO)
ID: 1831
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD X870
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: 2 x PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 5 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 6 x USB 3.2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
ROGCROSSHAIRX870EHERO
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
6 x USB 3.2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
SupremeFX ALC4082
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
2 x PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 5 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
*** When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
