Pamatplate ASUS PRIME B860-PLUS-CSM (90MB1KA0-M0EAYC)
ID: 1836
Product Summary
- Socket: LGA1851
- Mikroshēmu kopa (Chipset): Intel B860
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2
- Tīkla saskarne: Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
- Ligzdas aizmugurējā panelī: 2 x USB 2.0, USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1KA0-M0EAYC
Socket ........................................................................................................................................................................................................
LGA1851
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B860
Saskarnes

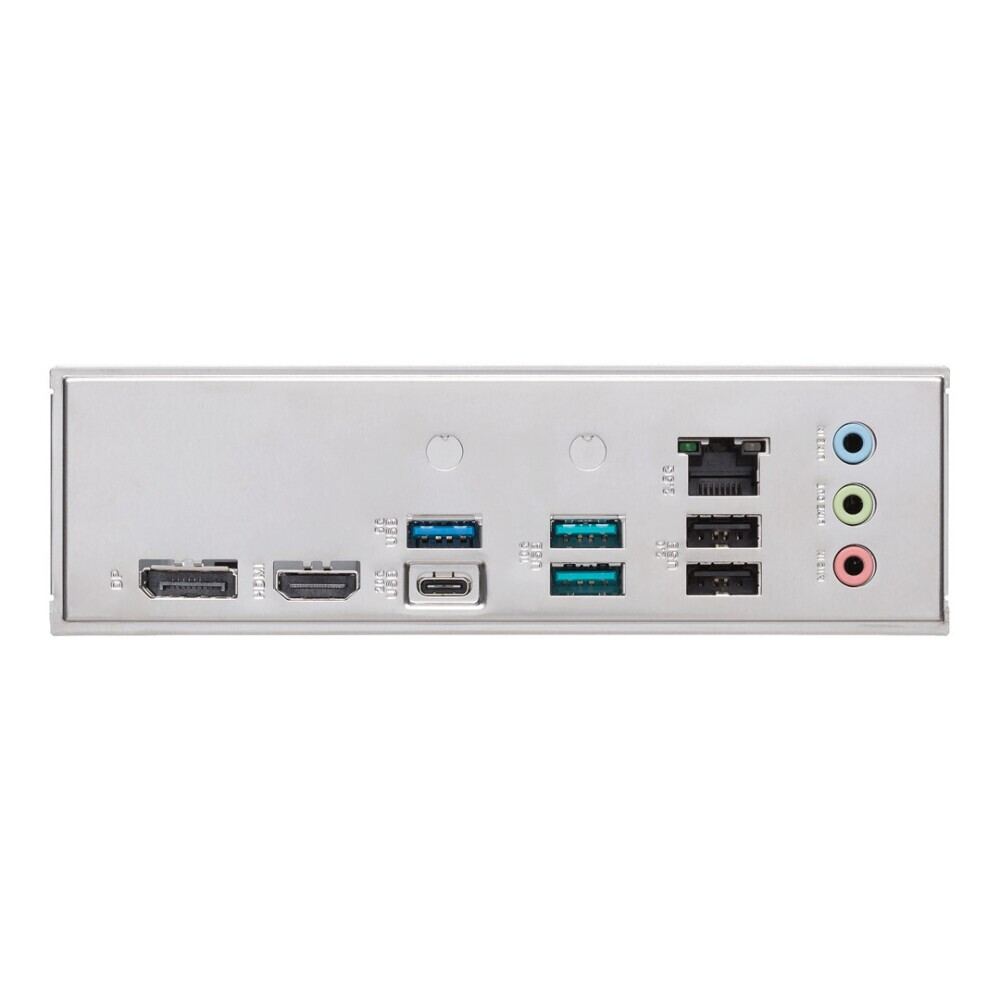

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5, SDRAM
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 3.2 Gen1
Papildu informācija ........................................................................................................................................................................................................
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts, melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
