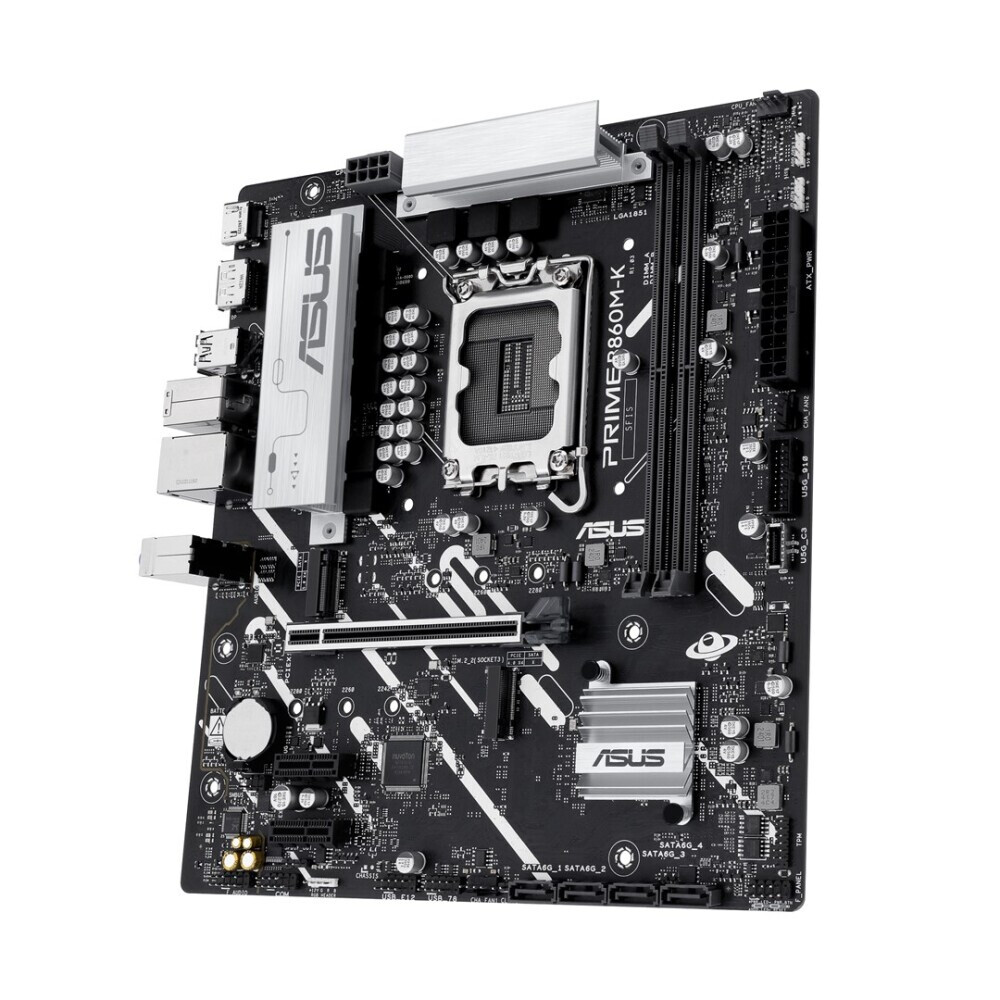

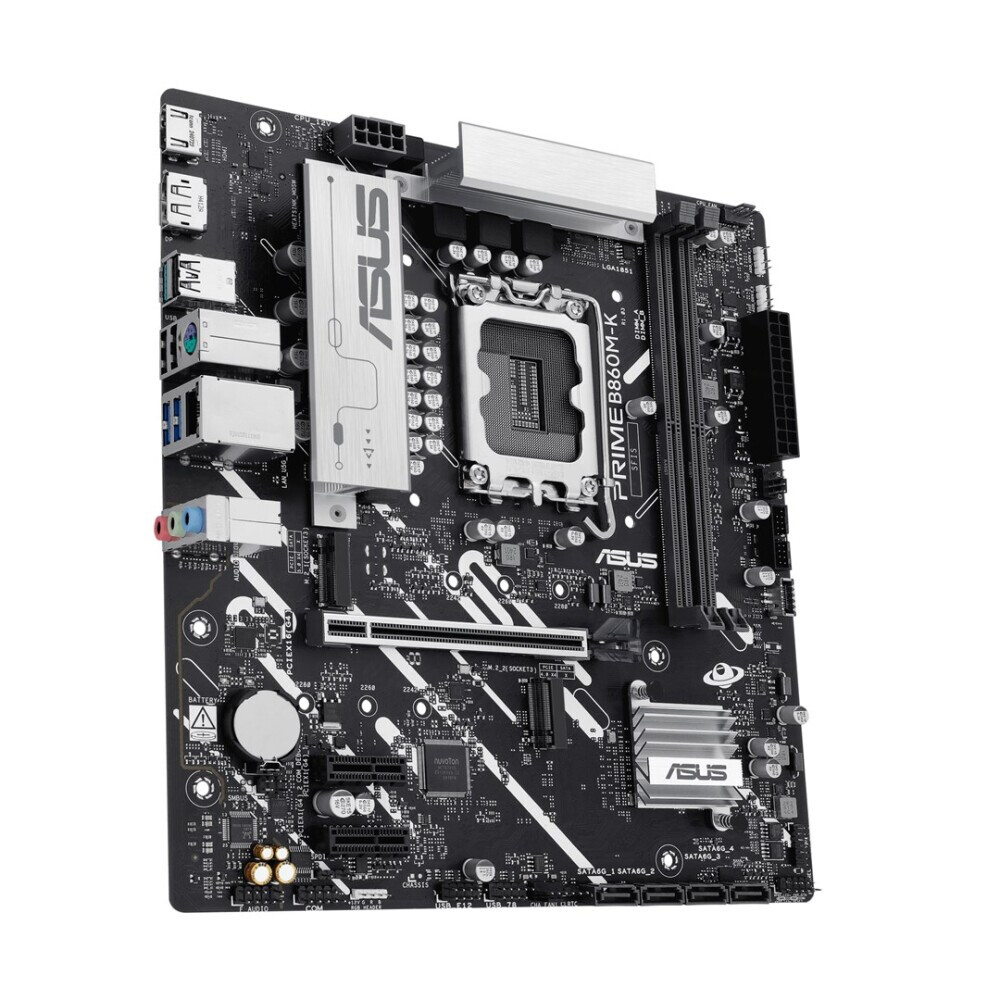

Pamatplate ASUS PRIME B860M-K (90MB1JT0-M0EAY0)

ID: 1839

Product Summary

Socket: LGA1851
Mikroshēmu kopa (Chipset): Intel B860
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
Tīkla saskarne: Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Full Specifications

146,⁶⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

90MB1JT0-M0EAY0

Socket ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B860

Saskarnes

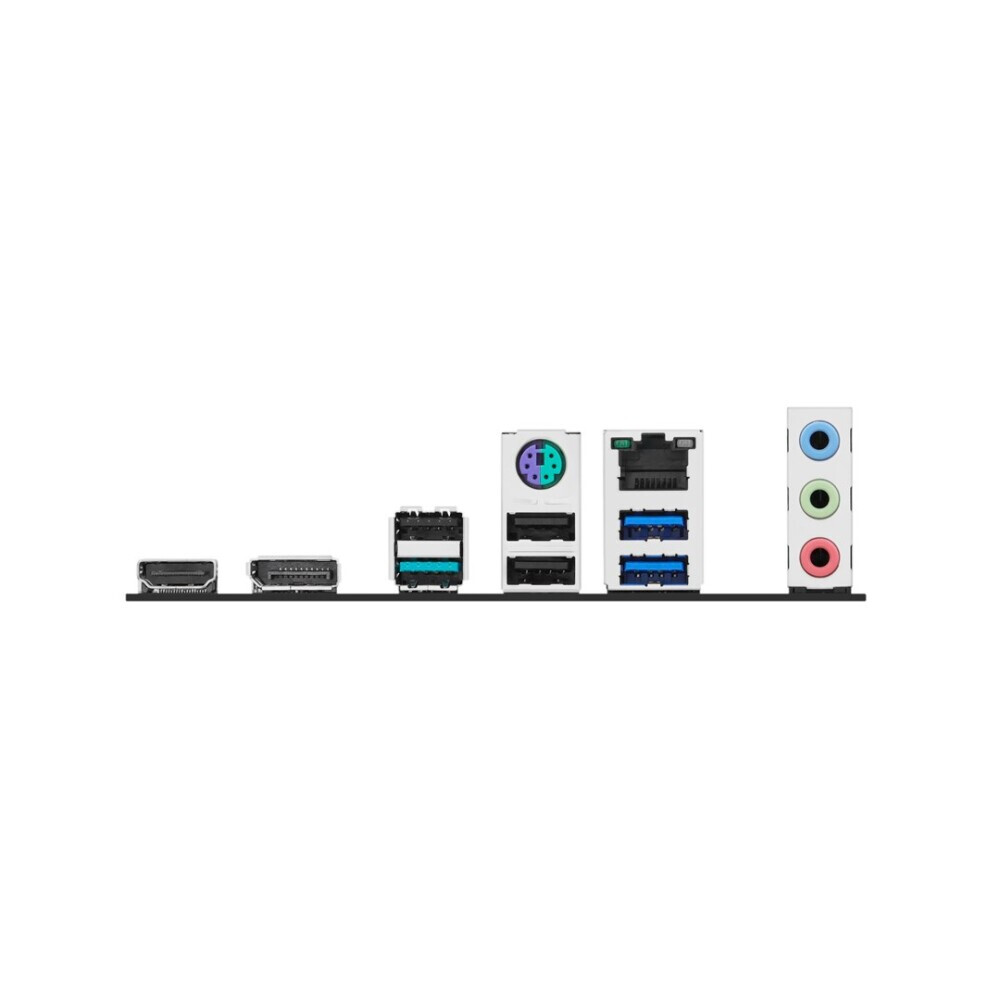

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5, SDRAM

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

2 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1

Papildu informācija ........................................................................................................................................................................................................

Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts, melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
