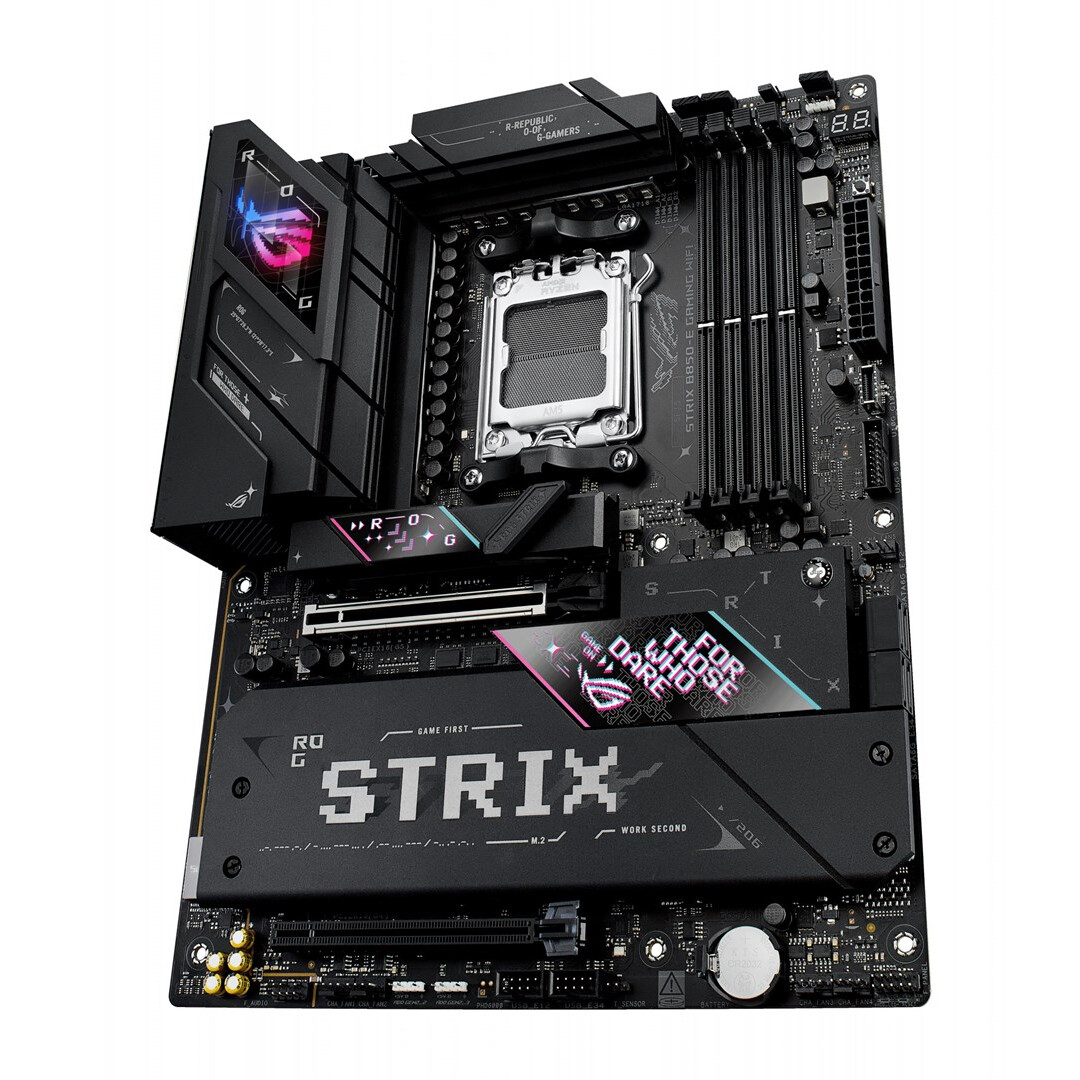

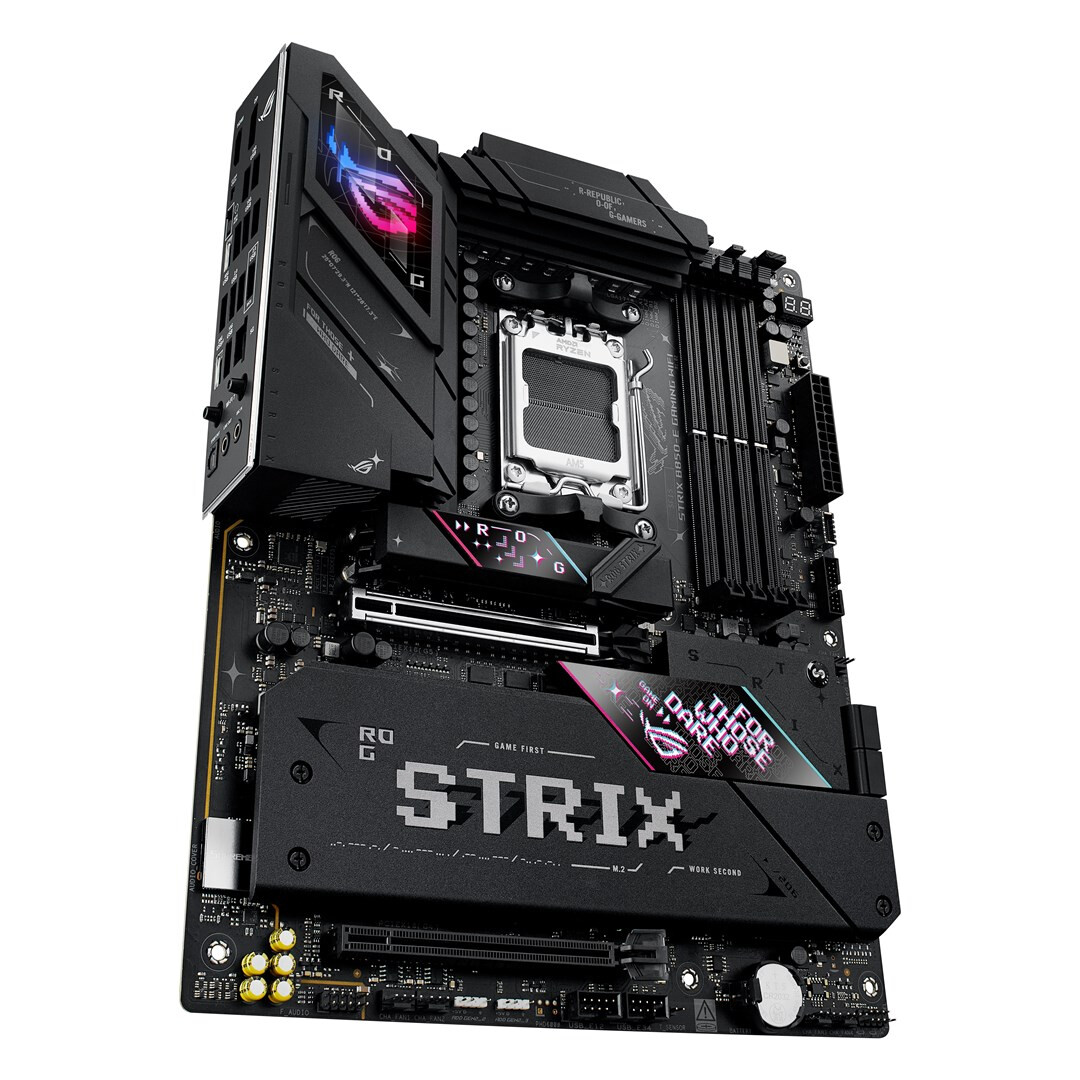

Pamatplate ASUS ROG STRIX B850-E GAMING WIFI (90MB1J60-M0EAY0)

Pamatplate ASUS ROG STRIX B850-E GAMING WIFI (90MB1J60-M0EAY0)

ID: 1845

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B850
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 2 x PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, USB4 Gen 3x2, 6 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Full Specifications

366,⁸⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

90MB1J60-M0EAY0

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B850

Saskarnes

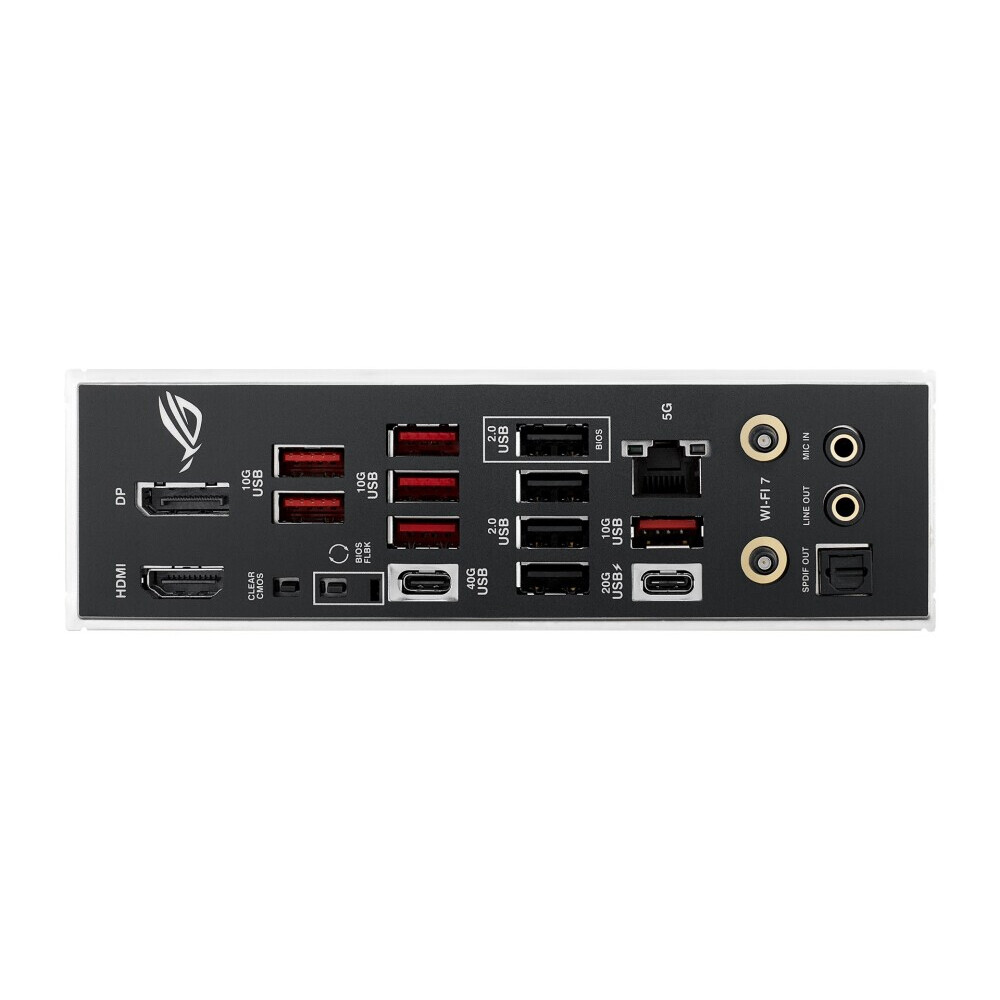

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, USB4 Gen 3x2, 6 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

SupremeFX ALC4080

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5, SDRAM

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) M.2_3 slot (Key M), type 2280 (Not supports) AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8. M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors. M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8. Specifications vary by CPU types. M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

5 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2

Apgaismojums ........................................................................................................................................................................................................

jā

Papildu informācija ........................................................................................................................................................................................................

Miscellaneous 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com
