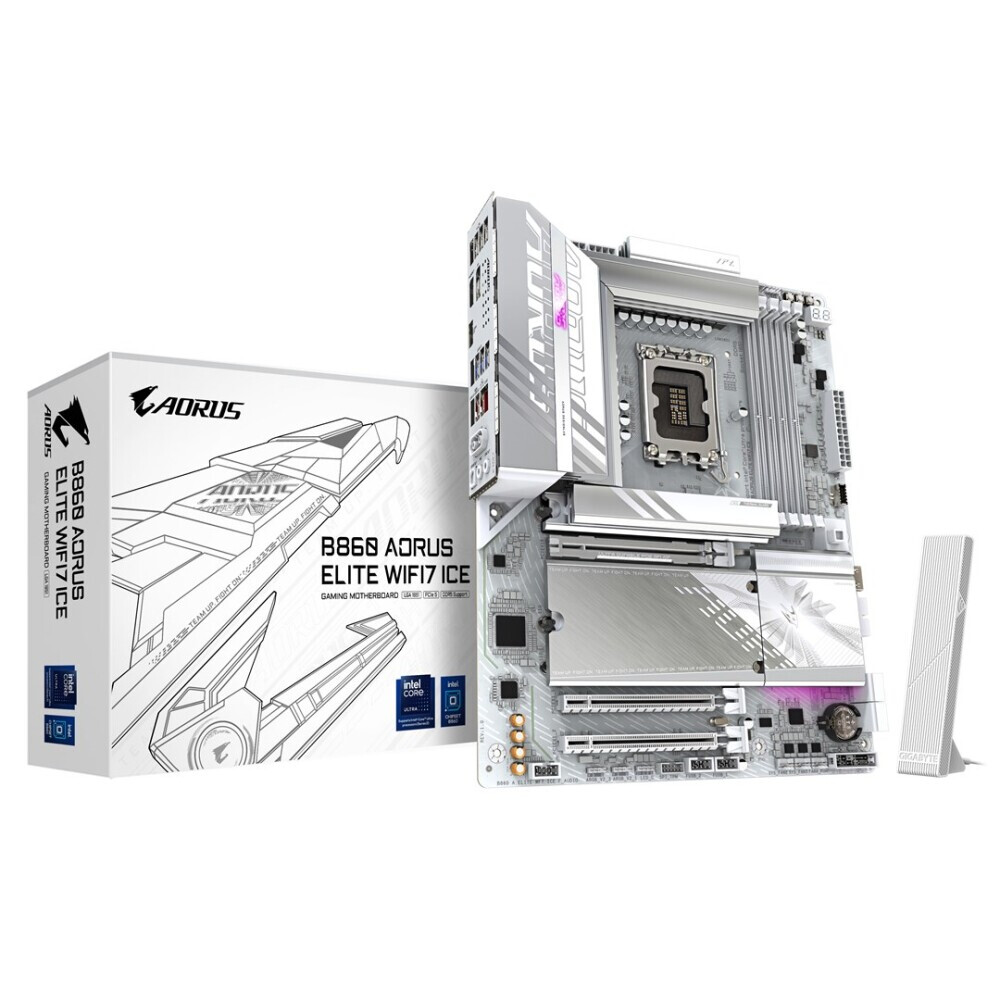

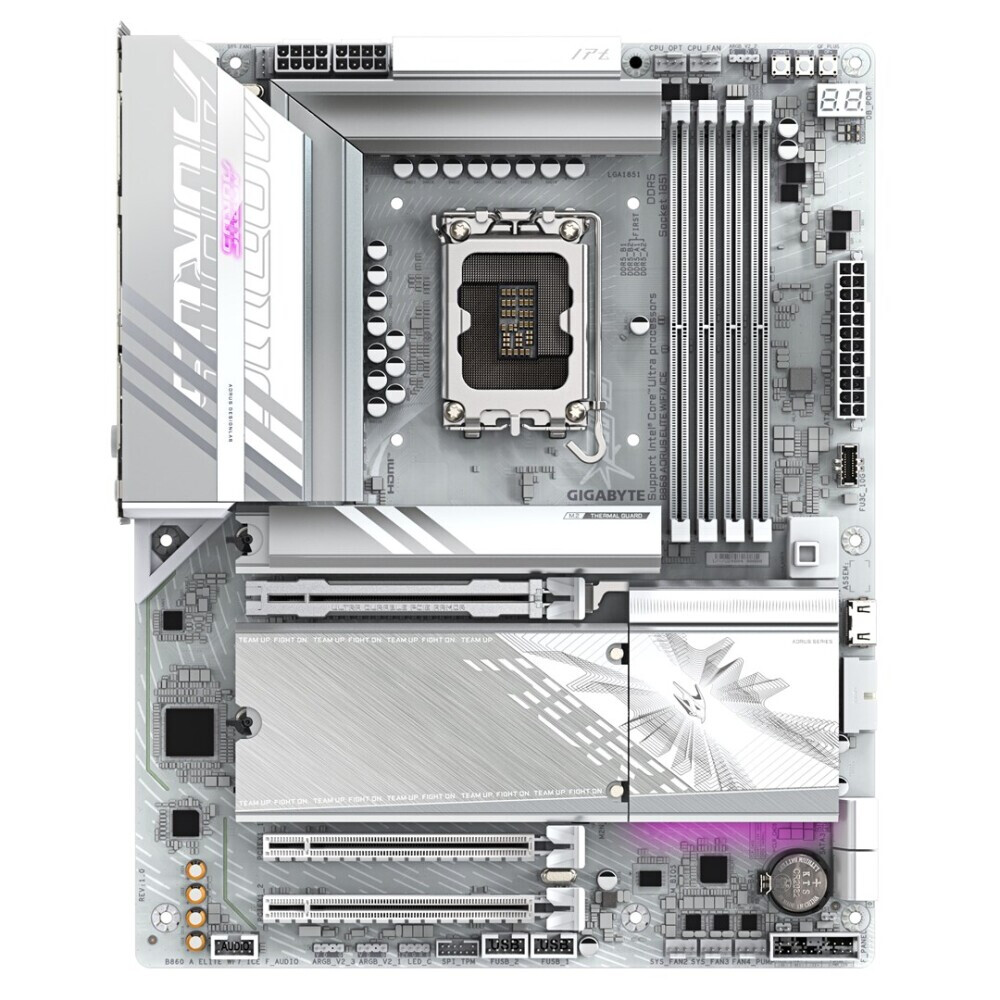

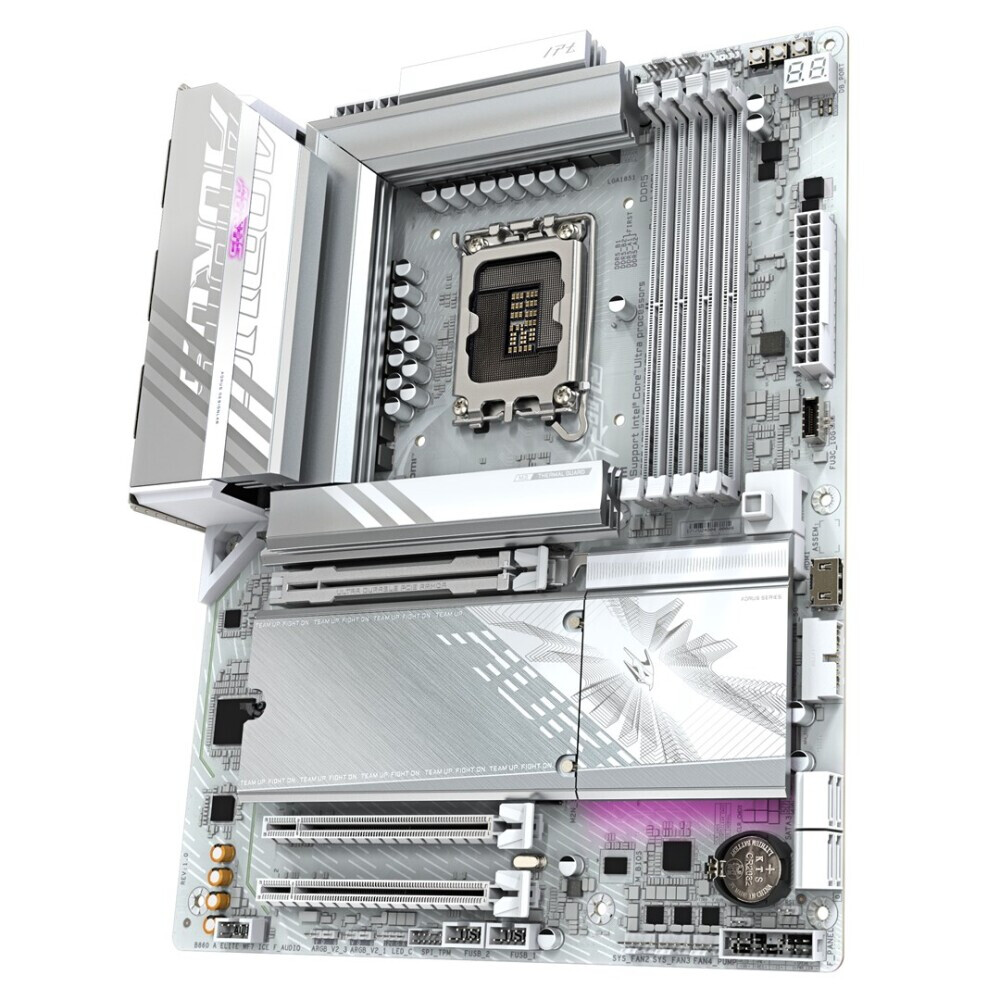

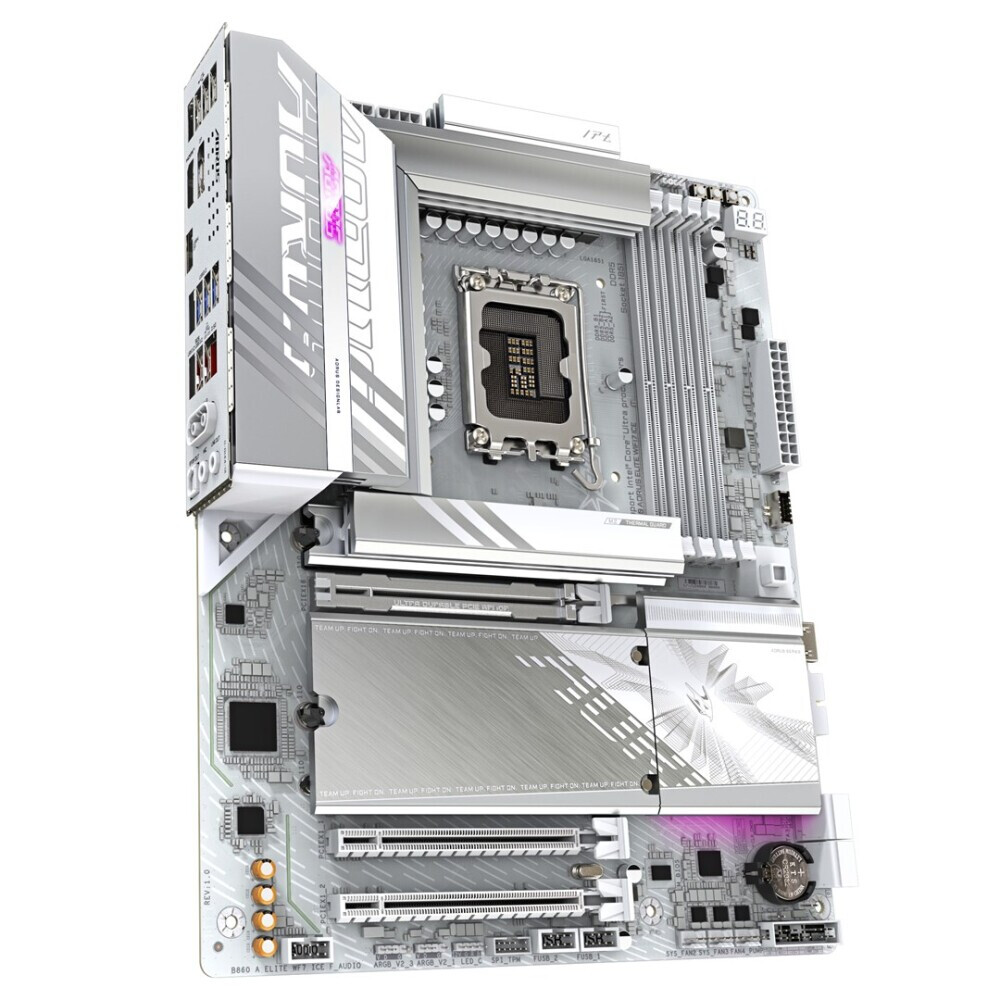

Pamatplate GIGABYTE B860 AORUS ELITE WIFI7 ICE

ID: 1873

Product Summary

Socket: LGA1851
Mikroshēmu kopa (Chipset): Intel B860
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, 4 x USB 4 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Full Specifications

211,⁸⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

B860 A ELITE WF7 ICE

Socket ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B860

Saskarnes

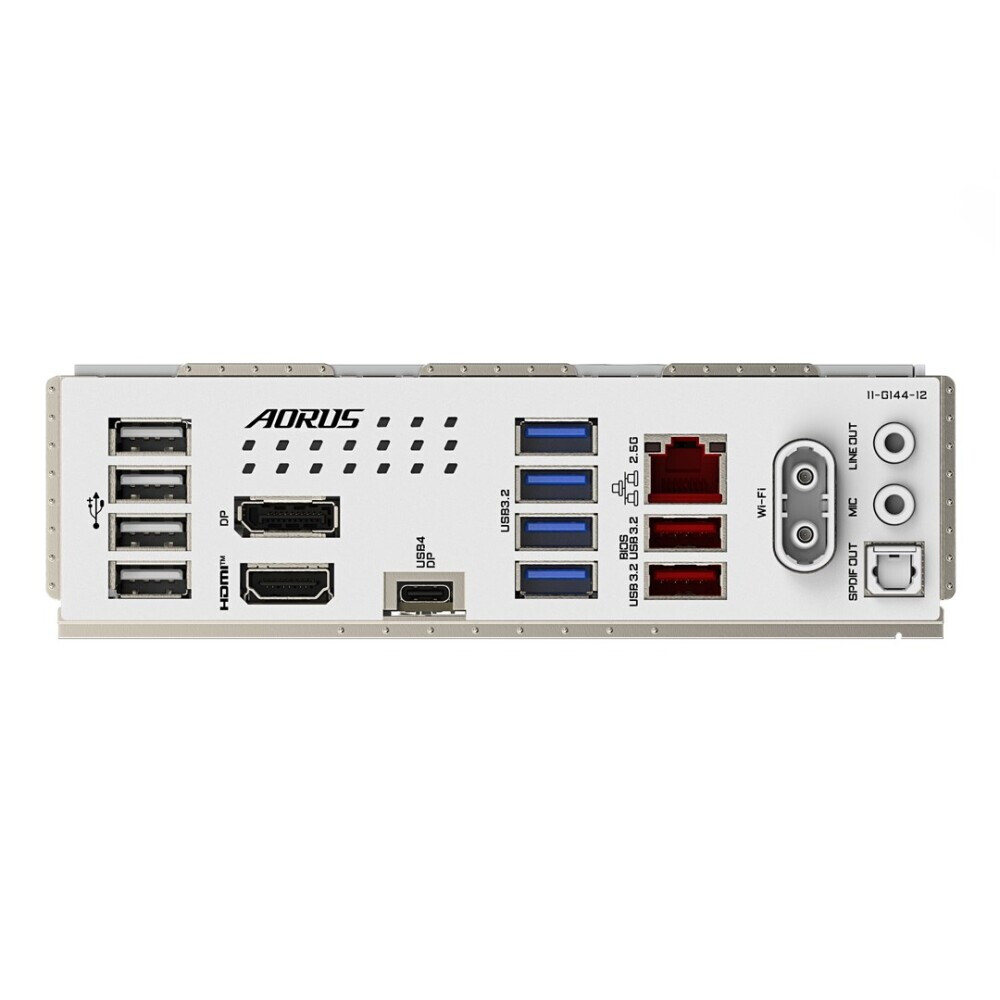

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, 4 x USB 4 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek Audio CODEC

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5, SDRAM

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8922AE

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C

Apgaismojums ........................................................................................................................................................................................................

jā

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
