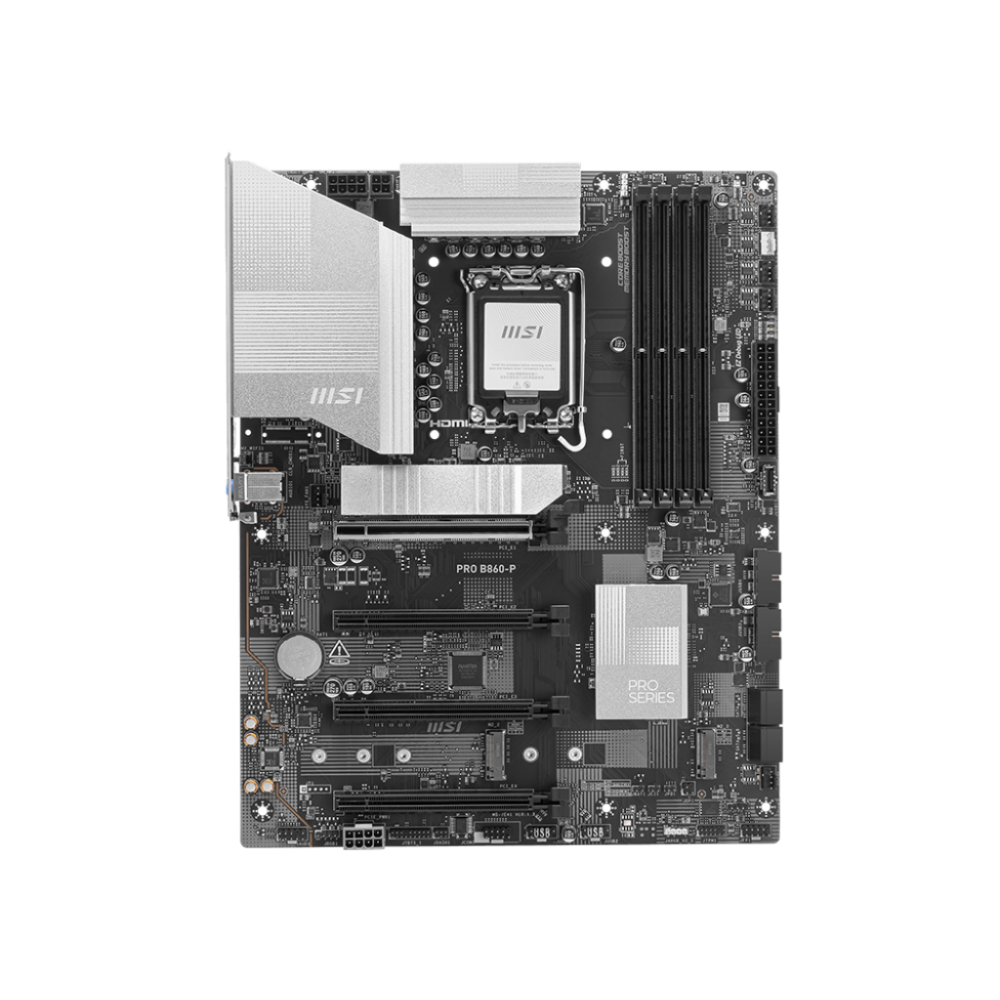

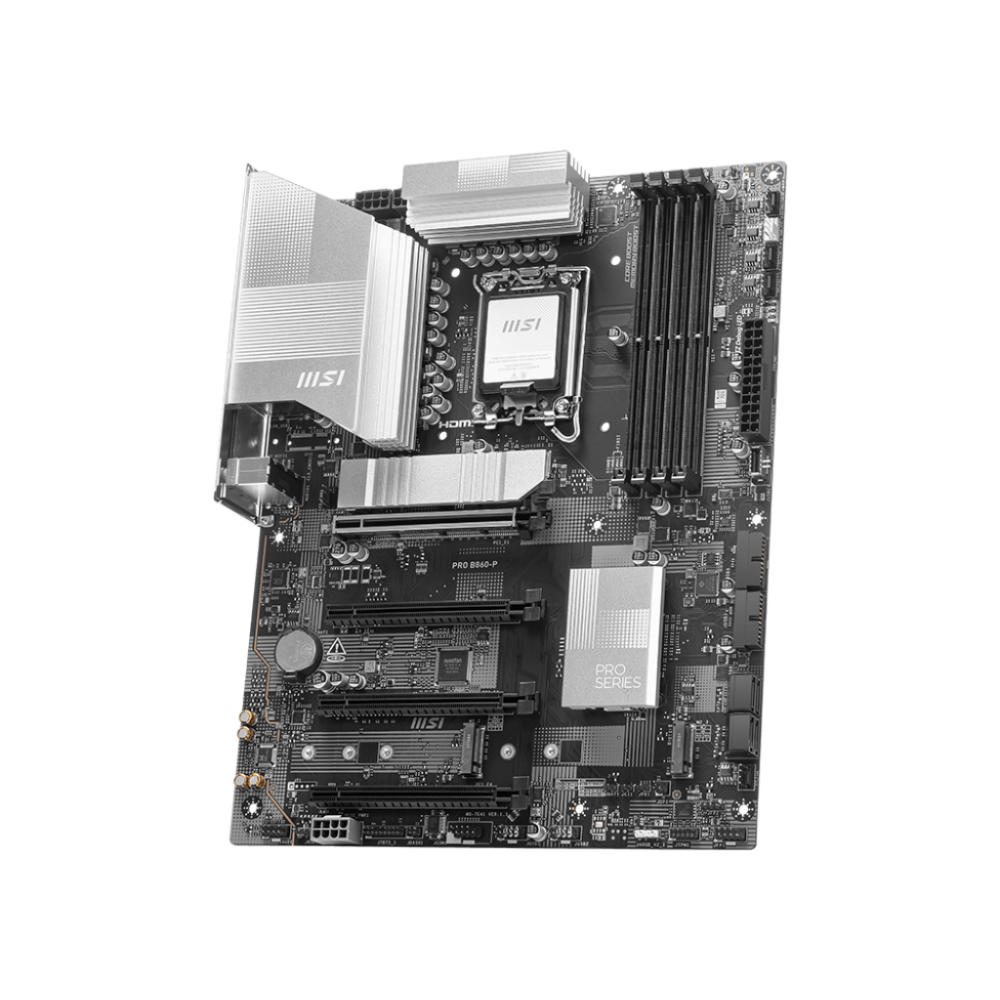

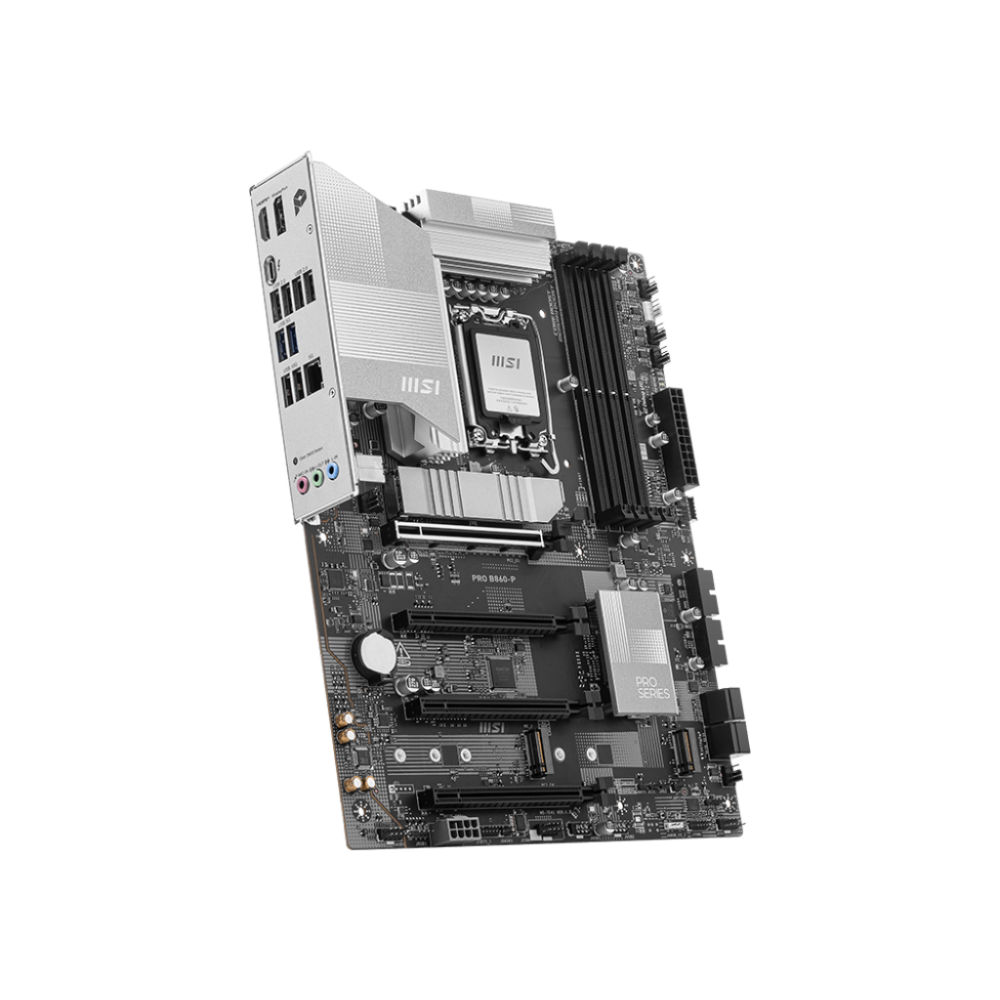

Pamatplate MSI PRO B860-P (PRO B860-P)

ID: 1886

Product Summary

Socket: LGA1851
Mikroshēmu kopa (Chipset): Intel B860
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 4 x PCI-E x16, 3 x PCI-E M.2
Ligzdas aizmugurējā panelī: 4 x USB 2.0, LAN, 2 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C
Formfaktors: ATX

Full Specifications

178,⁹⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

PRO B860-P

Socket ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B860

Saskarnes

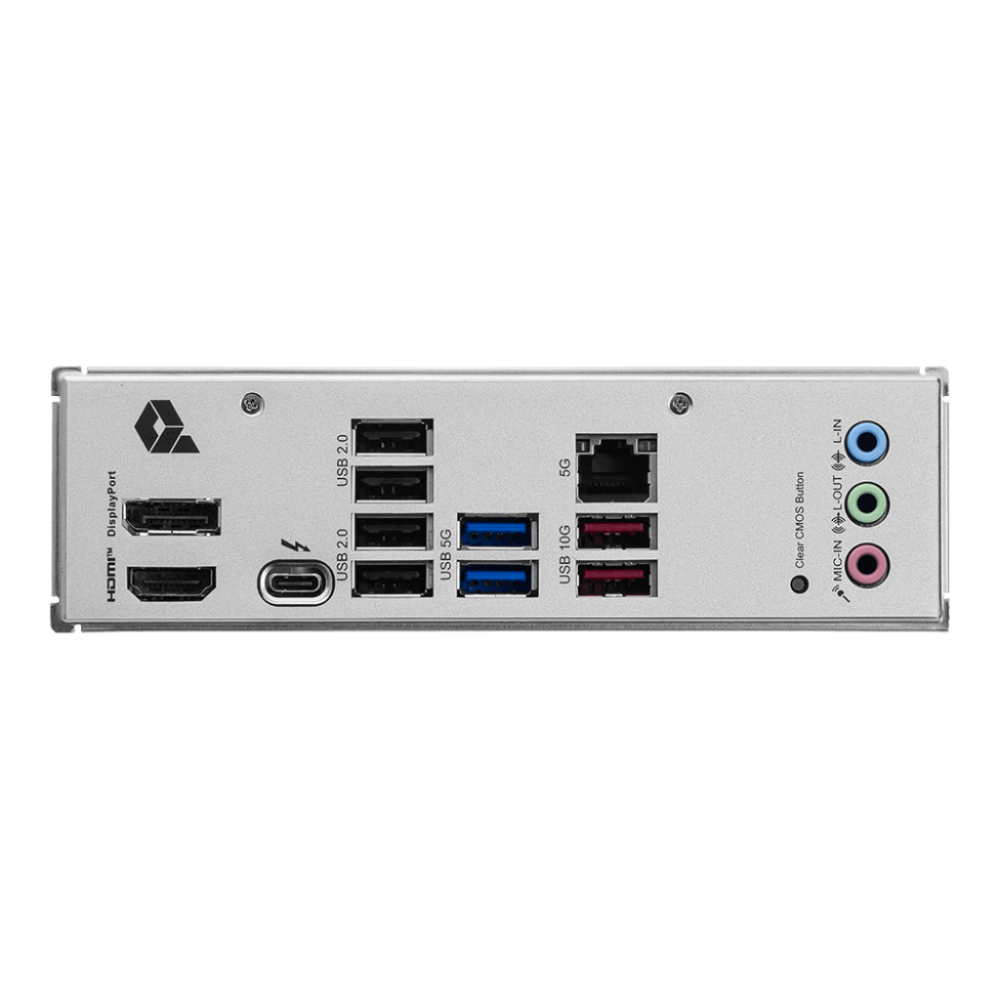

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, LAN, 2 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Formfaktors ........................................................................................................................................................................................................

ATX

Tīkls

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek 8126 5Gbps

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

4 x PCI-E x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
