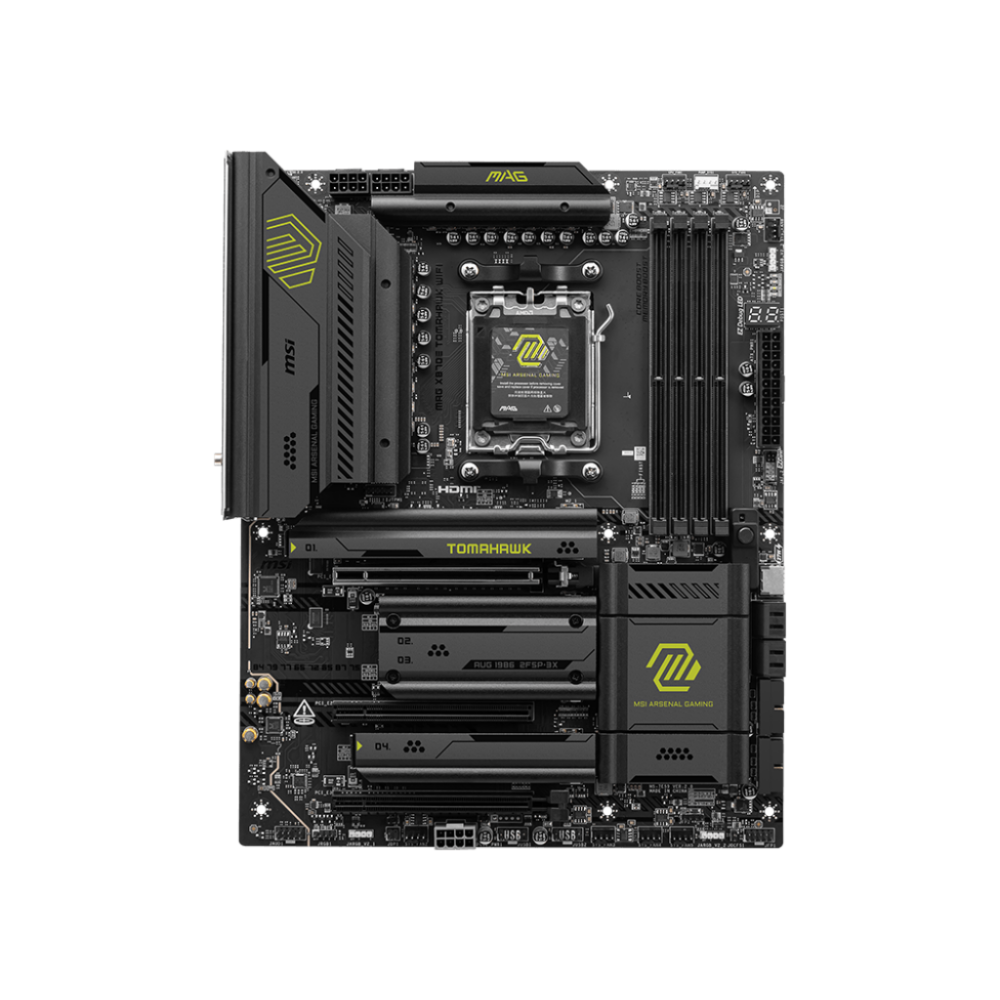

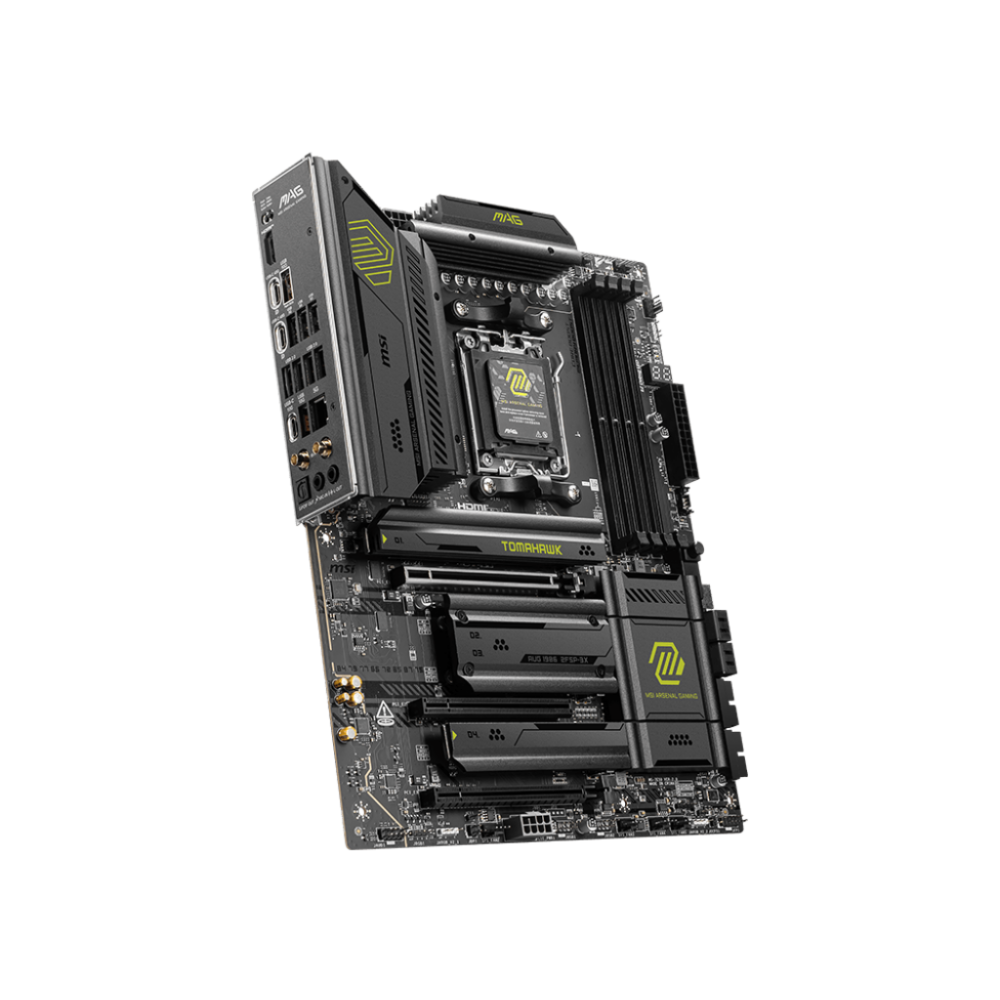

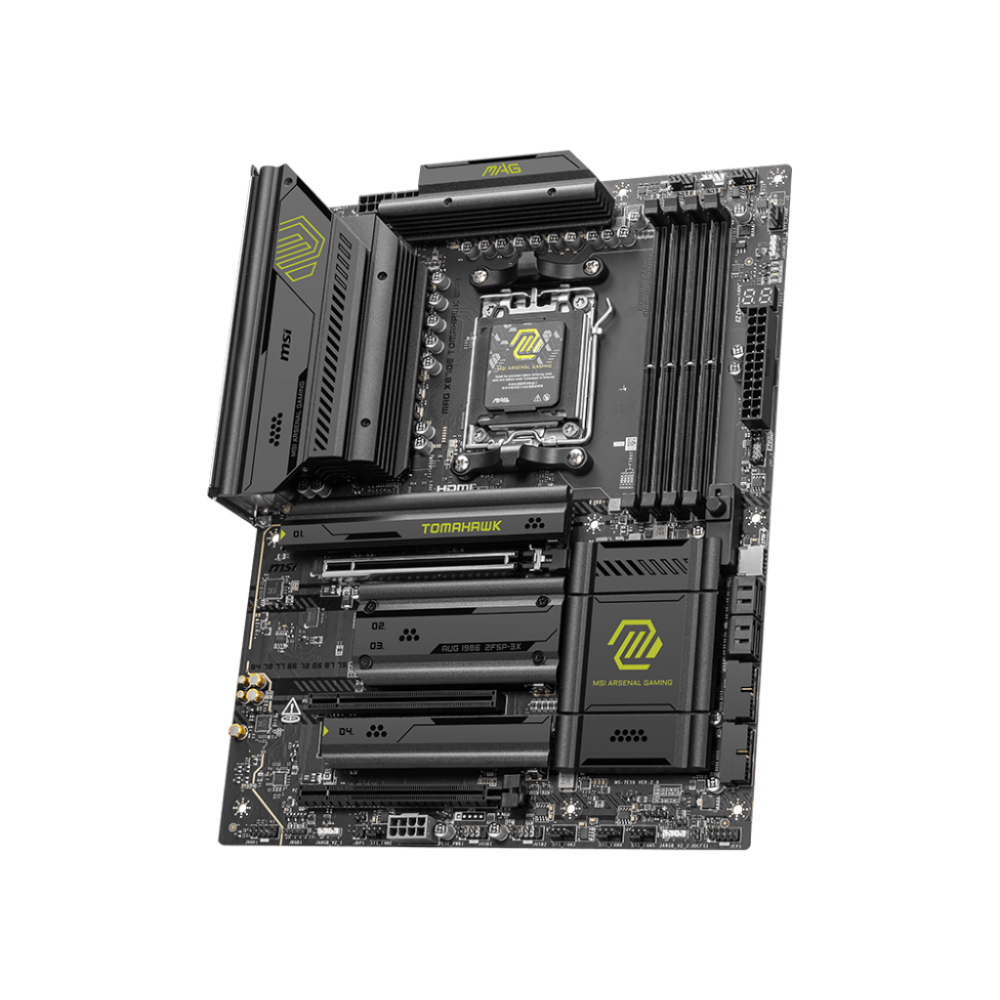

Pamatplate MSI MAG X870E TOMAHAWK WIFI (MAG X870E TOMAHAWK WIFI)

Pamatplate MSI MAG X870E TOMAHAWK WIFI (MAG X870E TOMAHAWK WIFI)

ID: 1896

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD X870E
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 3.0 x1, PCIe 4.0x4, PCI_E1 slot, 6 x PCI-E M.2
Tīkla saskarne: Wi-Fi, Bluetooth

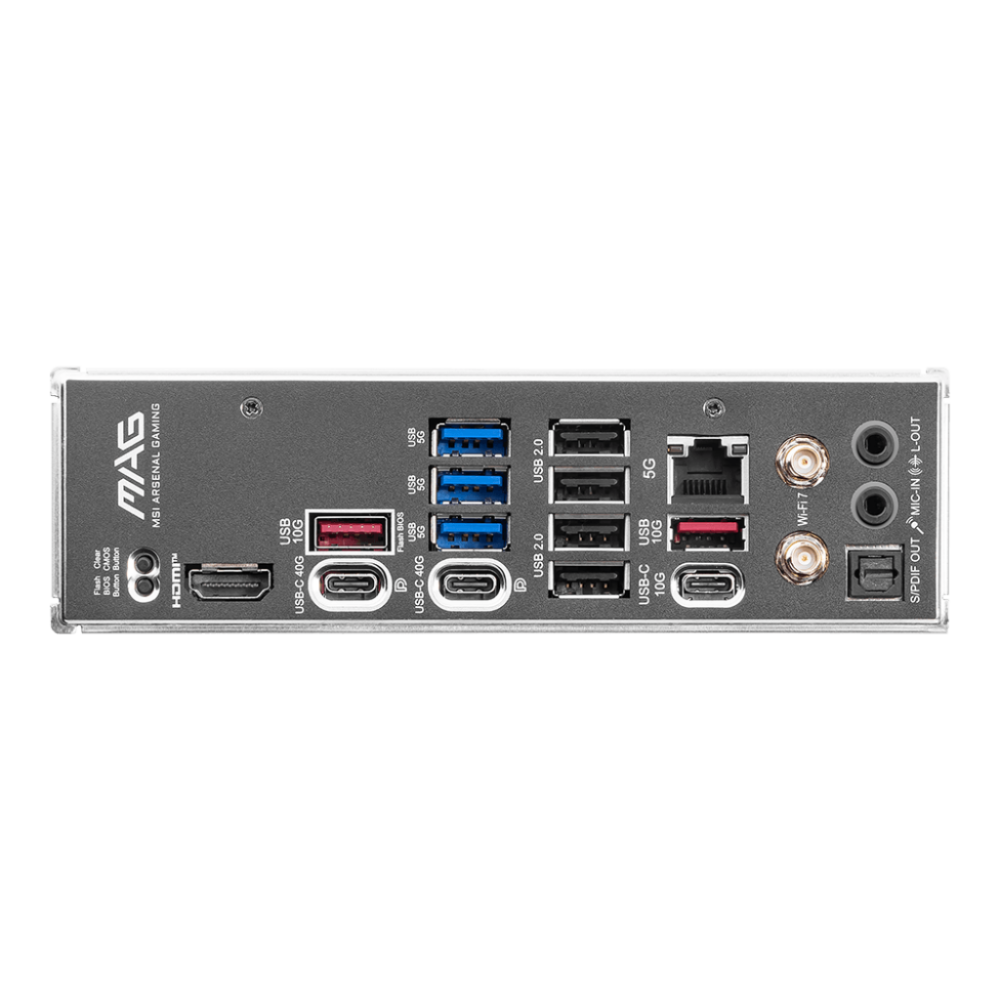

Ligzdas aizmugurējā panelī: 4 x USB 2.0, 3 x USB Type-C, LAN, 2 x audio jacks, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI
Formfaktors: ATX

Full Specifications

321,⁵⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

MAG X870E TOMAHAWK WIFI

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD X870E

Papildu

Formfaktors ........................................................................................................................................................................................................

ATX

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, 3 x USB Type-C, LAN, 2 x audio jacks, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC4080

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek 8126 5Gbps

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCIe 3.0 x1, PCIe 4.0x4, PCI_E1 slot, 6 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
