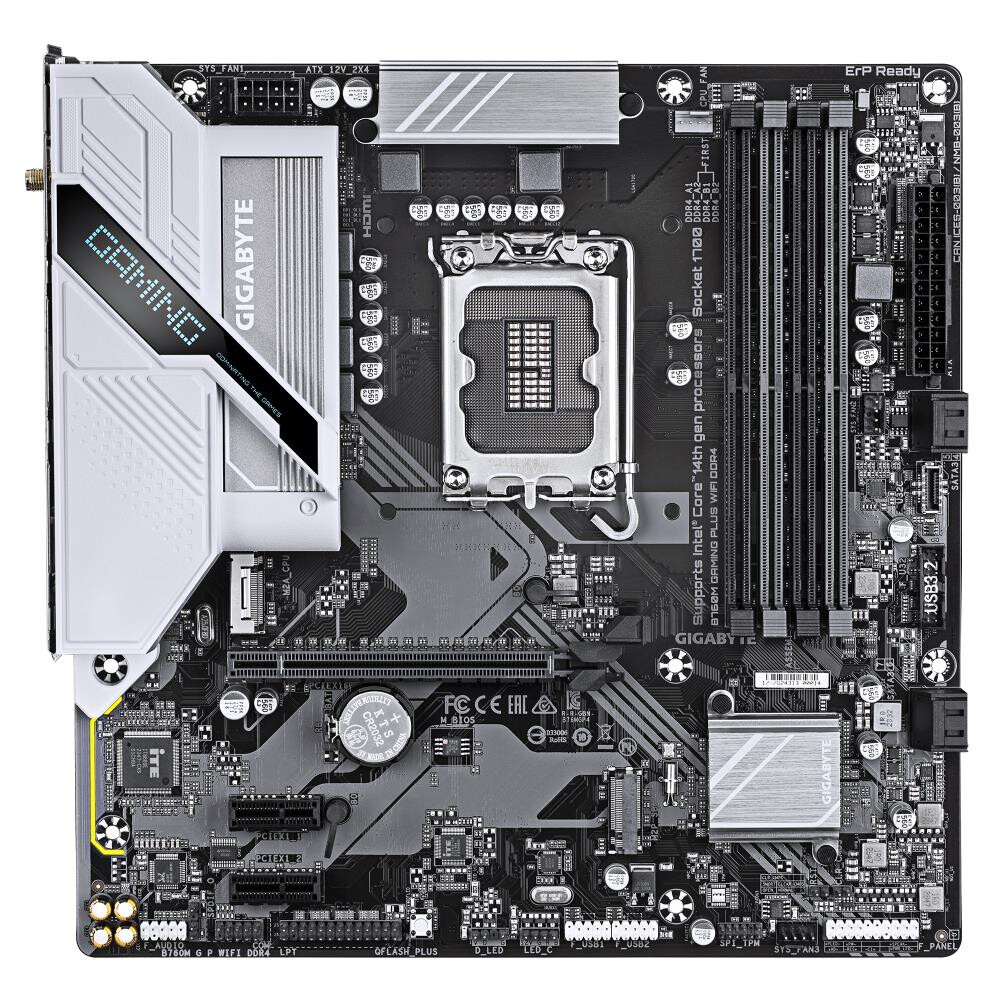

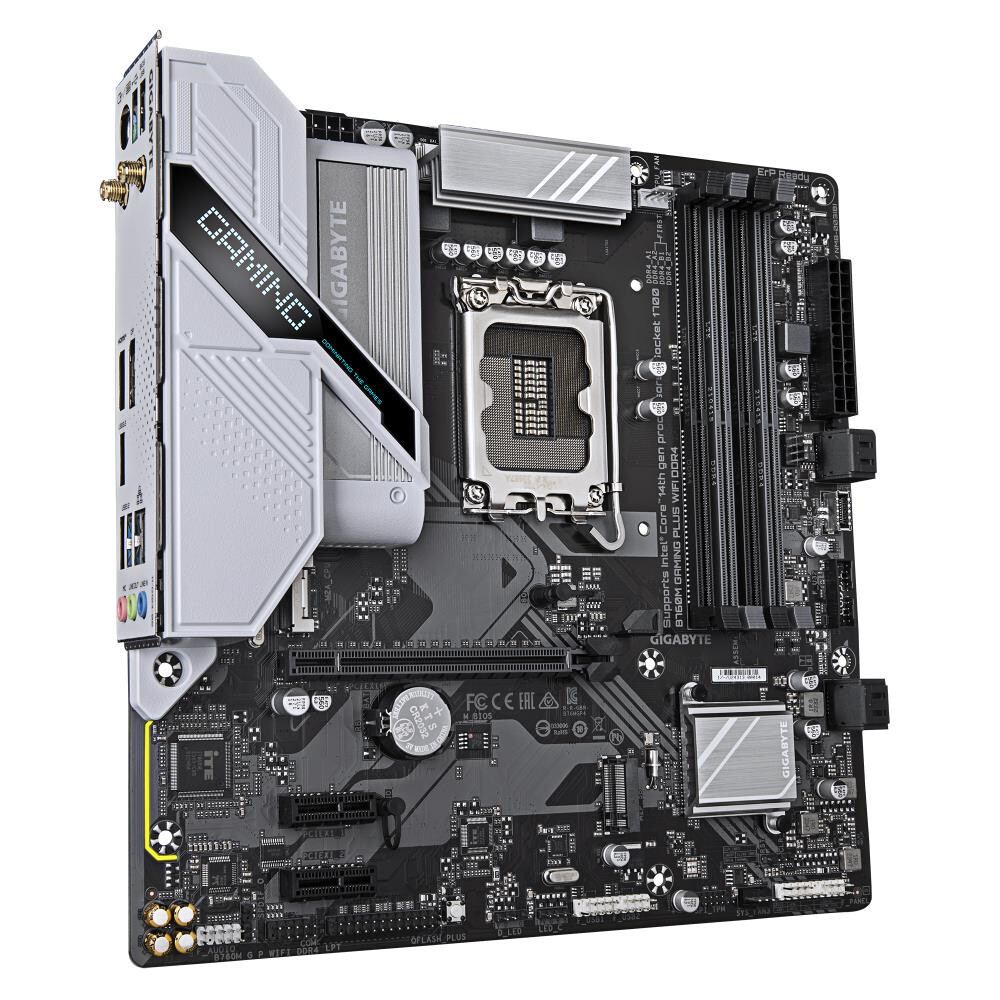

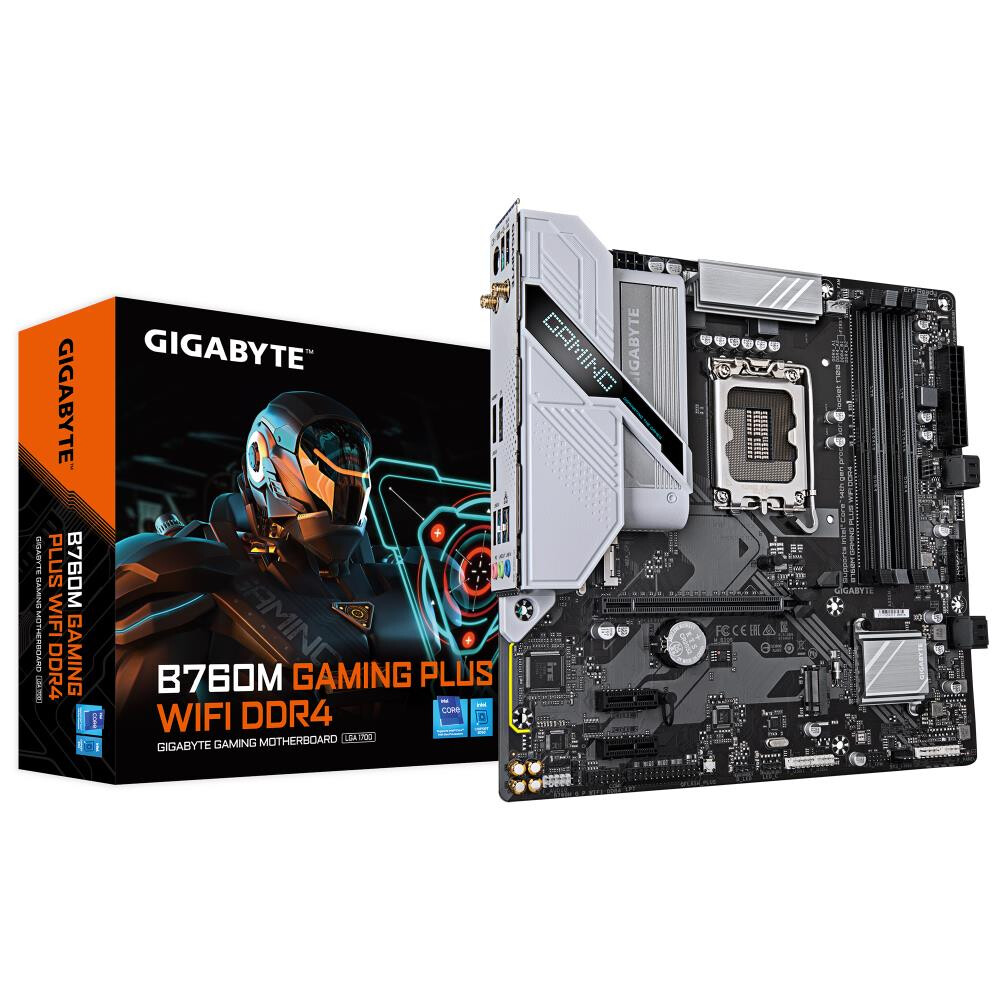

Pamatplate GIGABYTE B760M GAMING PLUS WIFI

ID: 1904

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel B760
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCIe 3.0 x1, 2 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 3 x audio jacks, USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

114,¹⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

B760M G P WIFI DDR4 1.0

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B760

Saskarnes

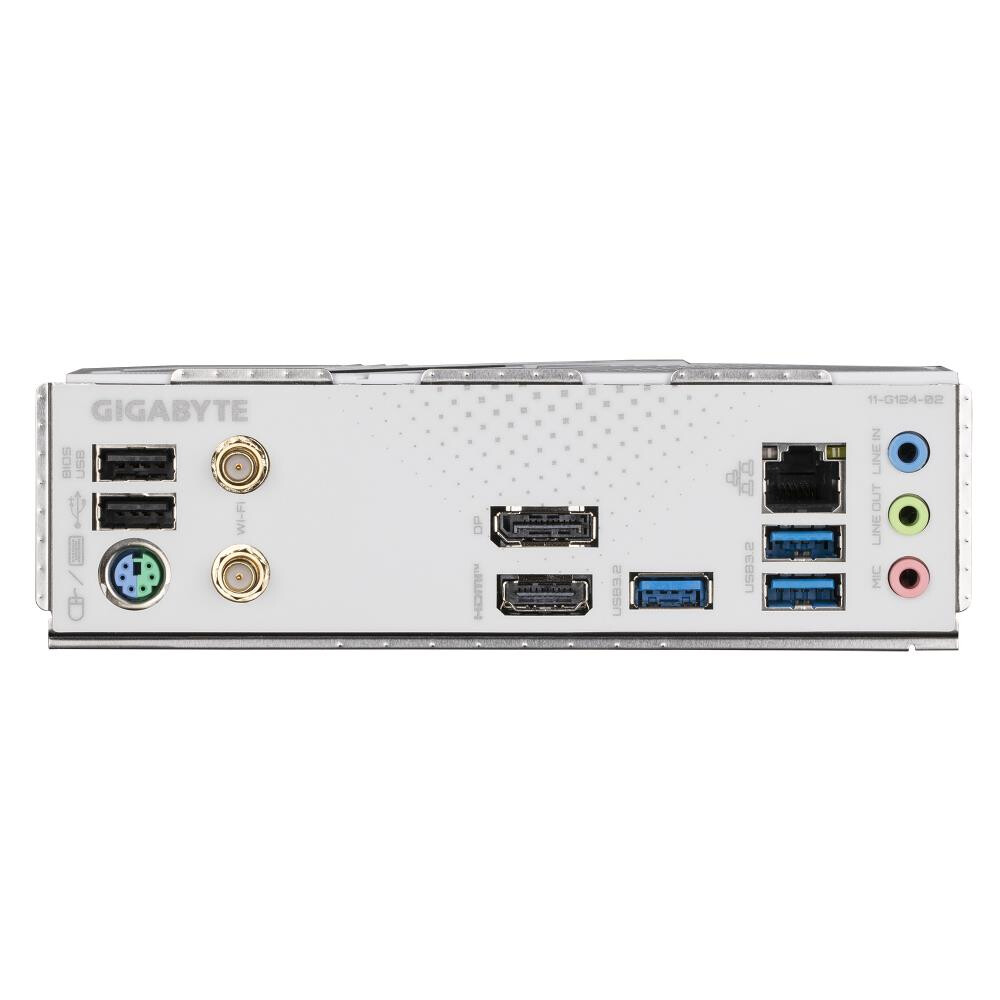

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 3 x audio jacks, USB 3.2 Gen1, HDMI, DisplayPort, RJ-45

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

RTL8851BE

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCIe 3.0 x1, 2 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Svars ........................................................................................................................................................................................................

0.7 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
