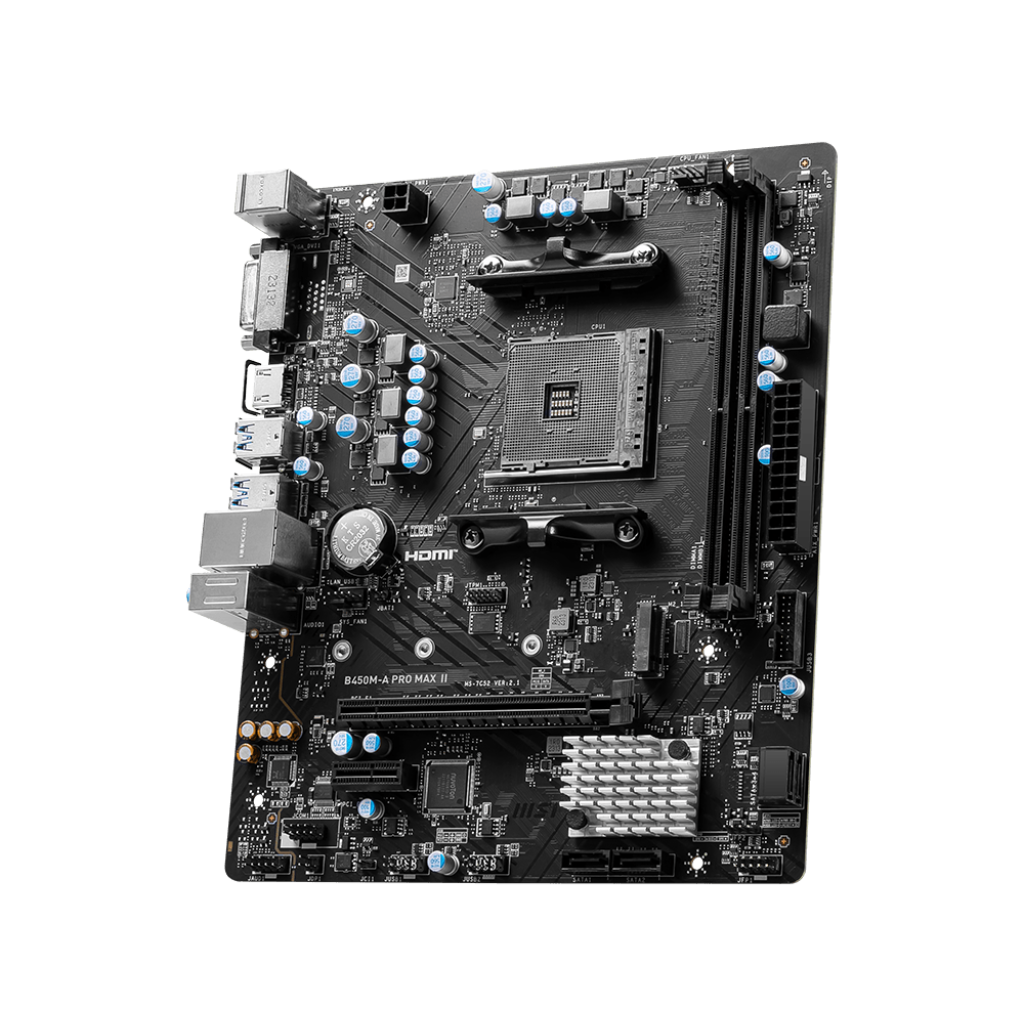

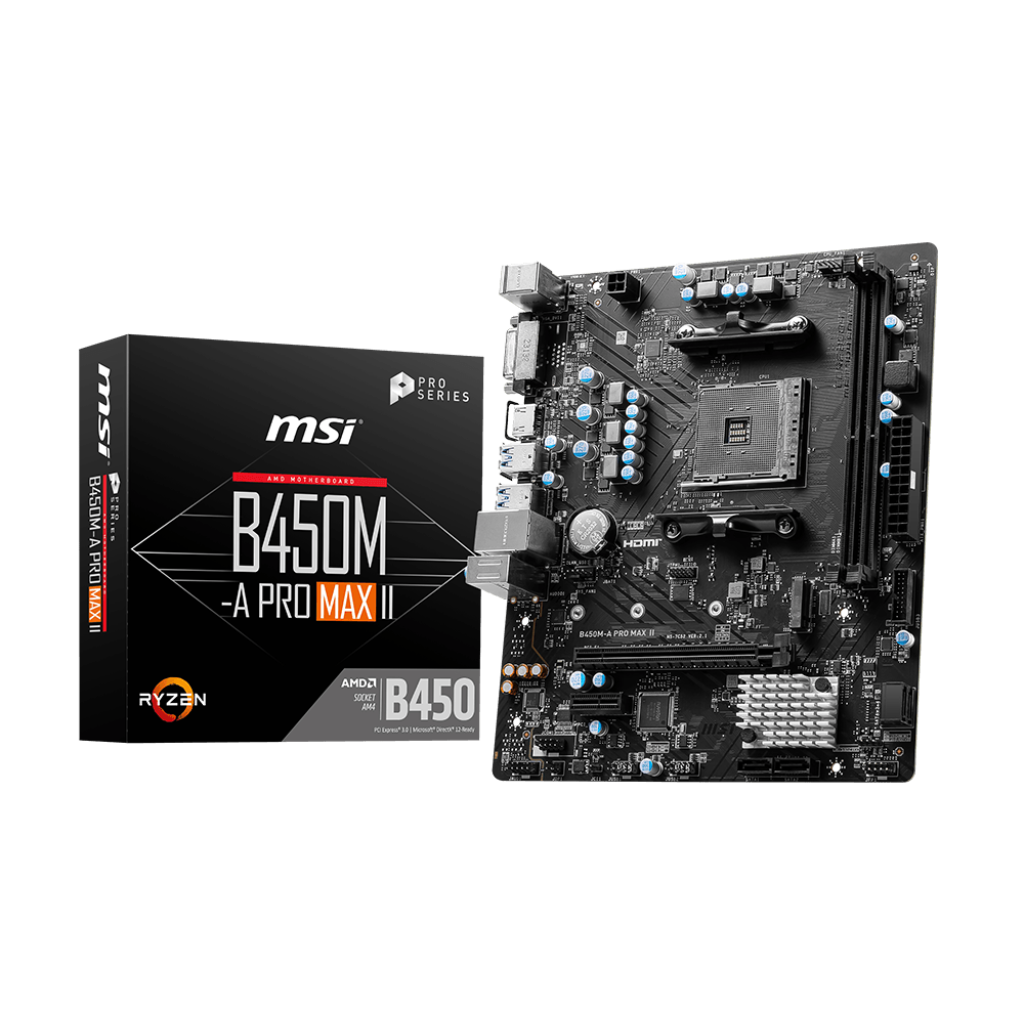

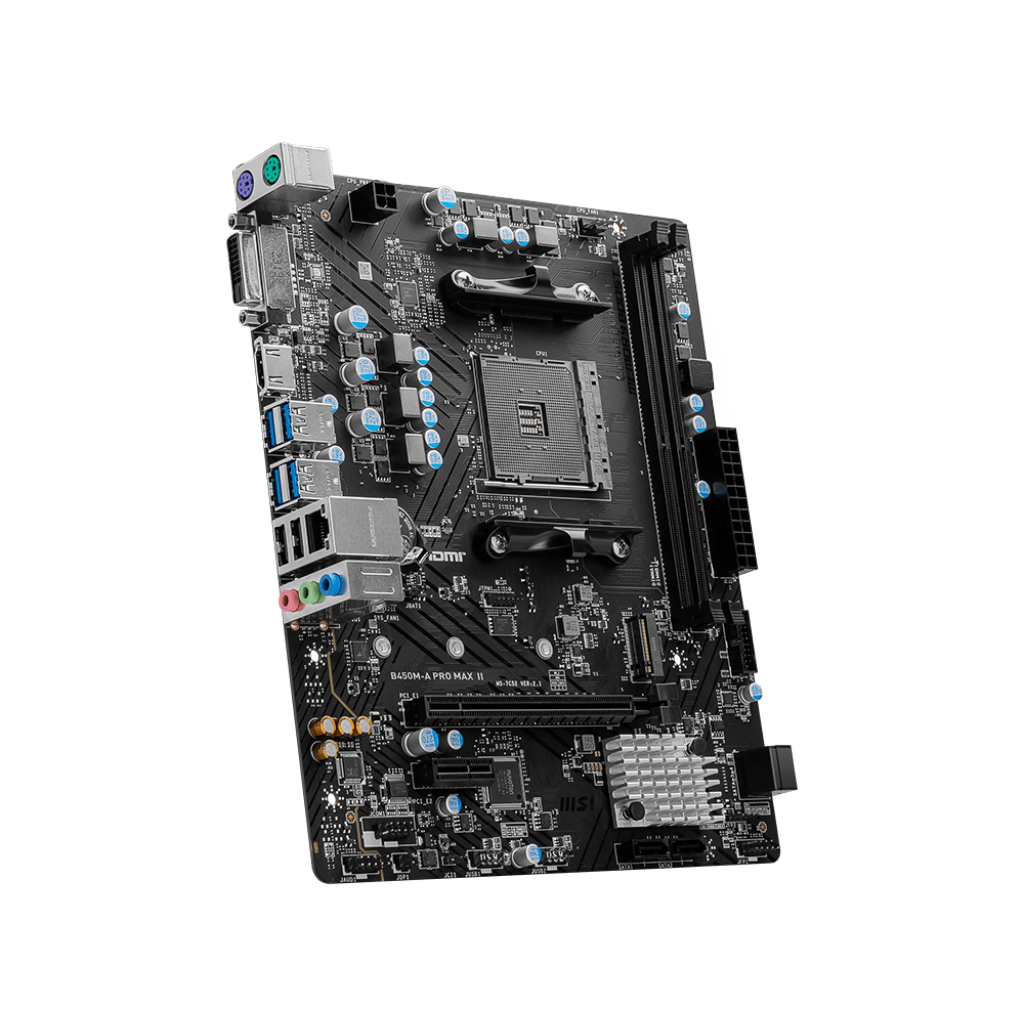

Pamatplate MSI B450M-A PRO MAX II

ID: 1913

Product Summary

Socket: AM4
Mikroshēmu kopa (Chipset): AMD B450
Atmiņas slotu skaits: 2
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 3.0 x16, PCIe 2.0 x1, PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 3 x audio jacks, USB 3.2 Gen1, DVI, HDMI, RJ-45
Formfaktors: mATX

Full Specifications

73,¹⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

B450M-APROMAXII

Socket ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B450

Saskarnes

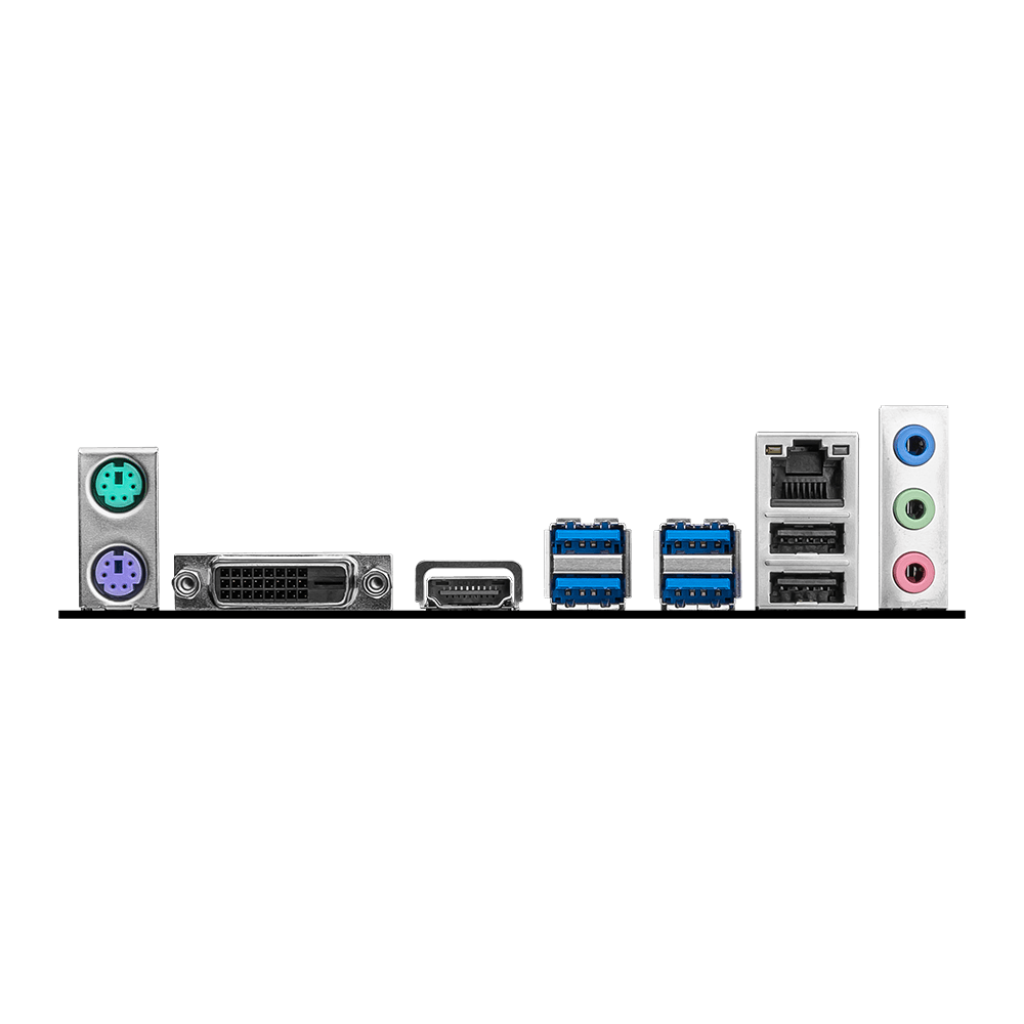

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 3 x audio jacks, USB 3.2 Gen1, DVI, HDMI, RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 3.0 x16, PCIe 2.0 x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8125

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, 4 x USB 2.0

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Svars ........................................................................................................................................................................................................

0.2 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
