- Memory card ASUS TUF GAMING B650E-PLUS WIFI (90MB1M20-M0EAY0)

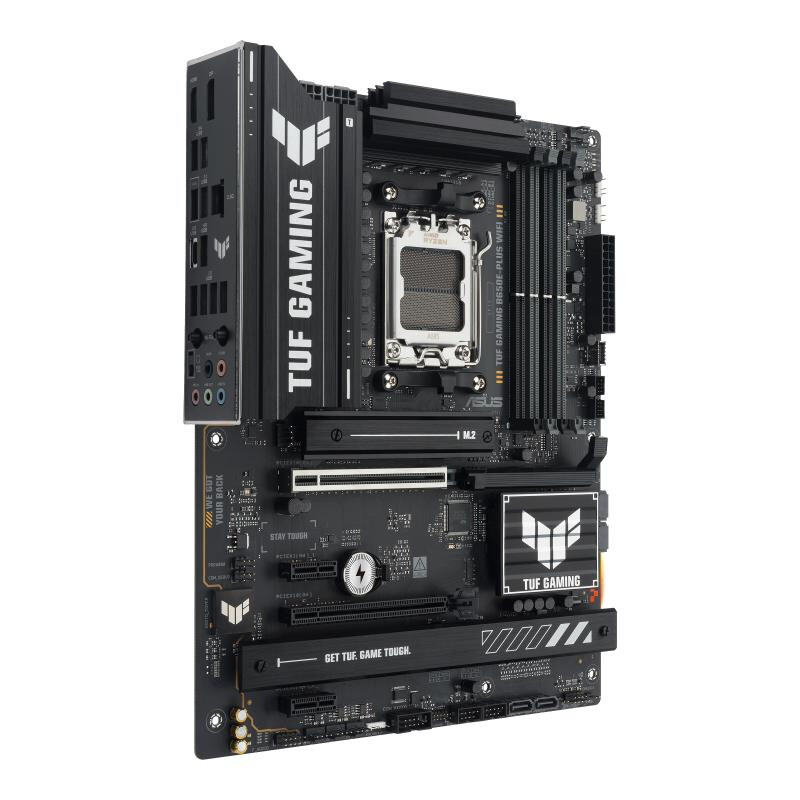

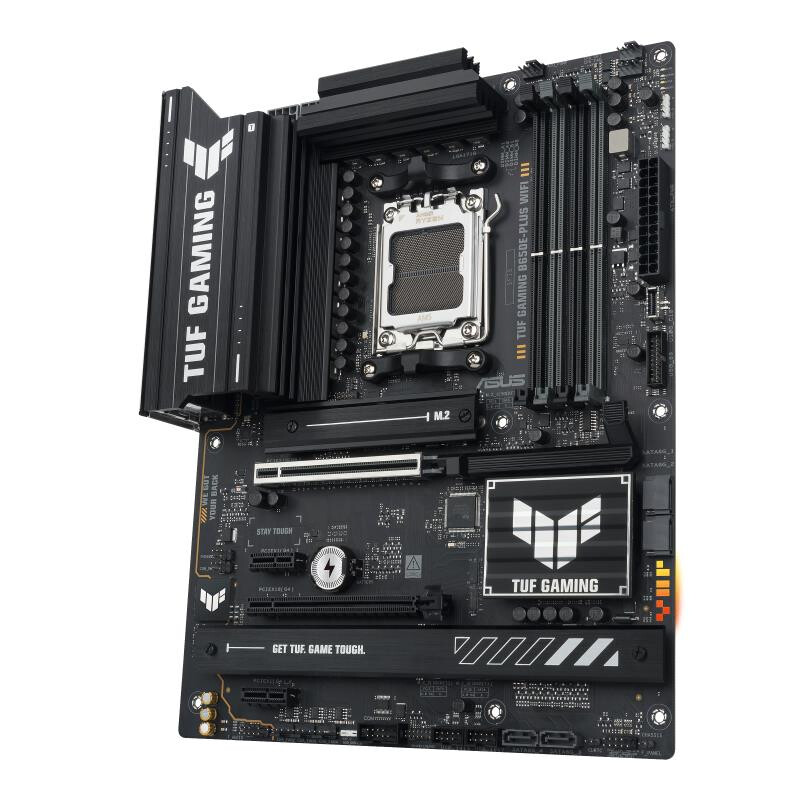

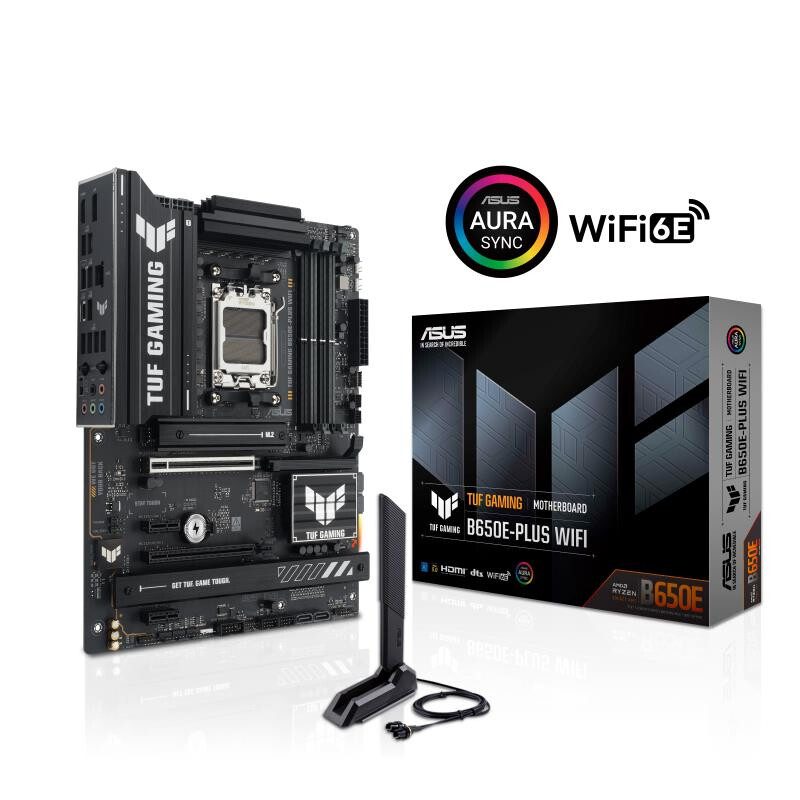

Memory card ASUS TUF GAMING B650E-PLUS WIFI (90MB1M20-M0EAY0)
ID: 1916
Product Summary
- Socket: AM5
- Chipset: AMD B650
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
- Rear panel connectors: 6 x USB 2.0, USB Type-C, 3 x USB 32, 5 x 500 m, HDMI (High-Definition Multimedia Interface), DisplayPort
- Backlight: yes
- Form factor: ATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
90MB1M20-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Chipset ........................................................................................................................................................................................................
AMD B650
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
Disk controllers
SATA Controller ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Memory
Memory type ........................................................................................................................................................................................................
DDR5
Number of memory slots ........................................................................................................................................................................................................
4
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
6 x USB 2.0, USB Type-C, 3 x USB 32, 5 x 500 m, HDMI (High-Definition Multimedia Interface), DisplayPort
Audio/Video
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Learn more
PC case fan connectors ........................................................................................................................................................................................................
4 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
2 x 8-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
2 x USB 2.0, USB 32 Gen1, USB 32 Gen1 Type-C
Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................
3 x 3-pin
Backlight ........................................................................................................................................................................................................
yes
Form factor ........................................................................................................................................................................................................
ATX
Design colors ........................................................................................................................................................................................................
black
Special Feature
Weight ........................................................................................................................................................................................................
1 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
