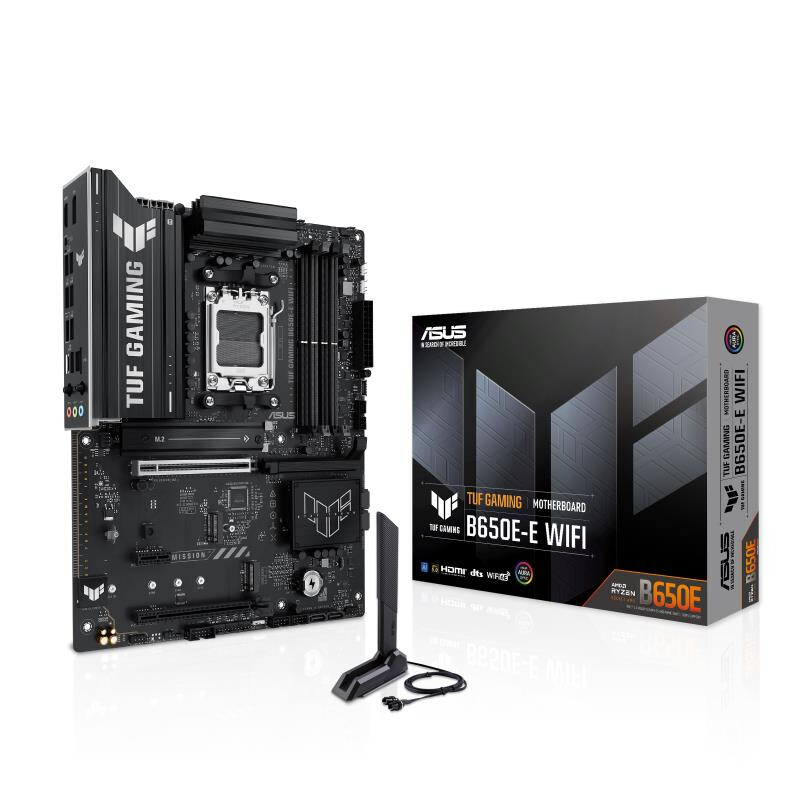

Memory board ASUS TUF GAMING B650E-E WIFI

ID: 1919

Product Summary

Socket: AM5
Chipset: AMD B650
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Rear panel connectors: 3 x USB 2.0, 3 x USB 32, 5 x 500 m, USB 31, USB 31 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort
Form factor: ATX

Full Specifications

150,³⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

TUF GAMING B650E-E WIFI

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD B650

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Supported PCI Express Modes ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots

Interfaces

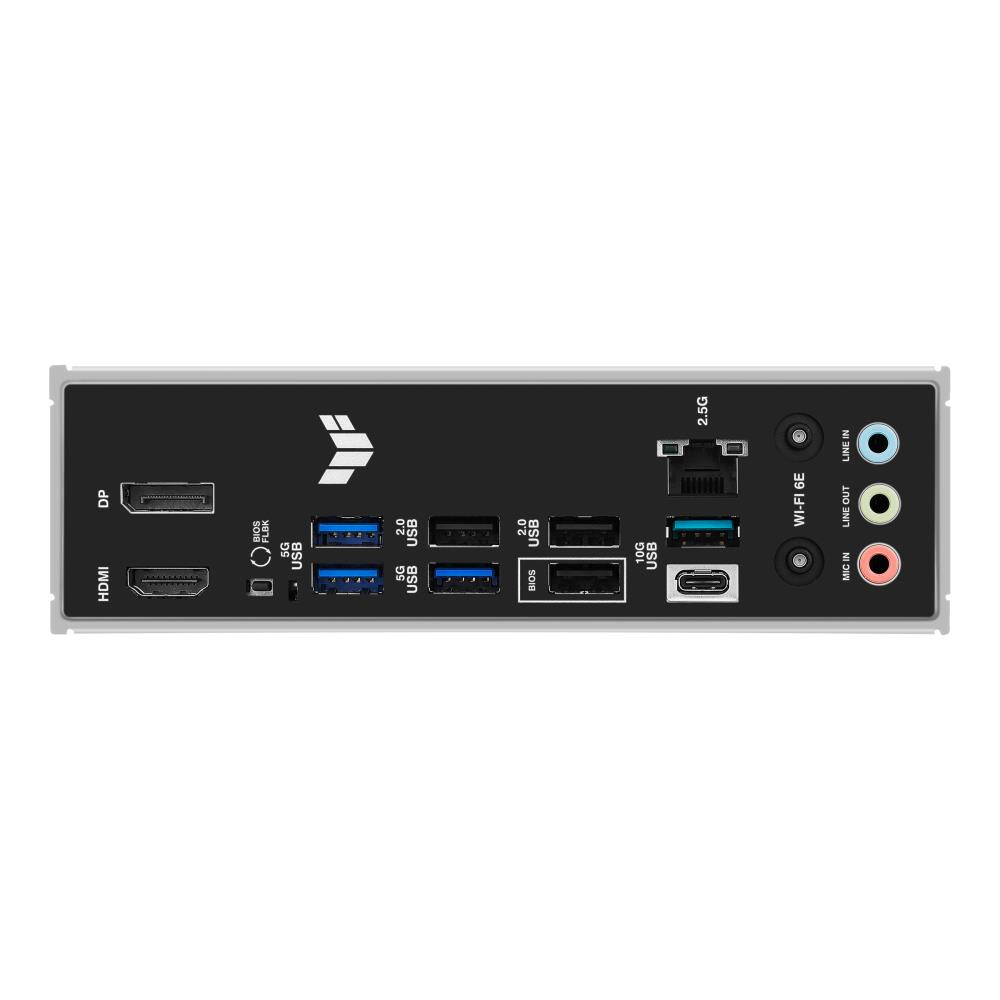

Rear panel connectors ........................................................................................................................................................................................................

3 x USB 2.0, 3 x USB 32, 5 x 500 m, USB 31, USB 31 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

4 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, USB 31 Gen1, USB 32 Gen1 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Form factor ........................................................................................................................................................................................................

ATX

Design colors ........................................................................................................................................................................................................

black

Special Feature

Weight ........................................................................................................................................................................................................

1 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
