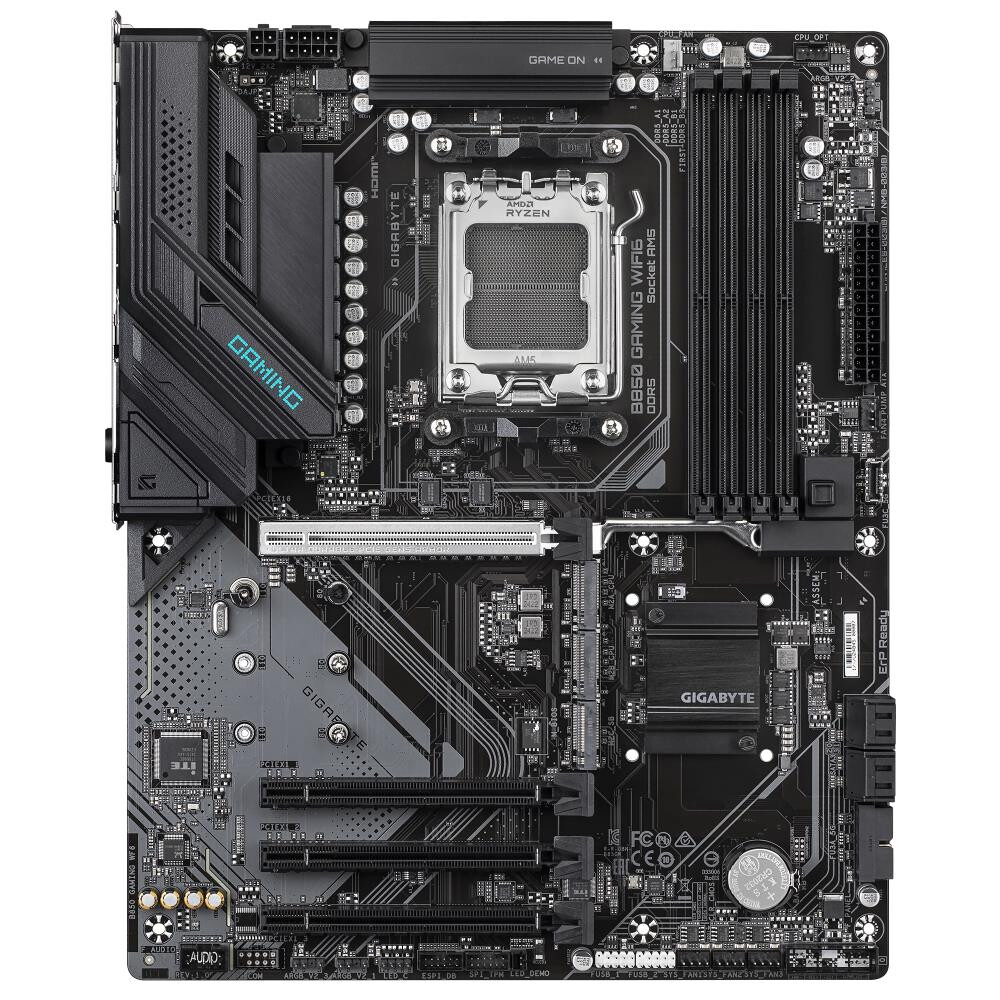

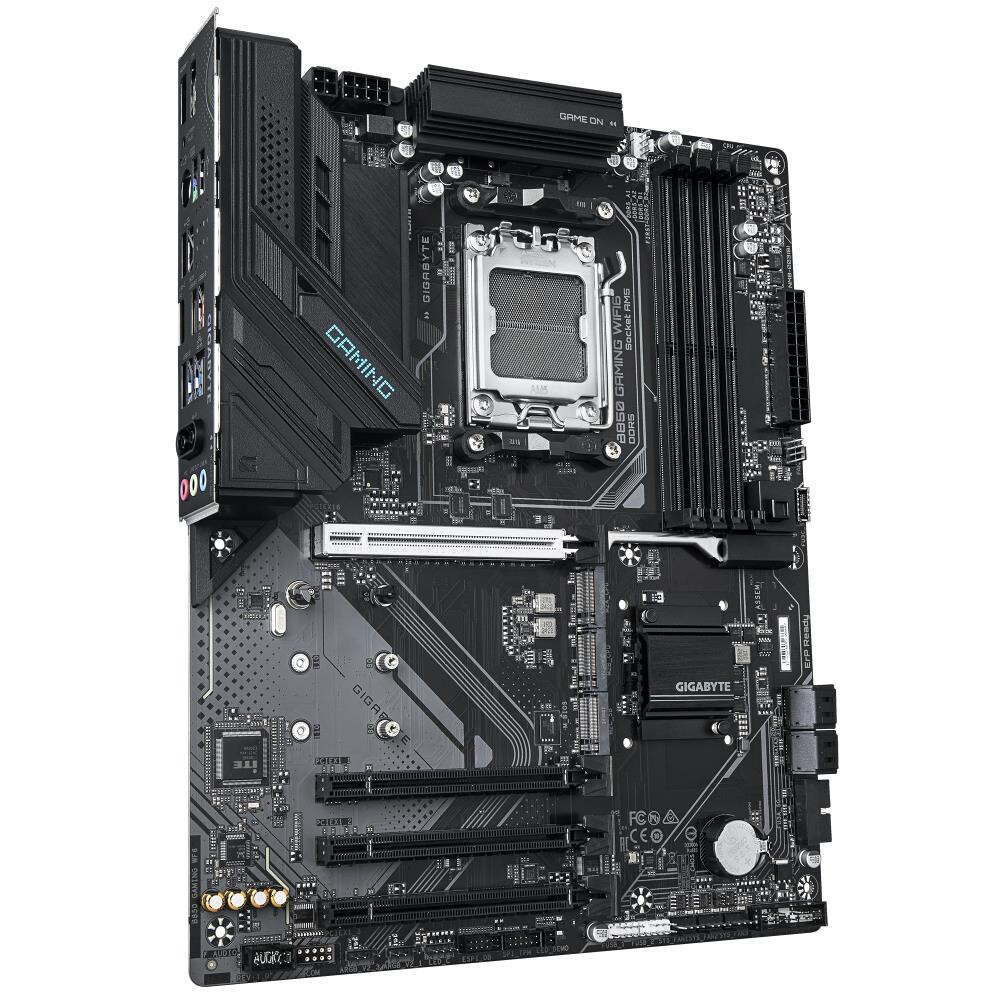

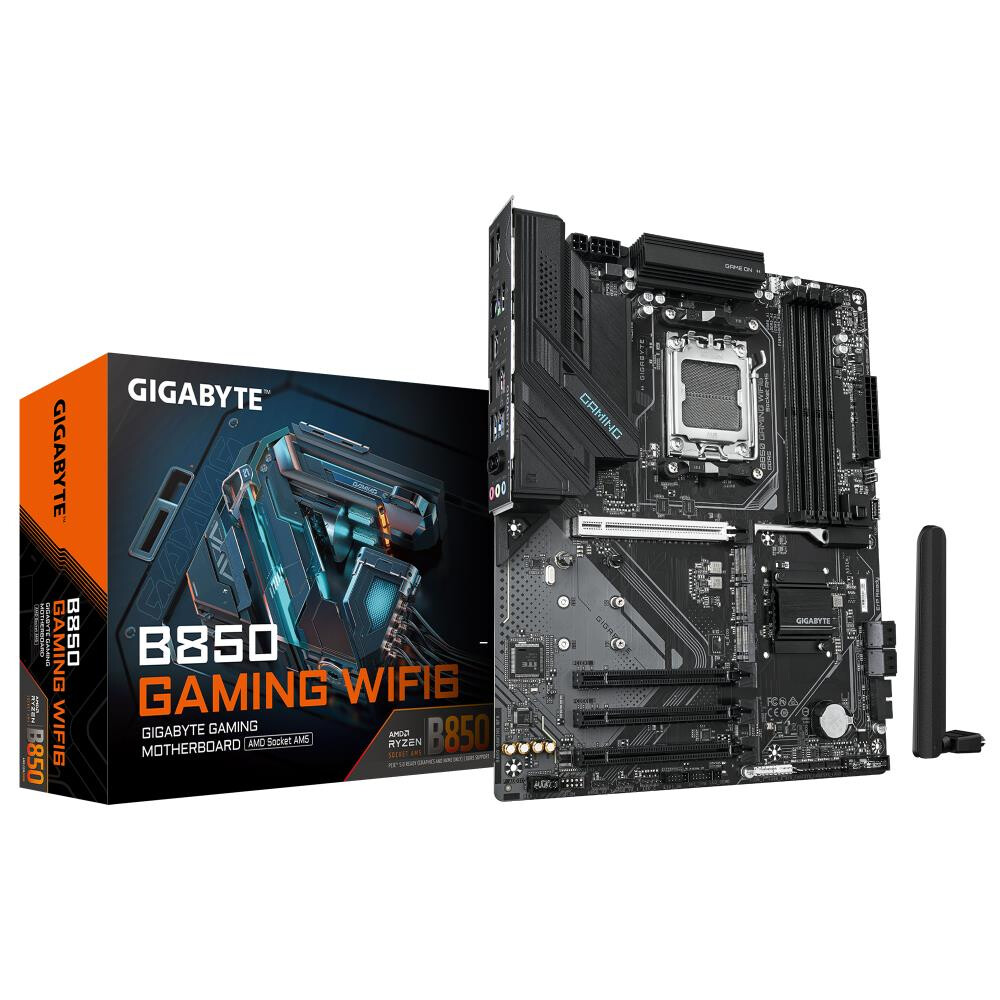

Pamatplate GIGABYTE B850 GAMING WIFI6

ID: 1924

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B850
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 3 x PCI-E 3.0 x16, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth

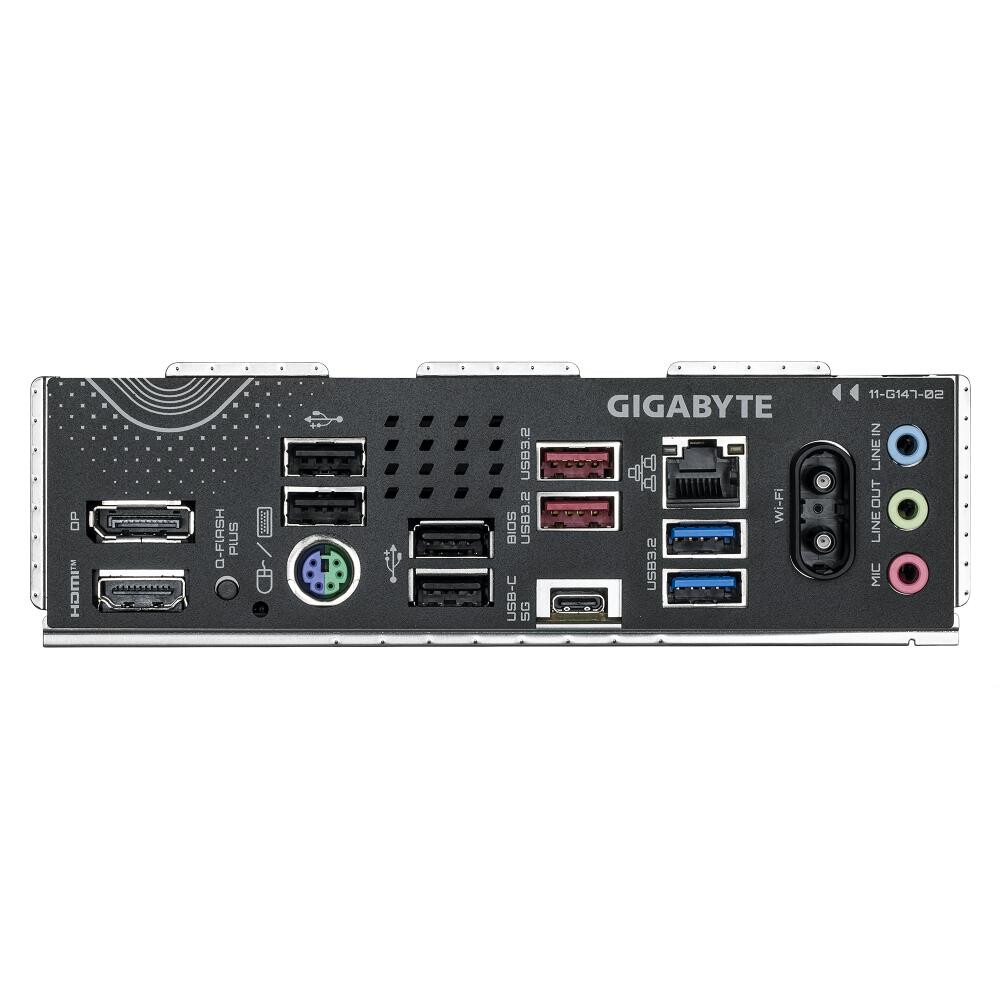

Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, 3 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Full Specifications

164,⁵⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

B850 GAMING WF6

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B850

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 3 x PCI-E 3.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 3 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Svars ........................................................................................................................................................................................................

1.3 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
