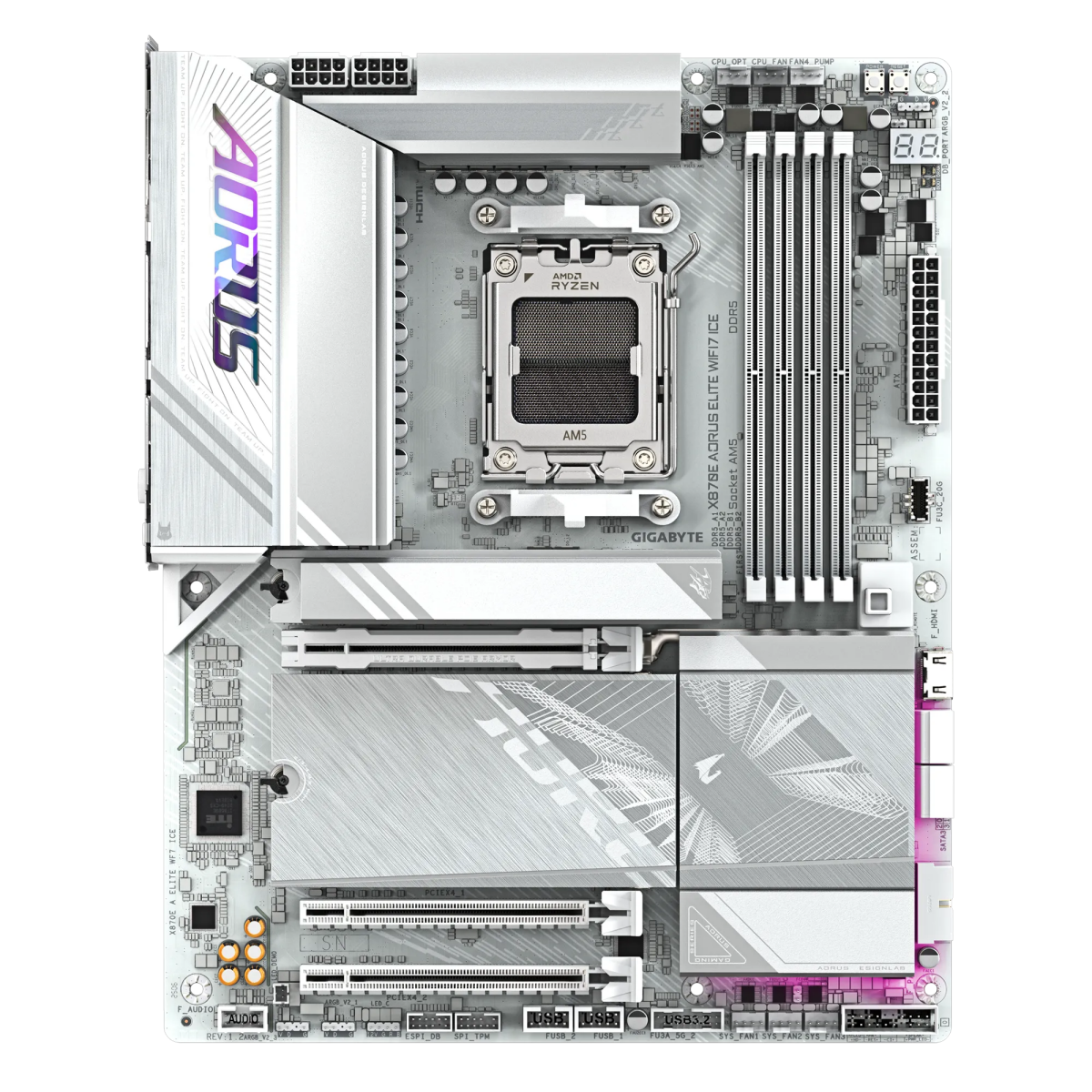

Pamatplate GIGABYTE X870E AORUS ELITE WF7 ICE

ID: 1932

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD X870E
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0x4, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, 2 x USB Type-C, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Full Specifications

302,⁴⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

X870E A ELITE WF7 ICE

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD X870E

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8922AE

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0x4, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Saskarnes

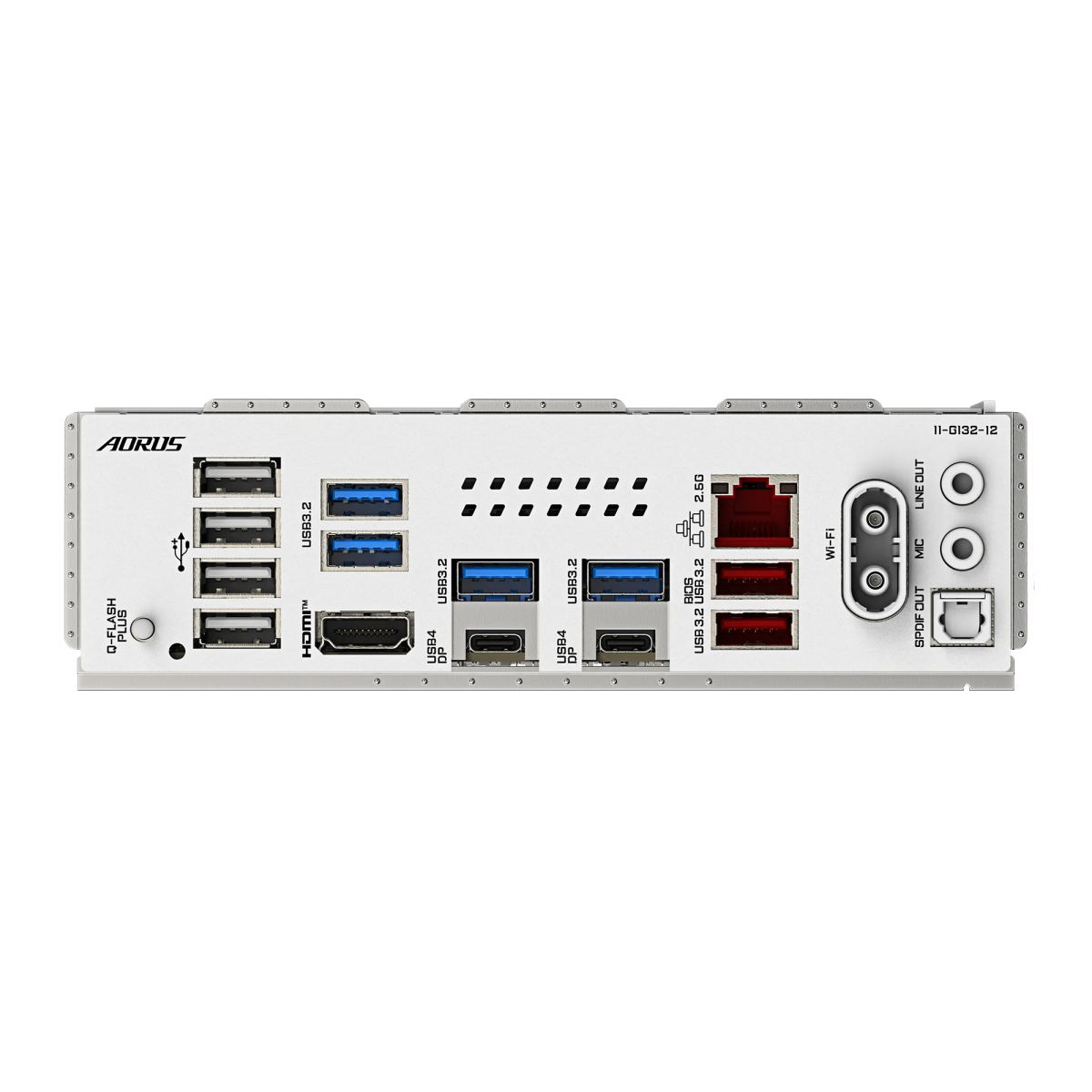

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, 2 x USB Type-C, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, RJ-45, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1220

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Apgaismojums ........................................................................................................................................................................................................

jā

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts

Papildus

Svars ........................................................................................................................................................................................................

2.2 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
