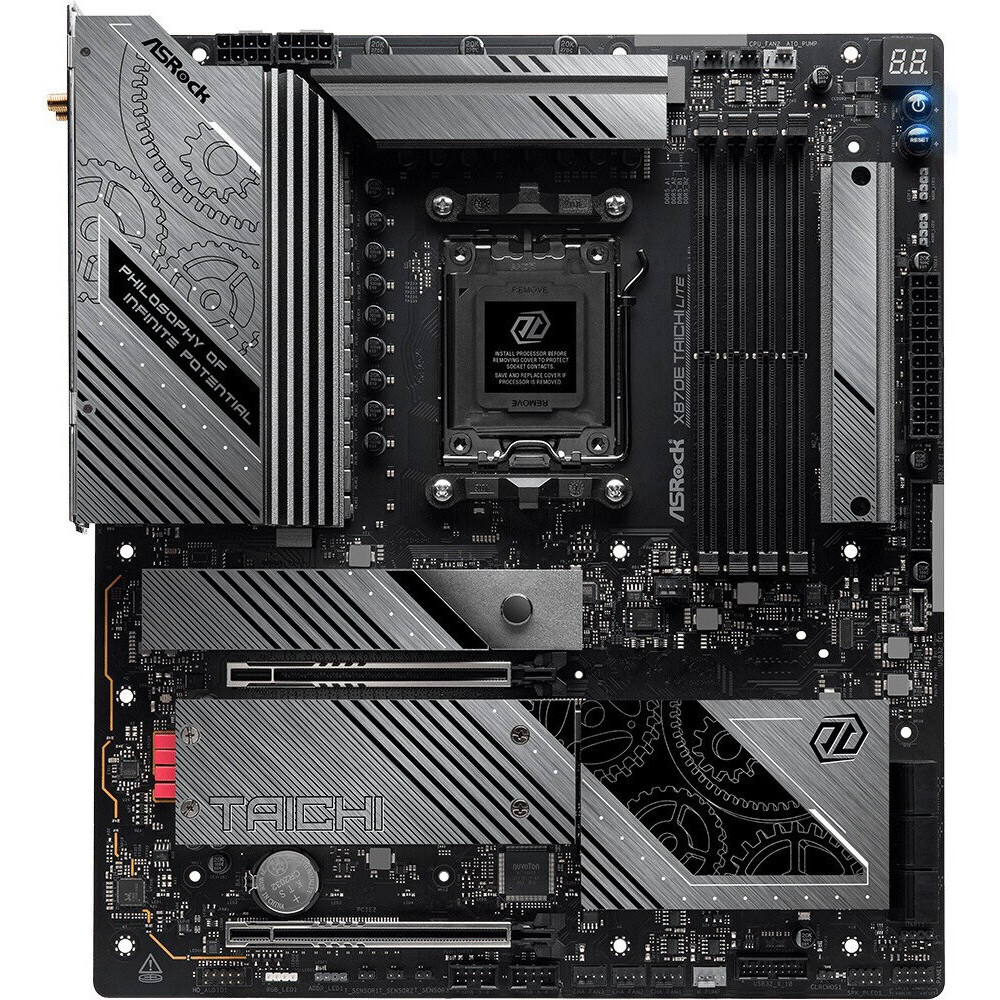

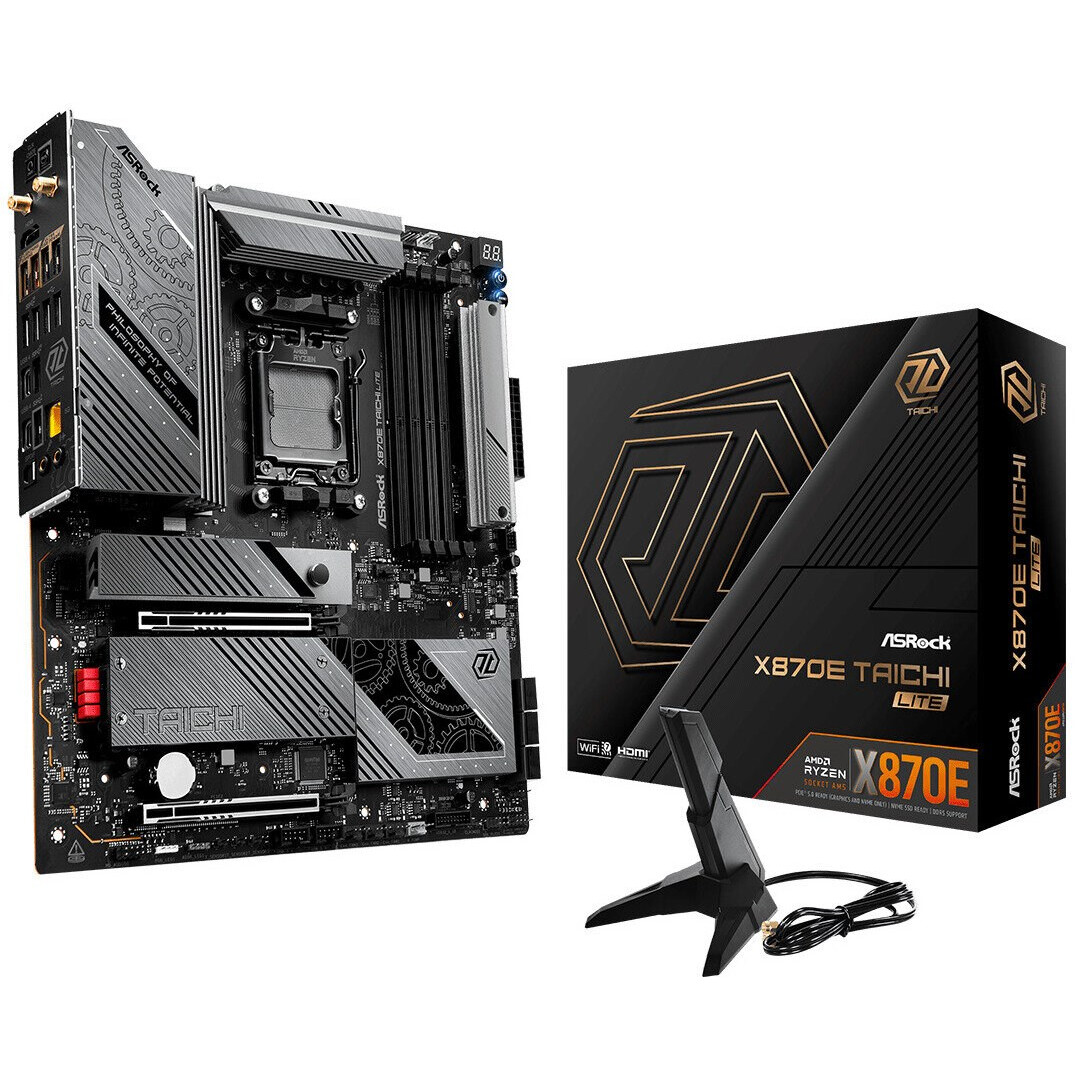

Pamatplate ASRock X870E Taichi Lite

ID: 1968

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD X870E
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 2 x PCI-E 5.0 x16, PCI-E M.2
Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 2 x USB 2.0, 3 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)
Formfaktors: ATX

Full Specifications

395,¹⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

X870E Taichi Lite

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD X870E

Saskarnes

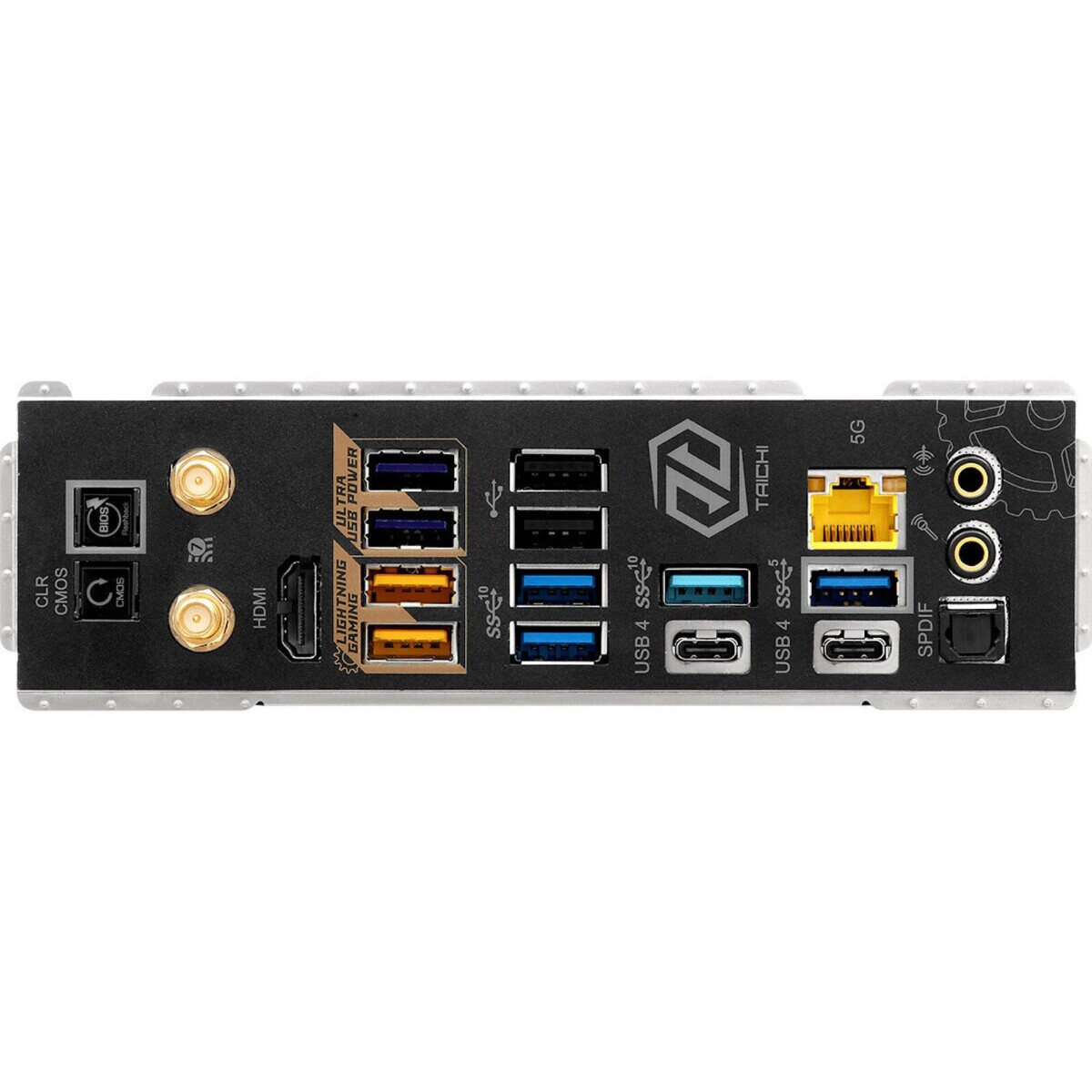

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com
