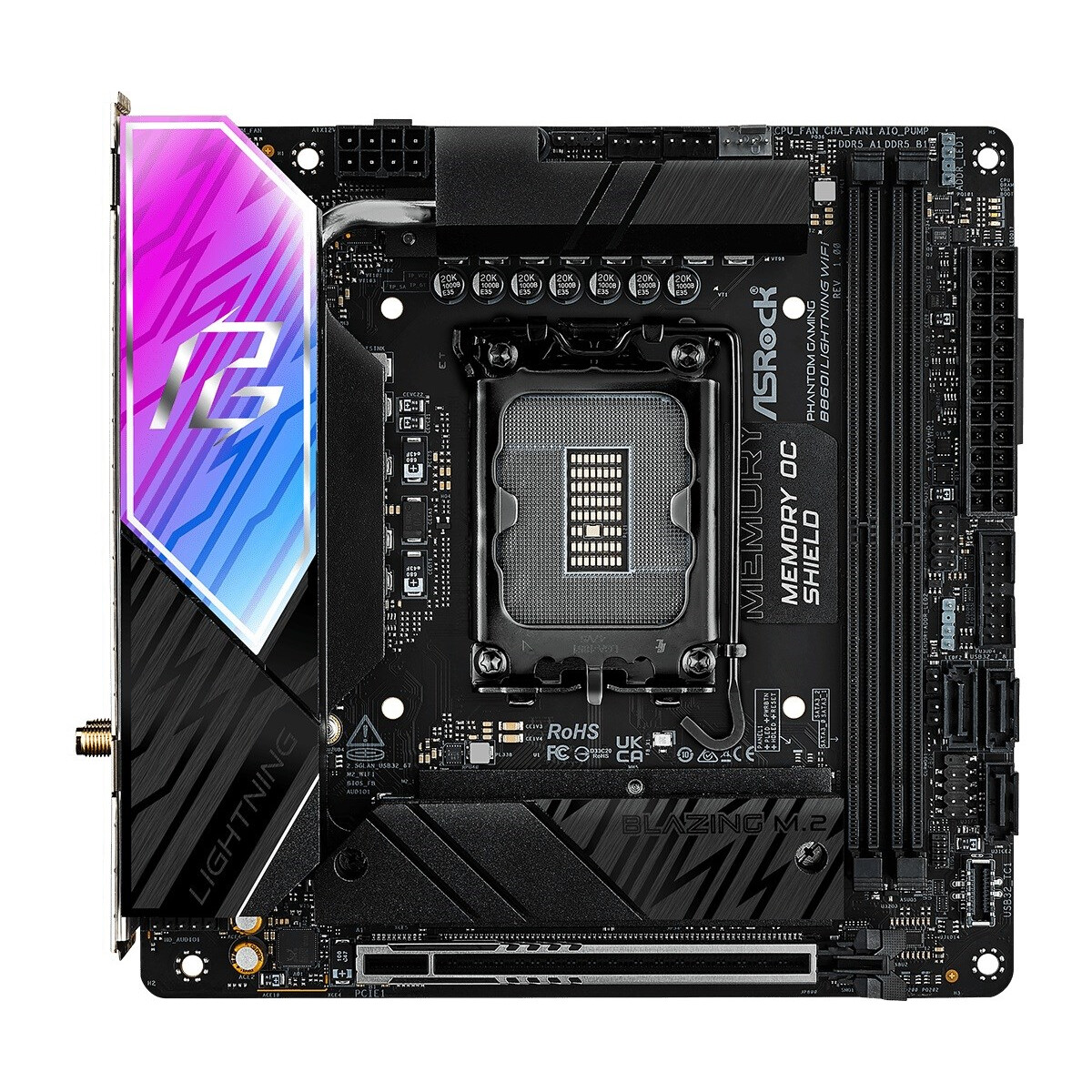

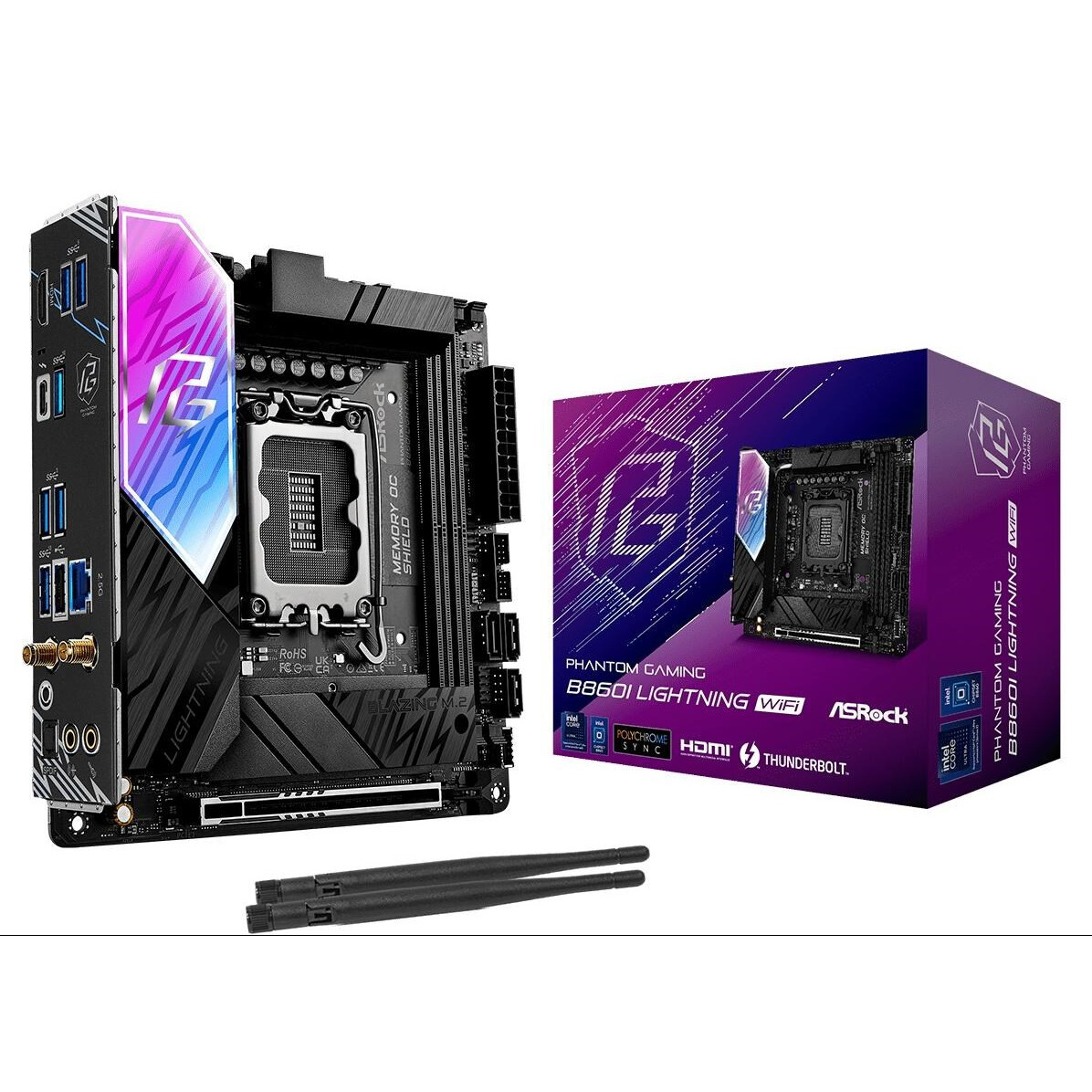

Pamatplate ASRock B860I Lightning WiFi

ID: 1979

Product Summary

Socket: LGA1851
Mikroshēmu kopa (Chipset): Intel B860
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: USB 2.0, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
Formfaktors: Mini-ITX

Full Specifications

206,⁴⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

B860I Lightning WiFi

Socket ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B860

Saskarnes

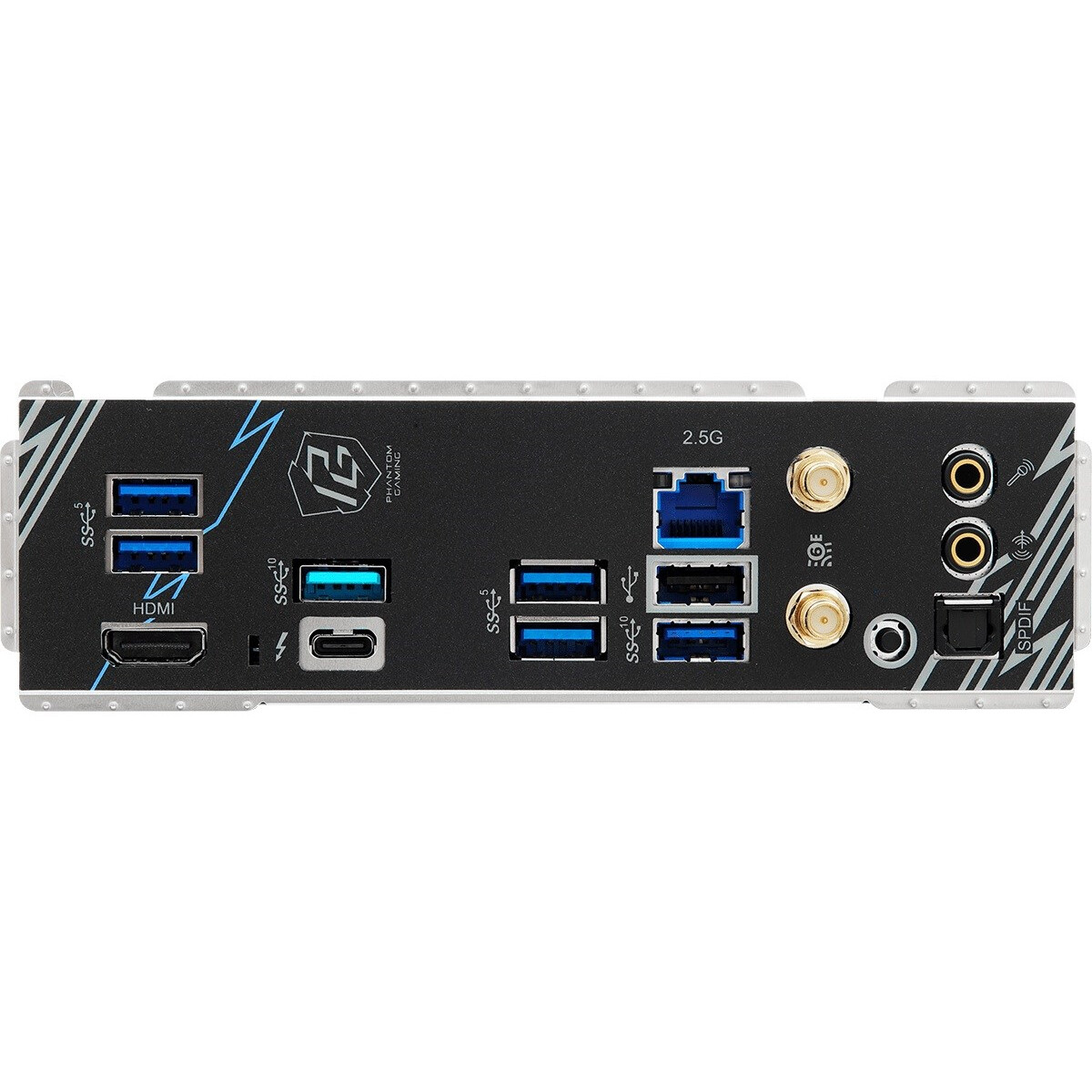

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 2.0, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1220

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Dragon RTL8125BG

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

3 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

Formfaktors ........................................................................................................................................................................................................

Mini-ITX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com
