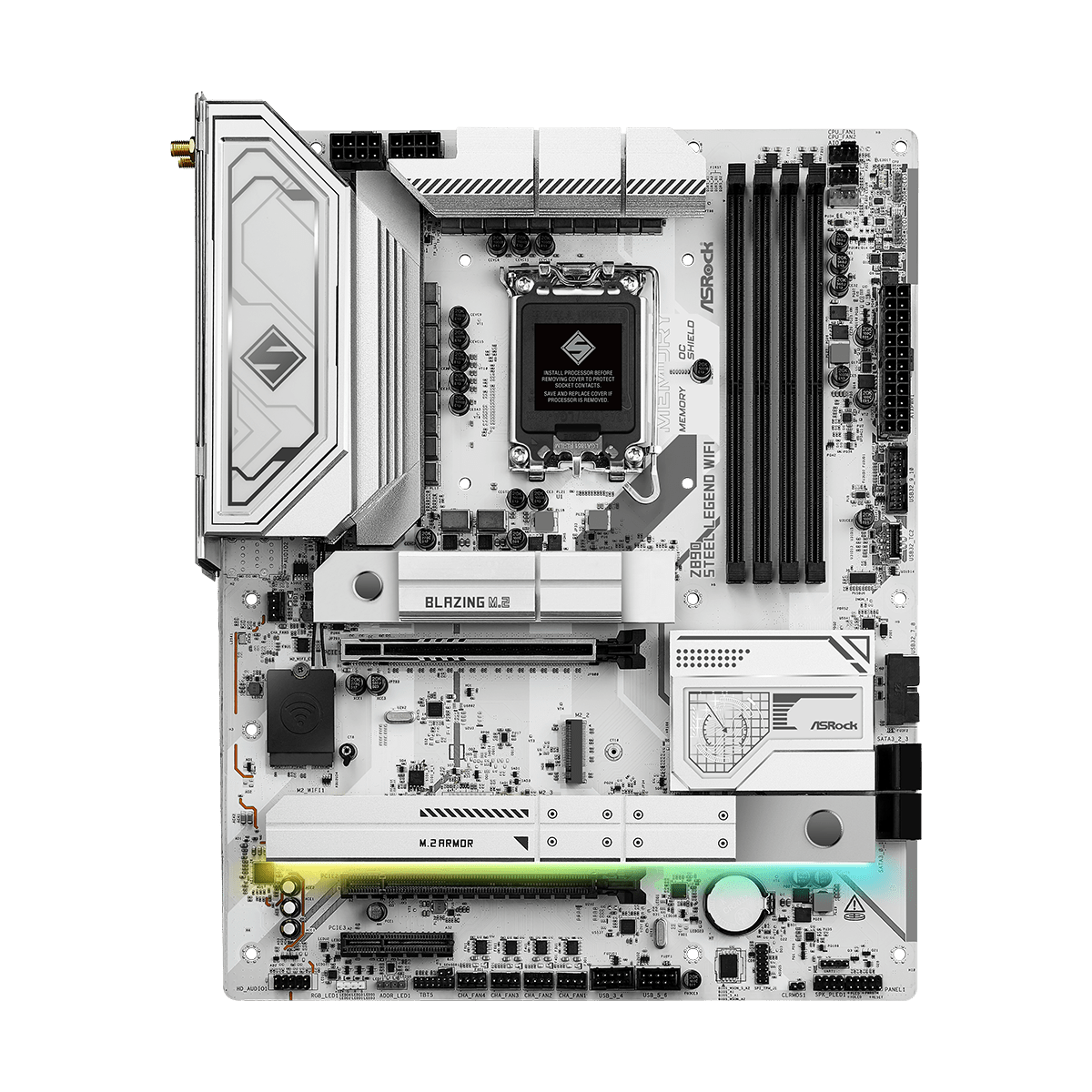

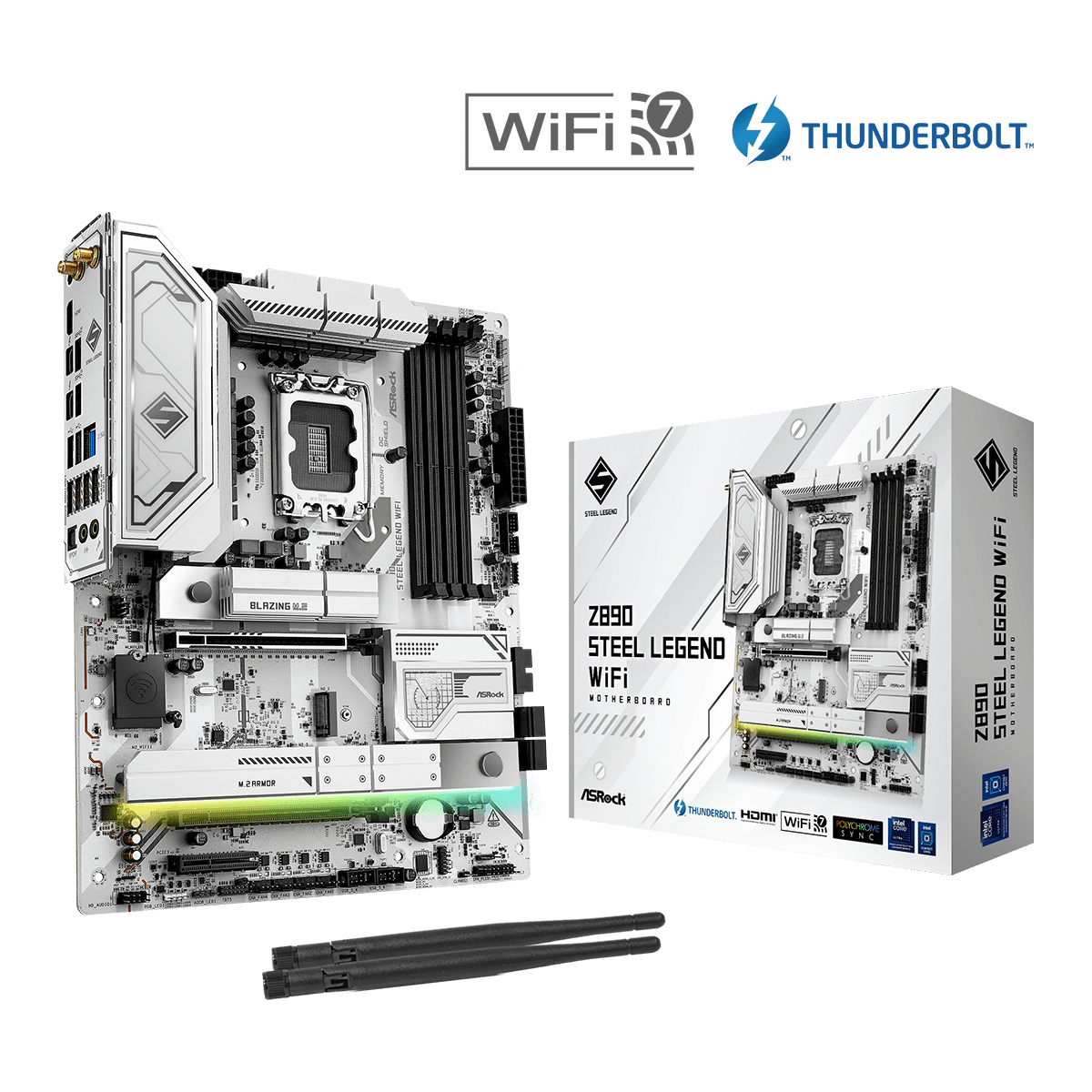

Motherboard ASRock Z890 Steel Legend WiFi

ID: 1983

Product Summary

Socket: LGA1851
Chipset: Intel Z890
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 50 km, 2 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

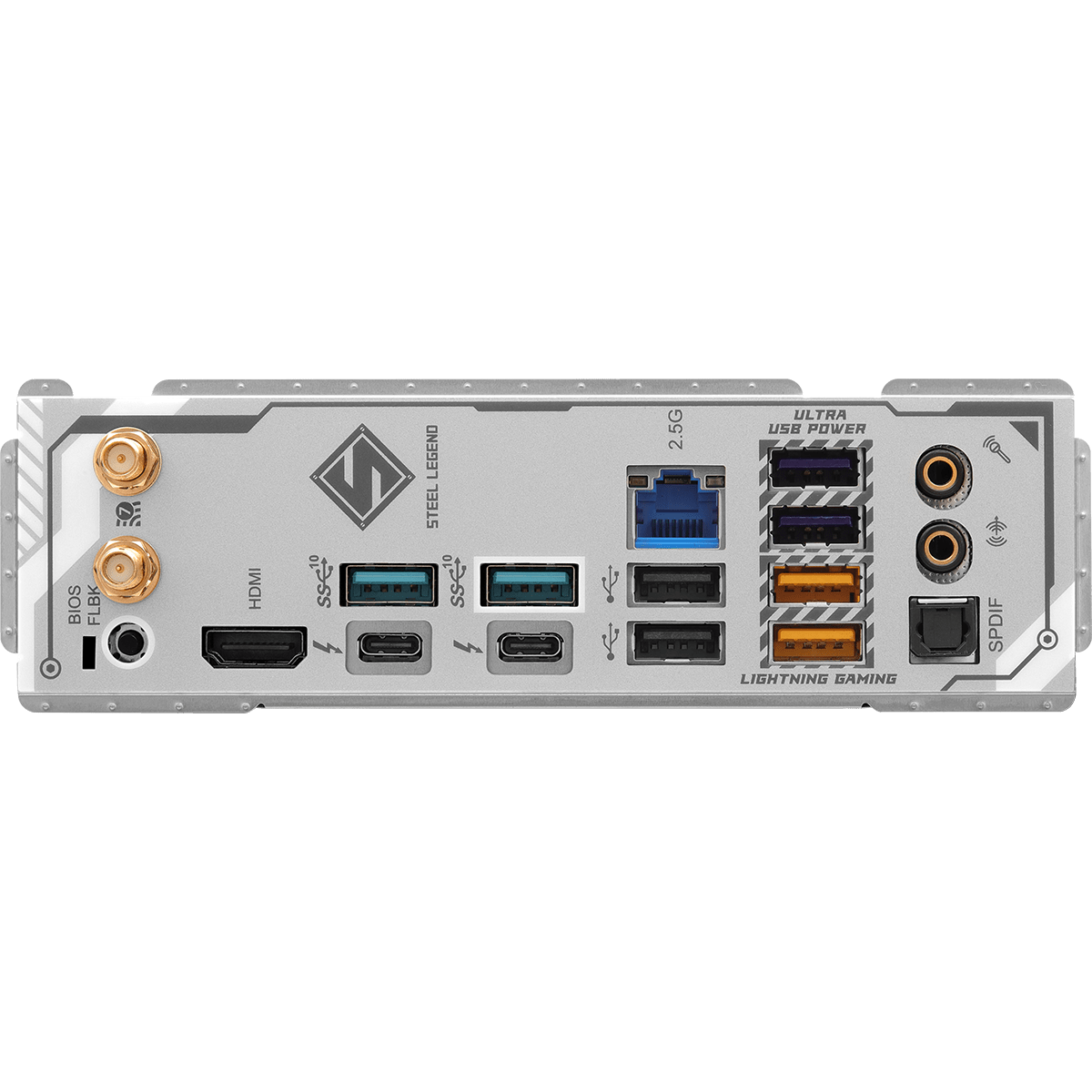

Rear panel connectors: USB 2.0, 4 x USB 32 Gen1, 2 x USB 32 Gen2, HDMI (High-Definition Multimedia Interface), 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optical)
Backlight: yes
Form factor: ATX

Full Specifications

249,⁸⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASRock

Manufacturer Code ........................................................................................................................................................................................................

Z890 Steel Legend WiFi

Socket ........................................................................................................................................................................................................

LGA1851

Chipset ........................................................................................................................................................................................................

Intel Z890

Interfaces

Rear panel connectors ........................................................................................................................................................................................................

USB 2.0, 4 x USB 32 Gen1, 2 x USB 32 Gen2, HDMI (High-Definition Multimedia Interface), 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optical)

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC1220

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 50 km, 2 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Supported PCI Express Modes ........................................................................................................................................................................................................

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Dragon RTL8125BG

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 5, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

5 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

2 x 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 32 Gen1, USB 32 Gen2x2 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Backlight ........................................................................................................................................................................................................

yes

Form factor ........................................................................................................................................................................................................

ATX

Design colors ........................................................................................................................................................................................................

white

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asrock.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
