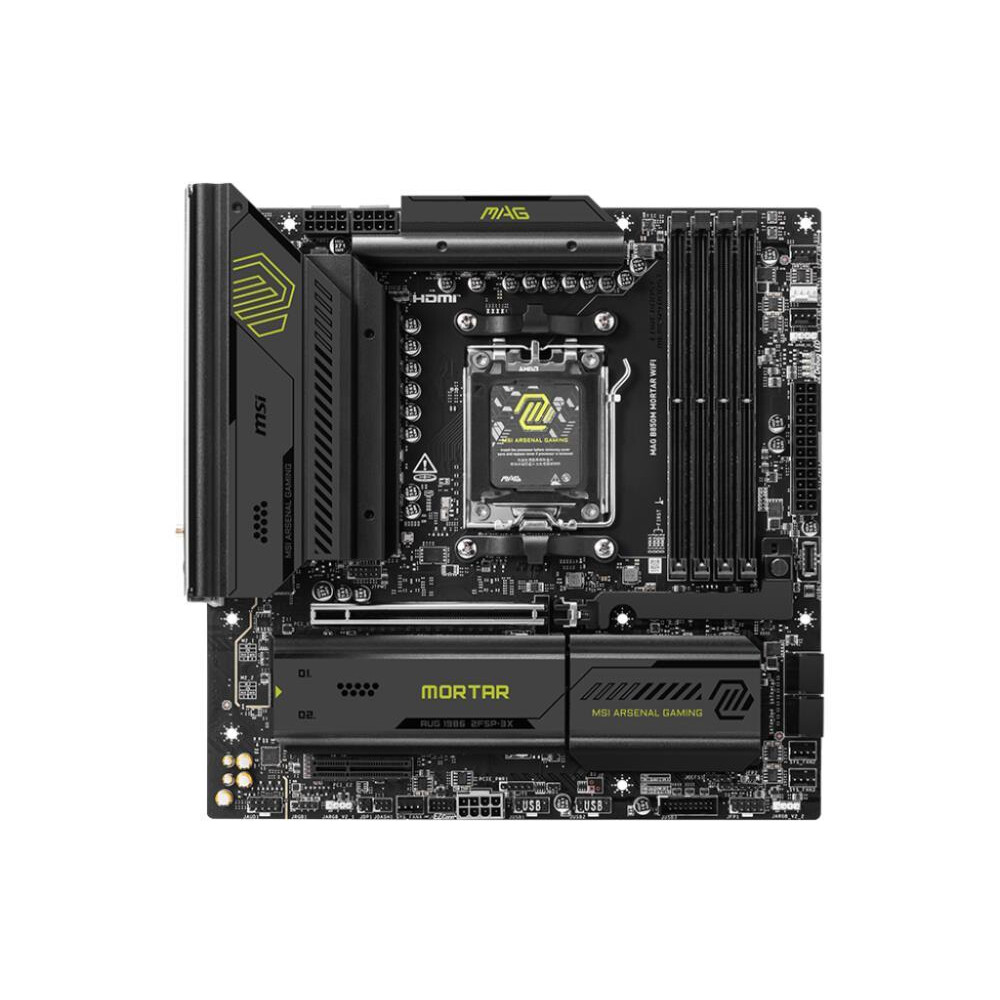

Pamatplate MSI MAG B850M MORTAR WIFI

ID: 1992

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B850
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 4.0x4, 3 x PCI-E M.2
Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: USB 3.0, USB 3.2, USB 3.1 Type-C, USB 3.2 Gen1 Type-C, HDMI, S/PDIF (optiskais)
Formfaktors: mATX

Full Specifications

213,⁶⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

MAG B850M MORTAR WIFI

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B850

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCIe 4.0x4, 3 x PCI-E M.2

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC4080

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Saskarnes

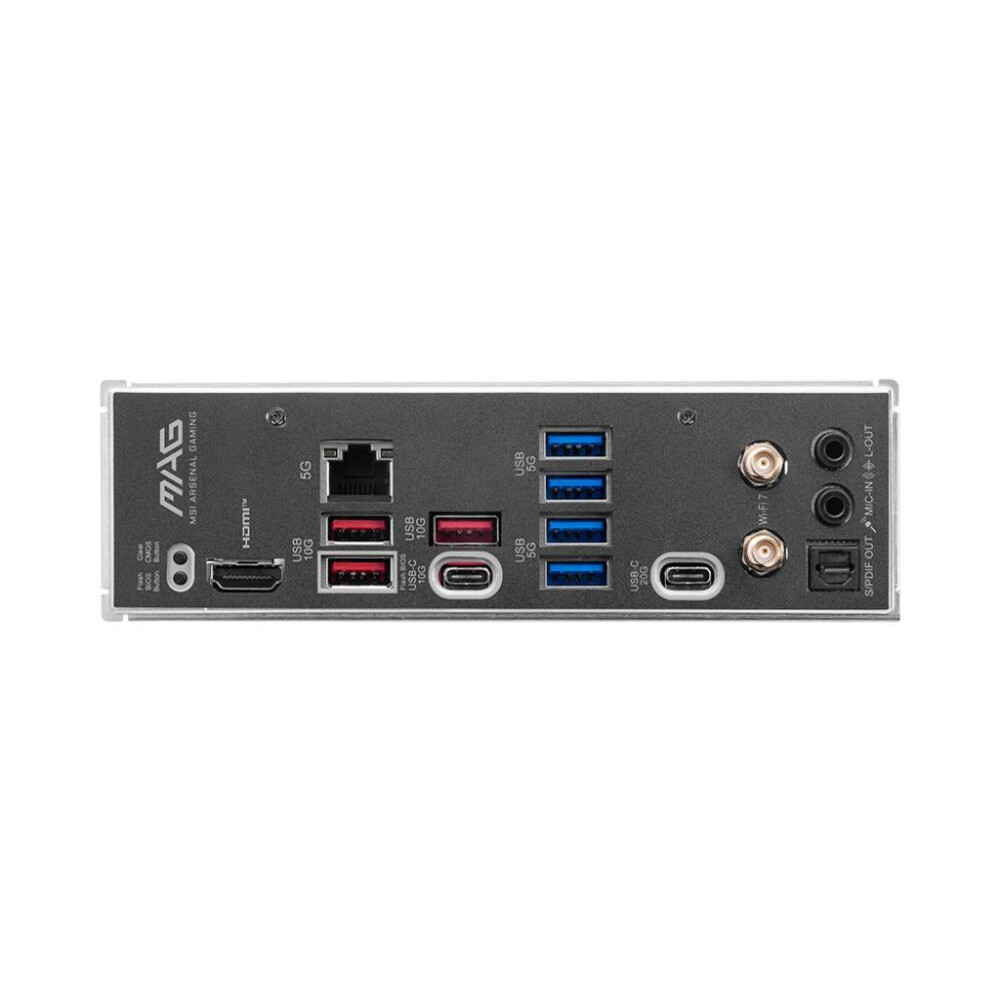

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 3.0, USB 3.2, USB 3.1 Type-C, USB 3.2 Gen1 Type-C, HDMI, S/PDIF (optiskais)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek 8126VB 5G

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, 4 x USB 2.0, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Svars ........................................................................................................................................................................................................

0.8 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
