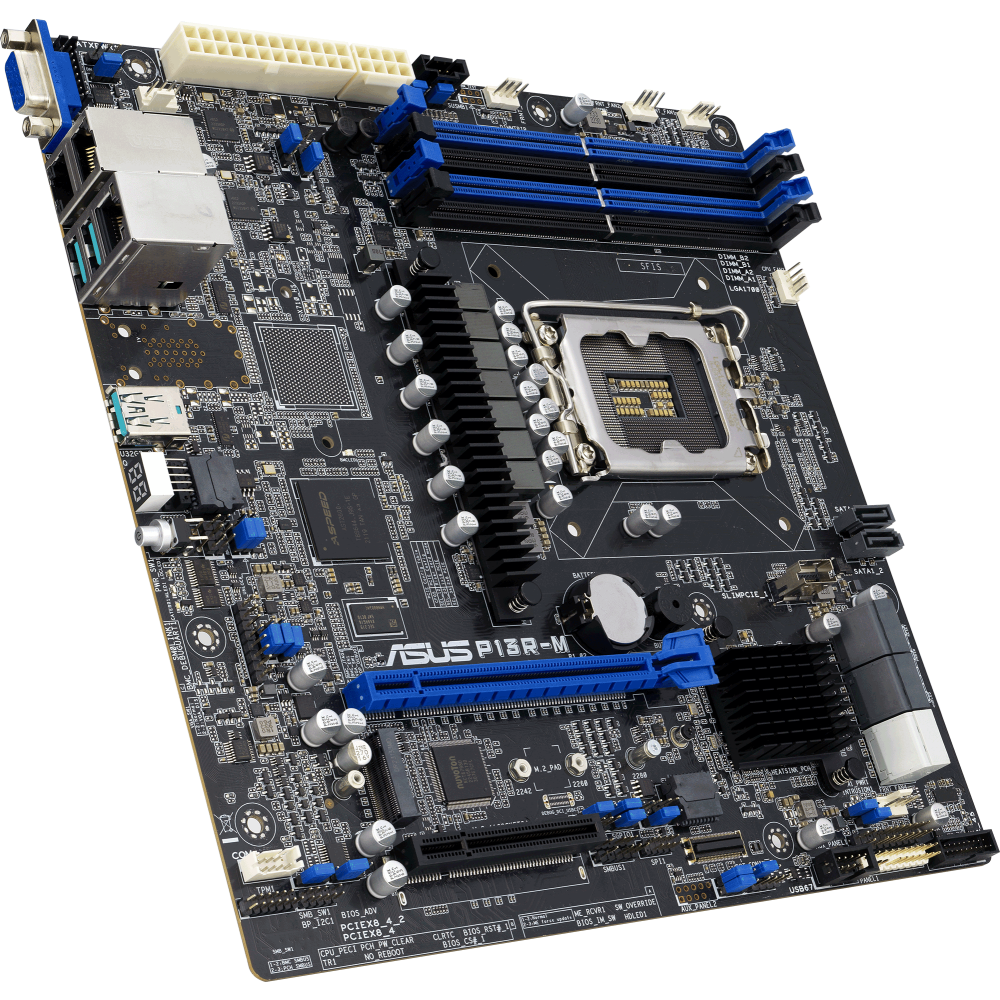

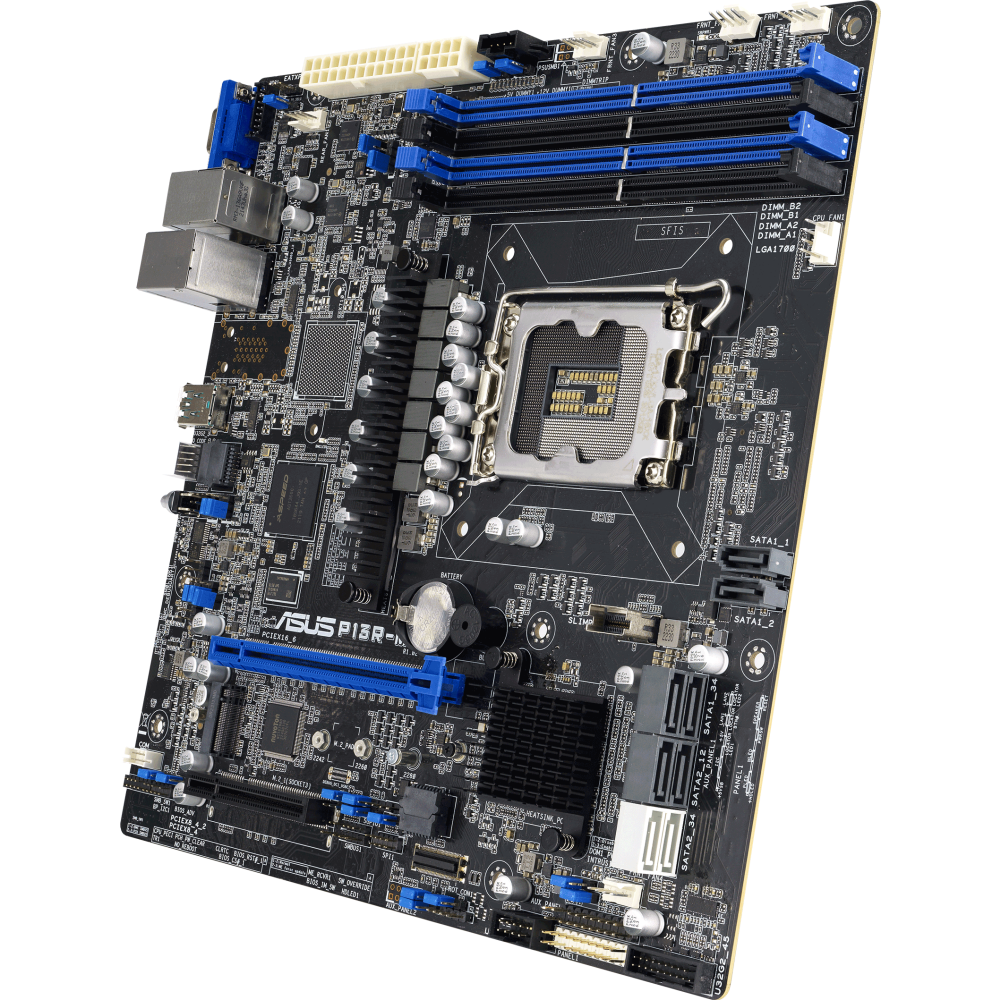

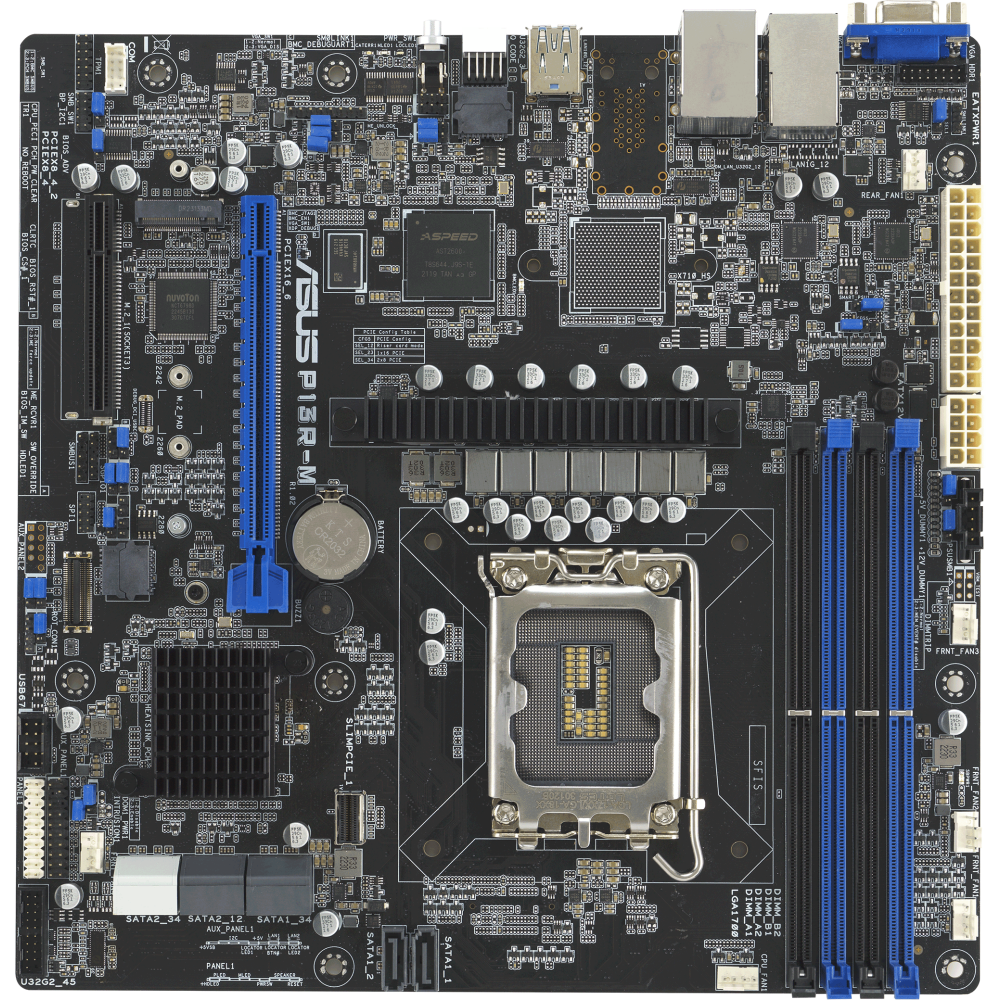

Server Motherboard ASUS P13R-M

ID: 34203

Product Summary

Form Factor: mATX
Number of Sockets: 1
Socket: LGA 1700
Chipset: Intel C262
Number of Memory Slots: 4
Memory Standard: DDR5
Disk Controllers: 8 x SATA-III (6 Gb/s)
Network Interface: 2 x Gigabit Ethernet (1 Gbps)

Full Specifications

443,⁹⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

90SB0C70-M0UAY1

Socket ........................................................................................................................................................................................................

LGA 1700

Number of Sockets ........................................................................................................................................................................................................

Supported Processors ........................................................................................................................................................................................................

Intel Pentium/Xeon E

Maximum heat dissipation ........................................................................................................................................................................................................

95 week

Chipset ........................................................................................................................................................................................................

Intel C262

Connectivity

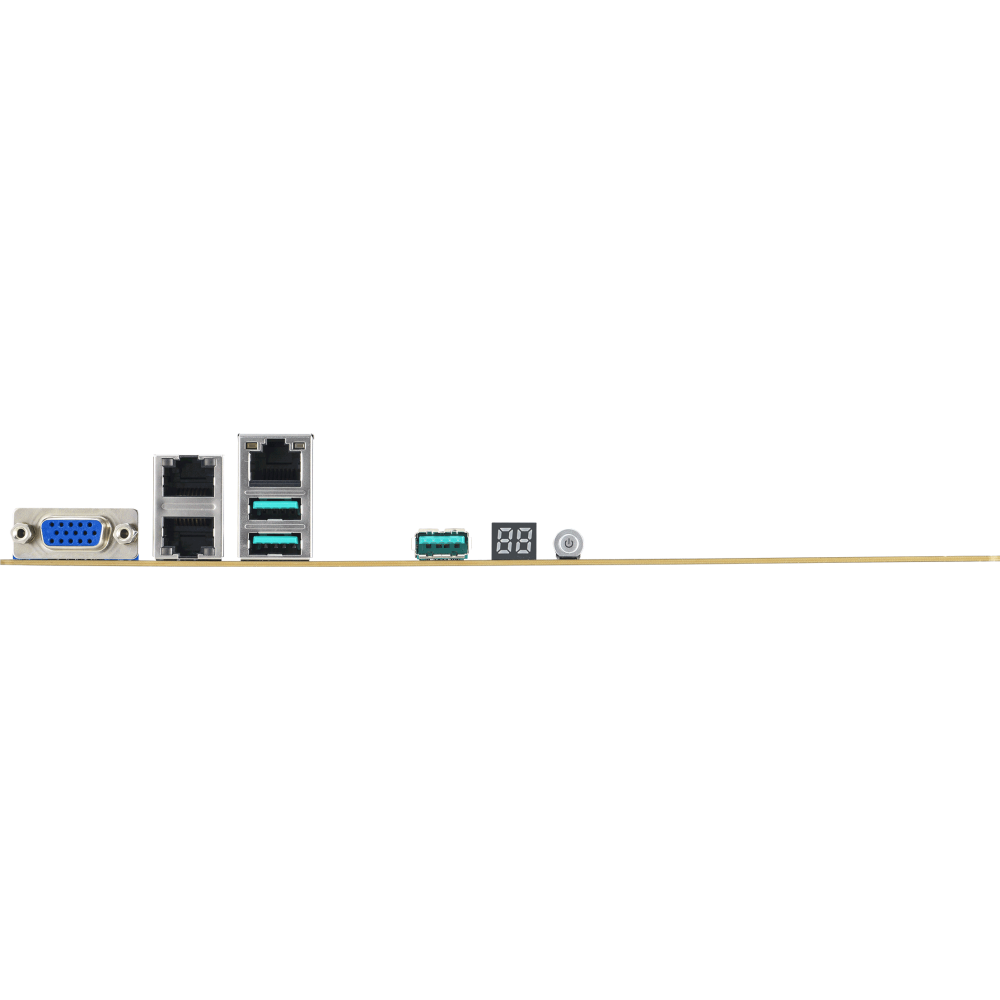

Rear Panel Connectors ........................................................................................................................................................................................................

3 x USB 3.2 Gen 2, VGA, 3 x RJ-45

Disk Controllers and Expansion Slots

Disk Controllers ........................................................................................................................................................................................................

8 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E x8, M.2

M.2 Interface ........................................................................................................................................................................................................

SATA

M.2 Size ........................................................................................................................................................................................................

2280

Additional

Form Factor ........................................................................................................................................................................................................

mATX

Network

Network Interface ........................................................................................................................................................................................................

2 x Gigabit Ethernet (1 Gbps)

Audio/Video

Integrated Video Adapter ........................................................................................................................................................................................................

yes, Aspeed AST2600

Memory

Memory Standard ........................................................................................................................................................................................................

DDR5

Supported Memory Type ........................................................................................................................................................................................................

ECC

Number of Memory Slots ........................................................................................................................................................................................................

Frequency Support ........................................................................................................................................................................................................

3600 MHz, Support for 4000 MHz frequencies, Support for 4400 MHz frequencies

Maximum Memory Capacity ........................................................................................................................................................................................................

128 GB

Special Feature

Weight ........................................................................................................................................................................................................

0.76 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asus.com
