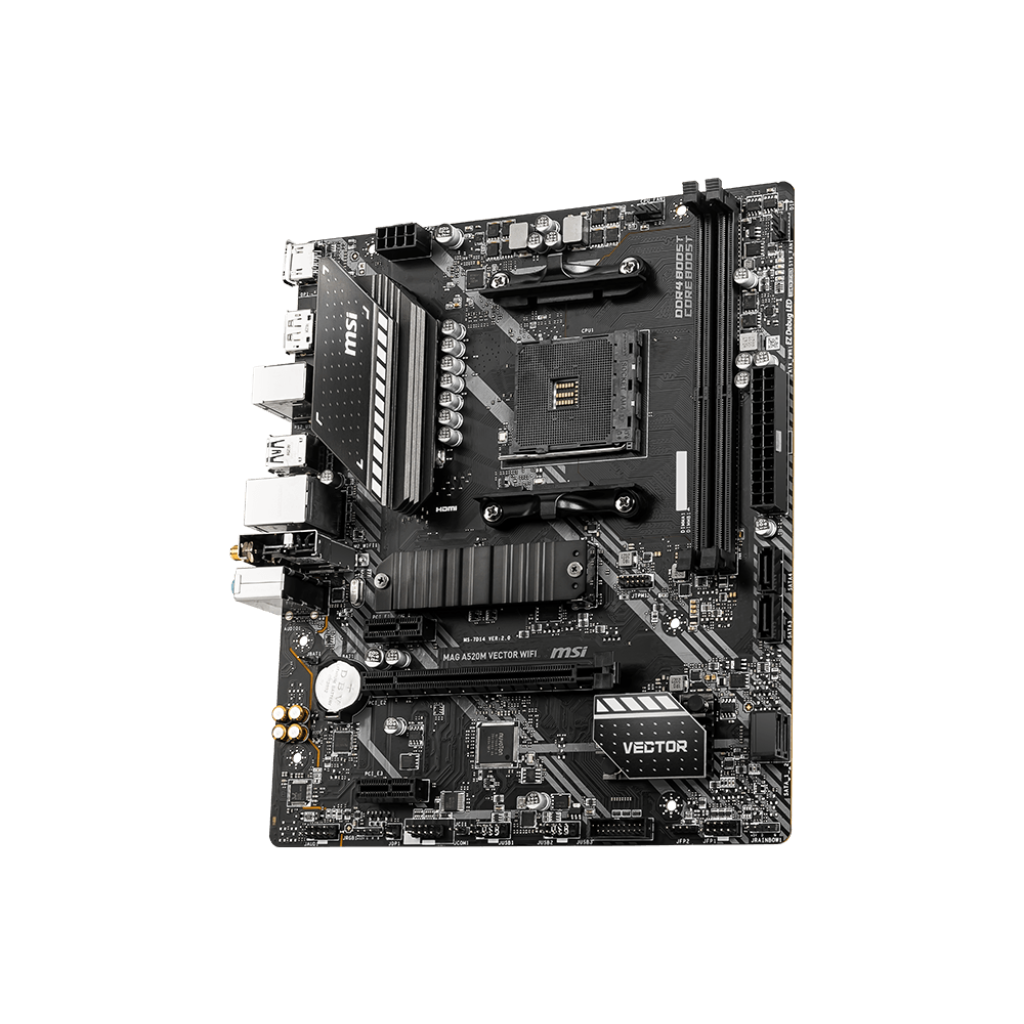

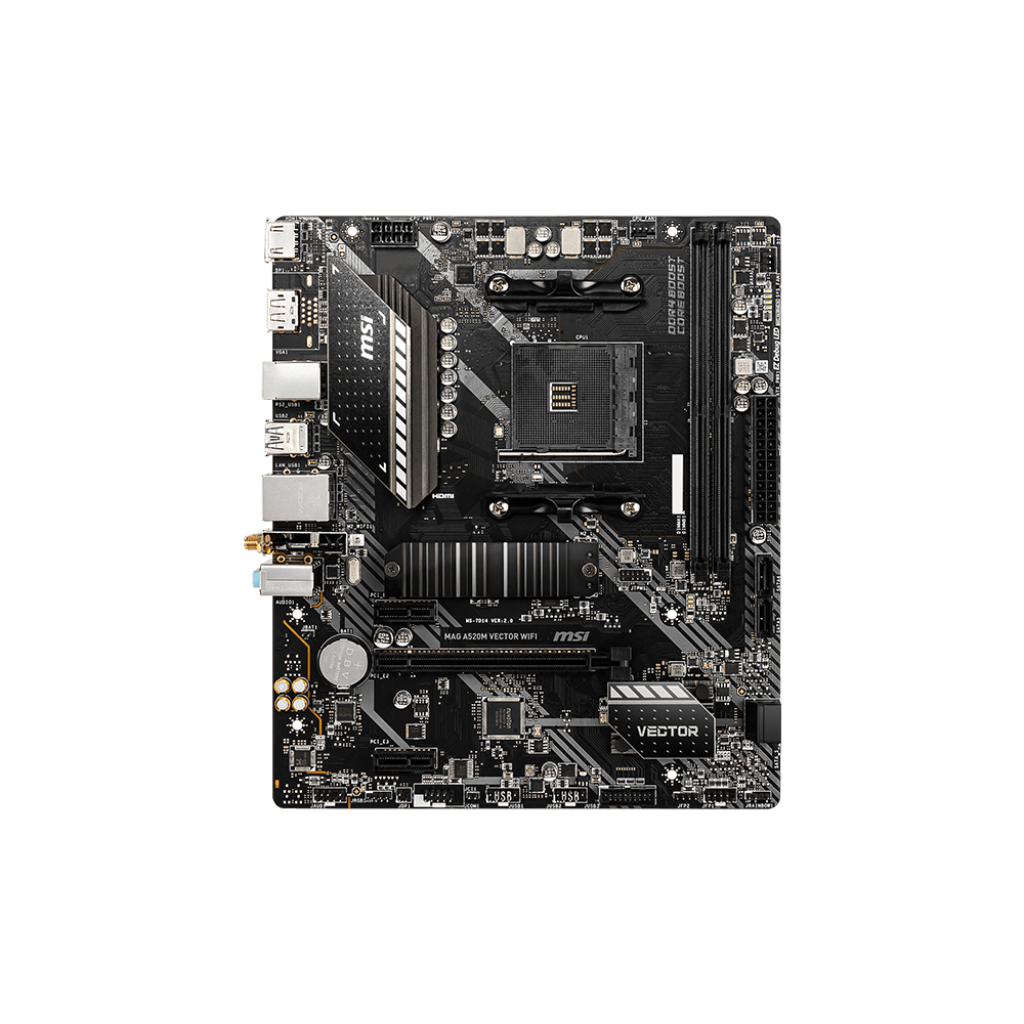

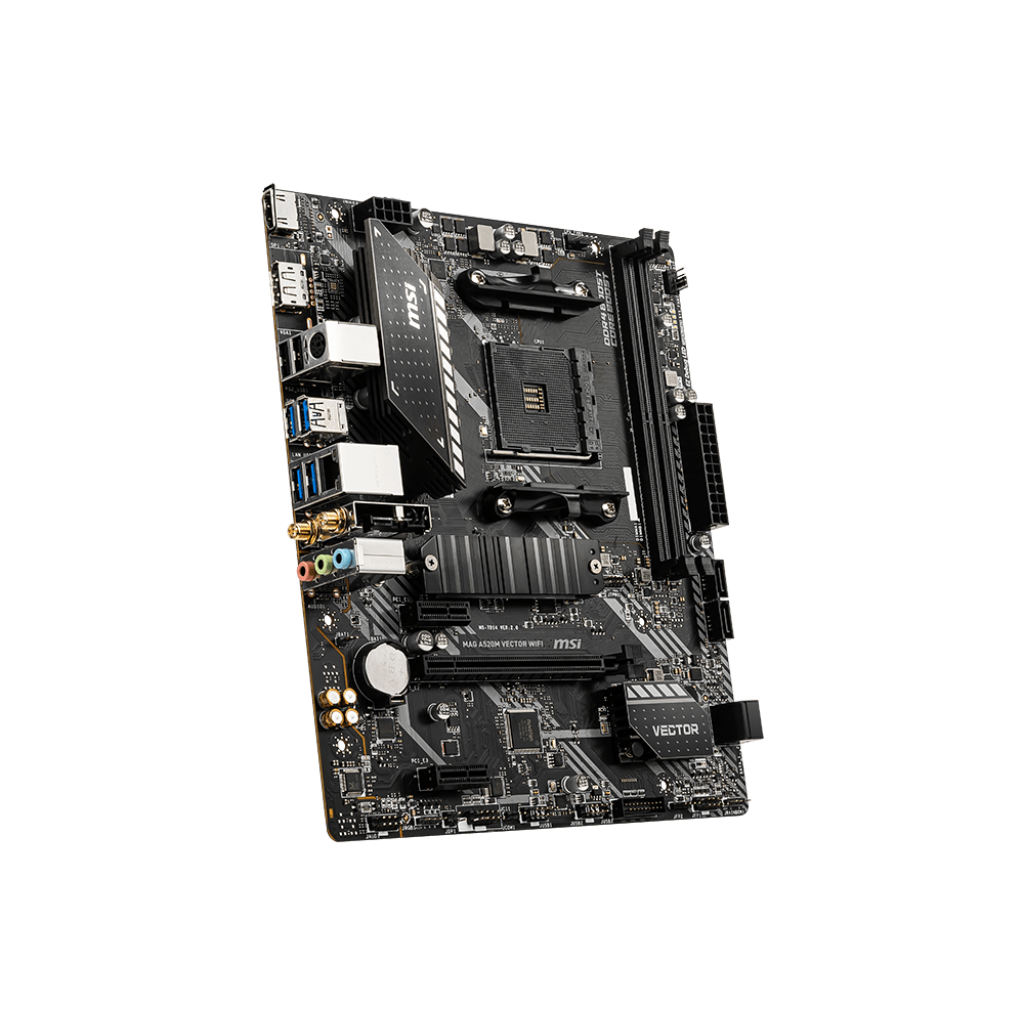

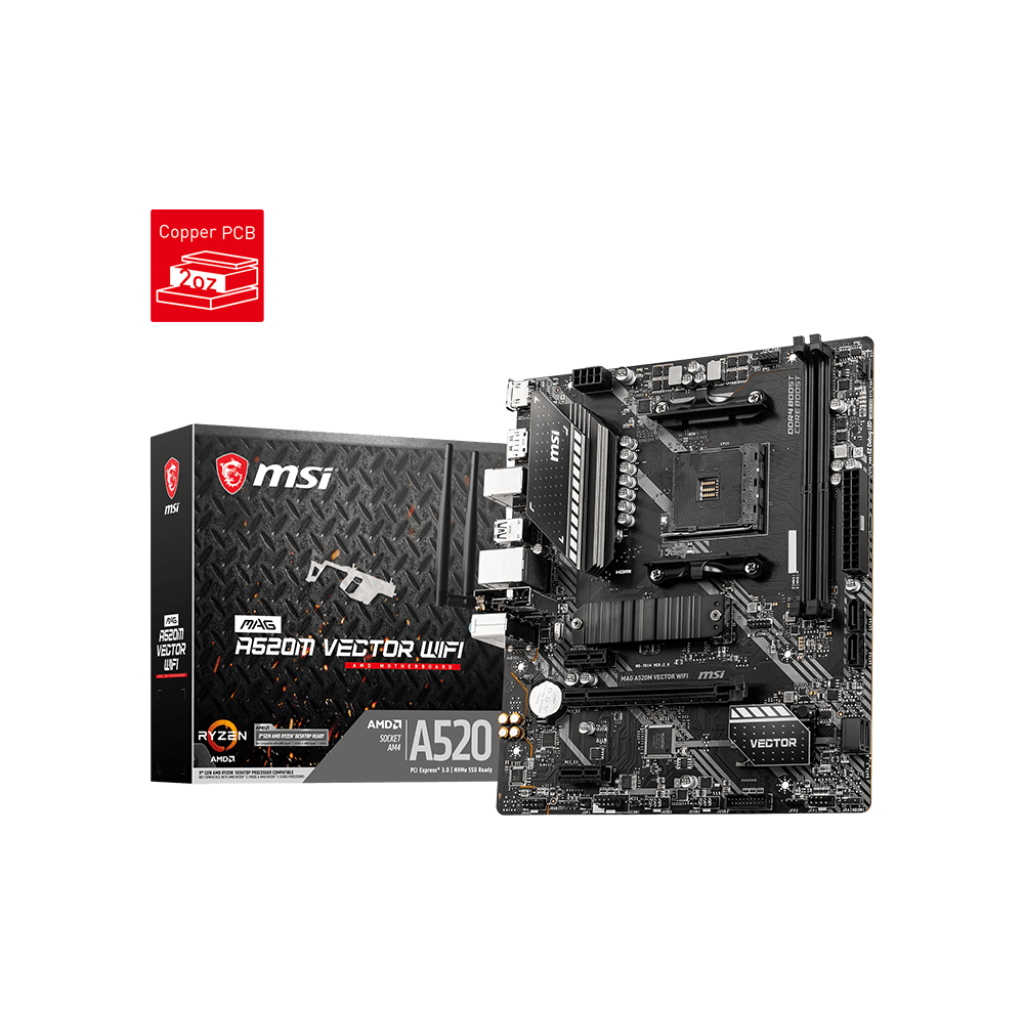

- Pamatplate MSI MAG A520M VECTOR WIFI AMD SOCKET (7D14-008R)
Pamatplate MSI MAG A520M VECTOR WIFI AMD SOCKET (7D14-008R)
ID: 35149
Īsi par preci
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD A520
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E x16, 2 x PCI-E x1, PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
7D14-008R
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD A520
Saskarnes

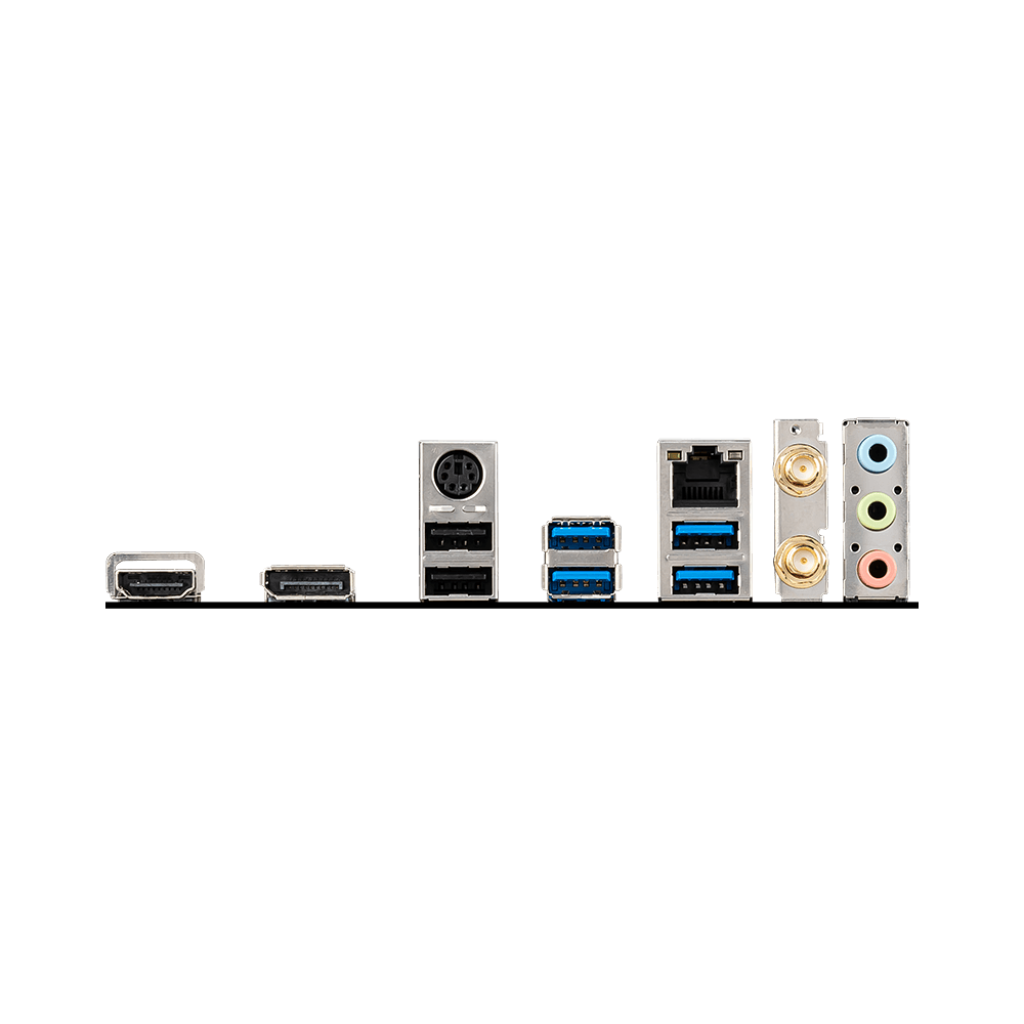

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, 2 x PCI-E x1, PCI-E M.2
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
