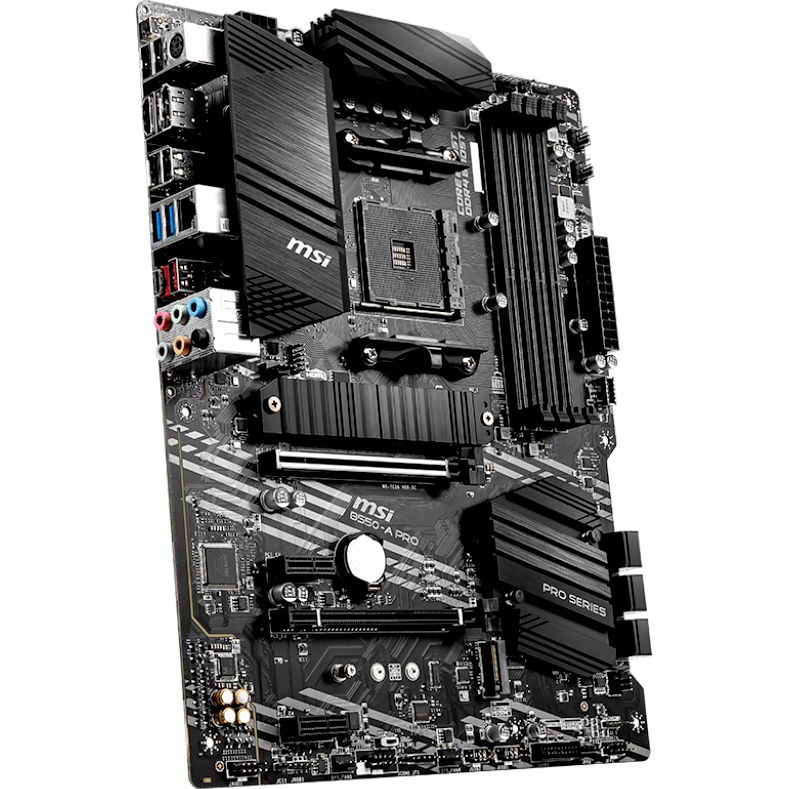

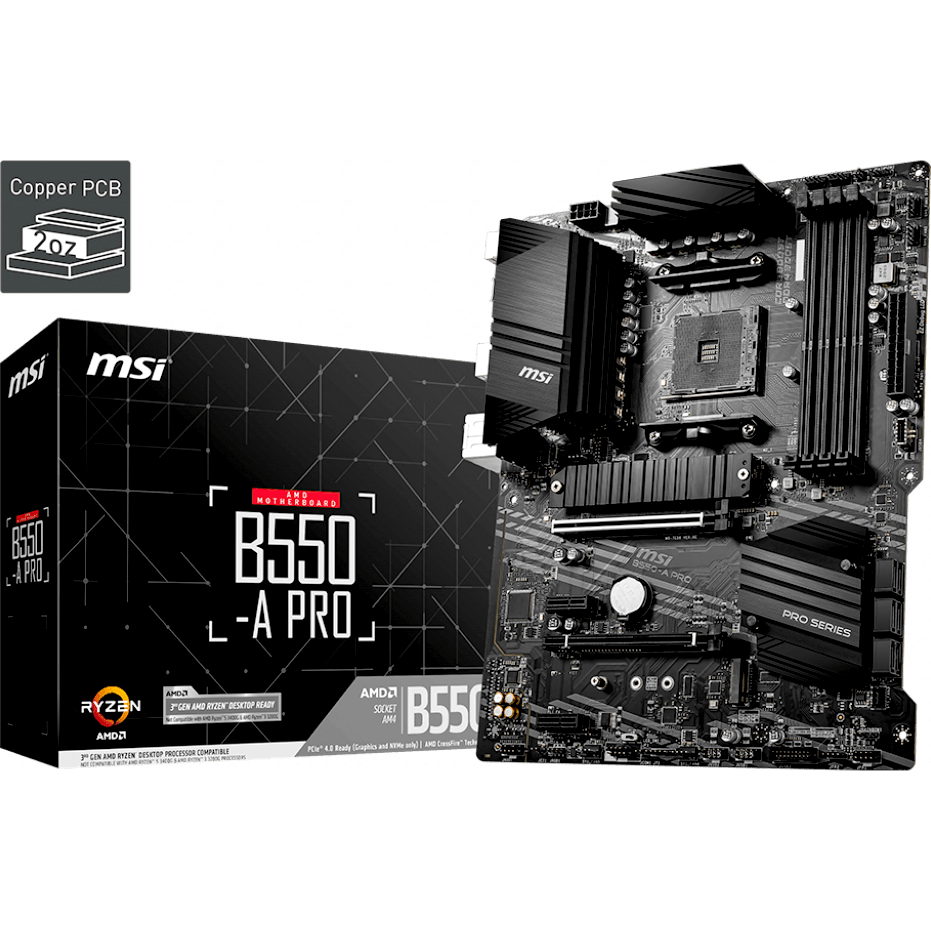

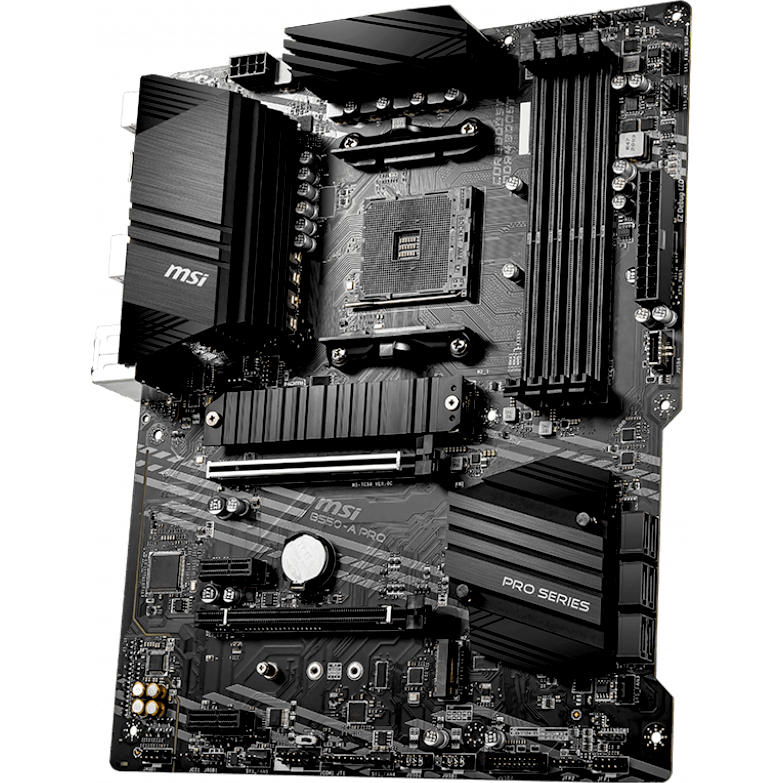

Pamatplate MSI B550-A PRO

Name: Pamatplate MSI B550-A PRO
Brand: MSI
SKU: 362970
Price: 11920.00 EUR
Availability: InStock
Rating: 4.3 (12 reviews)

ID: 362970

4.3

Īsi par preci

Ligzda: AM4
Mikroshēmu kopa (Chipset): AMD B550
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Pilnas specifikācijas

11.920,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

Pieejams līdz 10.000,⁰⁰ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

Pieejams līdz 3.000,⁰⁰ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

B550-A PRO

Uzmanību ........................................................................................................................................................................................................

1st and 2nd generation Ryzen processors are not officially supported on the board with the B550 chipset

Ligzda ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B550

Saskarnes

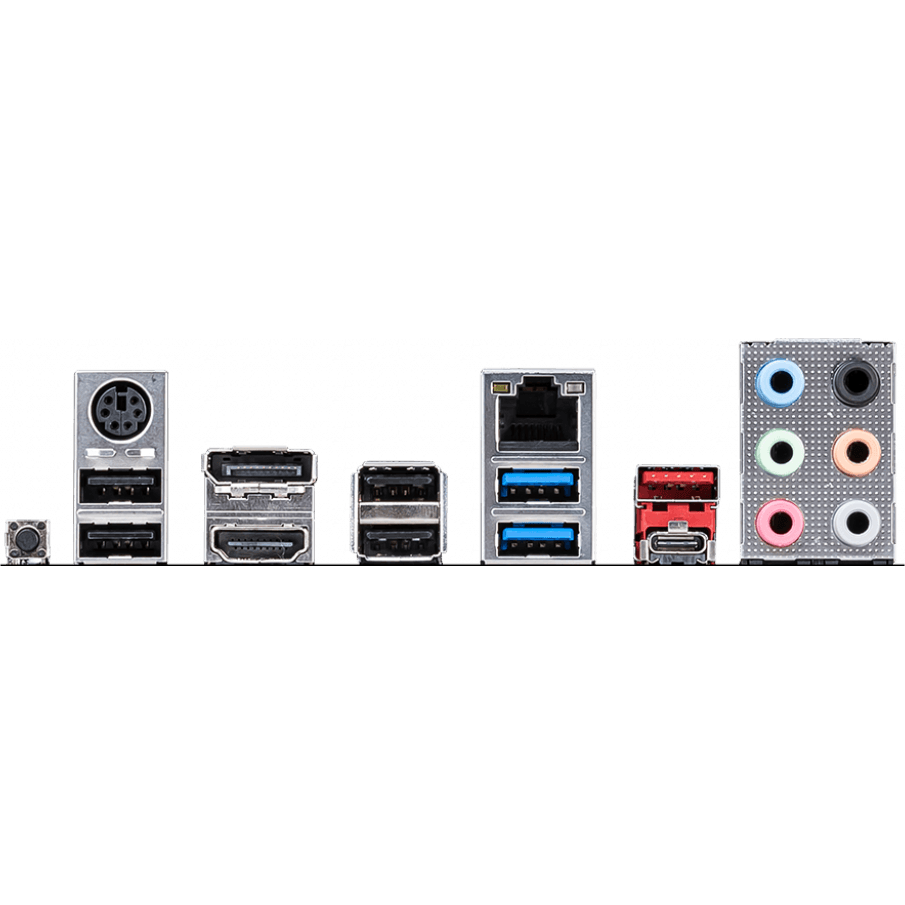

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC892

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Socket 3, M key, 2242/2260/2280/22110 with support for SATA and PCIe 4.0 x2/x4 drives,
- Socket 3, M key, 2242/2260/2280 with support for SATA and PCIe 3.0 x2 drives

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

top slot: PCI Express 4.0 x16,
bottom slot: PCI Express 3.0 x16 works in x4 mode

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

6 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
