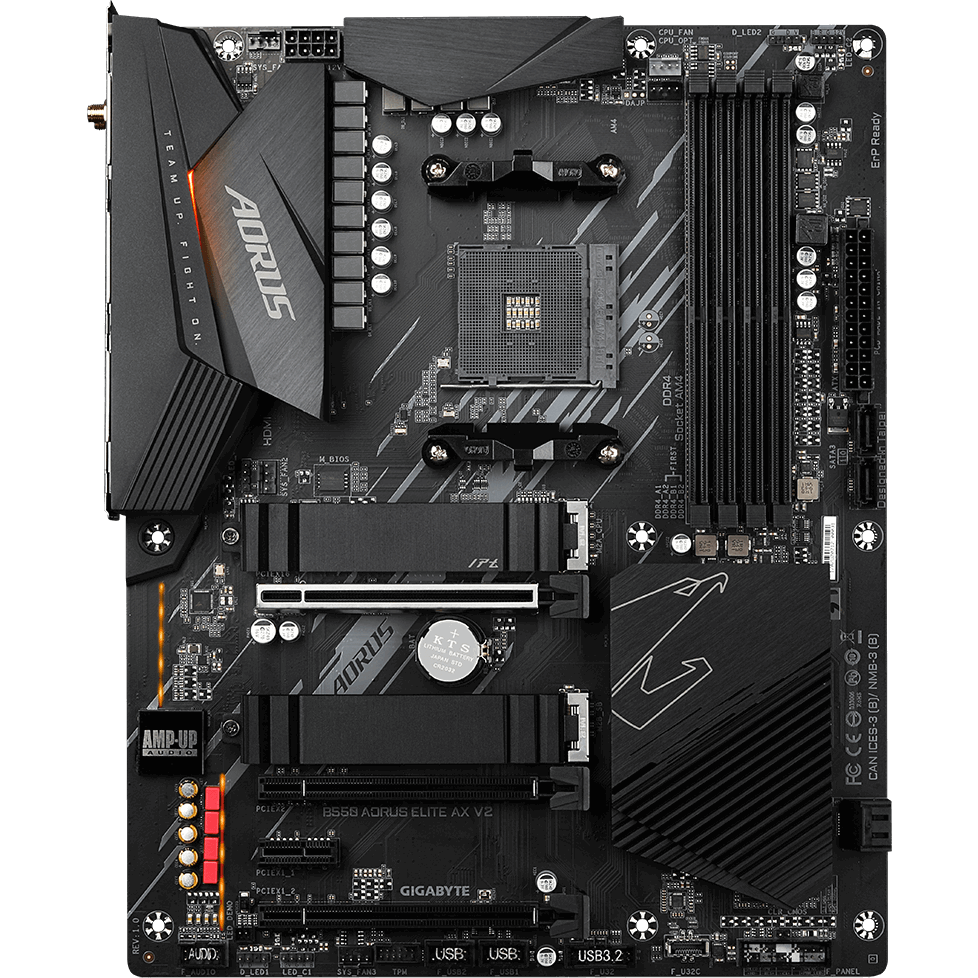

Motherboard Gigabyte B550 AORUS ELITE AX V2

Name: Motherboard Gigabyte B550 AORUS ELITE AX V2
Brand: Gigabyte
SKU: 369095
Price: 152.90 EUR
Availability: InStock
Rating: 4.4 (7 reviews)

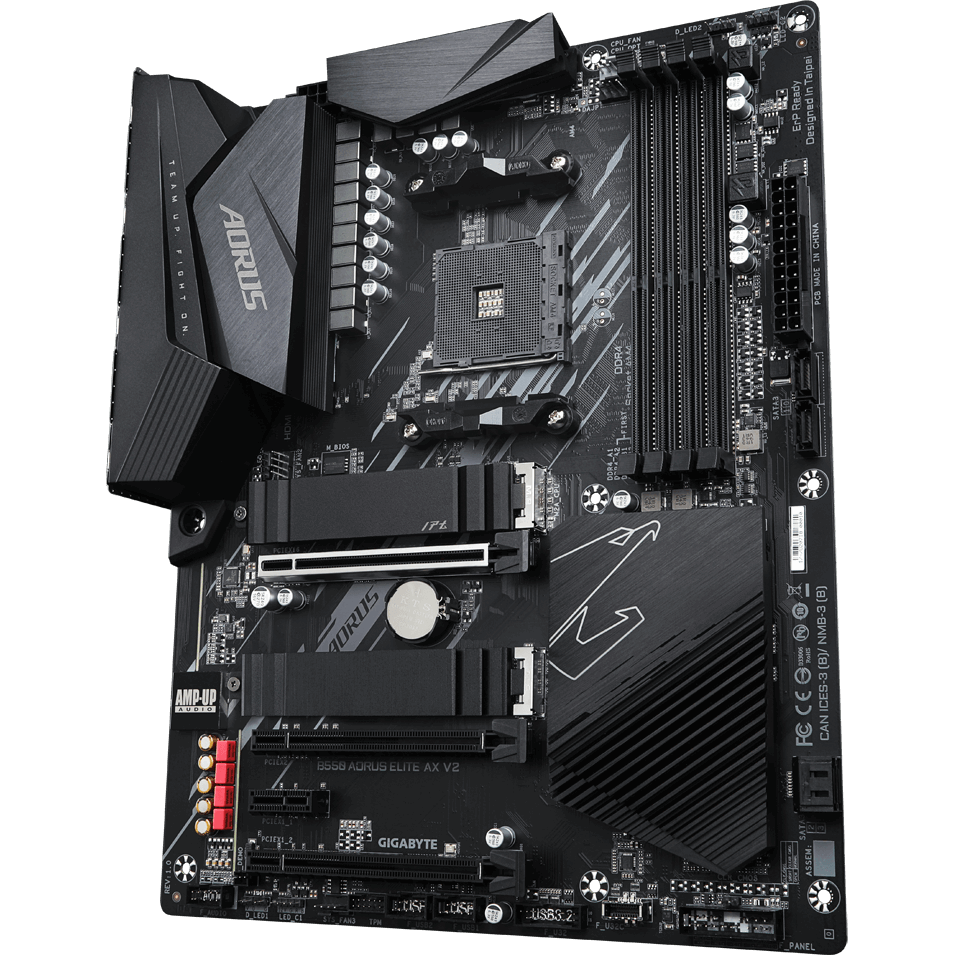

Motherboard Gigabyte B550 AORUS ELITE AX V2 - photo 2

Motherboard Gigabyte B550 AORUS ELITE AX V2 - photo 3

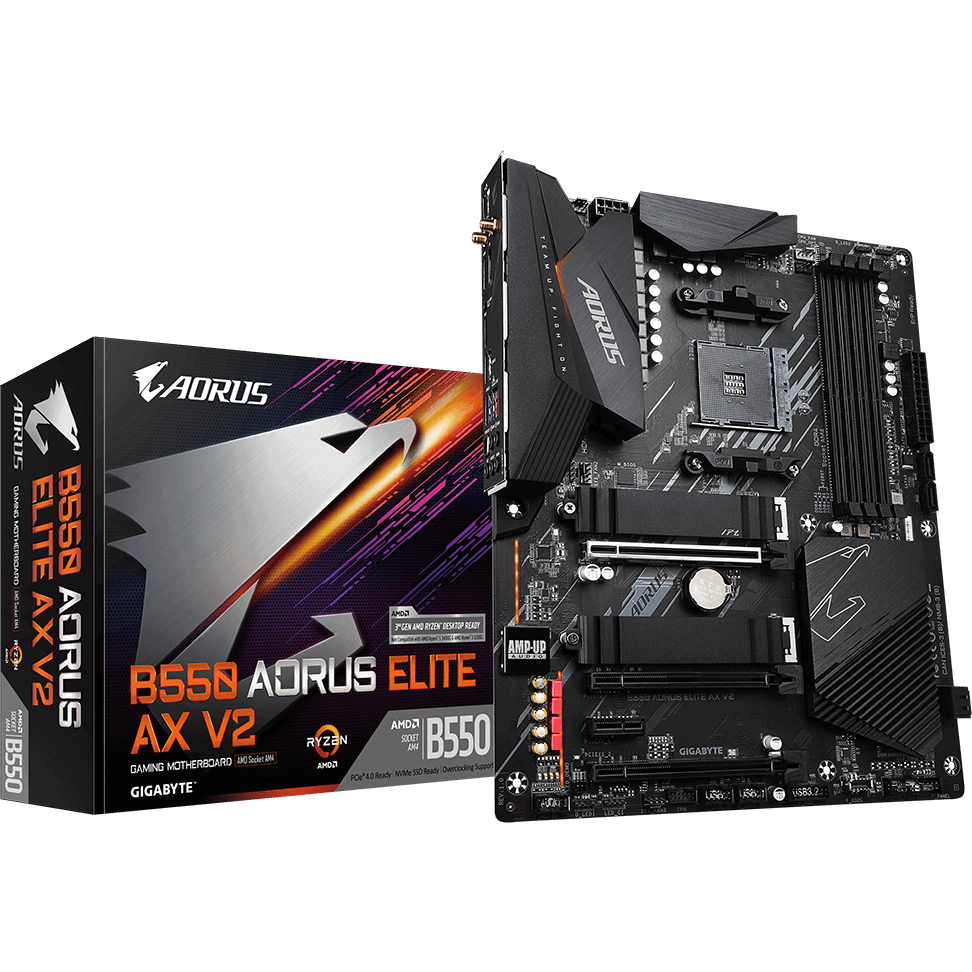

Motherboard Gigabyte B550 AORUS ELITE AX V2 - photo 4

ID: 369095

4.4

Product Summary

Form factor: ATX
Socket: AM4
Chipset: AMD B550
Number of memory slots: 4
Memory type: DDR4
Expansion slots: PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, PCI-E x1, 2 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (2.5 Gb/s), Wi-Fi, Bluetooth

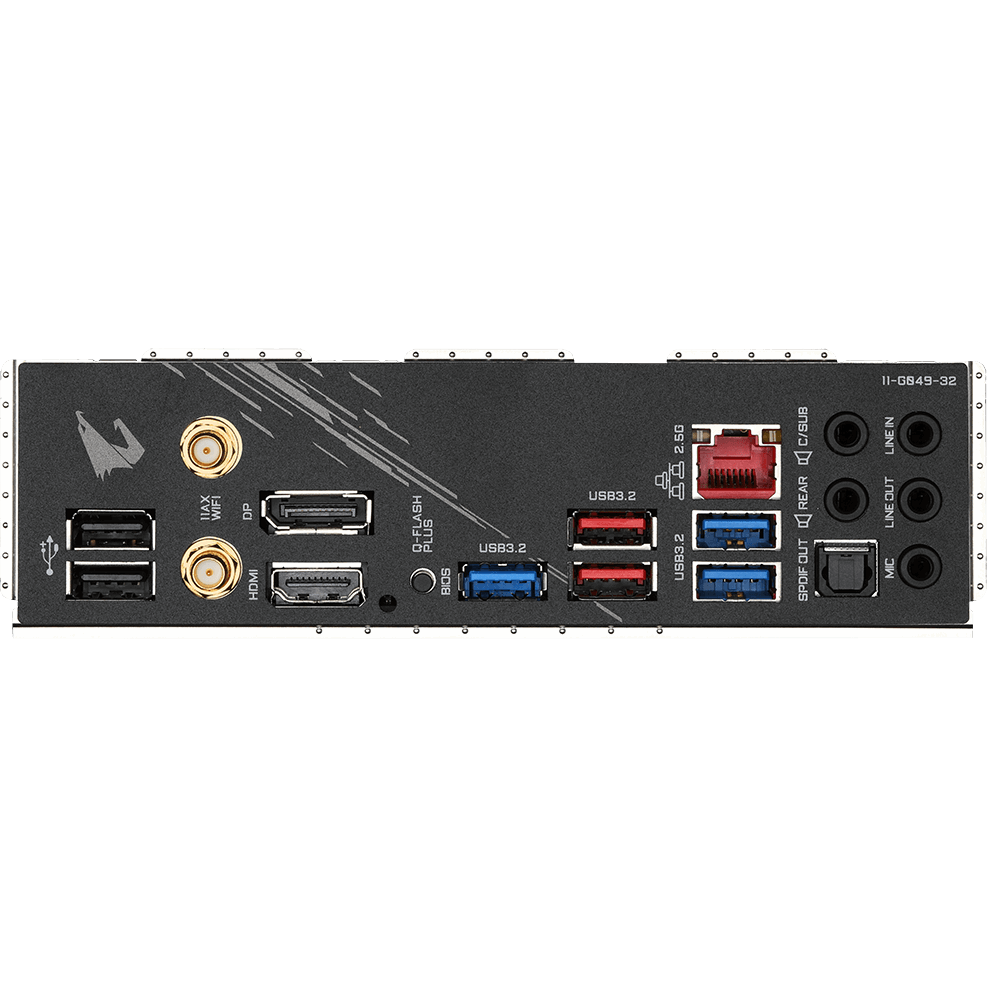

Rear panel ports: 2 x USB 2.0, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45, S/PDIF (optical)
Backlight: yes

Full Specifications

152,⁹⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

B550 AORUS ELITE AX V2

Socket ........................................................................................................................................................................................................

AM4

Chipset ........................................................................................................................................................................................................

AMD B550

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (2.5 Gb/s), Wi-Fi, Bluetooth

Network controller ........................................................................................................................................................................................................

Realtek

Disk Controllers

SATA controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID support ........................................................................................................................................................................................................

0, 1, 10

Memory

Memory type ........................................................................................................................................................................................................

DDR4

Number of memory slots ........................................................................................................................................................................................................

Audio/Video

Integrated graphics ........................................................................................................................................................................................................

yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio controller ........................................................................................................................................................................................................

Realtek ALC1200

Interfaces

Rear panel ports ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45, S/PDIF (optical)

Expansion Slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, PCI-E x1, 2 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

2242/2260/2280/22110 (PCI-E 4.0 x4 & SATA)
2242/2260/2280/22110 (PCI-E 3.0 x4 & SATA)

Additional

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis fan connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Onboard USB headers ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

3 x 4-pin

Backlight ........................................................................................................................................................................................................

yes

Form factor ........................................................................................................................................................................................................

ATX

Supply type ........................................................................................................................................................................................................

Retail

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
