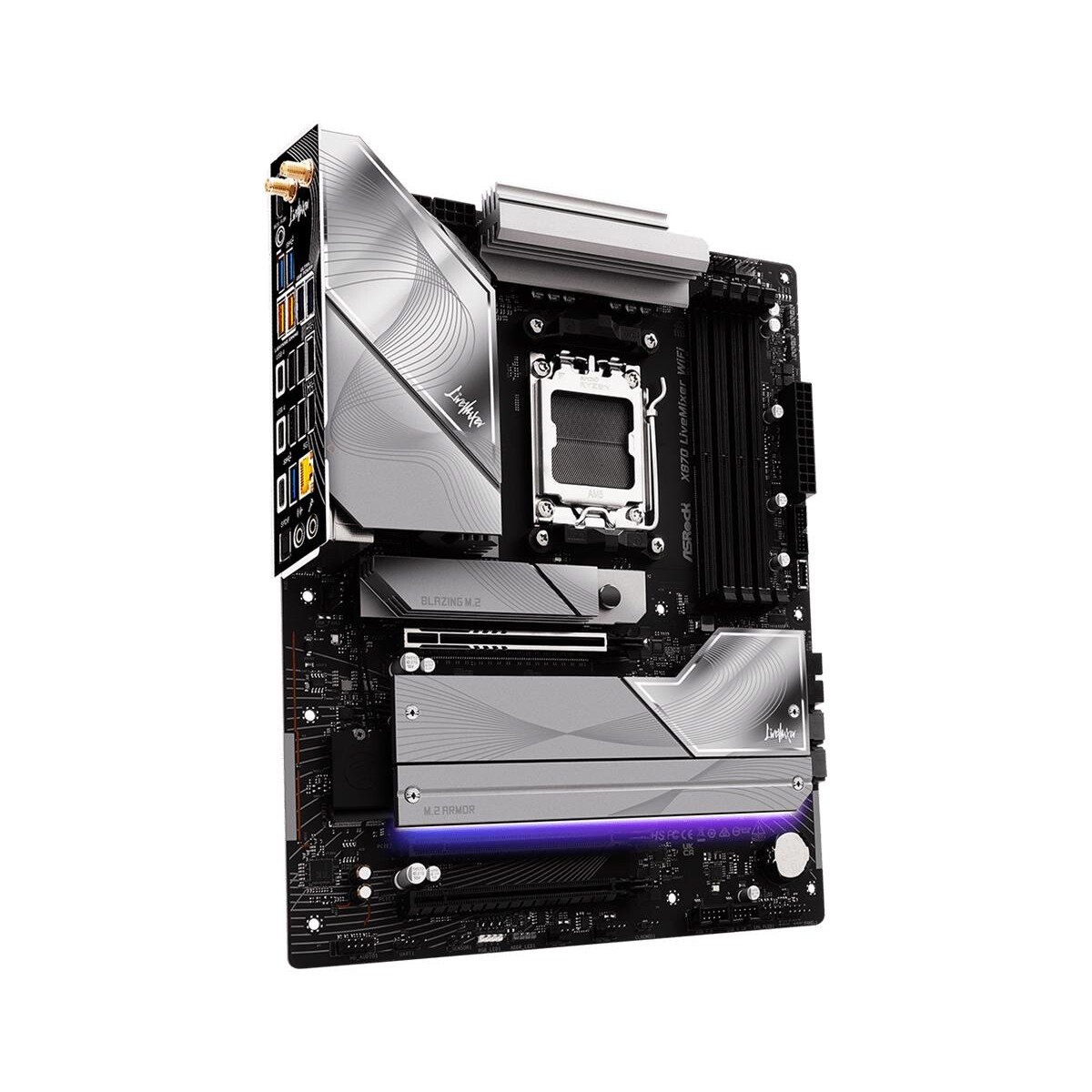

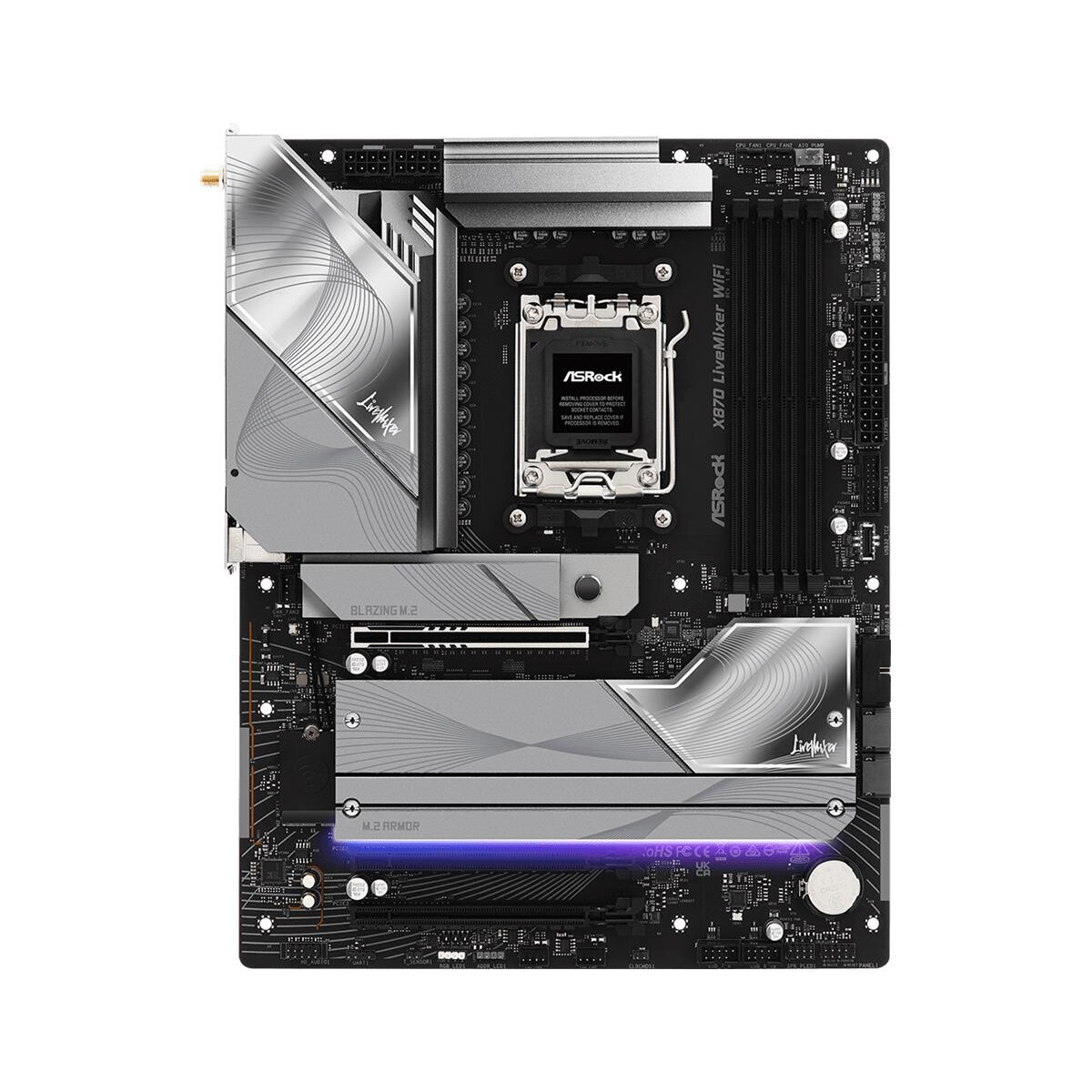

Pamatplate ASRock X870 LiveMixer WiFi

ID: 37538

Īsi par preci

Socket: AM5
Mikroshēmu kopa (Chipset): AMD X870
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E 3.0 x16
Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 6 x USB 2.0, audio jacks, 5 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)

Pilnas specifikācijas

236,²⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

X870 LIVEMIXER WIFI

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD X870

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

2 x SATA-III (6 Gb/s)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC4082

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3-pin, 4-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

pelēks

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

6 x USB 2.0, audio jacks, 5 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optiskais)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek 8126 5Gbps

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 3.0 x16

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
