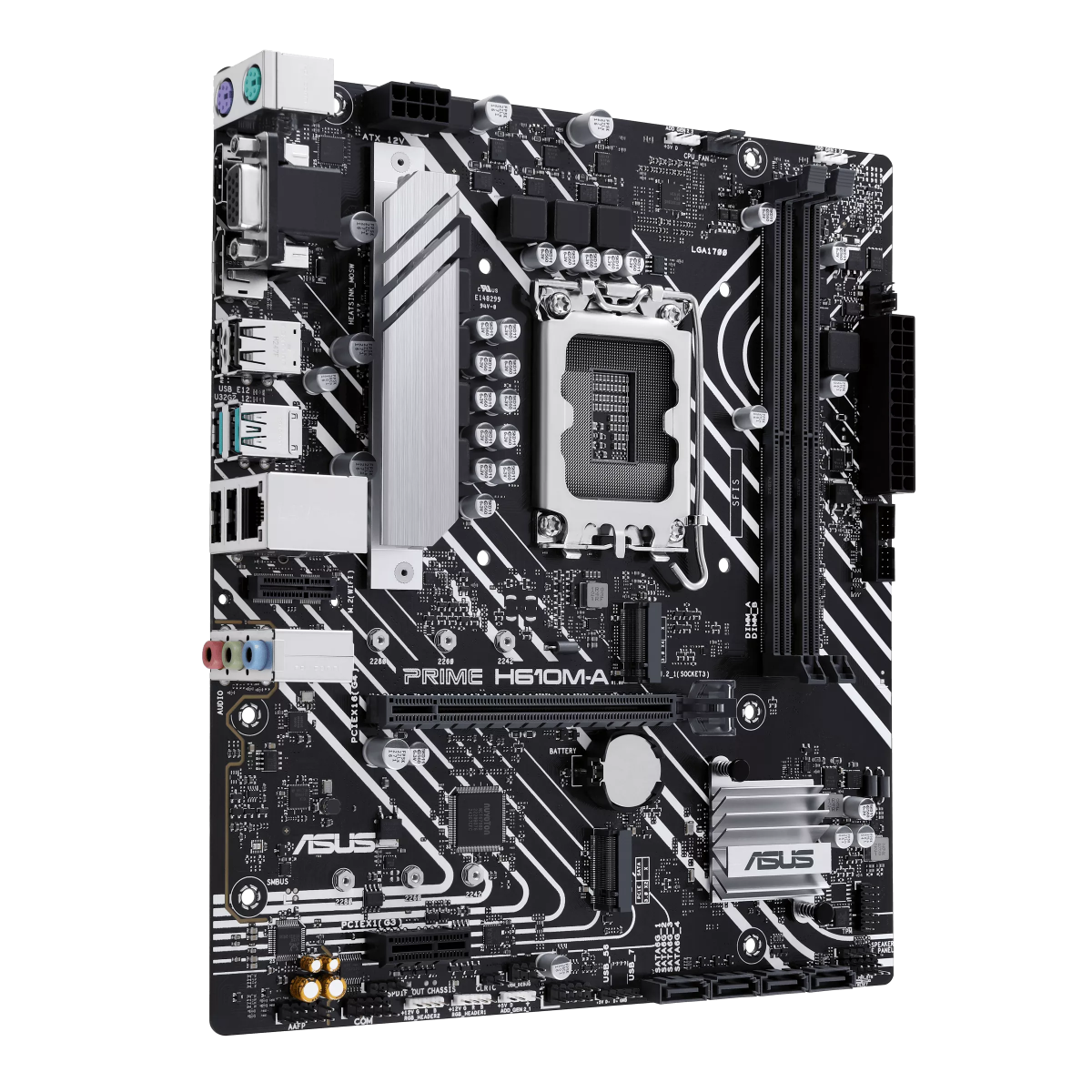

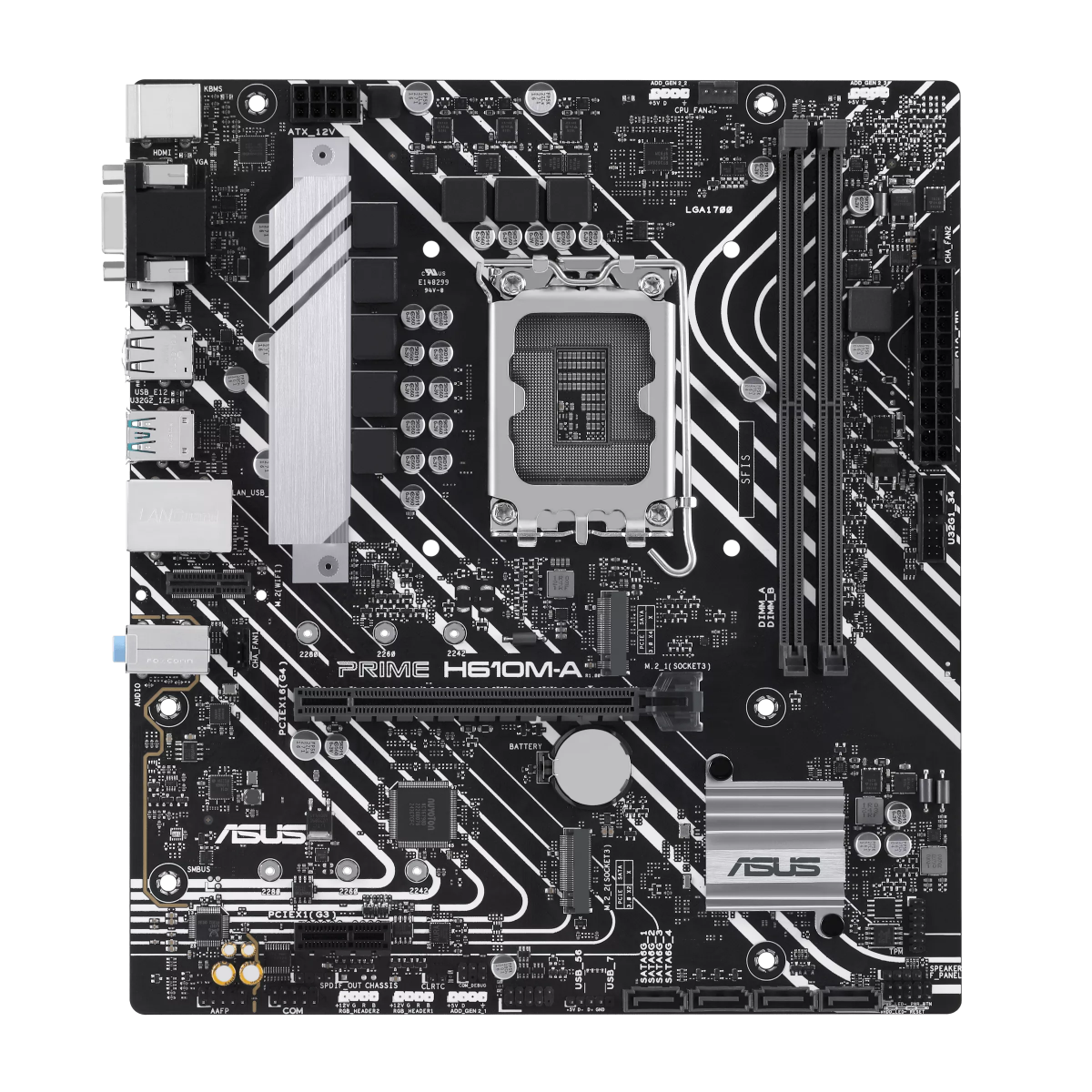

Pamatplate ASUS PRIME H610M-A R2.0 (90MB1MJ0-M0EAY0)

Pamatplate ASUS PRIME H610M-A R2.0 (90MB1MJ0-M0EAY0)

ID: 37756

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel H610
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 4.0 x16, PCIe 3.0 x1
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)

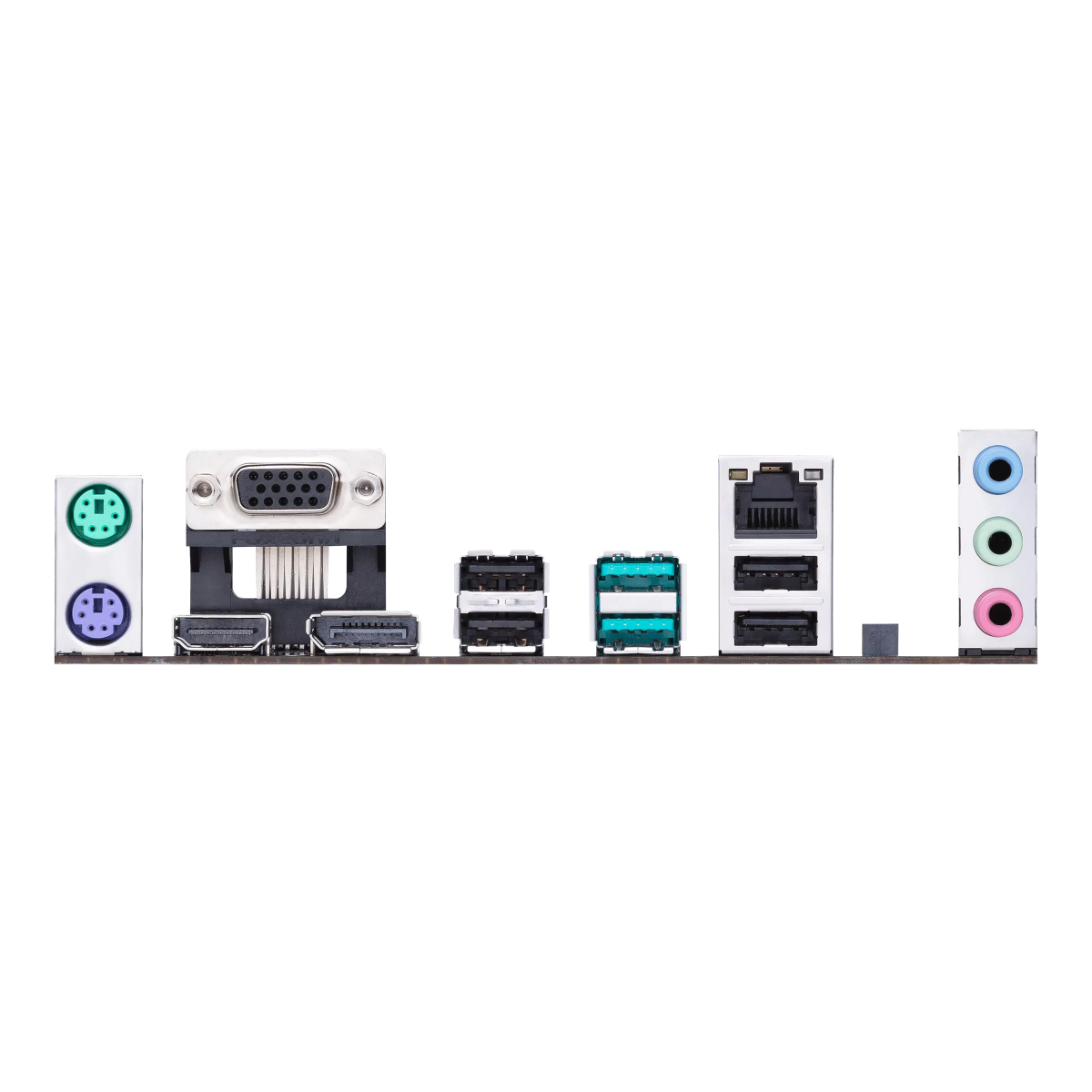

Ligzdas aizmugurējā panelī: 2 x PS/2, 4 x USB 2.0, LAN, 3 x audio jacks, USB 3.2 Gen1, 2 x USB 3.2 Gen2, VGA, HDMI, DisplayPort
Formfaktors: mATX

Pilnas specifikācijas

121,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

90MB1MJ0-M0EAY0

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel H610

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x PS/2, 4 x USB 2.0, LAN, 3 x audio jacks, USB 3.2 Gen1, 2 x USB 3.2 Gen2, VGA, HDMI, DisplayPort

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCIe 3.0 x1

M.2. slotu veids ........................................................................................................................................................................................................

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

Intel® Core™ Processors (14th &13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3-pin, 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
