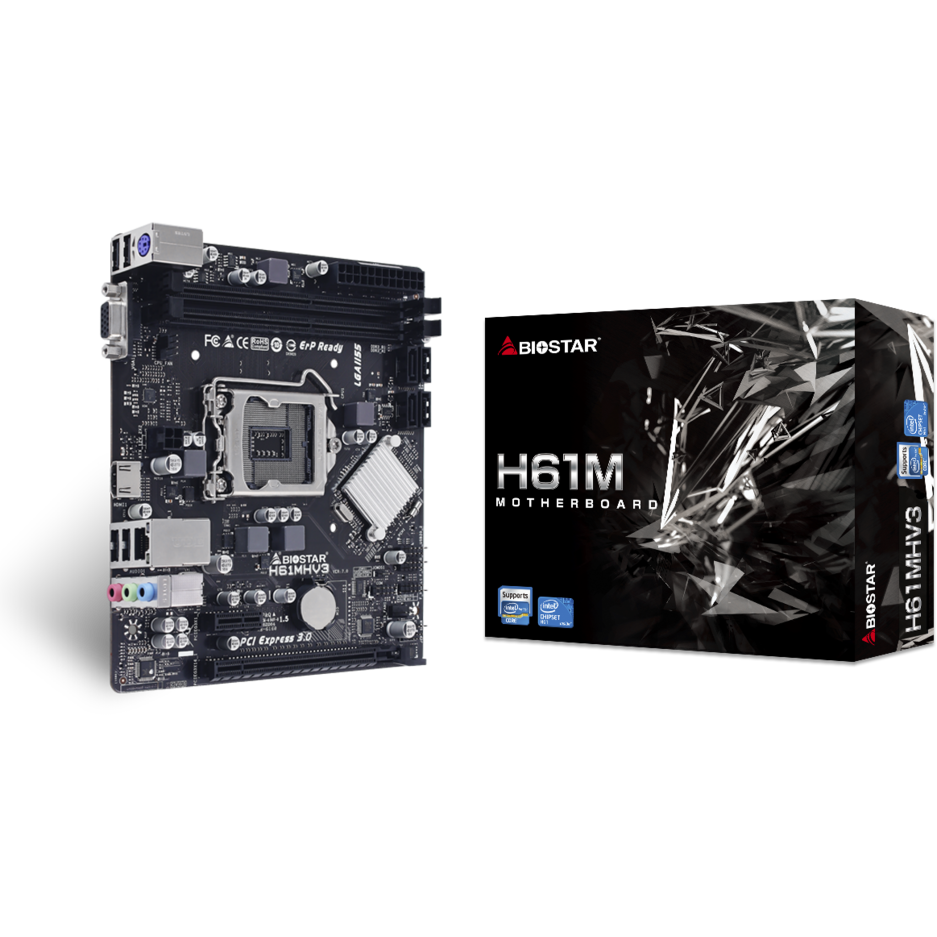

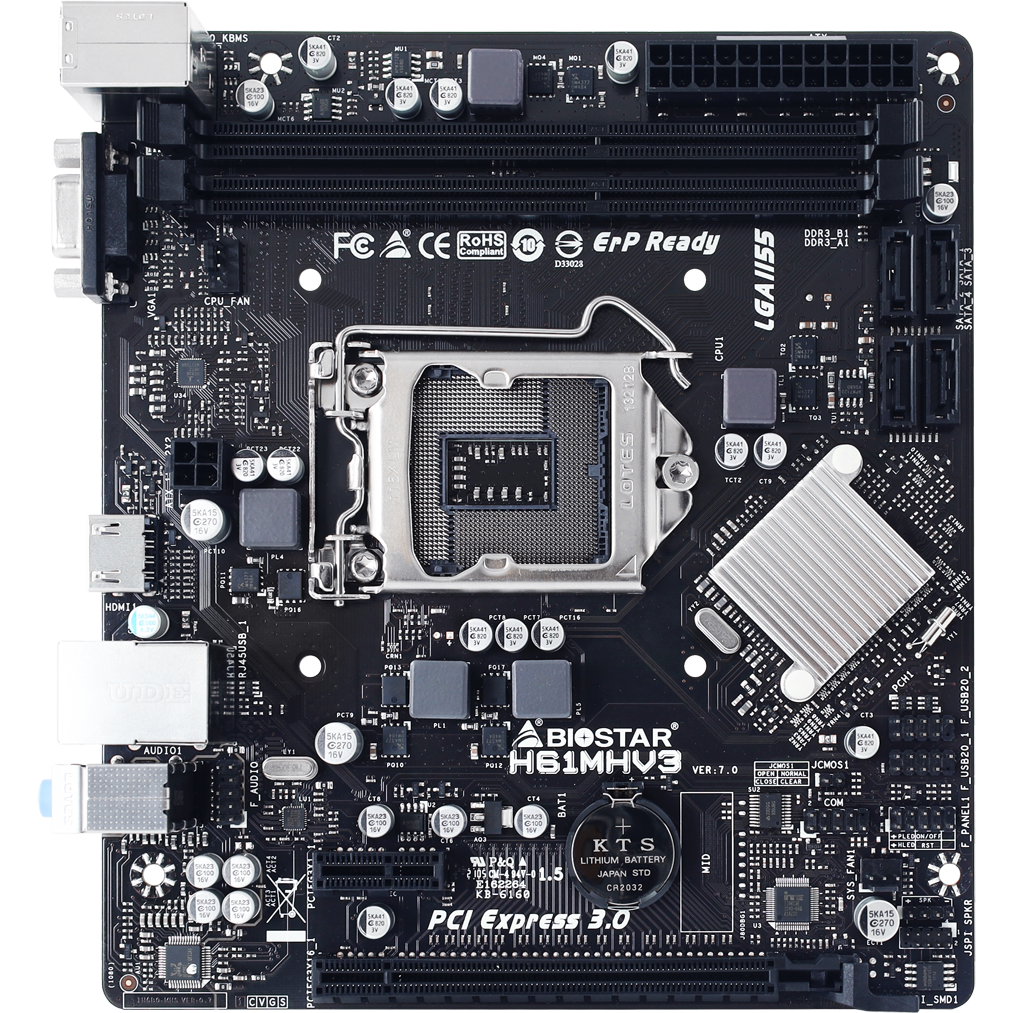

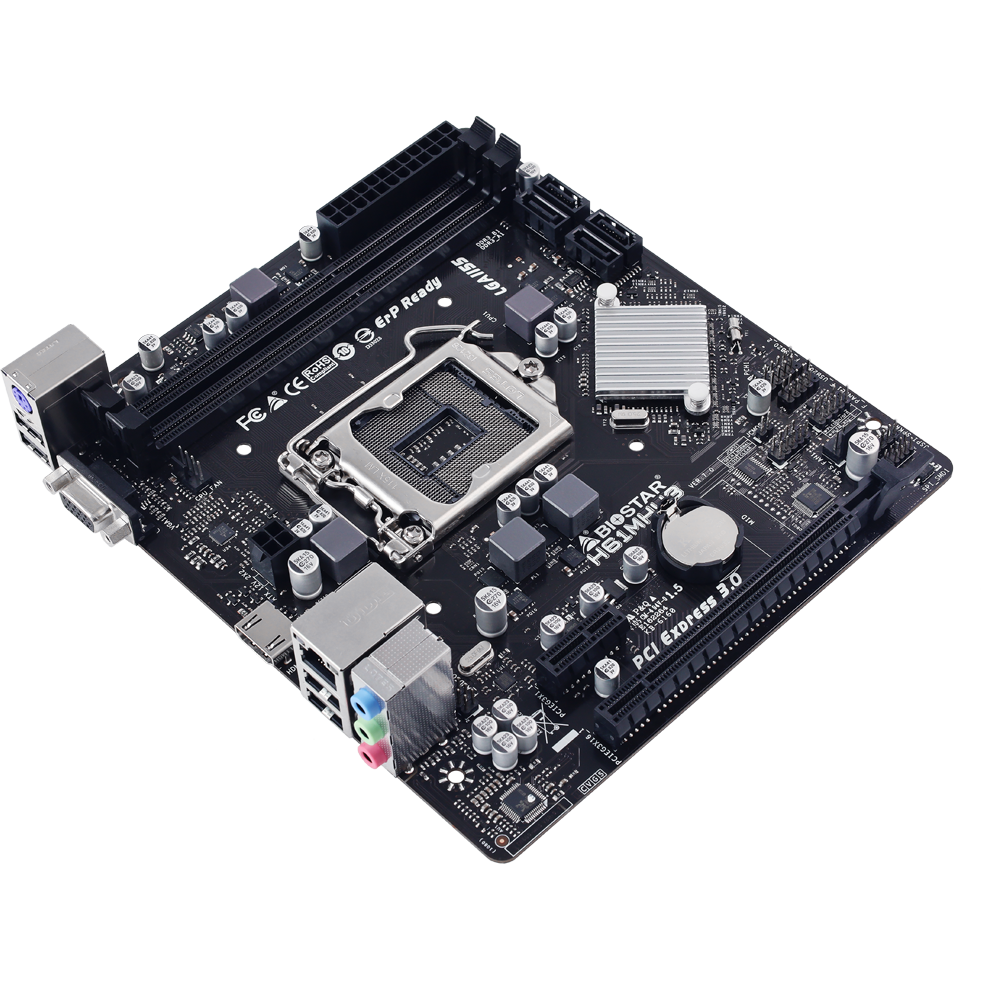

Motherboard Biostar H61MHV3

ID: 402064

Product Summary

Form factor: mATX
Socket: LGA 1155
Chipset: Intel H61
Number of memory slots: 2
Memory type: DDR3
Expansion slots: PCI-E 3.0 x16, PCI-E x1
Network Interface: Gigabit Ethernet (1 Gb/s)

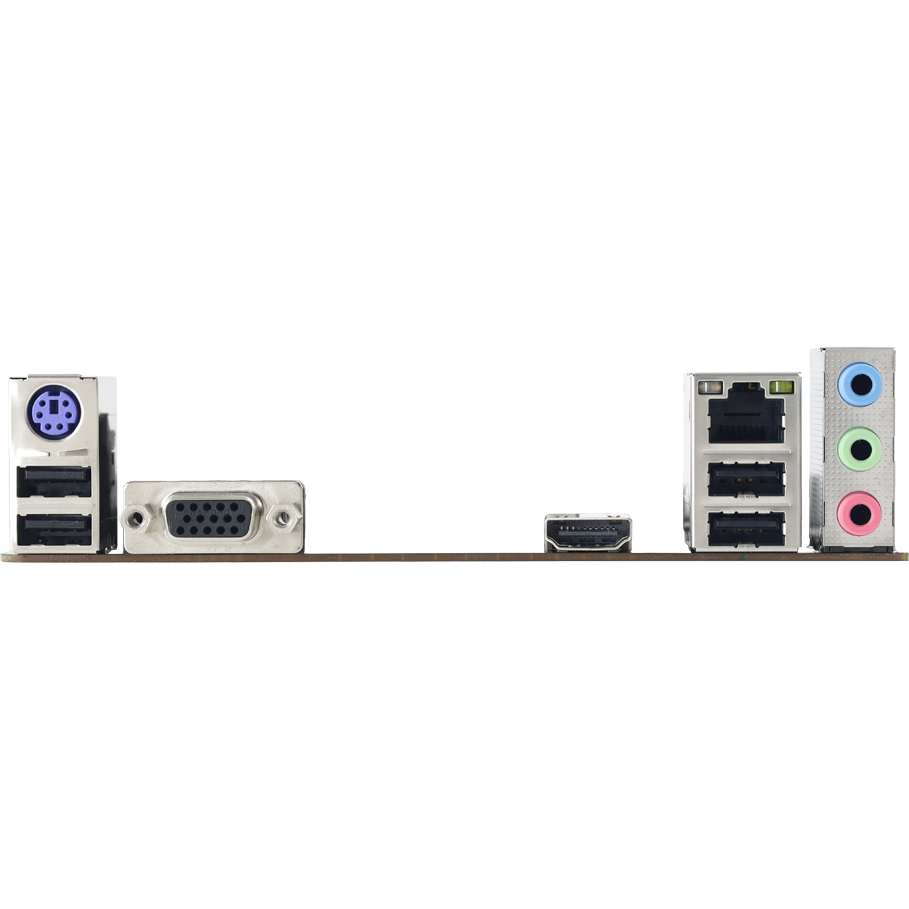

Rear panel ports: PS/2, 4 x USB 2.0, VGA, HDMI, RJ-45

Full Specifications

61,¹⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

Biostar

Manufacturer Code ........................................................................................................................................................................................................

H61MHV3

Socket ........................................................................................................................................................................................................

LGA 1155

Chipset ........................................................................................................................................................................................................

Intel H61

Interfaces

Rear panel ports ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, VGA, HDMI, RJ-45

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (1 Gb/s)

Network controller ........................................................................................................................................................................................................

Realtek RTL8111H

Memory

Memory type ........................................................................................................................................................................................................

DDR3

Number of memory slots ........................................................................................................................................................................................................

Audio/Video

Integrated graphics ........................................................................................................................................................................................................

yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio controller ........................................................................................................................................................................................................

Realtek ALC897

Expansion Slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 3.0 x16, PCI-E x1

Disk Controllers

SATA controller ........................................................................................................................................................................................................

4 x SATA-II (3 Gb/s)

RAID support ........................................................................................................................................................................................................

Additional

Chassis fan connectors ........................................................................................................................................................................................................

4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin

Onboard USB headers ........................................................................................................................................................................................................

2 x USB 2.0

Form factor ........................................................................................................................................................................................................

mATX

Supply type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.biostar.com
