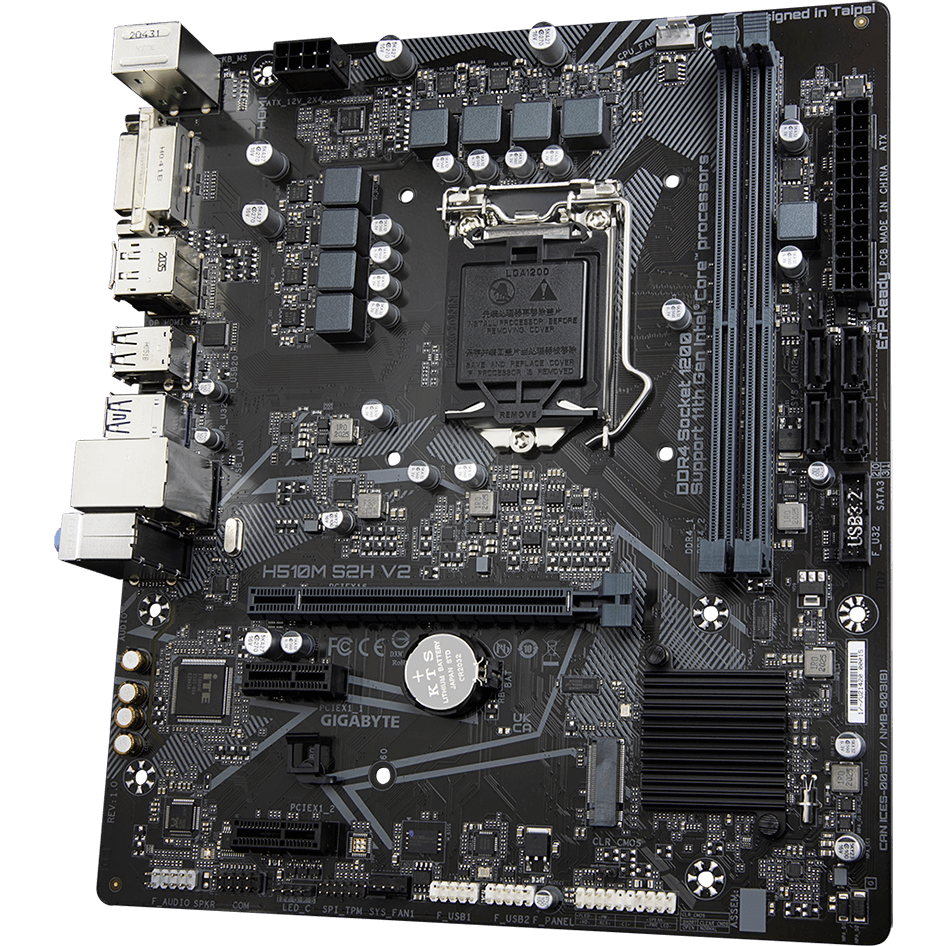

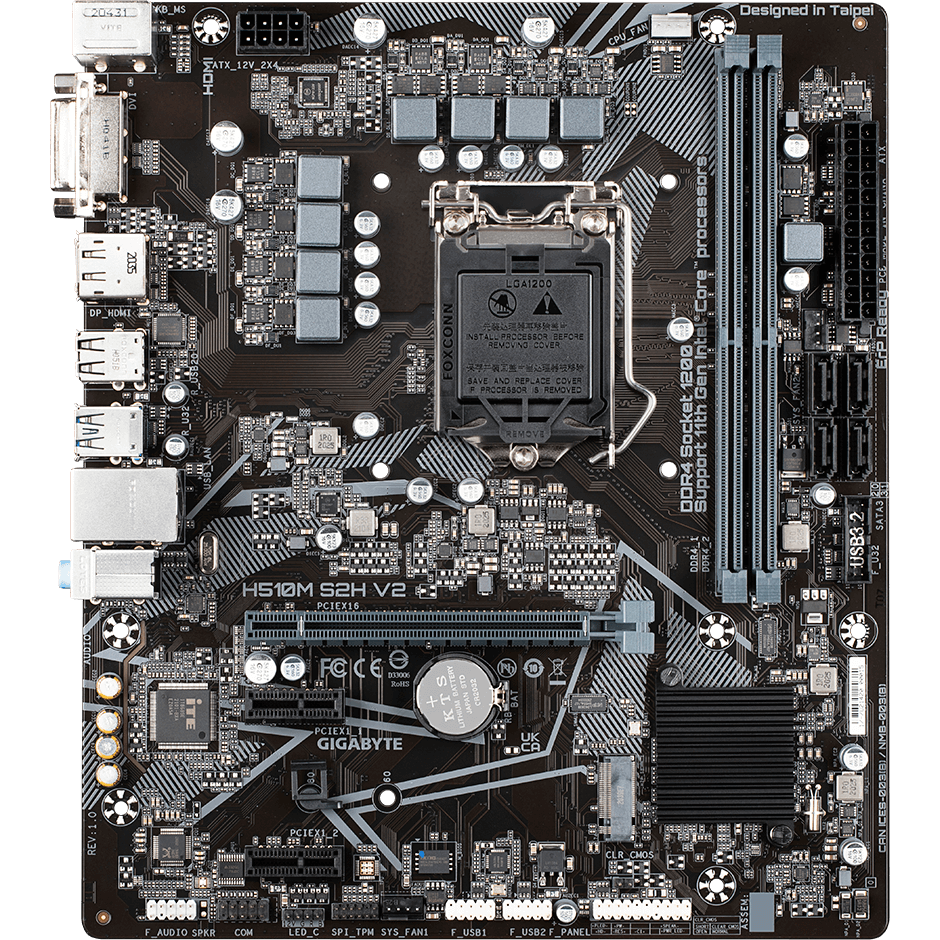

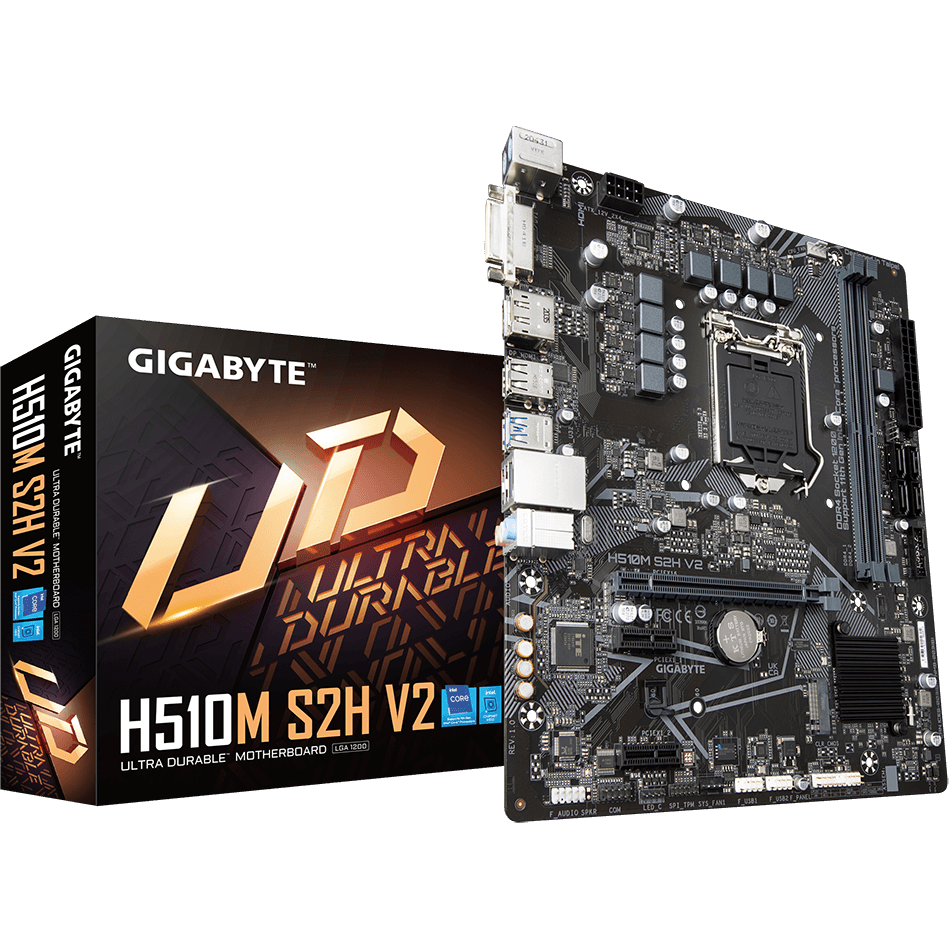

Pamatplate Gigabyte H510M S2H V2

ID: 403068

Īsi par preci

Ligzda: LGA 1200
Mikroshēmu kopa (Chipset): Intel H510
Atmiņas slotu skaits: 2
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)

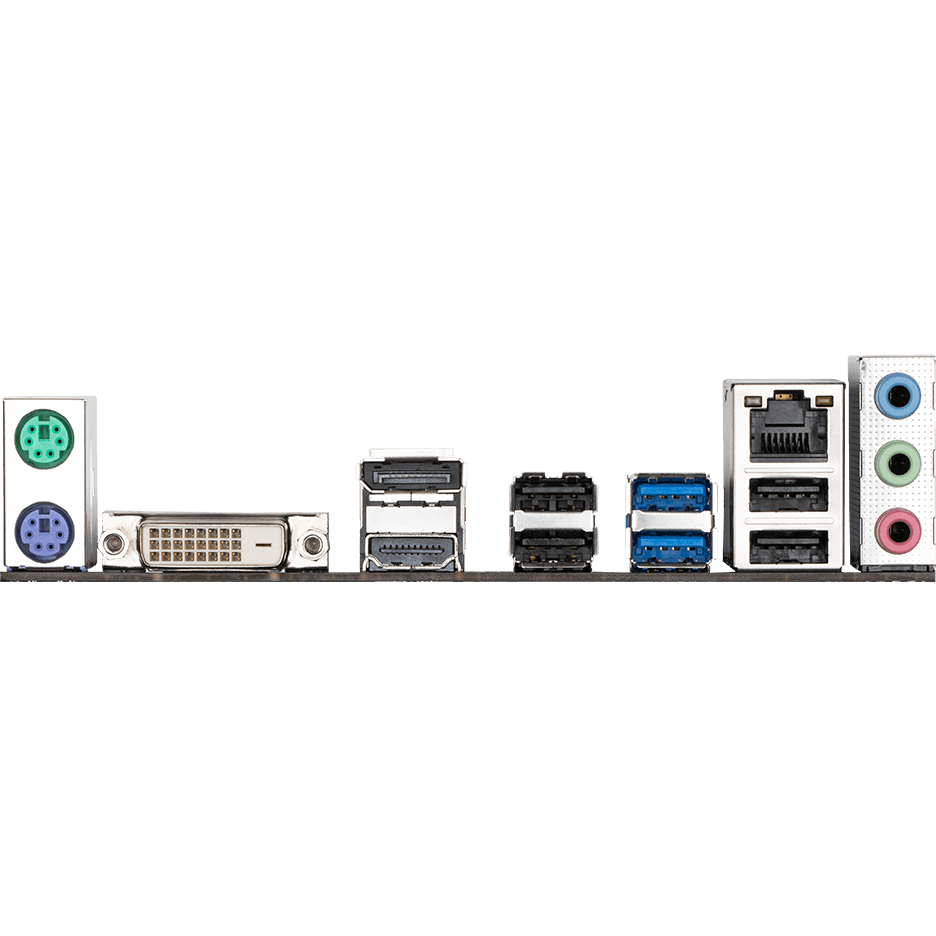

Ligzdas aizmugurējā panelī: 2 x PS/2, 4 x USB 2.0, 2 x USB 3.1, DVI, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

7.220,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

H510M S2H V2

Ligzda ........................................................................................................................................................................................................

LGA 1200

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel H510

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x PS/2, 4 x USB 2.0, 2 x USB 3.1, DVI, HDMI, DisplayPort, RJ-45

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

Socket 3, M key, 2260/2280 (SATA and PCIe 3.0 x4/x2)

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

2 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
