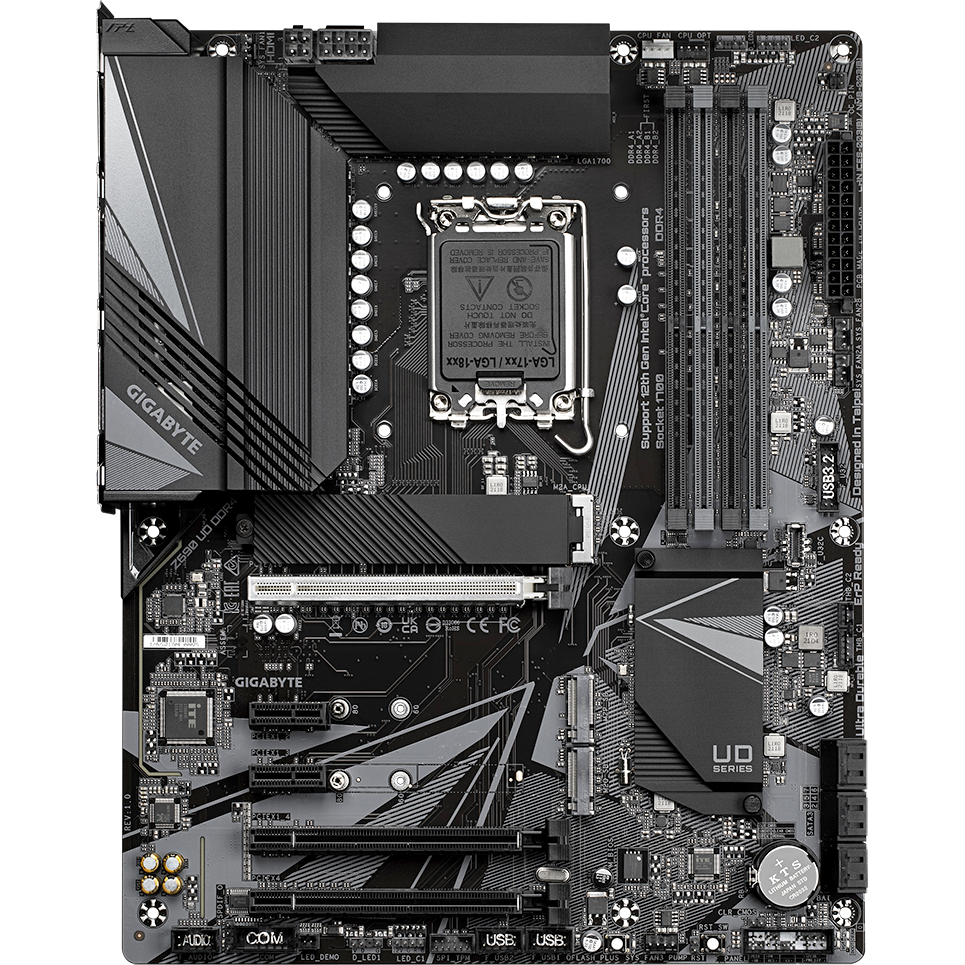

Mātesplate Gigabyte Z690 UD DDR4

Name: Mātesplate Gigabyte Z690 UD DDR4
Brand: Gigabyte
SKU: 412110
Price: 16480.00 EUR
Availability: InStock

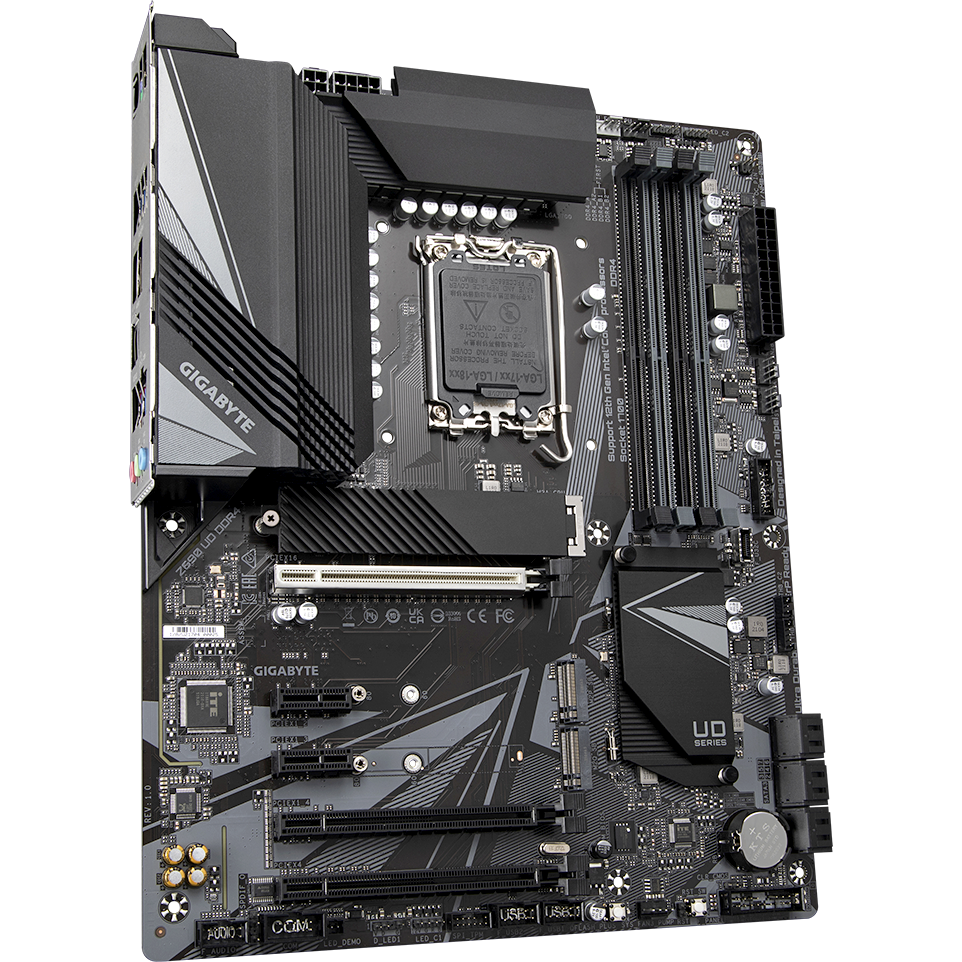

Mātesplate Gigabyte Z690 UD DDR4 - foto 2

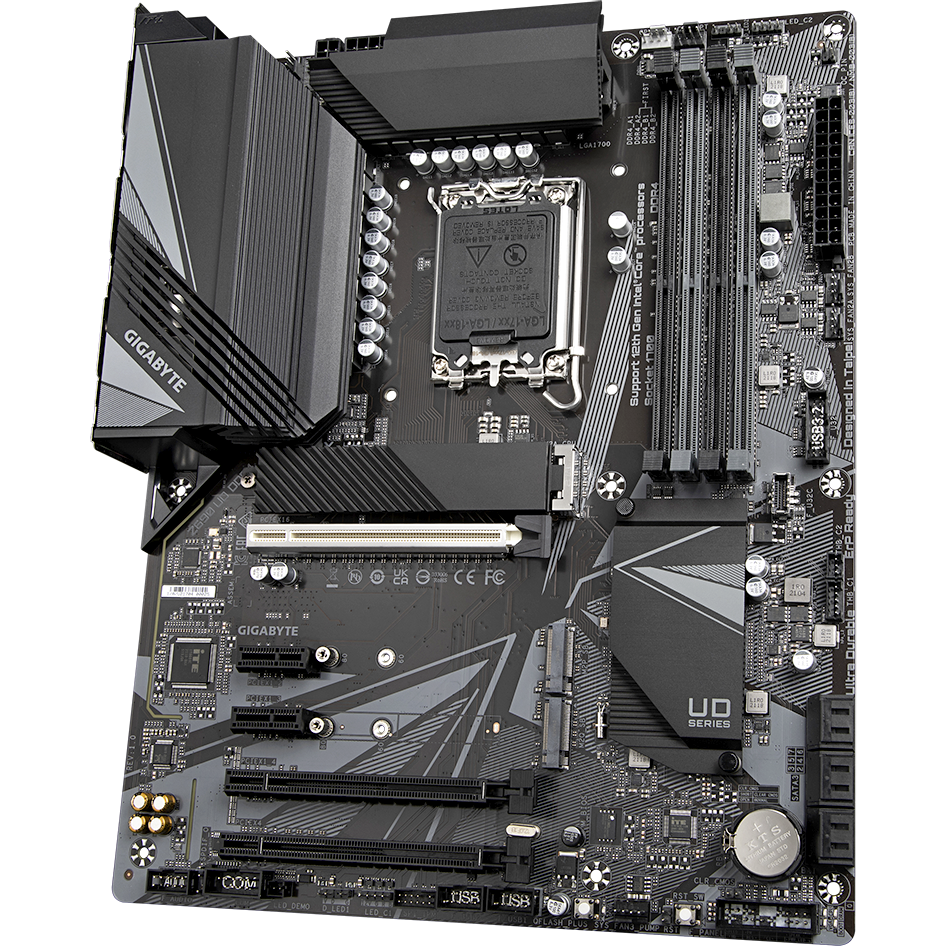

Mātesplate Gigabyte Z690 UD DDR4 - foto 3

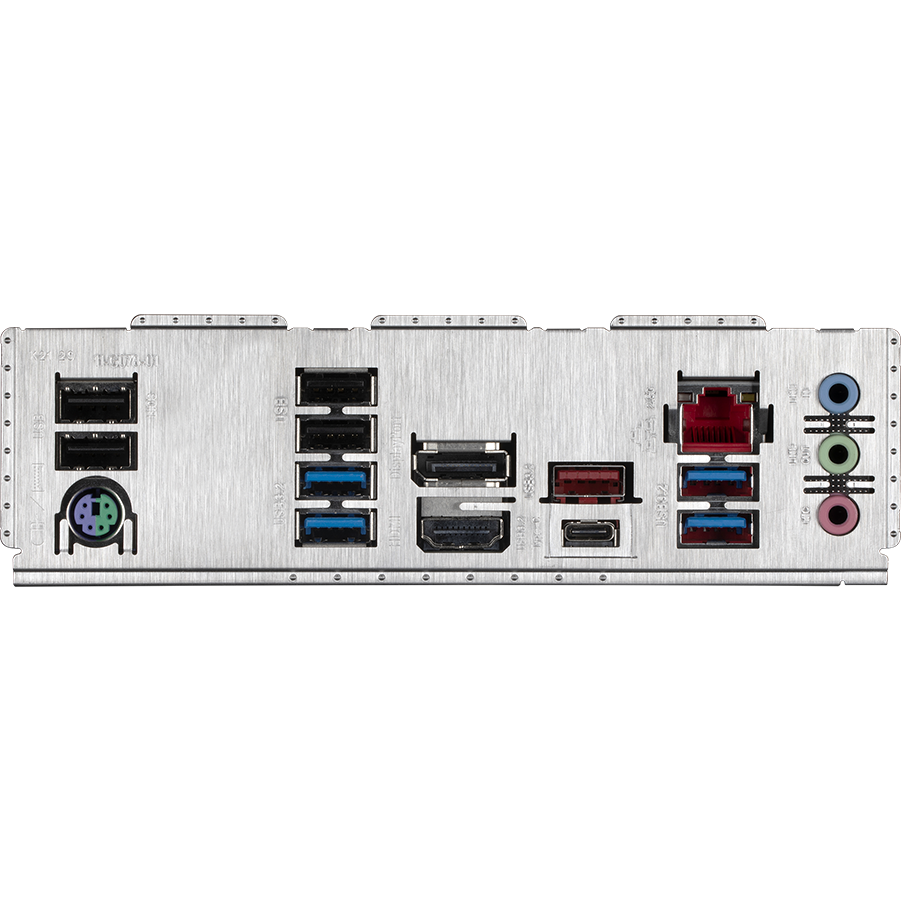

Mātesplate Gigabyte Z690 UD DDR4 - foto 4

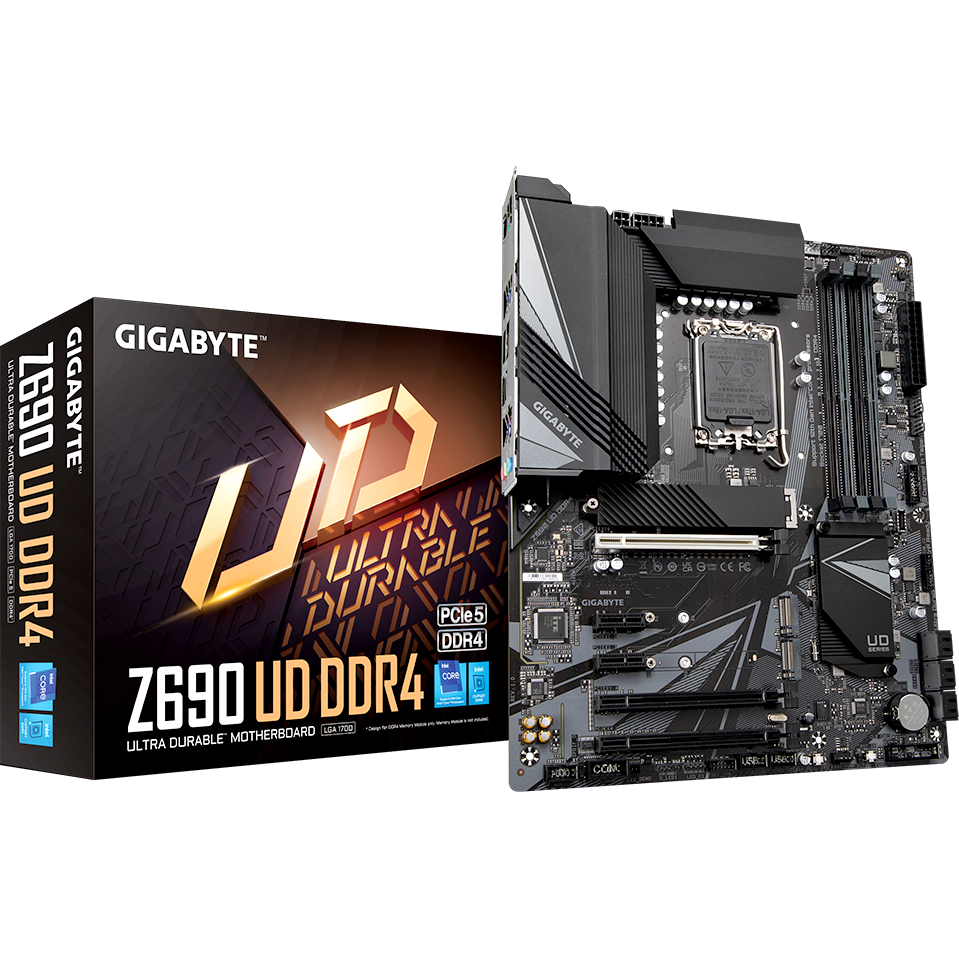

Mātesplate Gigabyte Z690 UD DDR4 - foto 5

ID: 412110

Modifikācija

Gigabyte Z690 UD DDR4

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Pilnas specifikācijas

16.480,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

Pieejams līdz 10.000,⁰⁰ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

Pieejams līdz 3.000,⁰⁰ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

Z690 UD DDR4

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1x Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD,
2x Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

2 x 4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Svars ........................................................................................................................................................................................................

2 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
