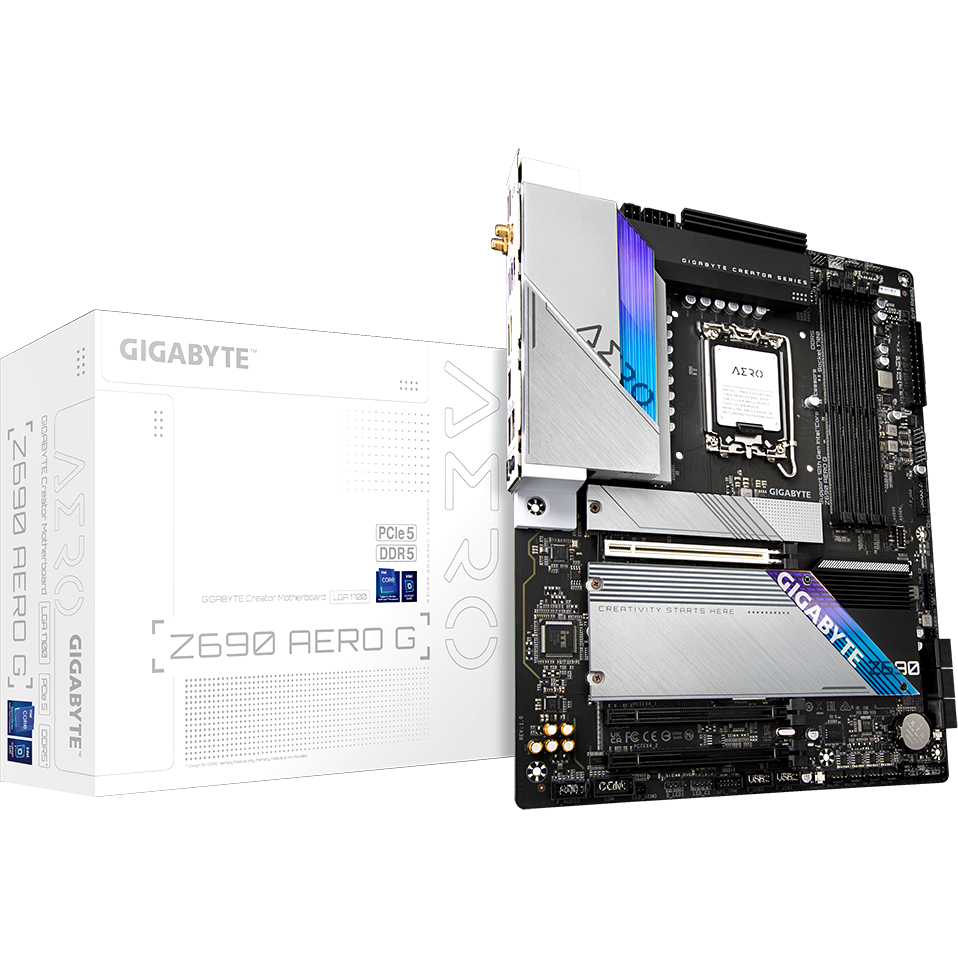

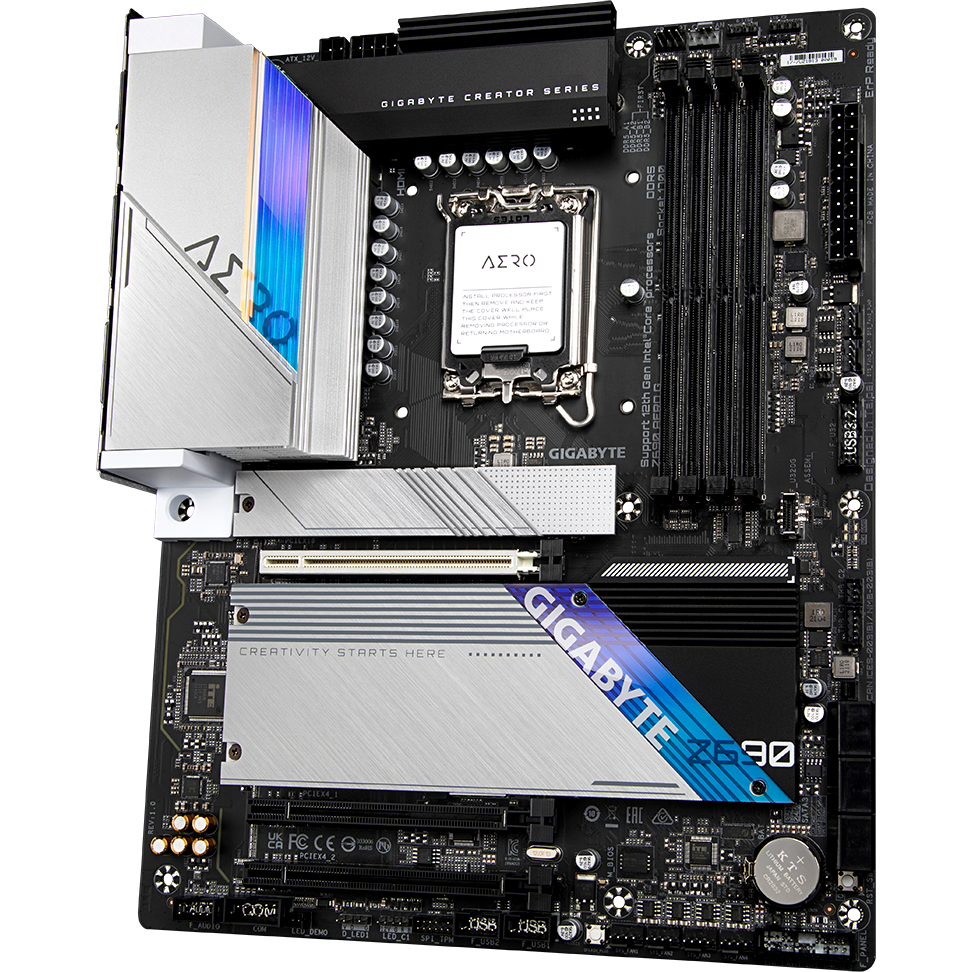

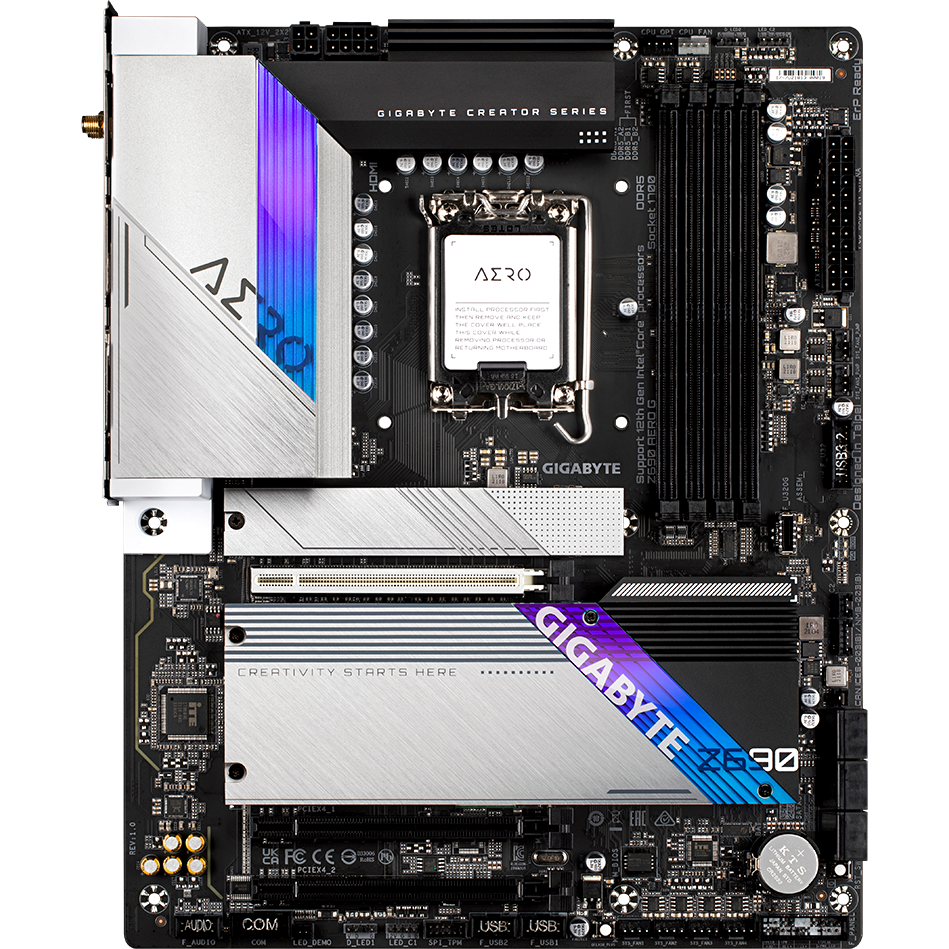

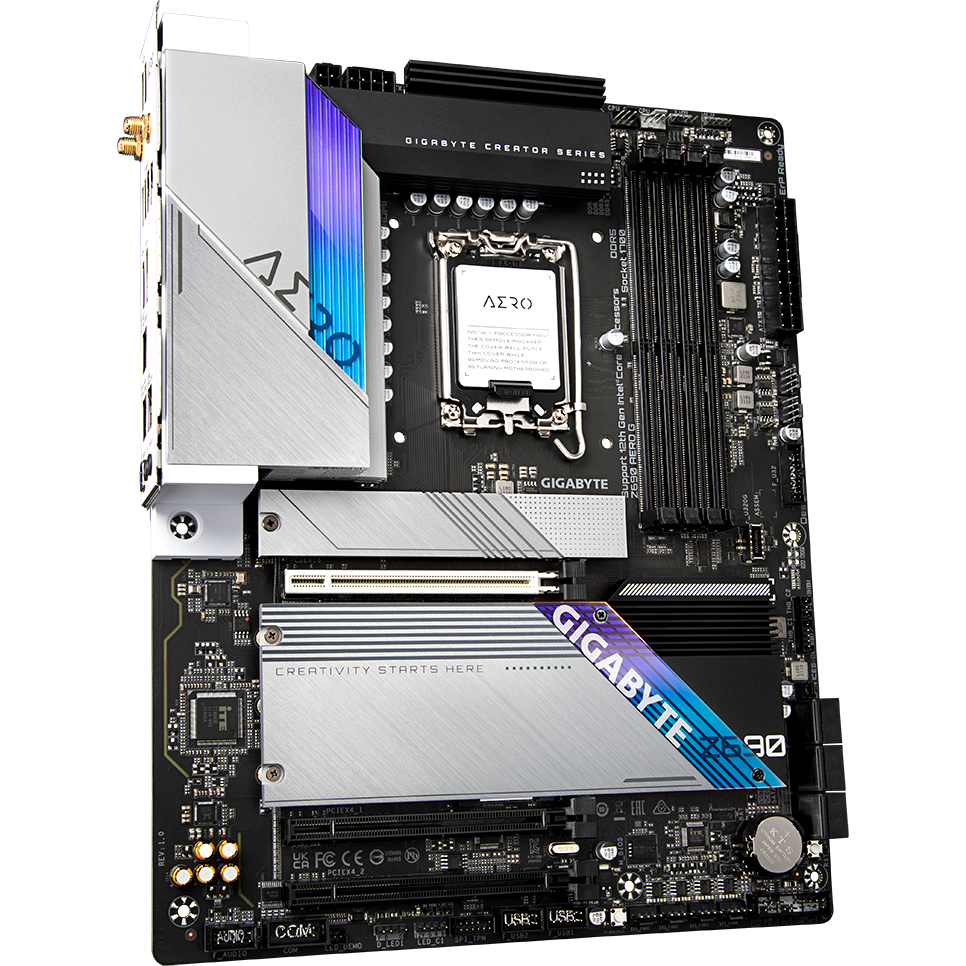

Pamatplate Gigabyte Z690 AERO G

ID: 414682

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E 3.0 x16, 4 x PCI-E M.2
Tīkla saskarne: Intel Wi-Fi 6 AX201 x 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Intel Wi-Fi 6 AX201 x Wi-Fi, Intel Wi-Fi 6 AX201 x Bluetooth
Ligzdas aizmugurējā panelī: 2 x USB 2.0, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Formfaktors: ATX

Pilnas specifikācijas

26.510,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

Z690 AERO G

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Intel Wi-Fi 6 AX201 x 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Intel Wi-Fi 6 AX201 x Wi-Fi, Intel Wi-Fi 6 AX201 x Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC4080

Saskarnes

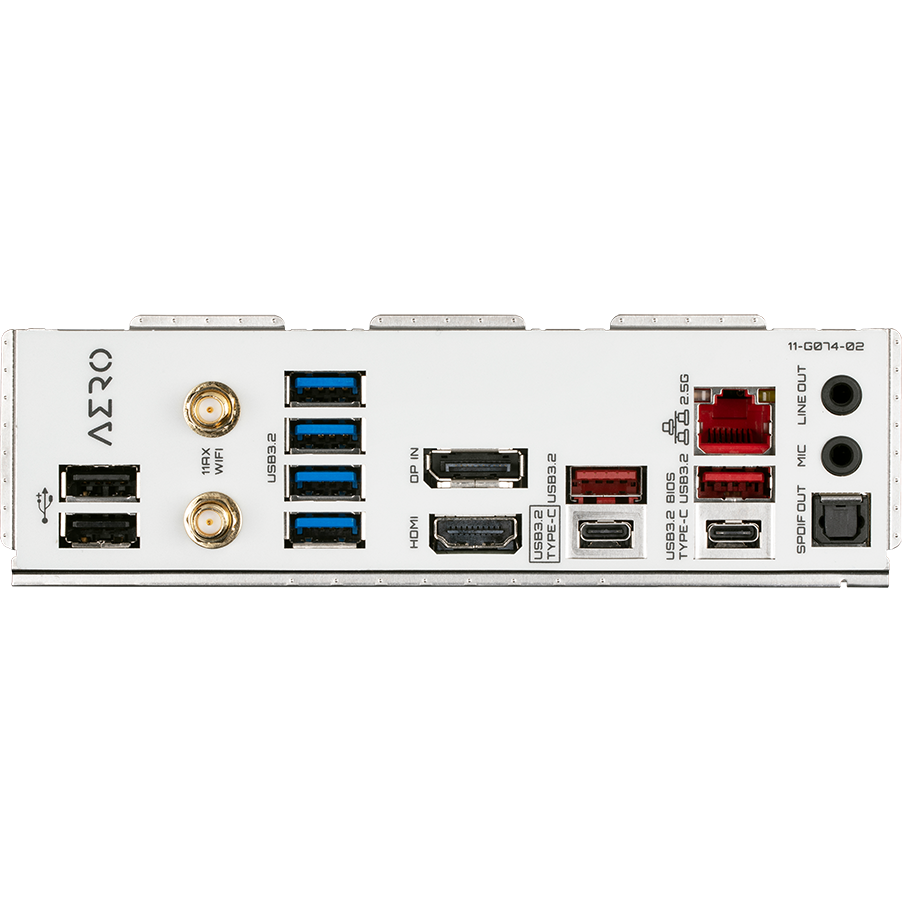

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 2.0, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 3.0 x16, 4 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1x Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4,
2x Socket 3, M key, type 2260/2280 PCIe 4.0 x4,
1x Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 и SATA

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

6 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

2 x 4-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Svars ........................................................................................................................................................................................................

2 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
