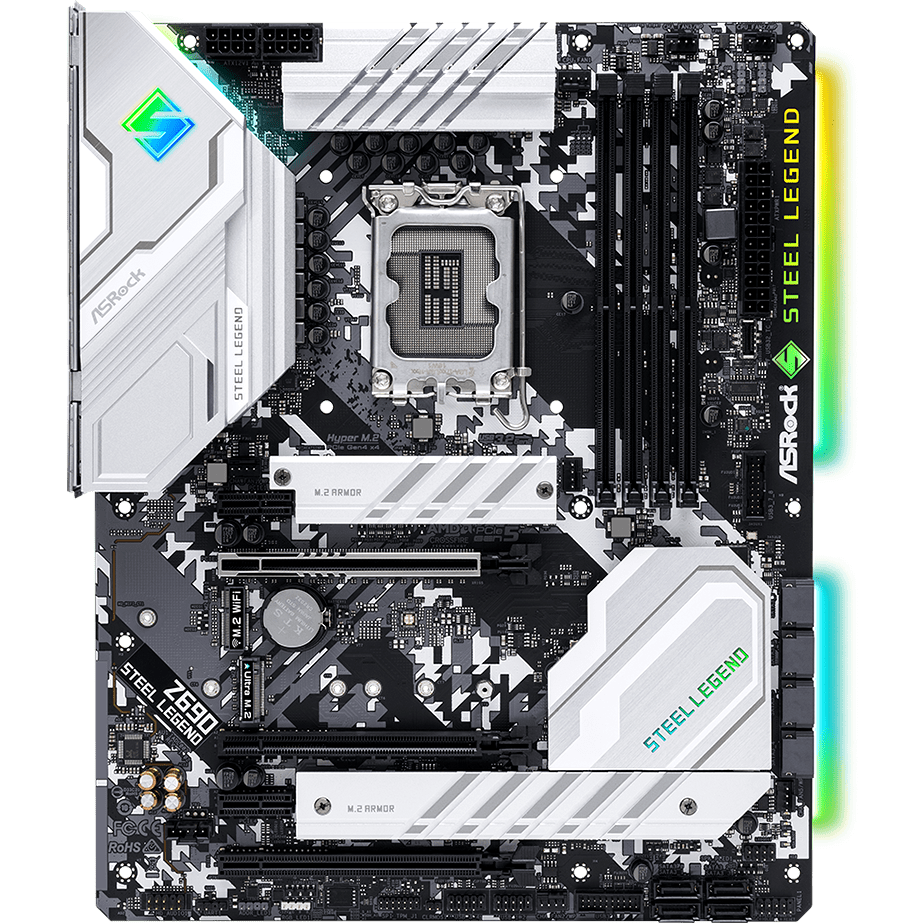

Pamatplate ASRock Z690 Steel Legend

Name: Pamatplate ASRock Z690 Steel Legend
Brand: ASRock
SKU: 415447
Price: 16990.00 EUR
Availability: InStock

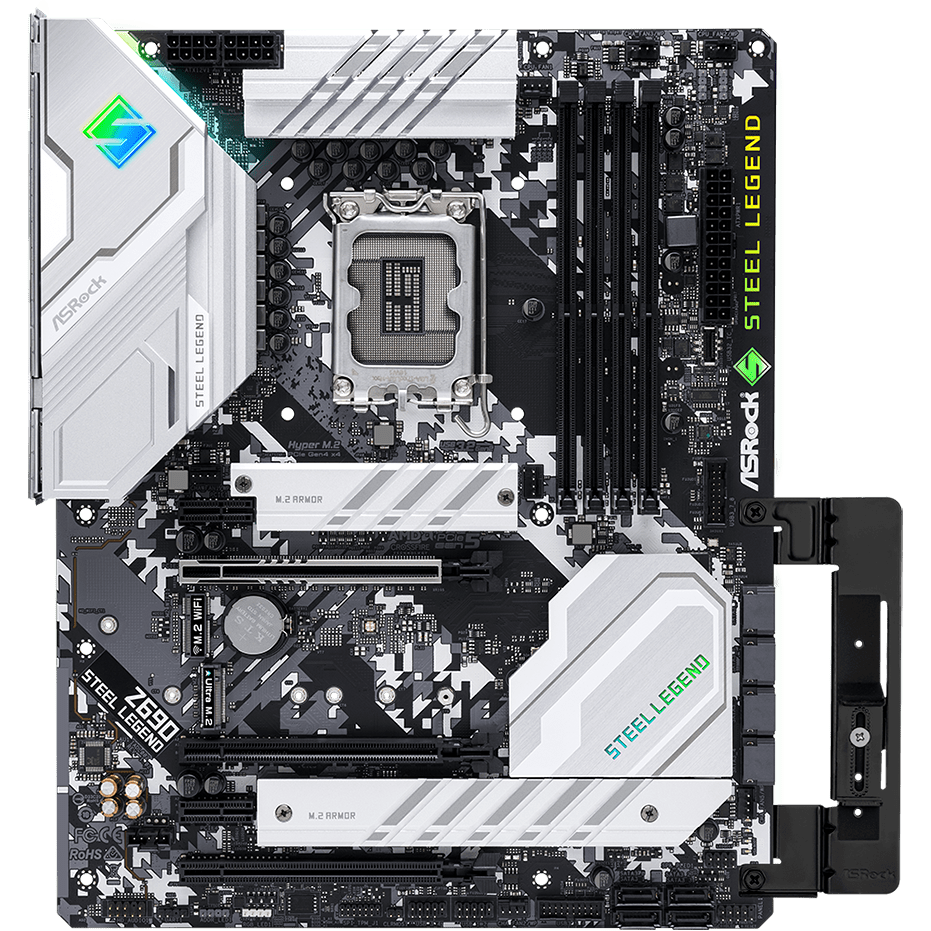

Pamatplate ASRock Z690 Steel Legend - foto 2

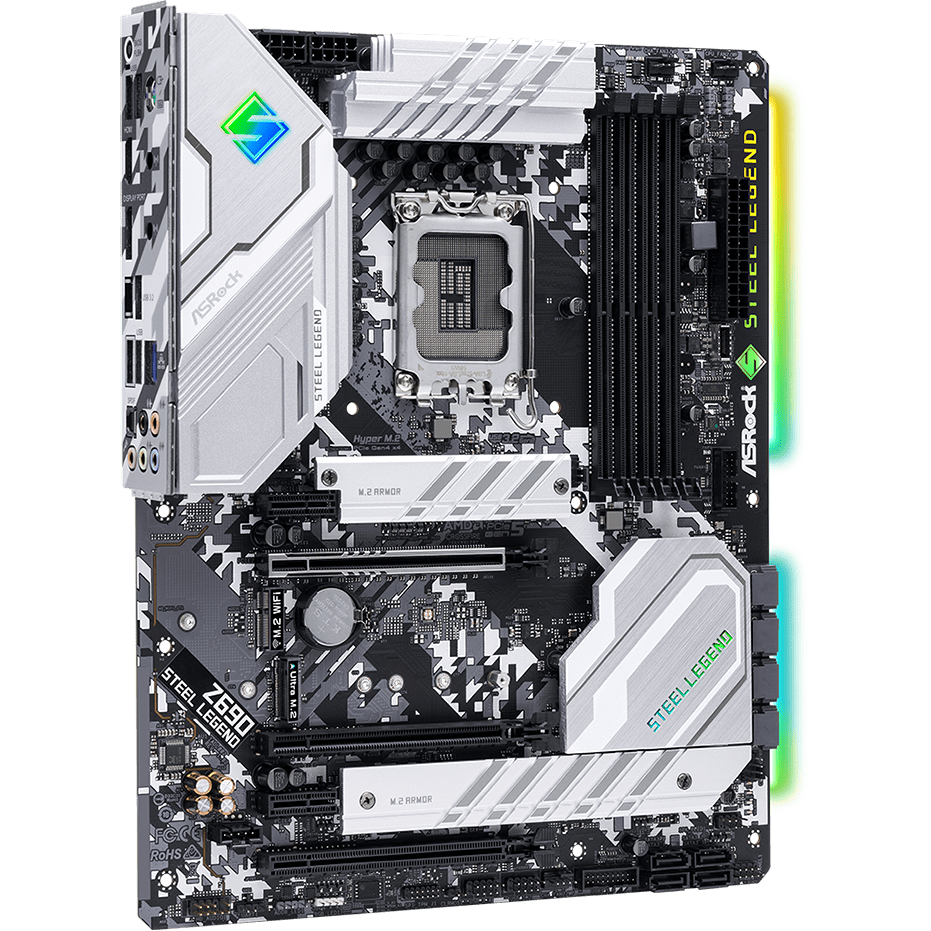

Pamatplate ASRock Z690 Steel Legend - foto 3

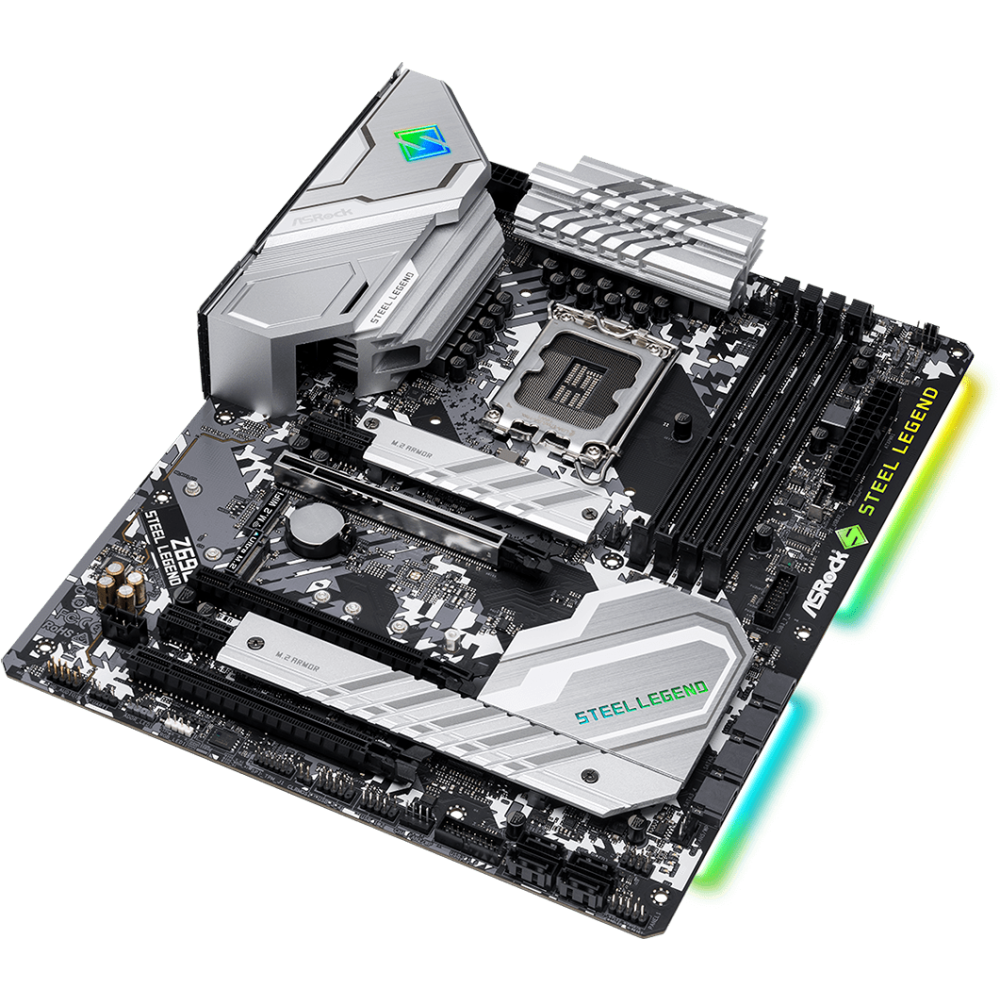

Pamatplate ASRock Z690 Steel Legend - foto 4

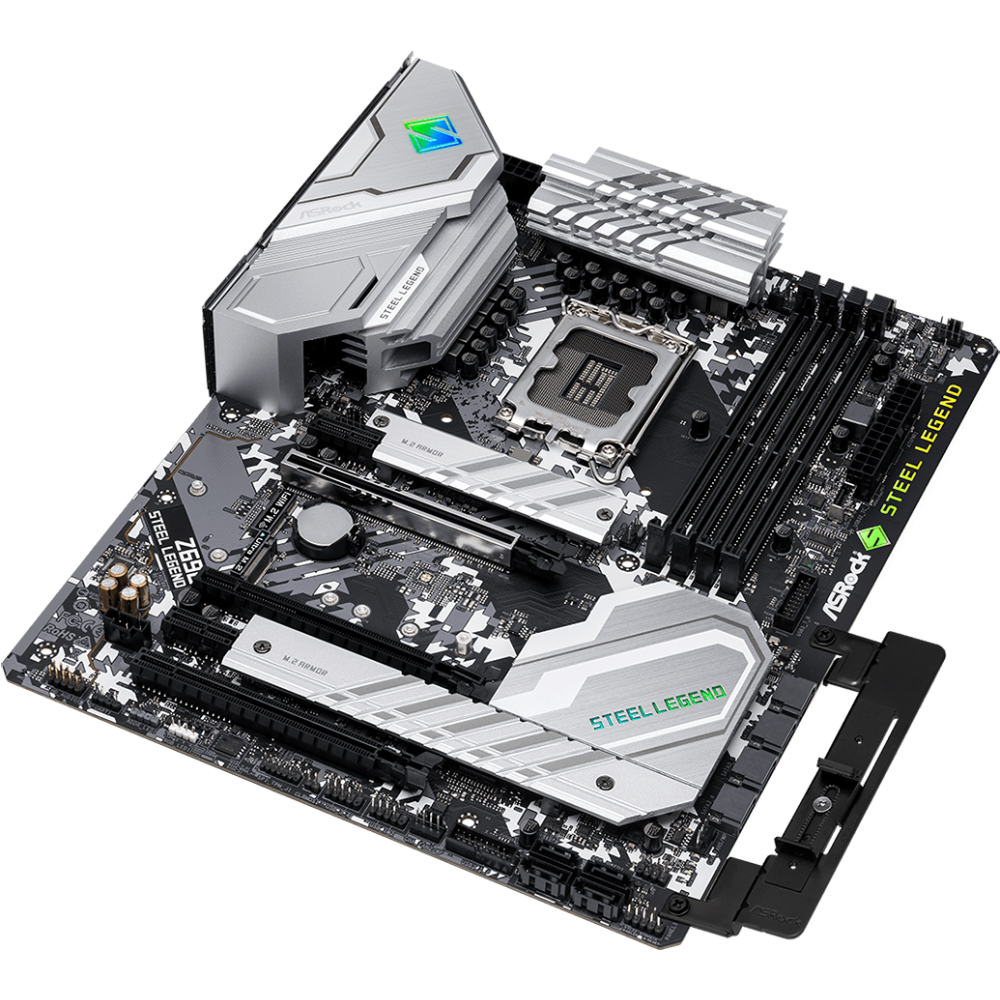

Pamatplate ASRock Z690 Steel Legend - foto 5

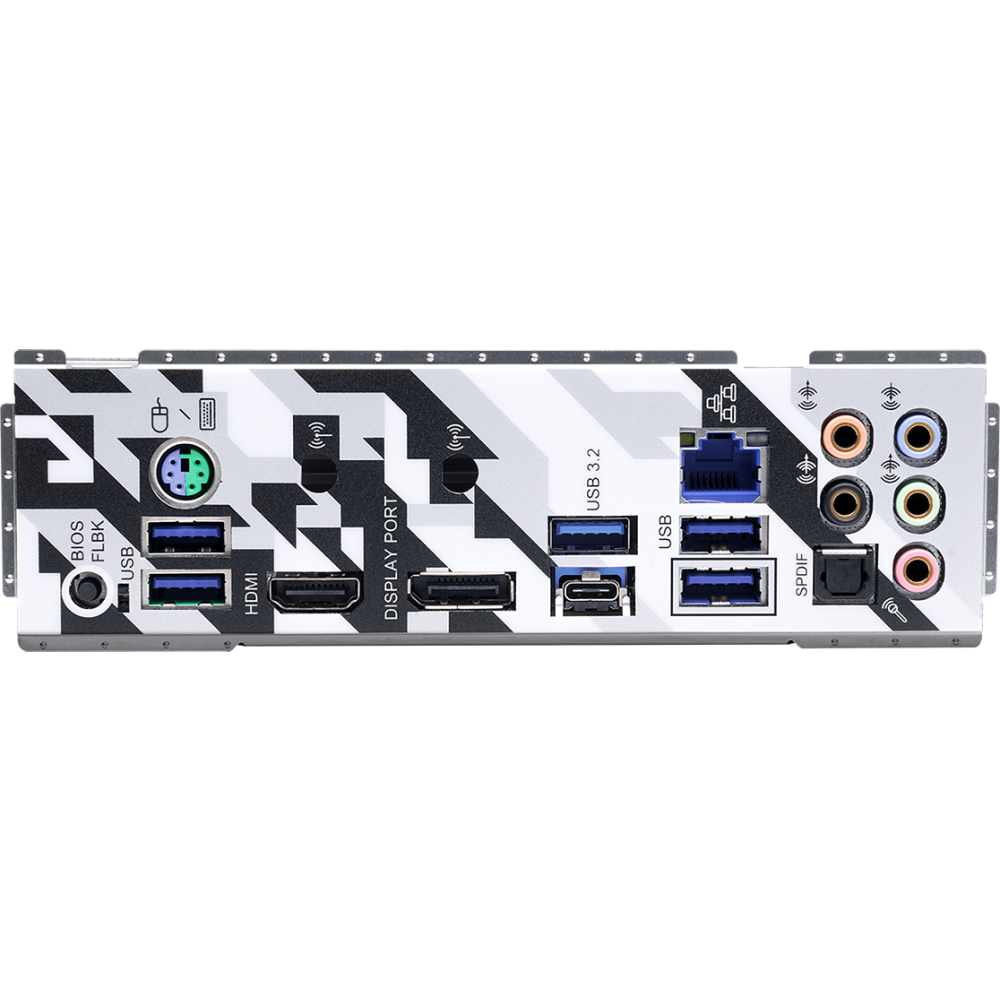

Pamatplate ASRock Z690 Steel Legend - foto 6

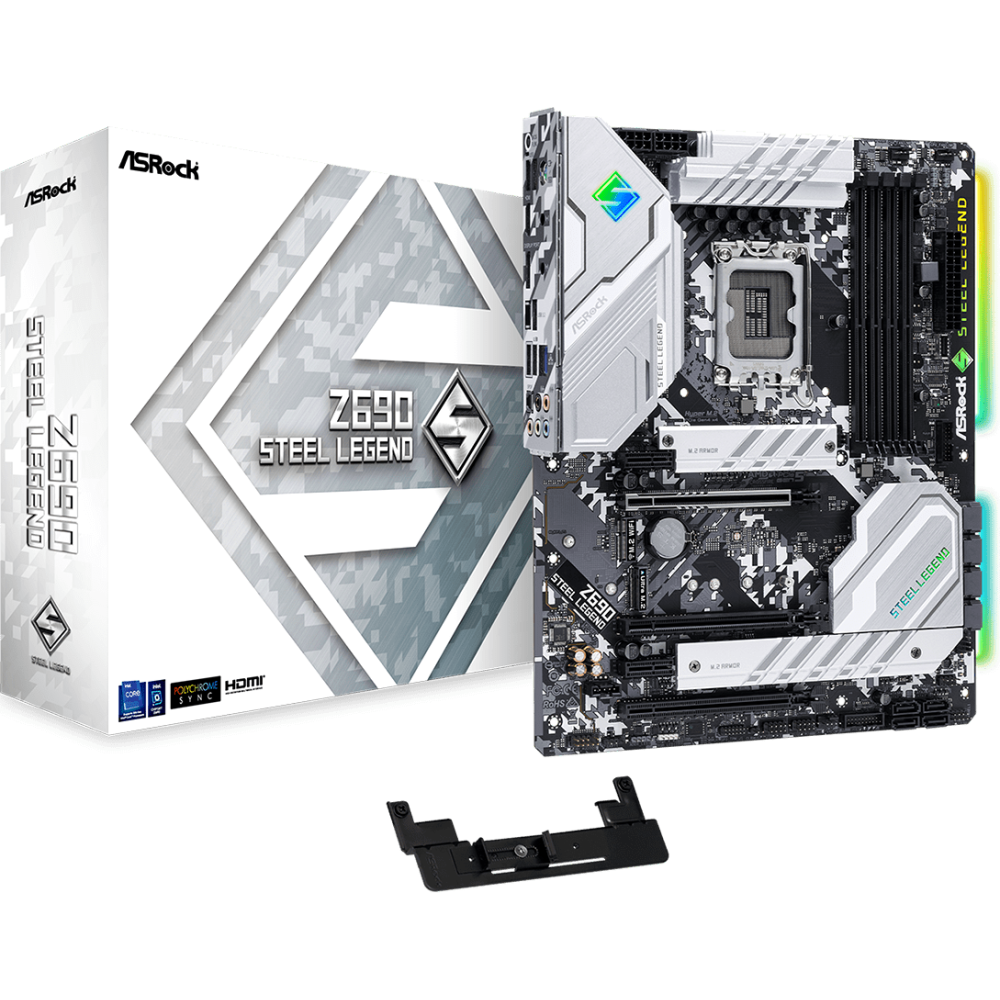

Pamatplate ASRock Z690 Steel Legend - foto 7

ID: 415447

Modifikācija

ASRock Z690 Steel Legend

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Pilnas specifikācijas

16.990,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

Pieejams līdz 10.000,⁰⁰ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

Pieejams līdz 3.000,⁰⁰ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

Z690 Steel Legend

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

8 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

Key M, 2260/2280, PCIe 4.0 x4,
Key M, 2260/2280, PCIe 4.0 x4 & SATA 3.0,
Key M, 2242/2260/2280/22110 PCIe 4.0 x4,

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4):
Gen5 x16 (PCIE1);
Gen5x16 (PCIE1) / Gen4 x4 (PCIE2);
Gen5x16 (PCIE1) / Gen4 x4 (PCIE2) / Gen3 x4 (PCIE4)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8125BG

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

5 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Apgaismojums ........................................................................................................................................................................................................

jā

Papildu informācija ........................................................................................................................................................................................................

M.2 Key E for WiFi module (2230)

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
