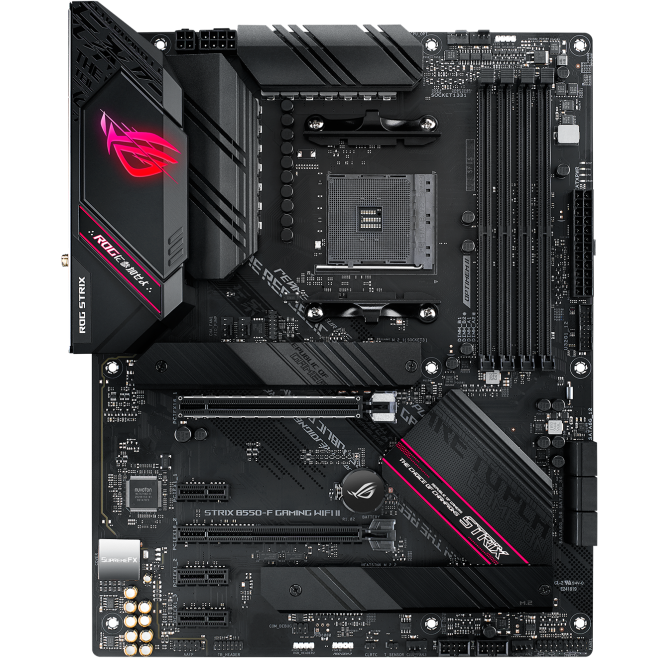

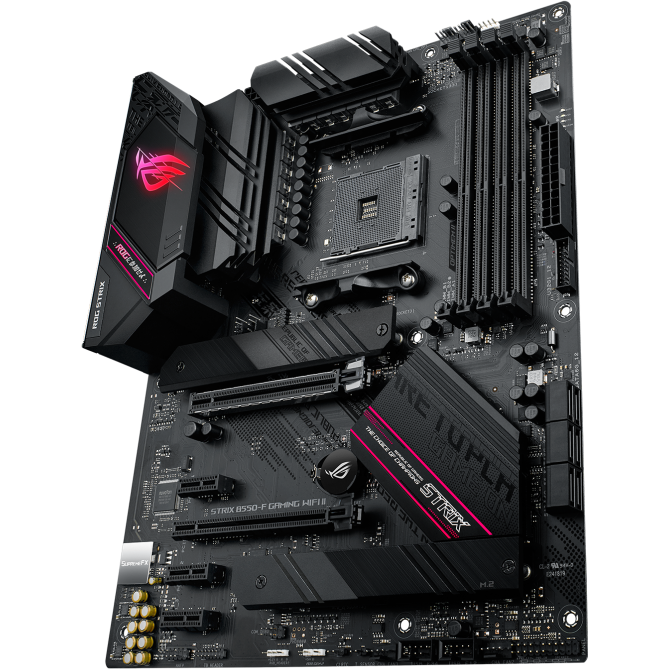

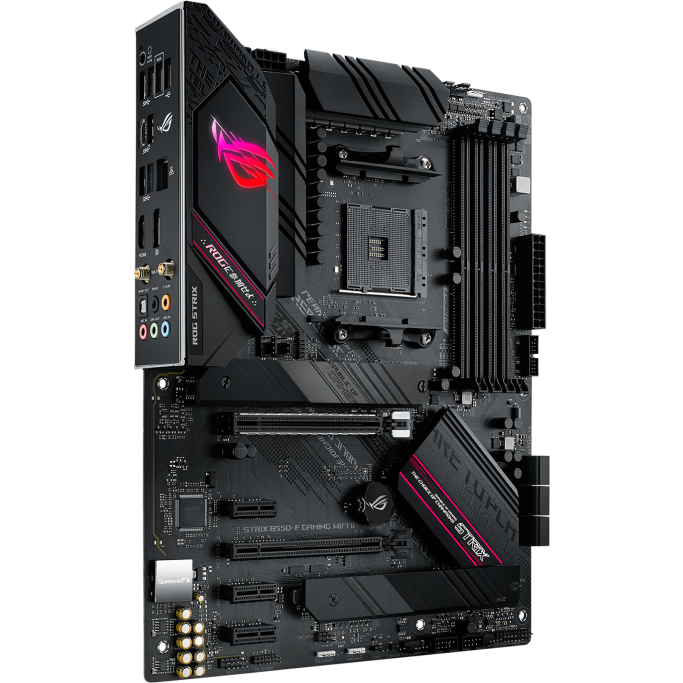

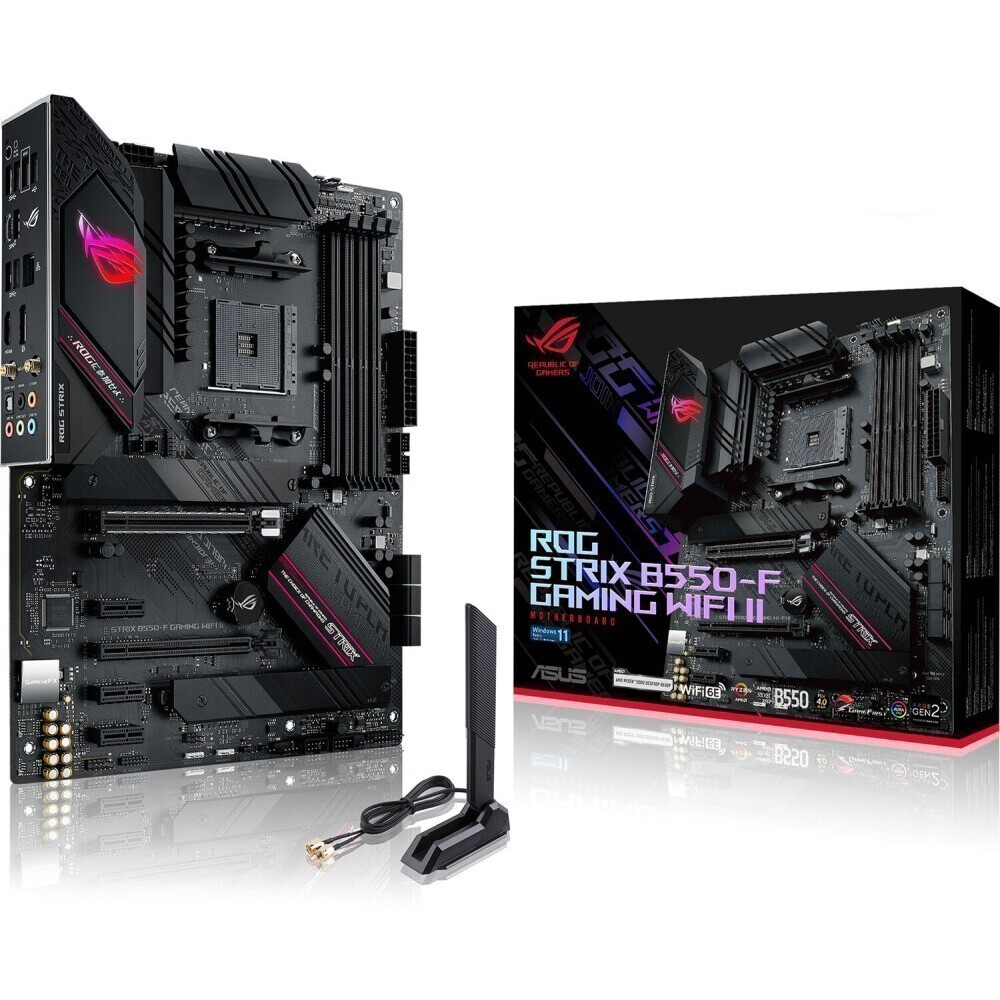

- Pamatplate ASUS ROG STRIX B550-F GAMING WI-FI II
Pamatplate ASUS ROG STRIX B550-F GAMING WI-FI II
ID: 418137
Īsi par preci
- Ligzda: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, 3 x PCI-E x1, 2 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Apgaismojums: Jā
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
ROG STRIX B550-F GAMING WI-FI II
Ligzda ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Saskarnes

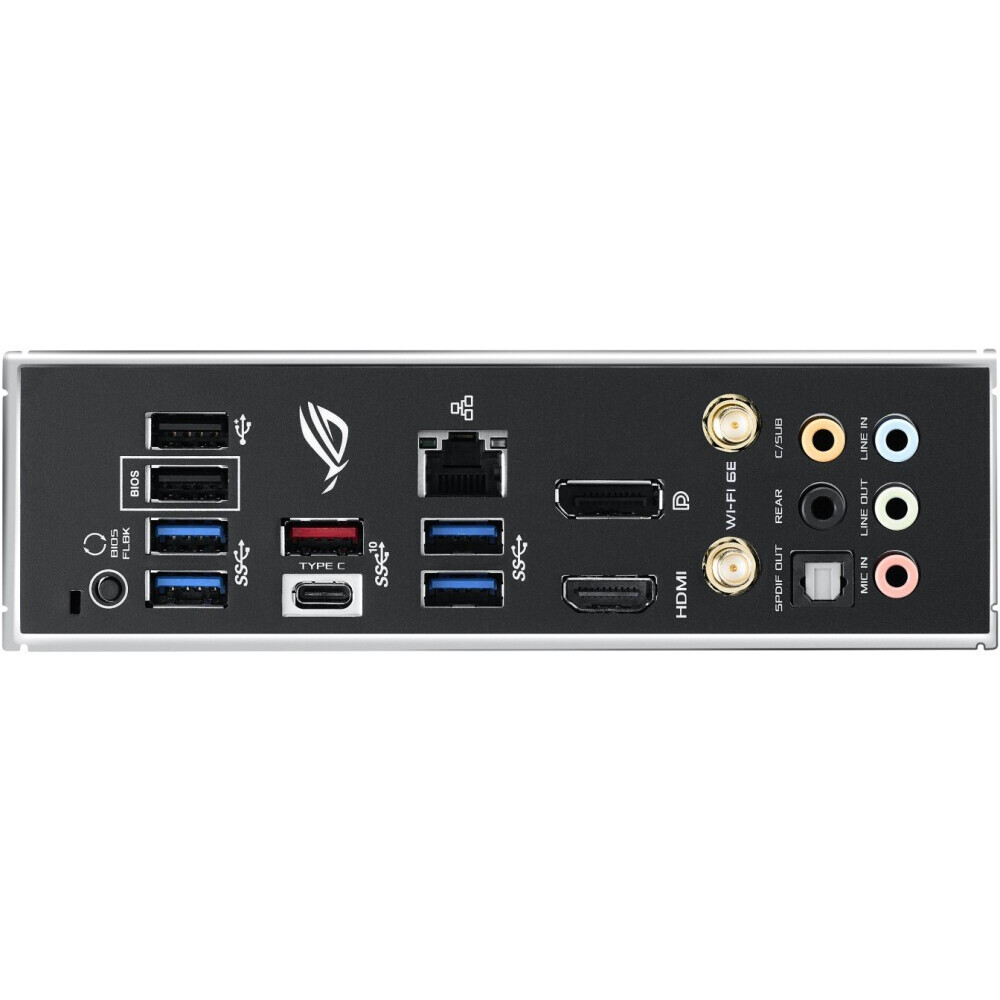

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
6 x SATA-III (6 Gb/s)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
SupremeFX S1220A
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Intel
Papildu
Apgaismojums ........................................................................................................................................................................................................
jā
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E 3.0 x16, 3 x PCI-E x1, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- 1 x M.2 2242-22110 (PCIe 4.0 x4, SATA);
- 1 x M.2 2242-22110 (PCIe 3.0 x4, SATA).
- 1 x M.2 2242-22110 (PCIe 3.0 x4, SATA).
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
x16/x4
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
