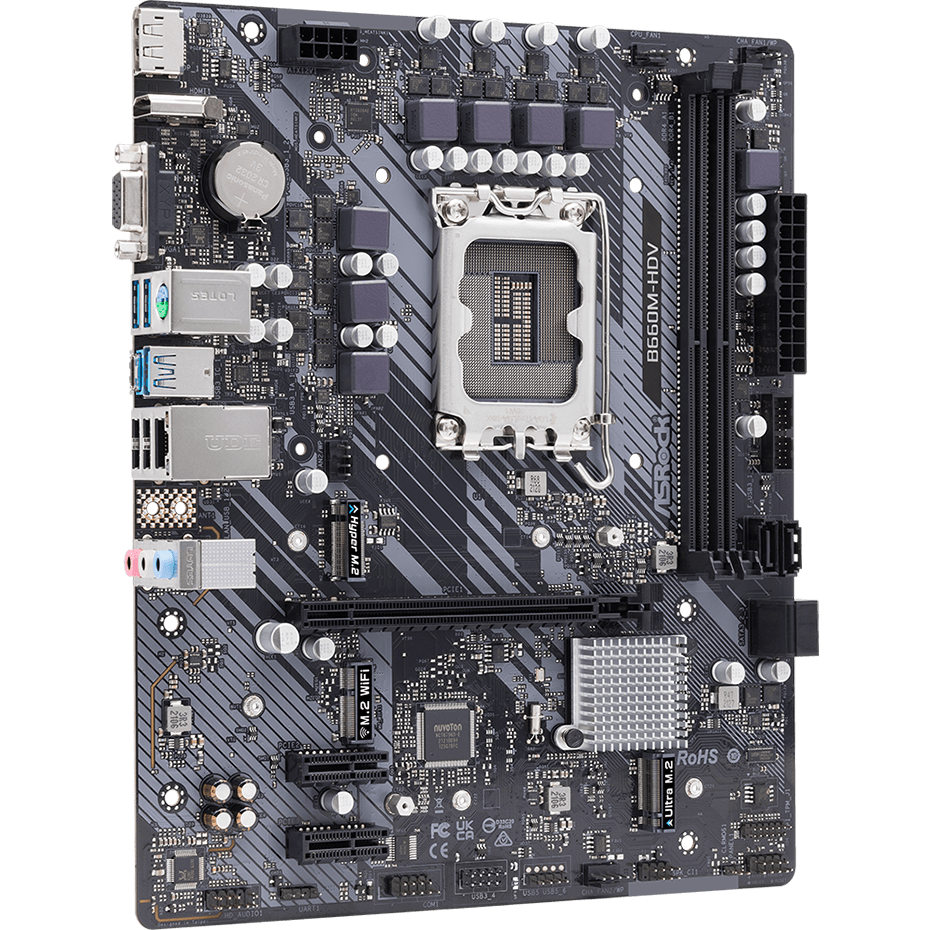

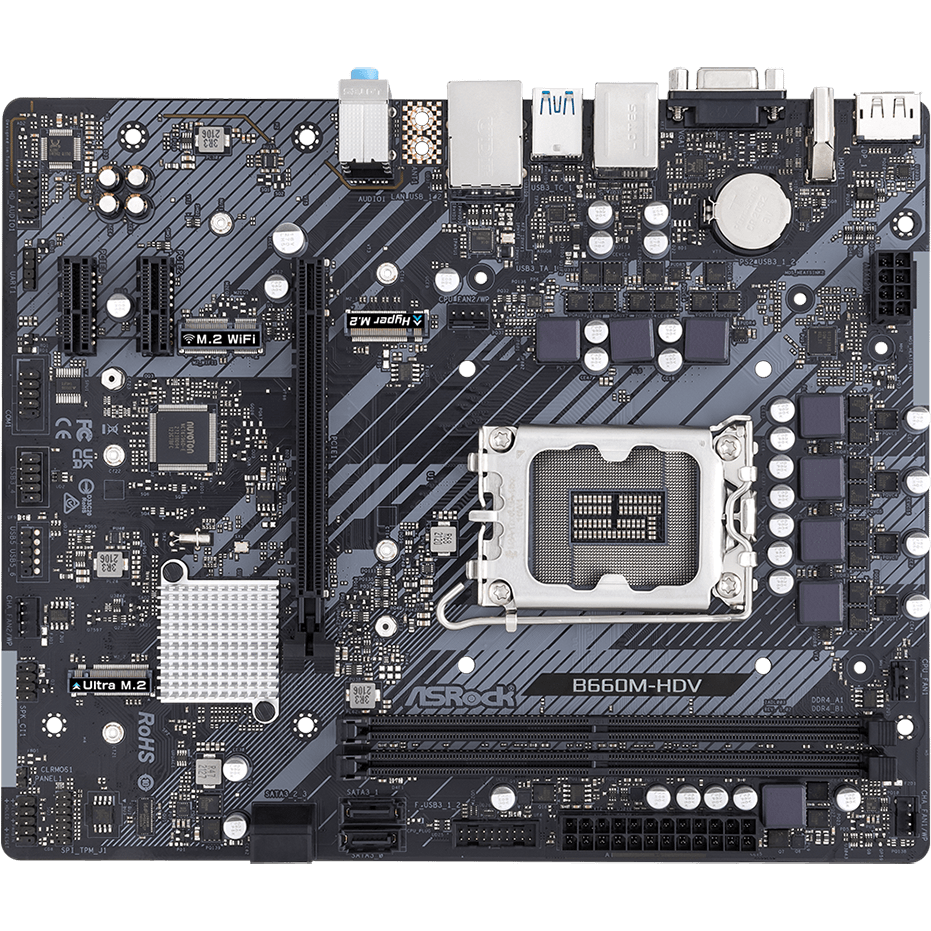

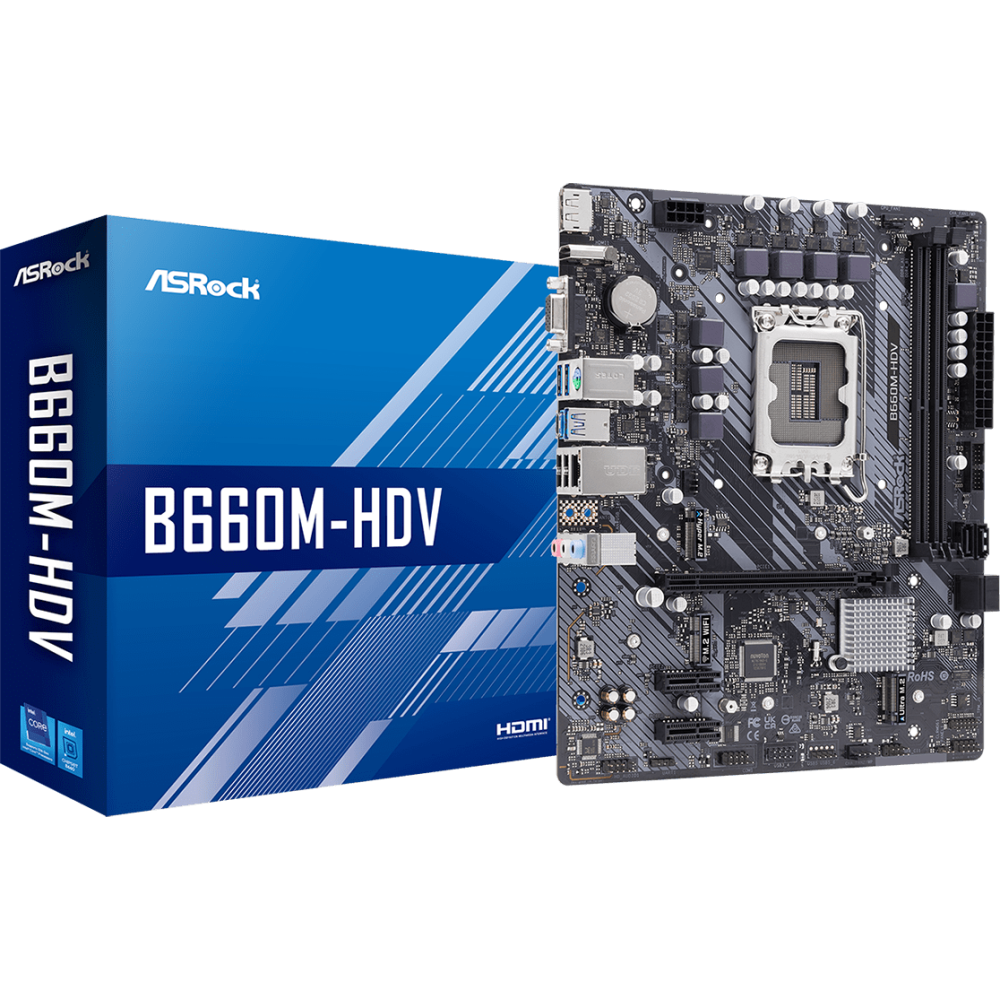

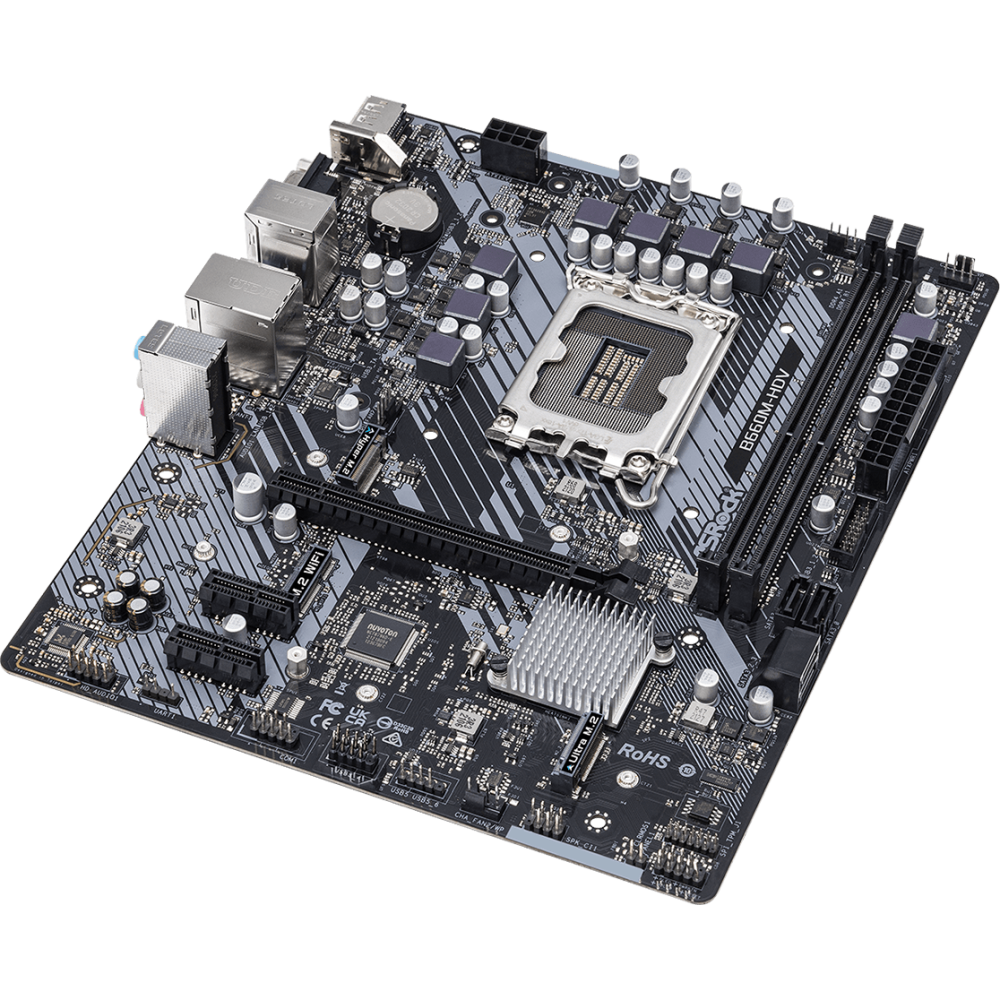

Pamatplate ASRock B660M-HDV (B660M-HDV)

ID: 422823

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel B660
Atmiņas slotu skaits: 2
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)

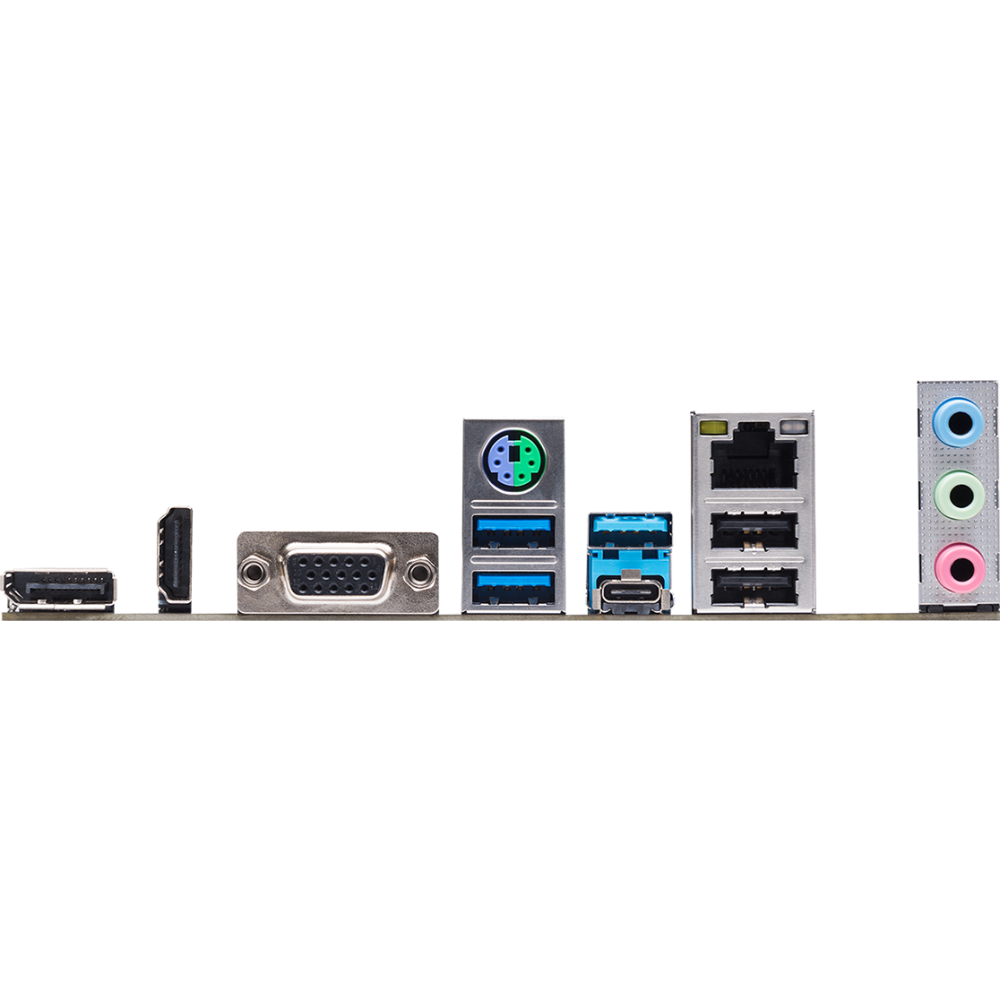

Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, VGA, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

7.910,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

B660M-HDV

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B660

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, VGA, HDMI, DisplayPort, RJ-45

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2260/2280 (PCIe Gen4x4);
- Key M, 2260/2280 (SATA3 & PCIe Gen3x4);
- Key E, 2230, for the WiFi/BT PCIe WiFi module.

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel I219V

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

2 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
