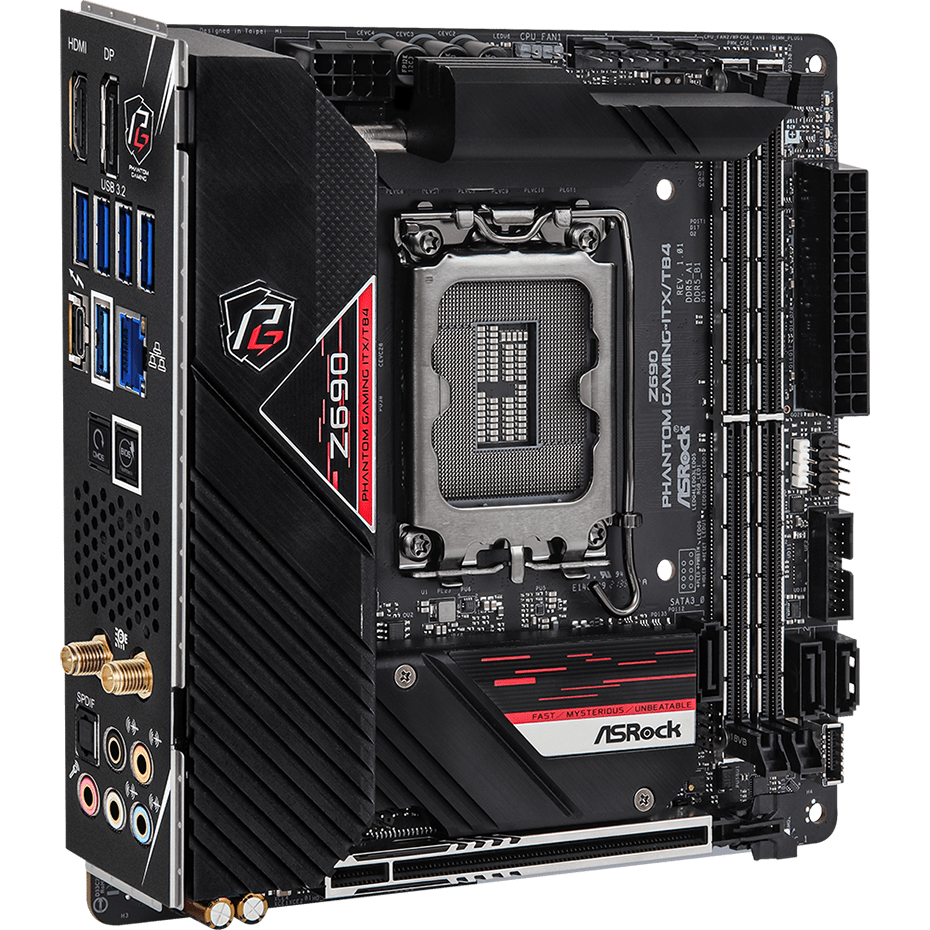

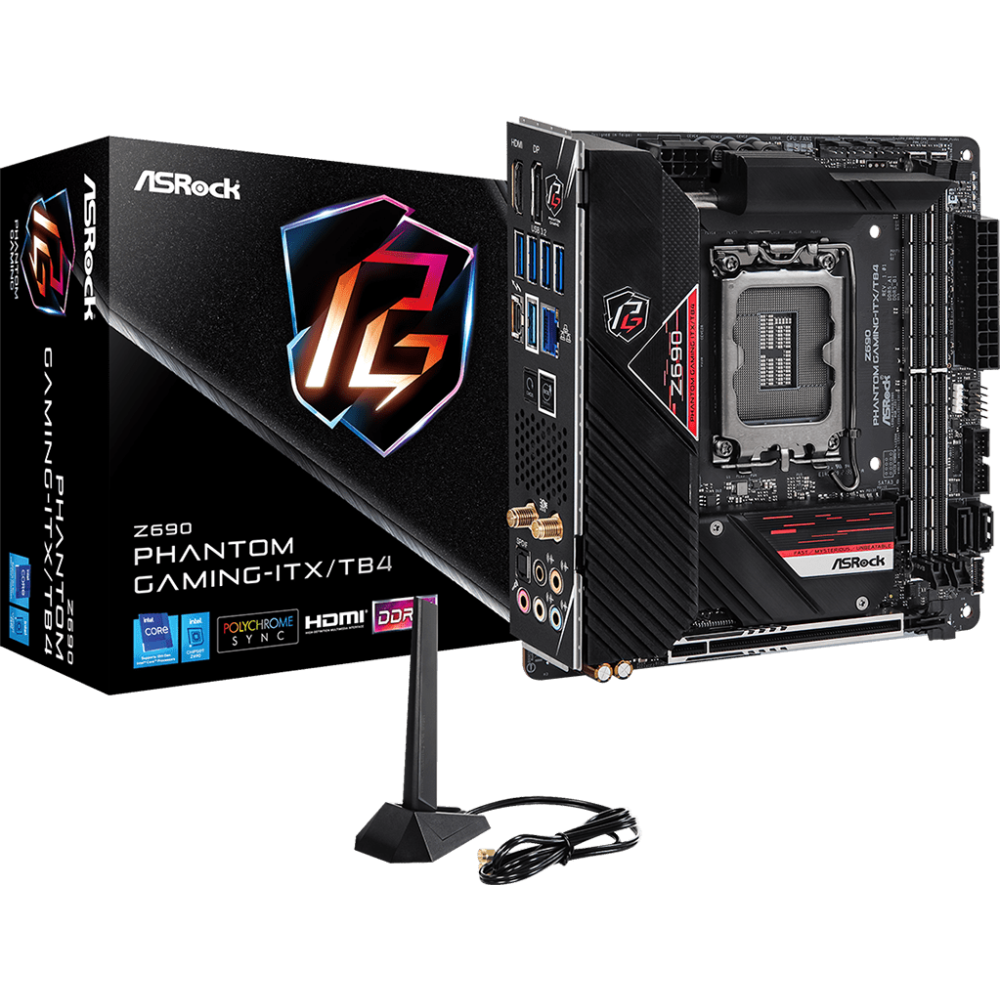

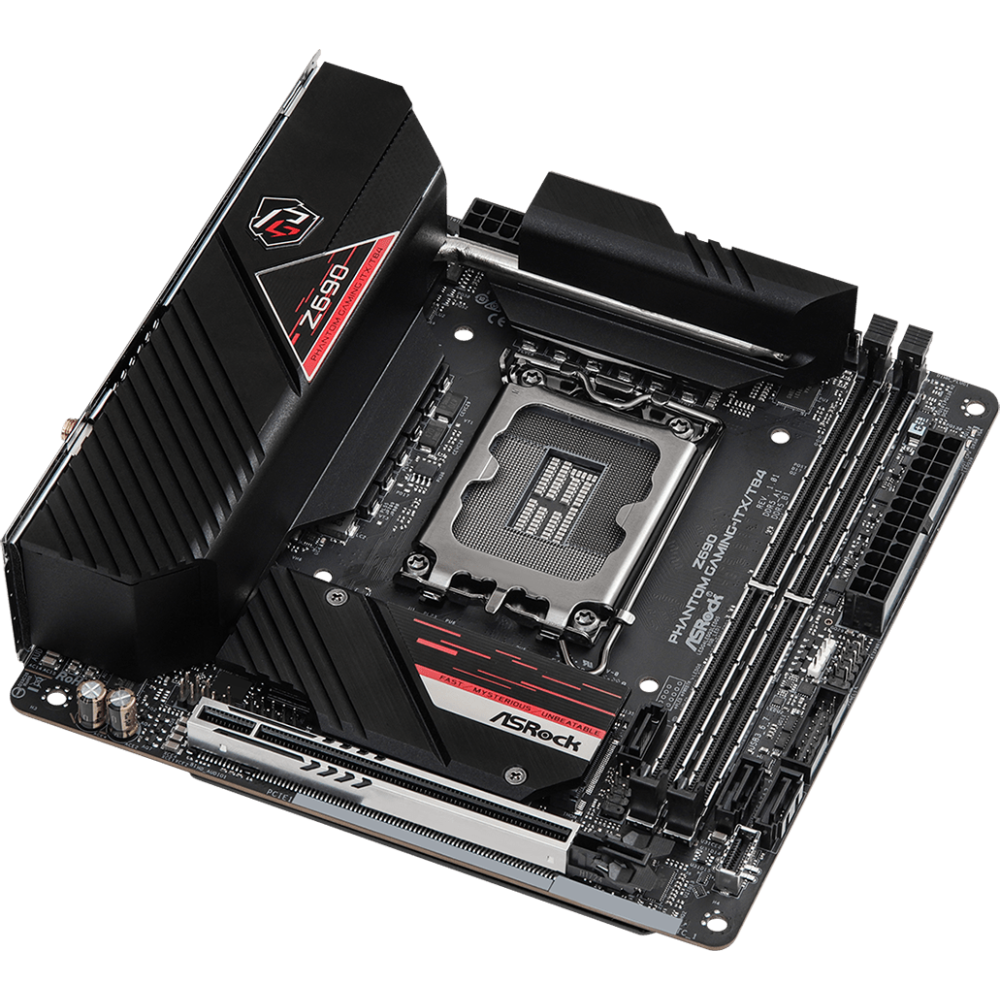

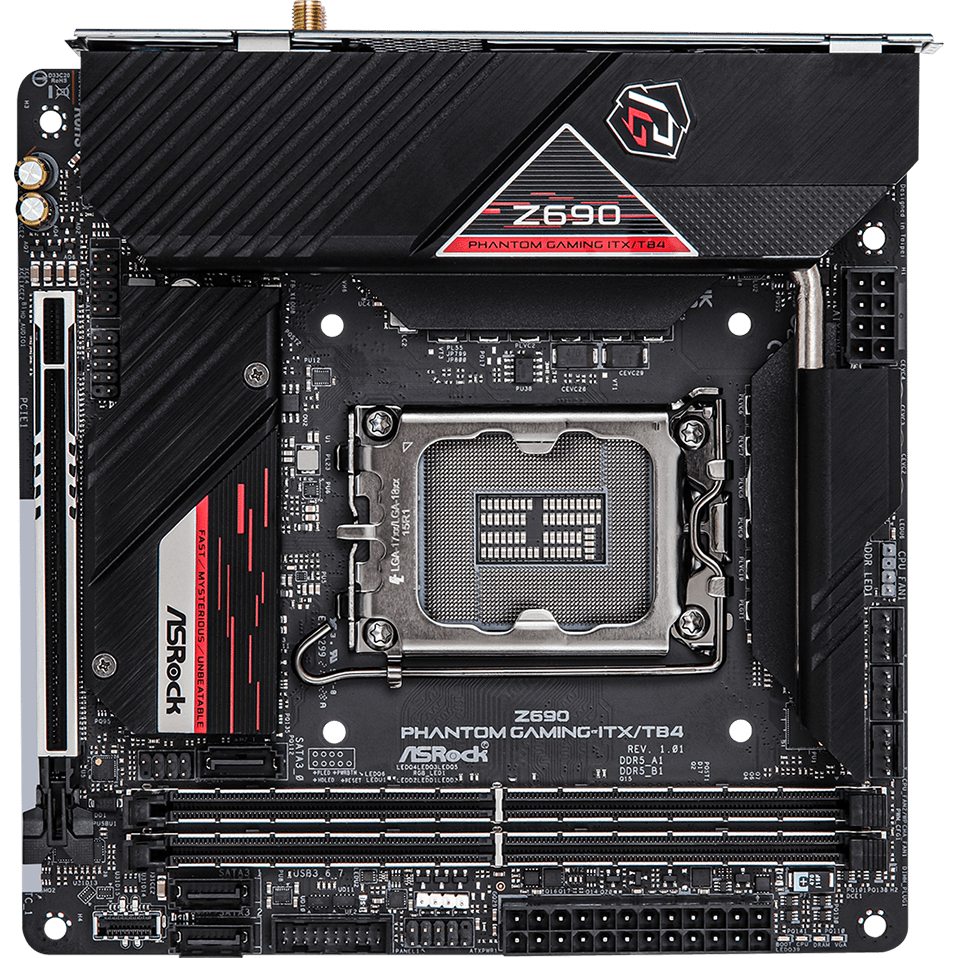

Pamatplate ASRock Z690 Phantom Gaming-ITX/TB4

ID: 427586

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: USB 3.2 Gen1, 4 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
Formfaktors: Mini-ITX

Pilnas specifikācijas

31.860,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

Z690 Phantom Gaming-ITX/TB4

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Saskarnes

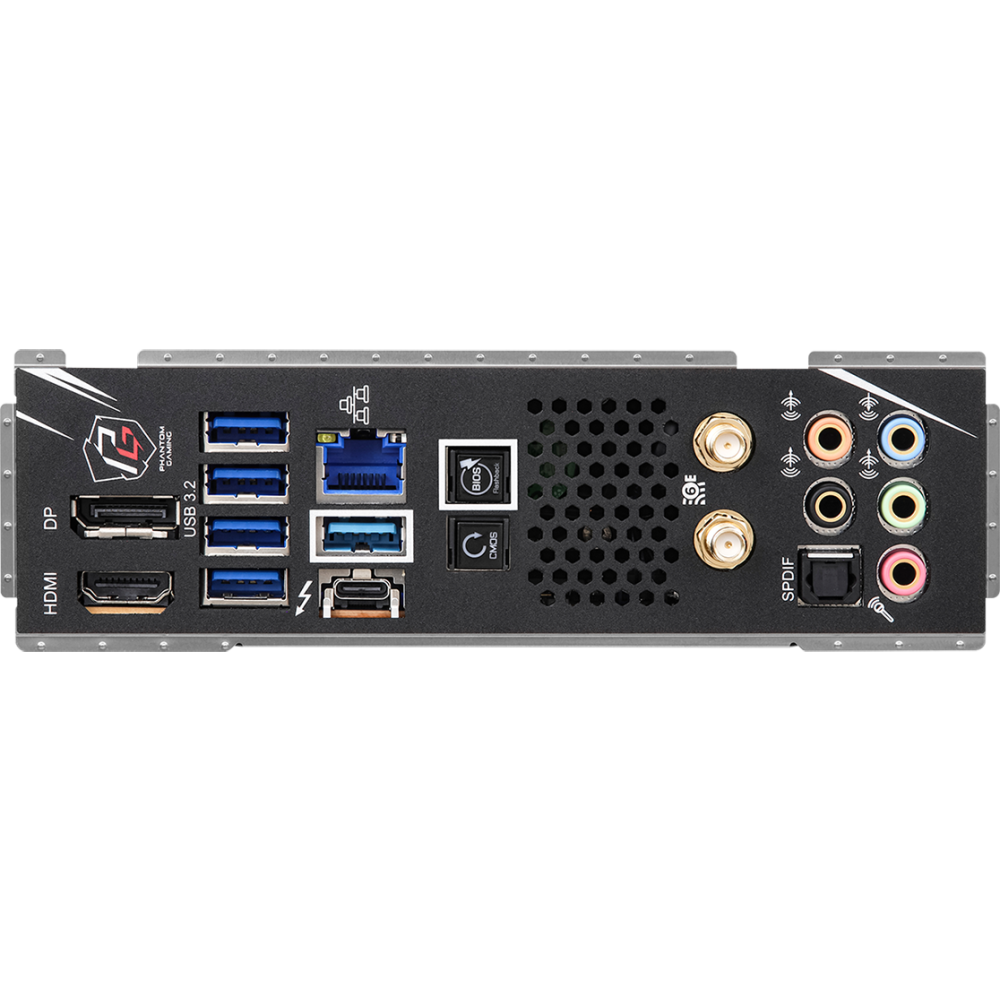

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 3.2 Gen1, 4 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2280 (PCIe Gen4x4);
- Key M, 2280 (SATA3 & PCIe Gen4x4);
- Key E, supports WiFi/BT PCIe WiFi type 2230 and Intel CNVi (built-in WiFi/BT) modules.

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1220

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Killer E3100G

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

3 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

Mini-ITX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
