- Barošanas bloks be quiet! PURE POWER 12 1000W (BP005EU)

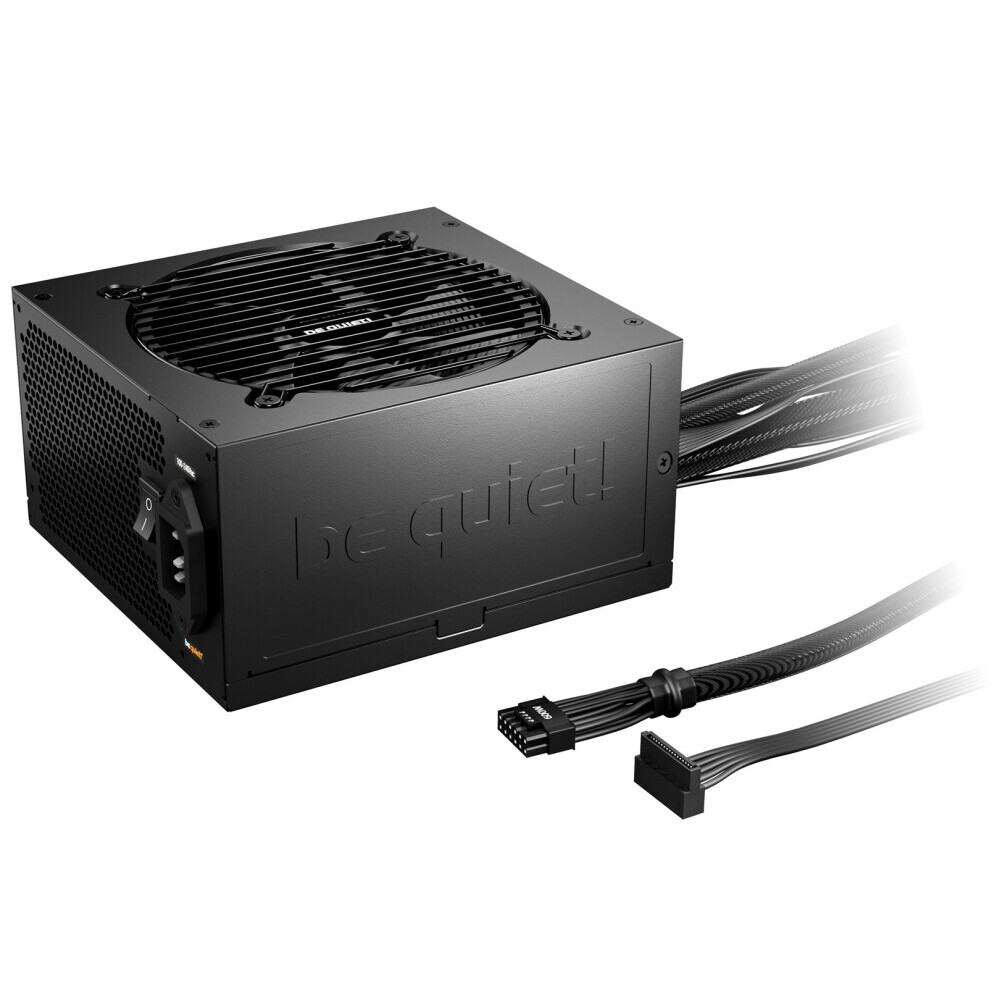

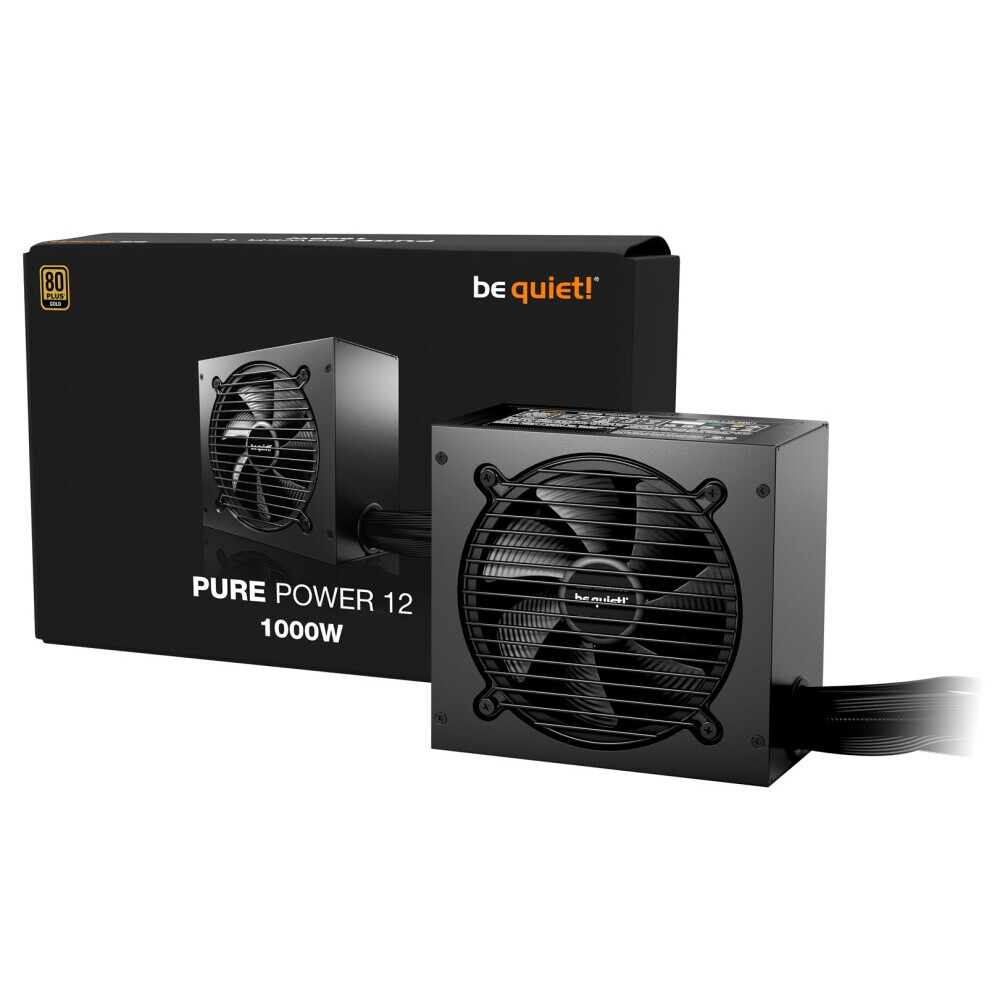

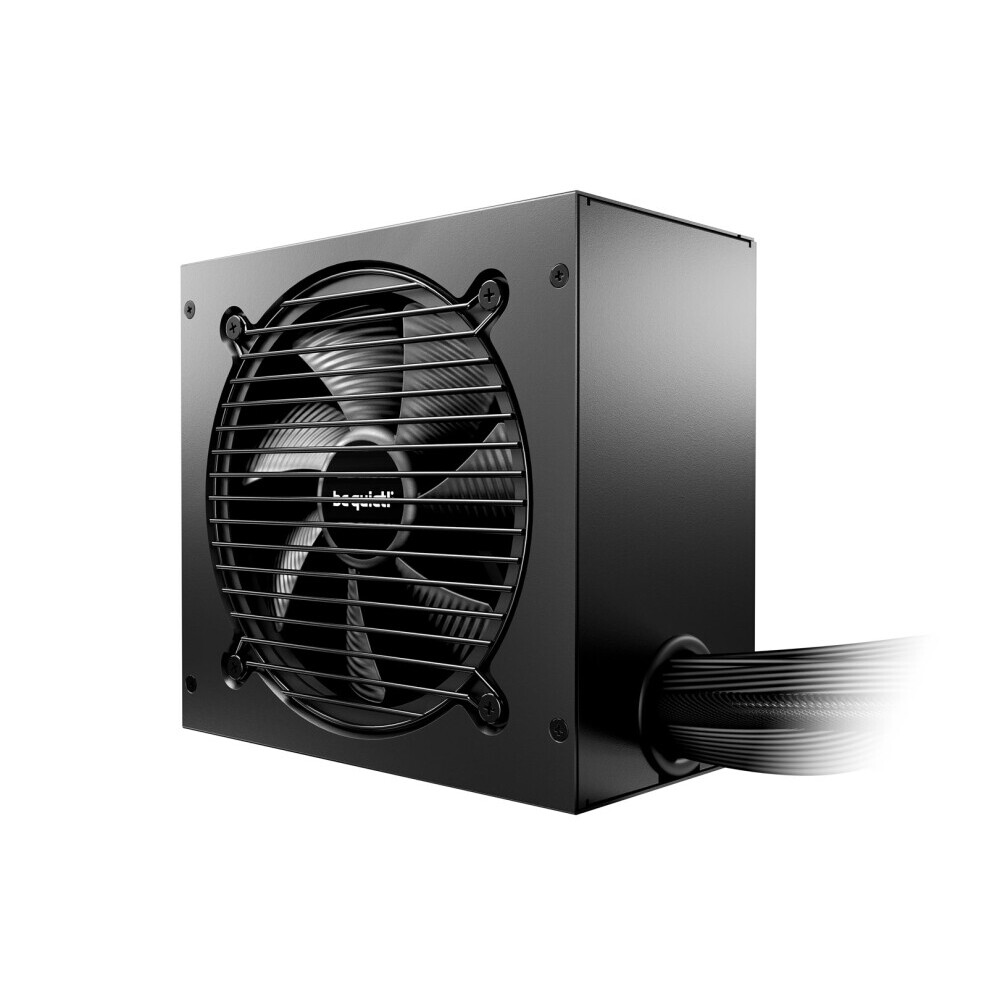

Barošanas bloks be quiet! PURE POWER 12 1000W (BP005EU)
ID: 43516
Product Summary
- Jauda: 1000 W
- Standarts: ATX12V 3.1
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
Full Specifications
Basic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
BP005EU
Jauda ........................................................................................................................................................................................................
1000 W
Standarts ........................................................................................................................................................................................................
ATX12V 3.1
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
22 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
22 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
83.4 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
8-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
3
12+4-pin PCI-E 5.0 (12VHPWR) ligzdu skaits ........................................................................................................................................................................................................
1
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
55 cm
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
