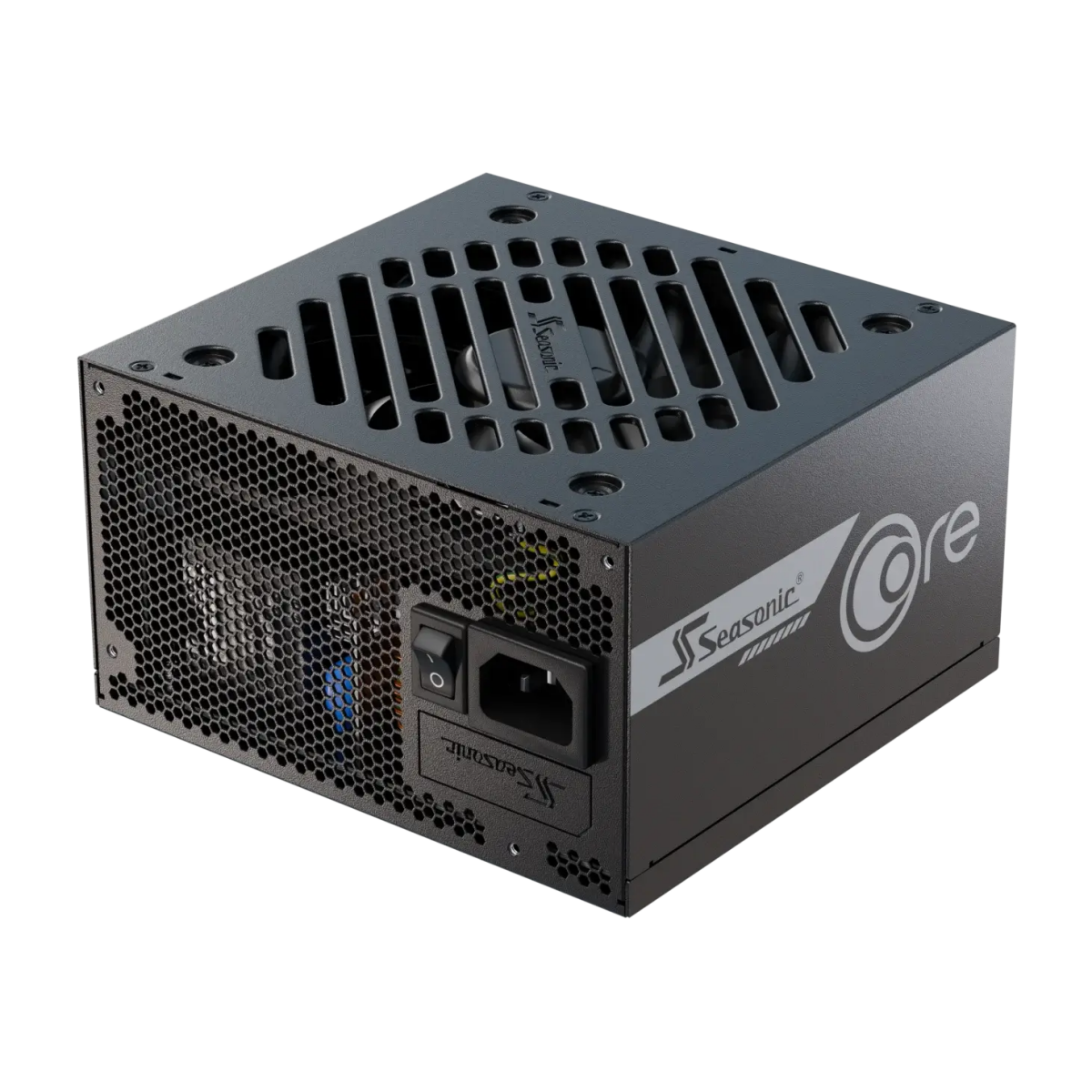

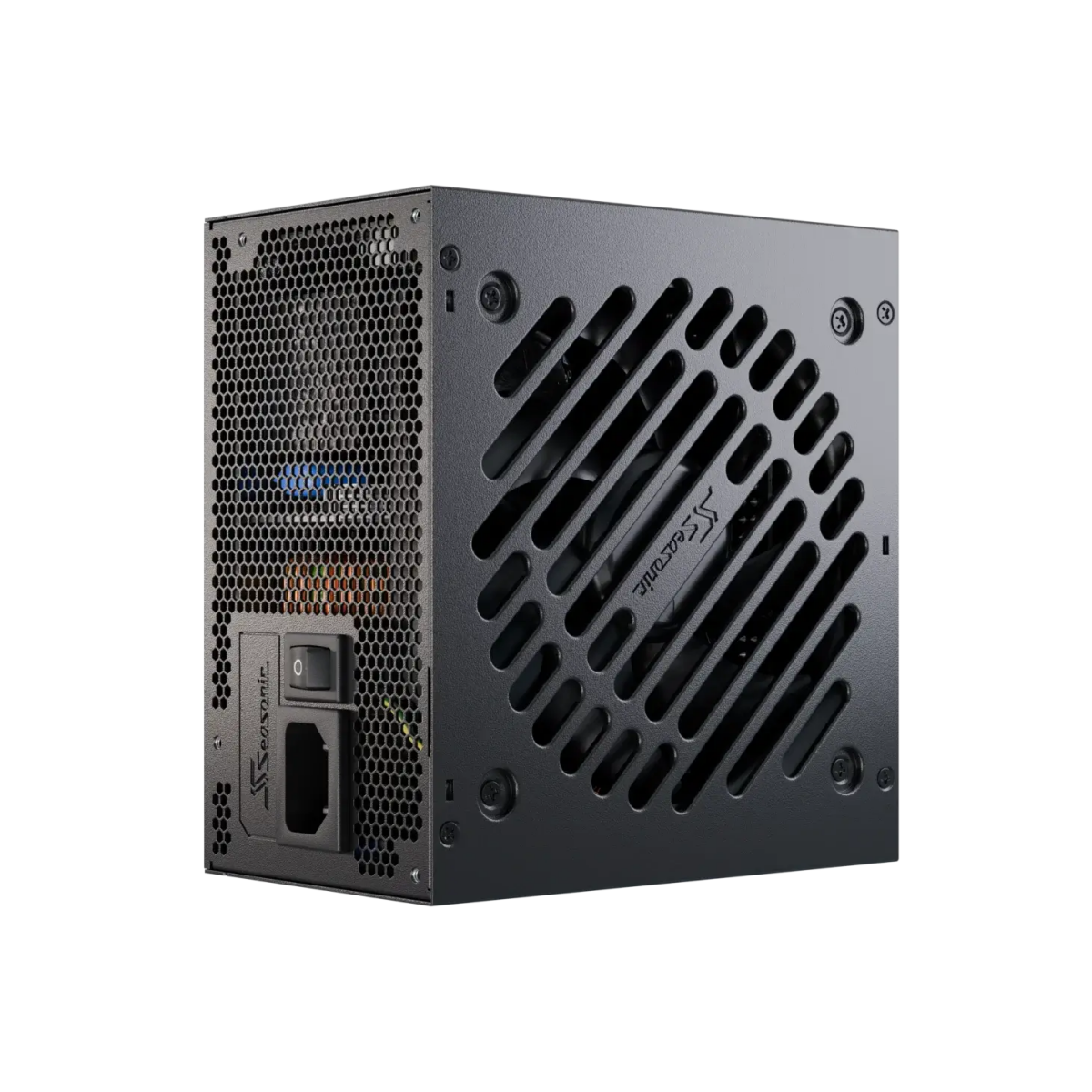

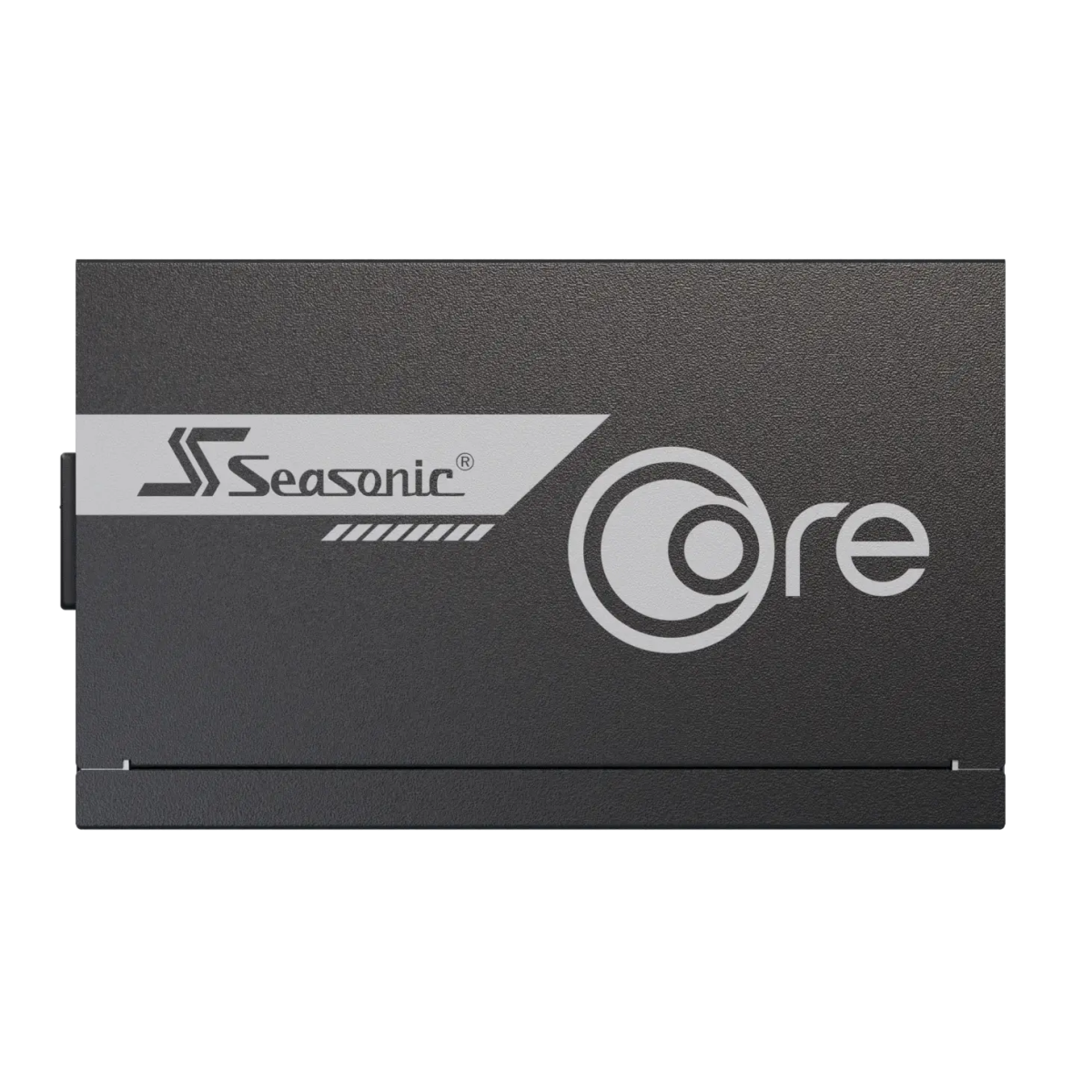

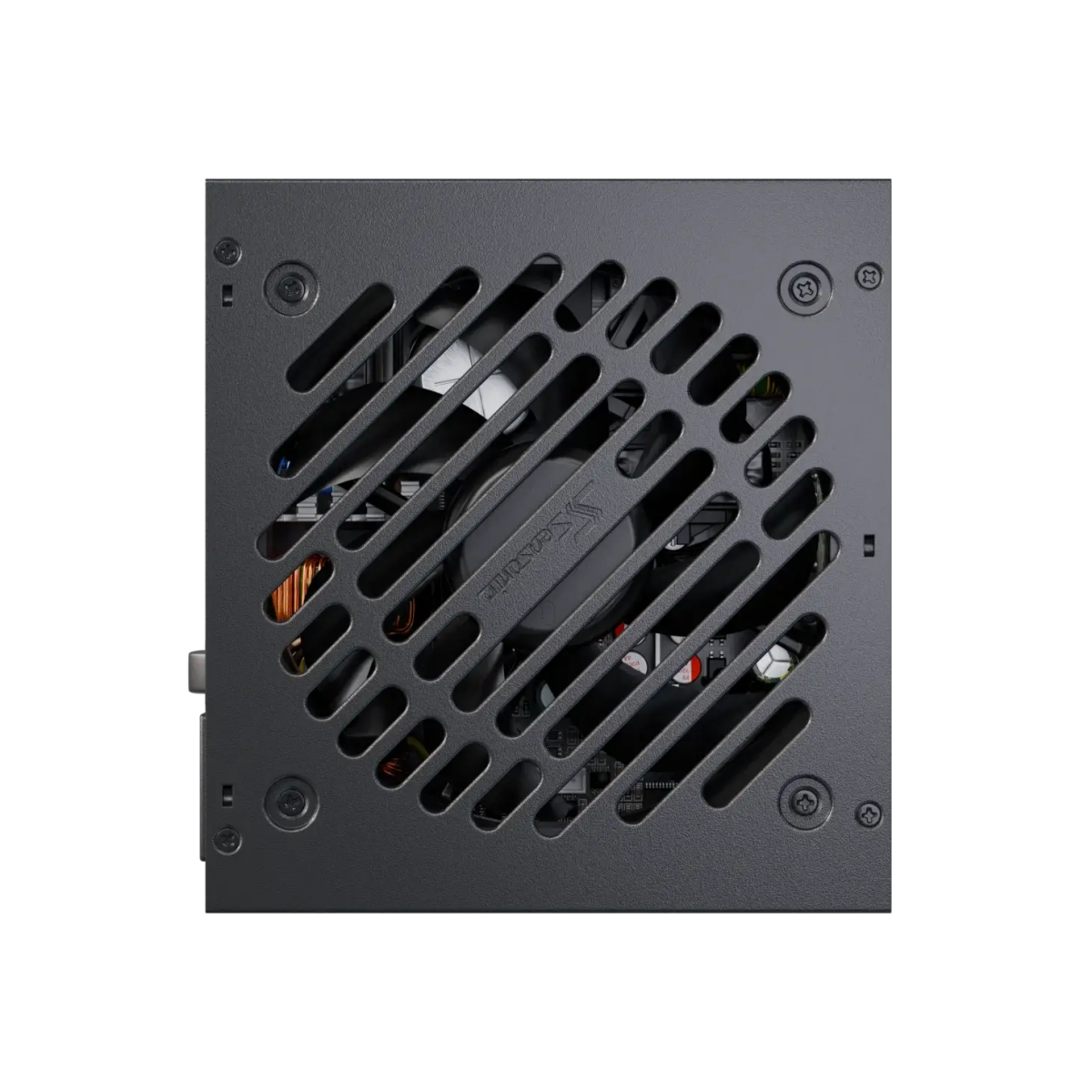

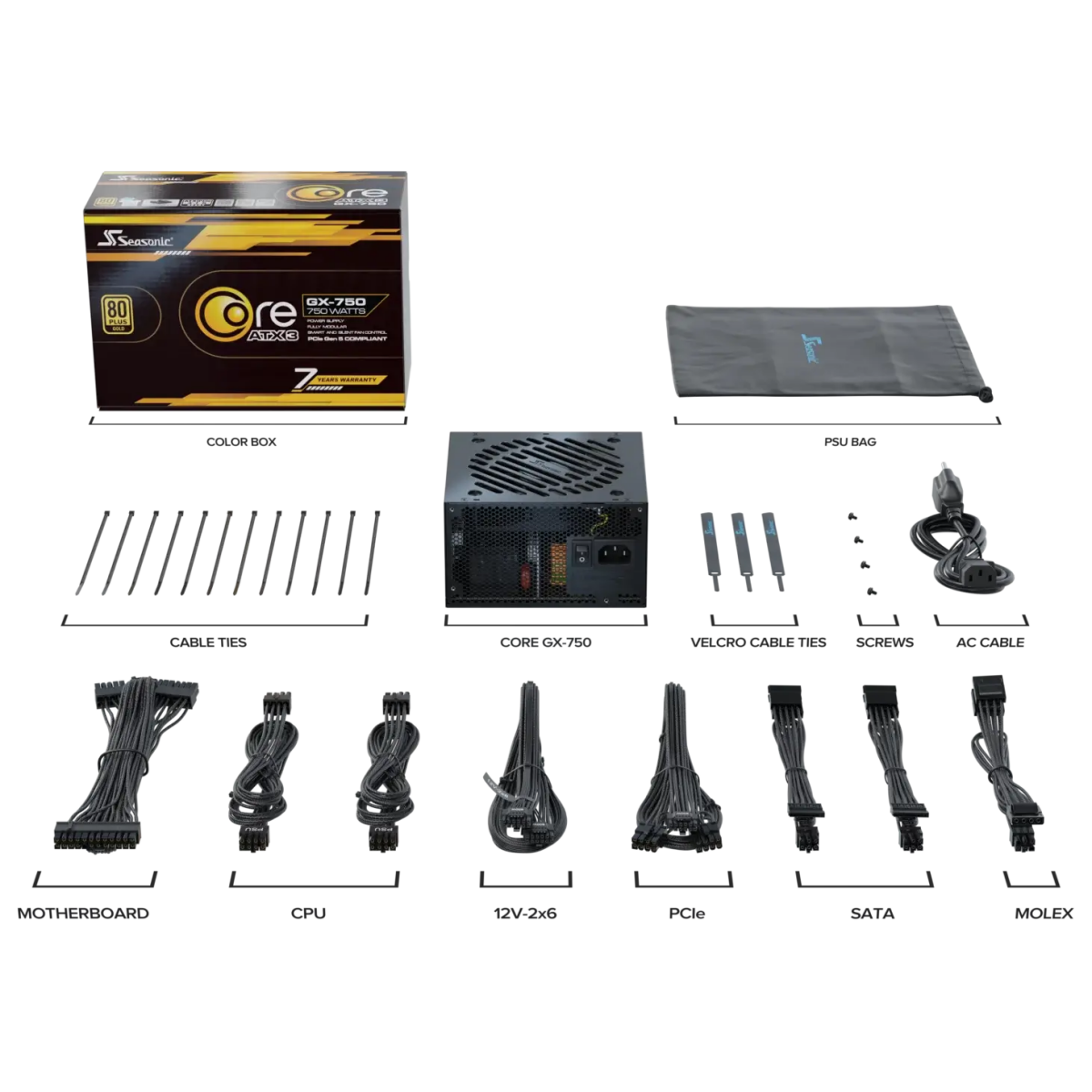

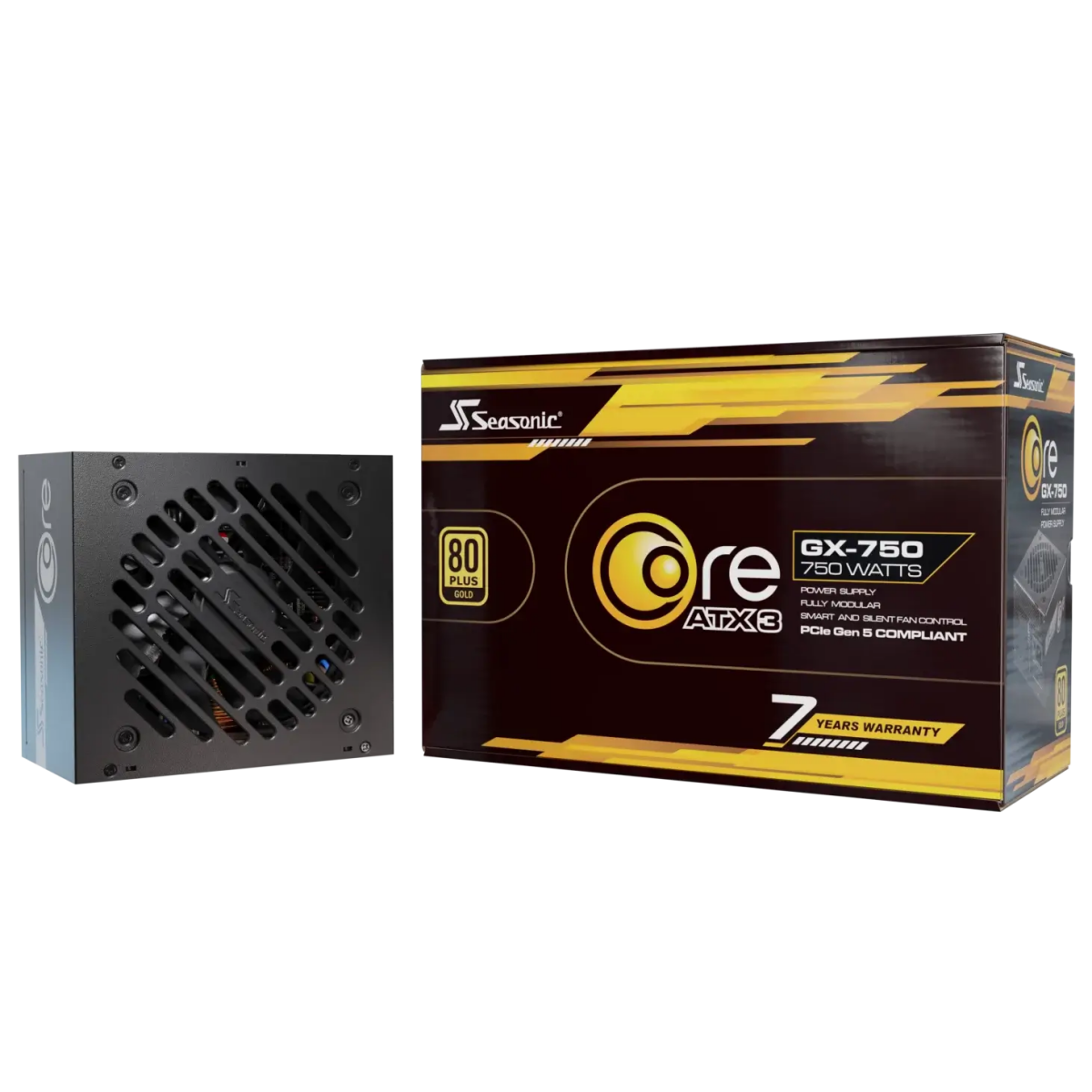

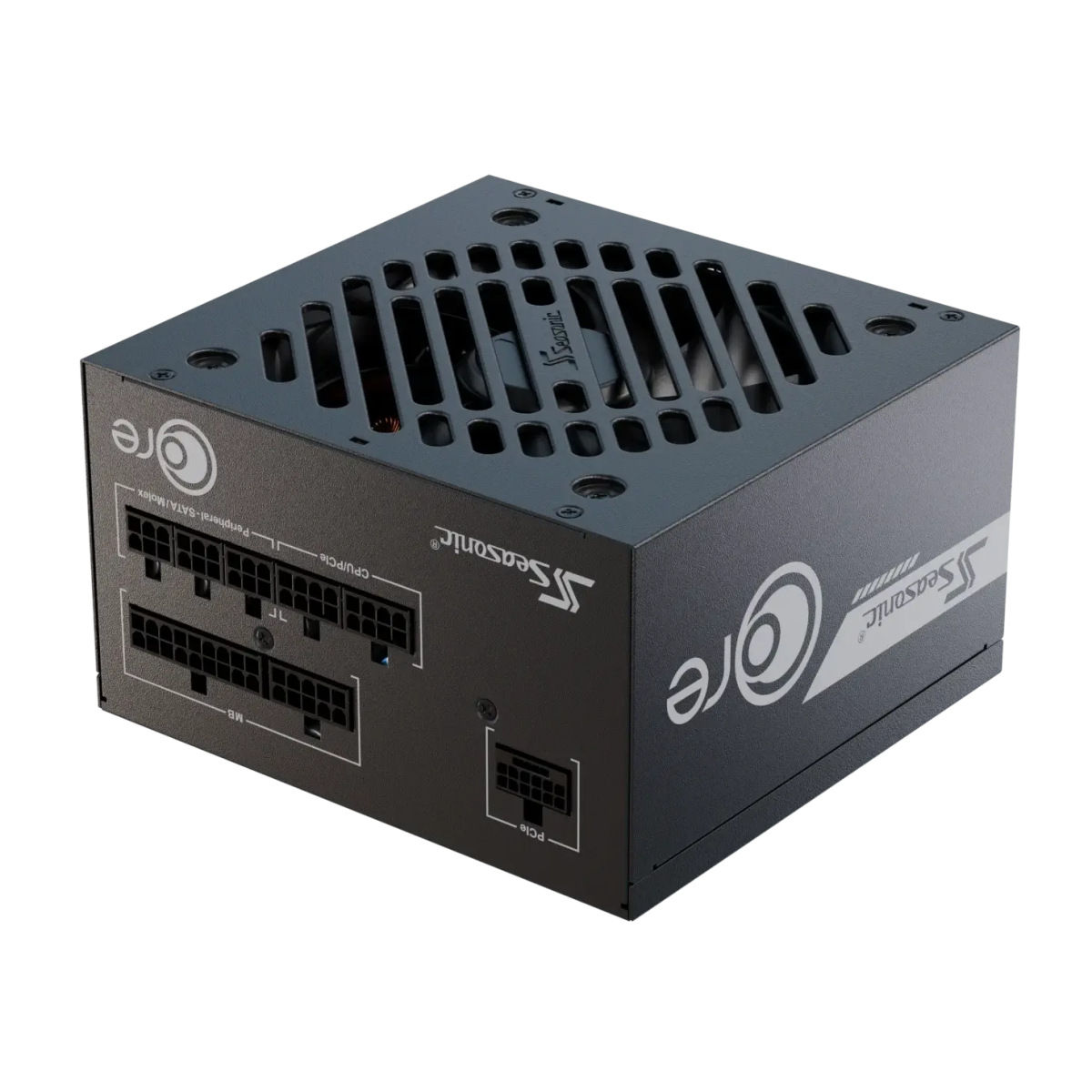

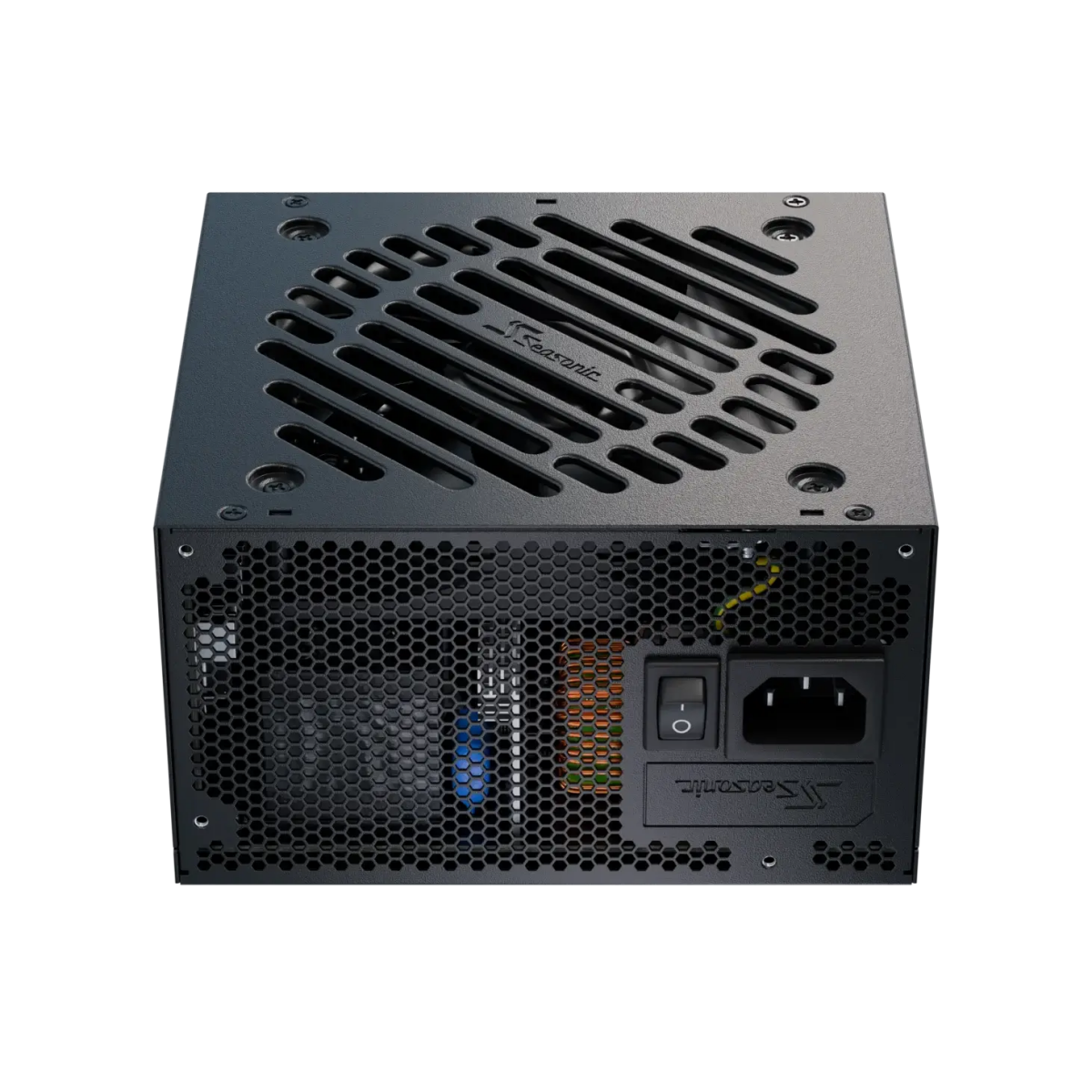

Barošanas bloks SEASONIC CORE GX 750W (SRP-CGX751-A5A32SF)
ID: 43578
Product Summary
- Jauda: 750 W
- Standarts: ATX12V
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
- Noņemami kabeļi: Jā
Full Specifications
Basic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
SRP-CGX751-A5A32SF
Jauda ........................................................................................................................................................................................................
750 W
Standarts ........................................................................................................................................................................................................
ATX12V
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm

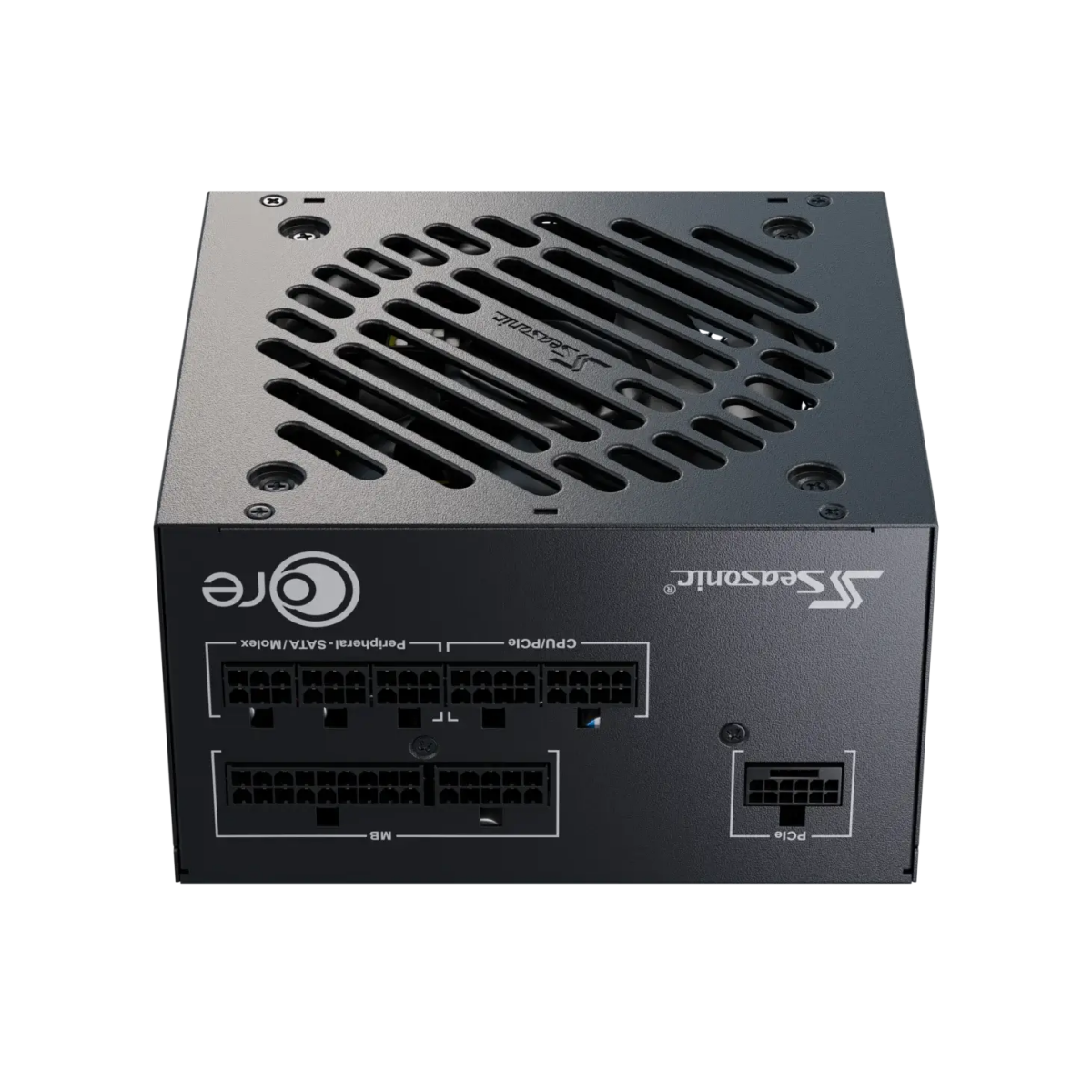

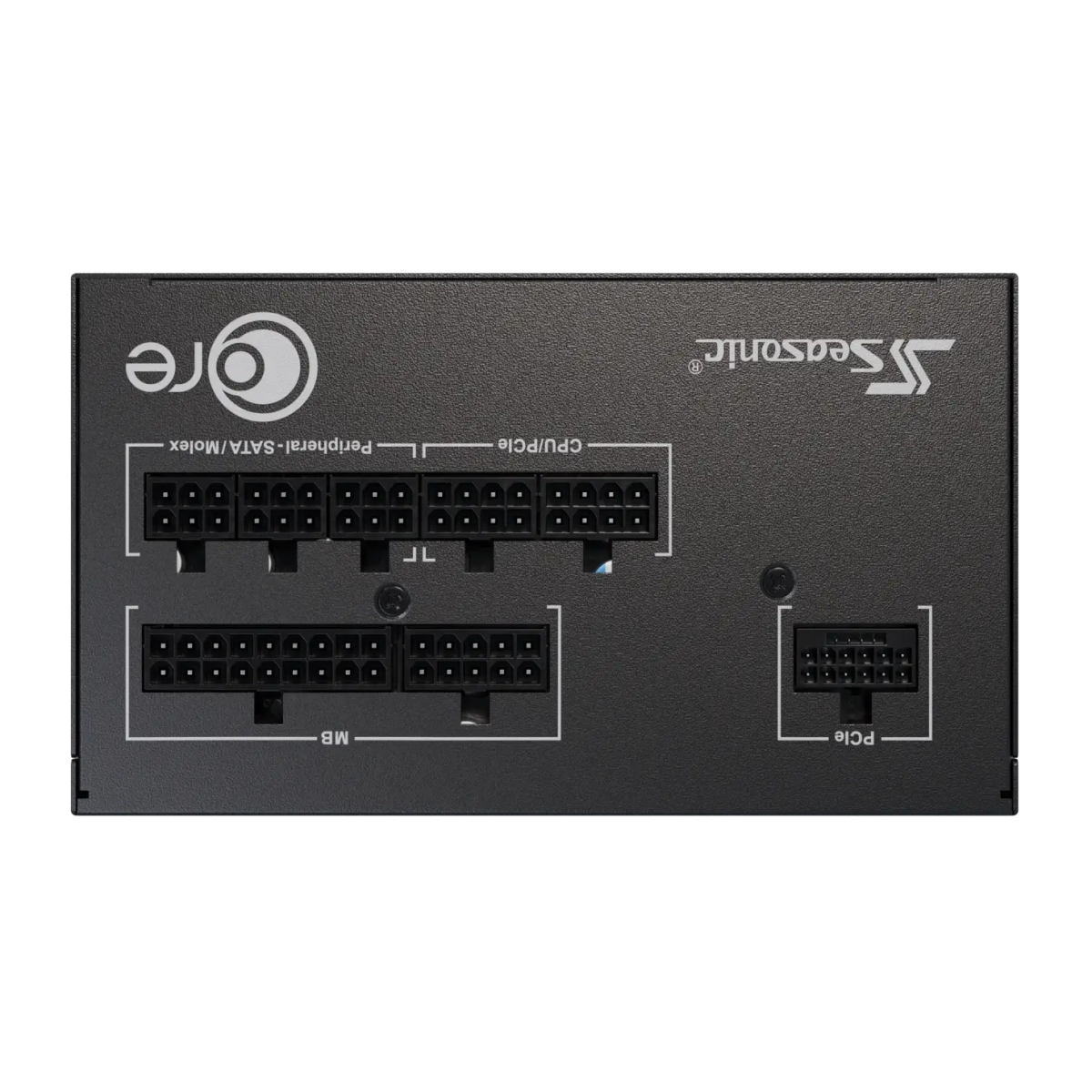

Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
8-pin CPU ligzdu skaits ........................................................................................................................................................................................................
2
8-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
2
12+4-pin PCI-E 5.0 (12VHPWR) ligzdu skaits ........................................................................................................................................................................................................
1
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
3
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
6
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
62 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Noņemami kabeļi ........................................................................................................................................................................................................
jā
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
61 cm
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
140 x 86 x 150 mm
Svars ........................................................................................................................................................................................................
2.55 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
