- Barošanas bloks Be Quiet Pure Power 13 M 550W Black (BP024EU)

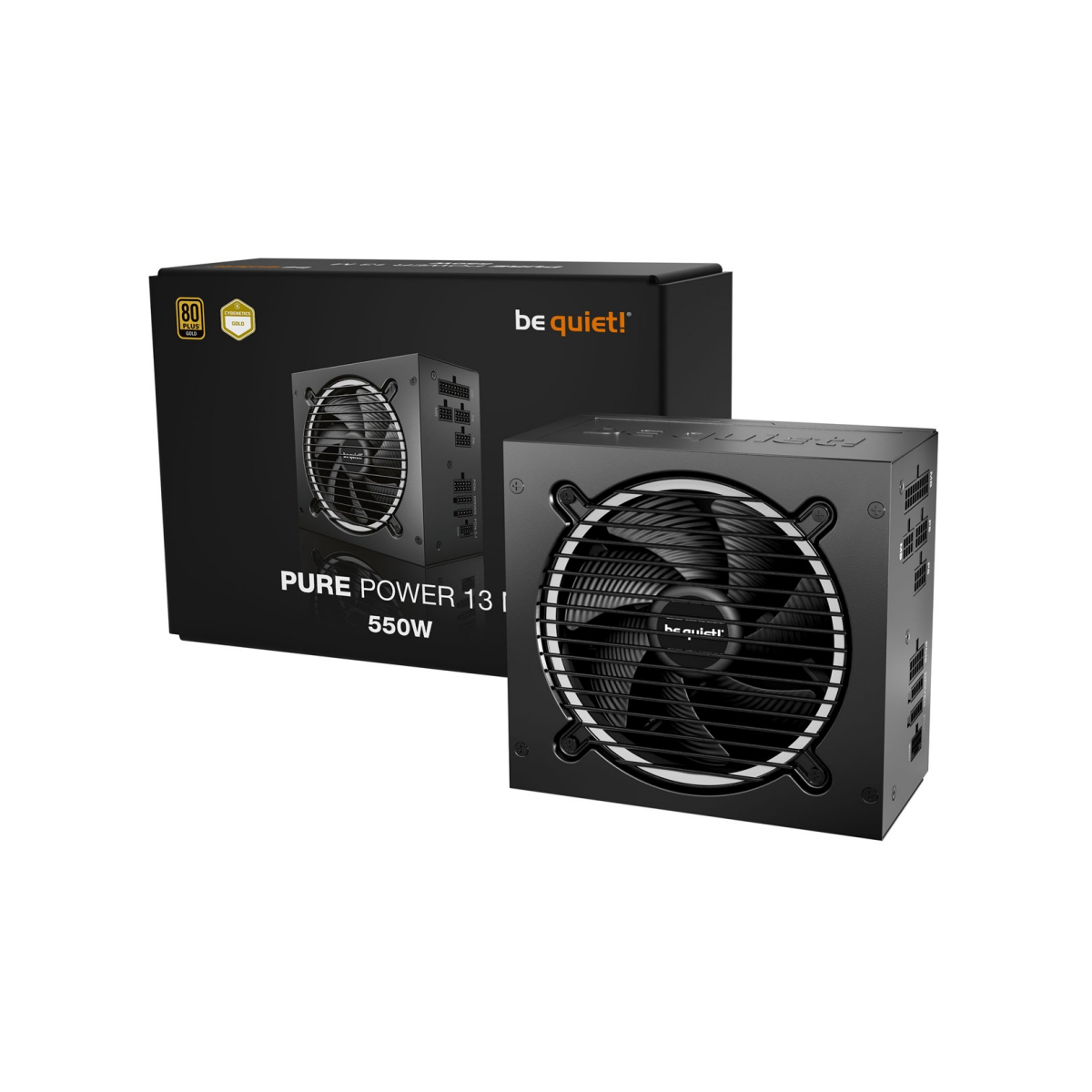

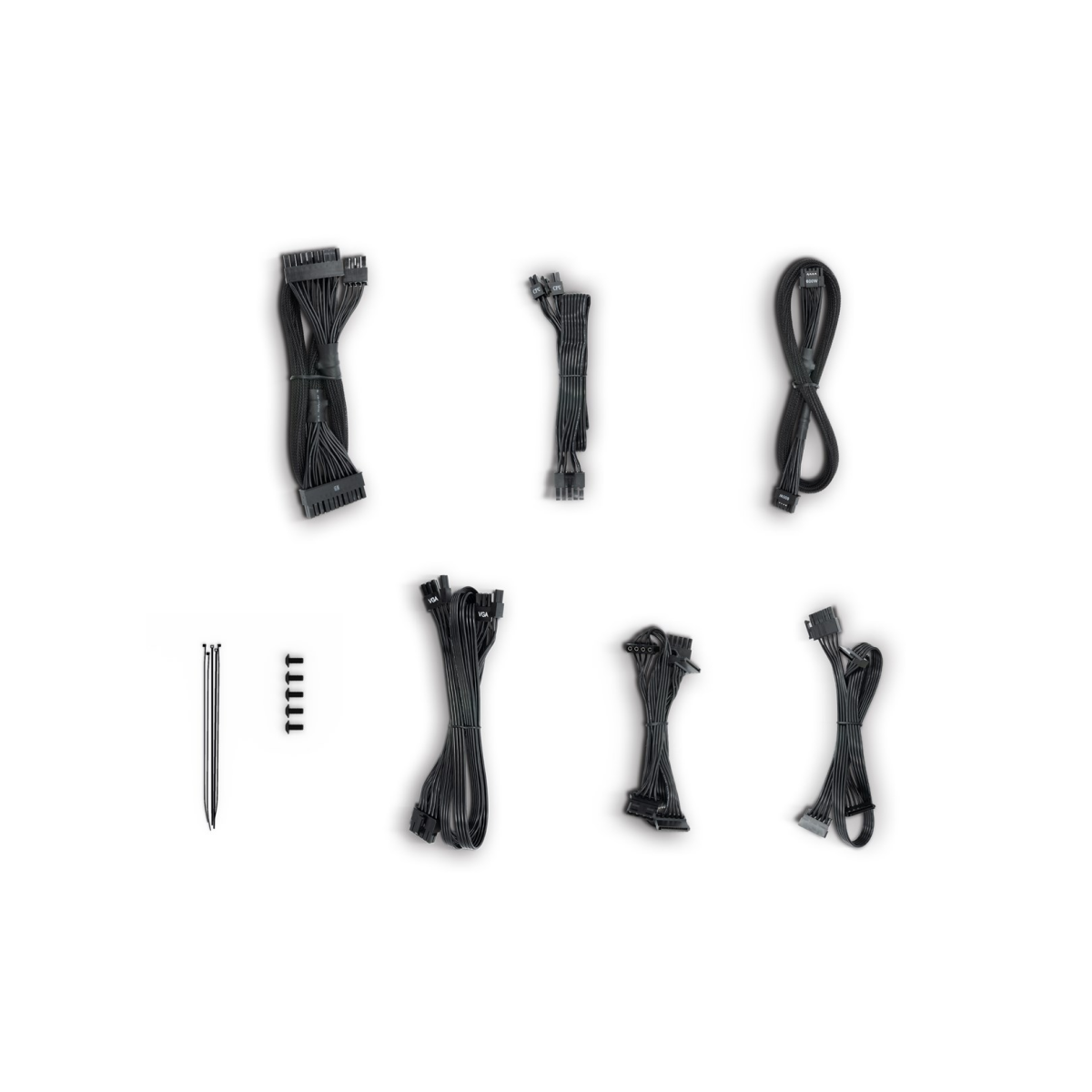

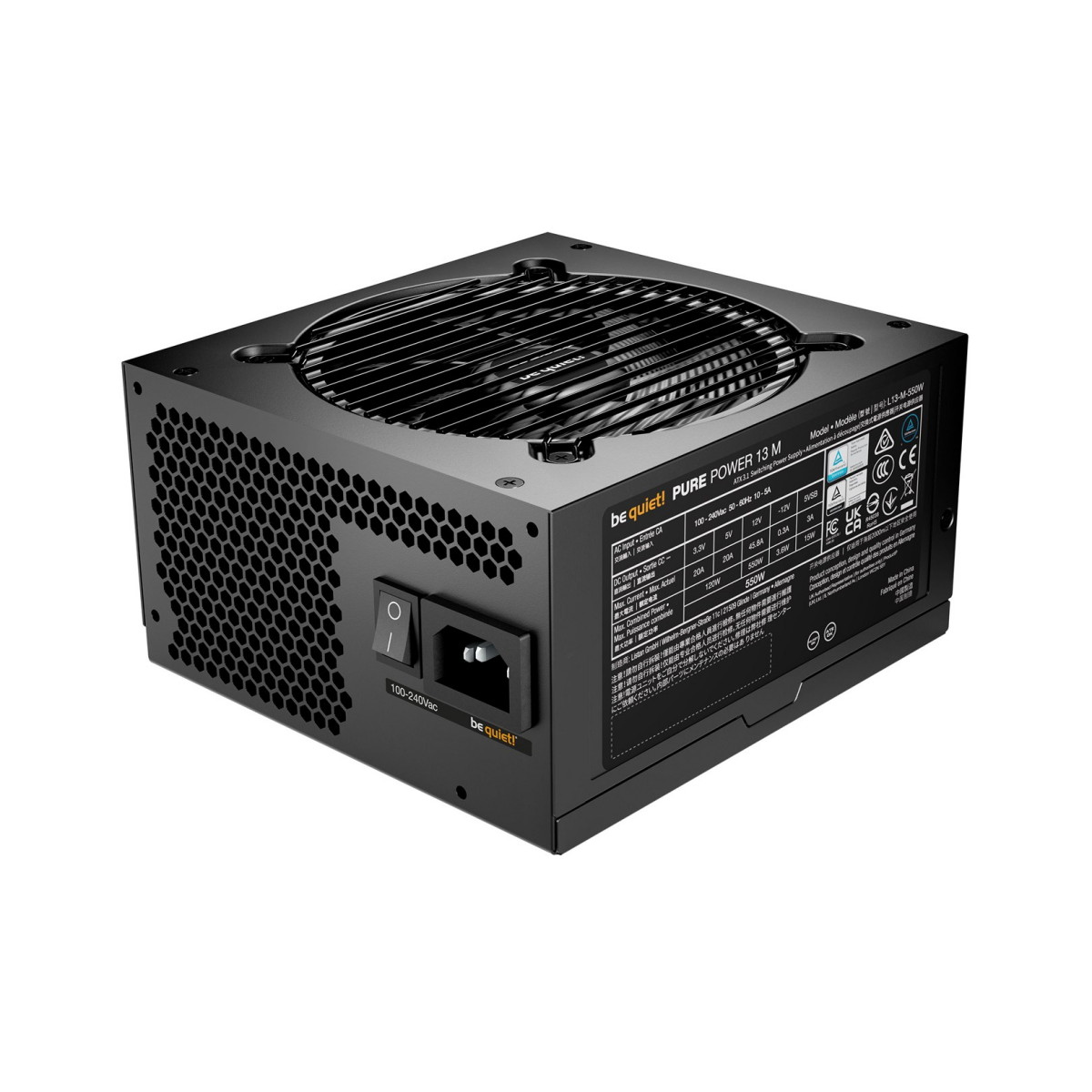

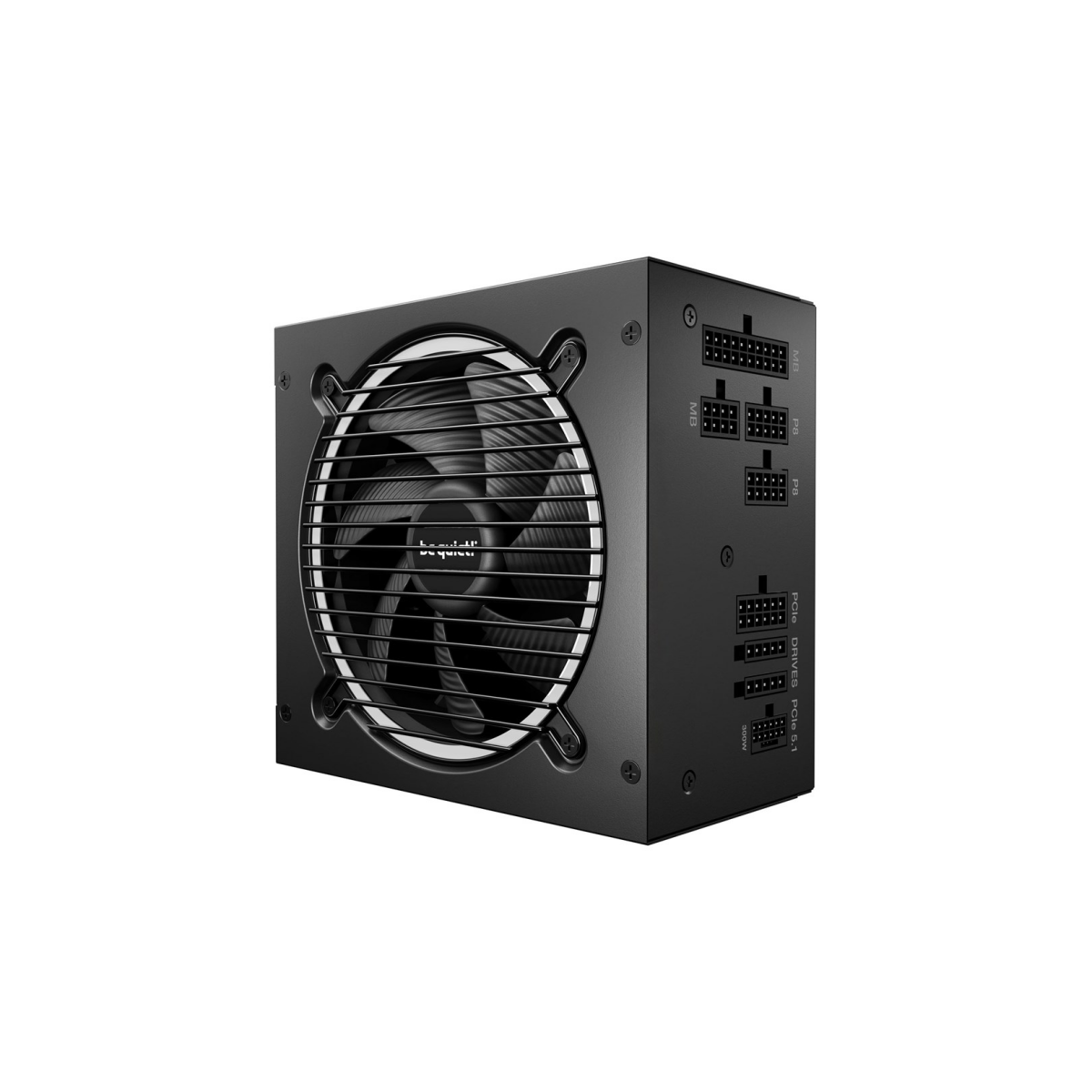

Barošanas bloks Be Quiet Pure Power 13 M 550W Black (BP024EU)
ID: 43618
Īsi par preci
- Jauda: 550 W
- Standarts: ATX12V 3.1
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
Pilnas specifikācijas
Basic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
BP024EU
Jauda ........................................................................................................................................................................................................
550 W
Standarts ........................................................................................................................................................................................................
ATX12V 3.1
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
45.8 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
2
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
2
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
5
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
65 cm
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 160 x 86 mm
Svars ........................................................................................................................................................................................................
2.23 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
