- Barošanas bloks Gigabyte GP-UD750GM PG5 ICE 750W White

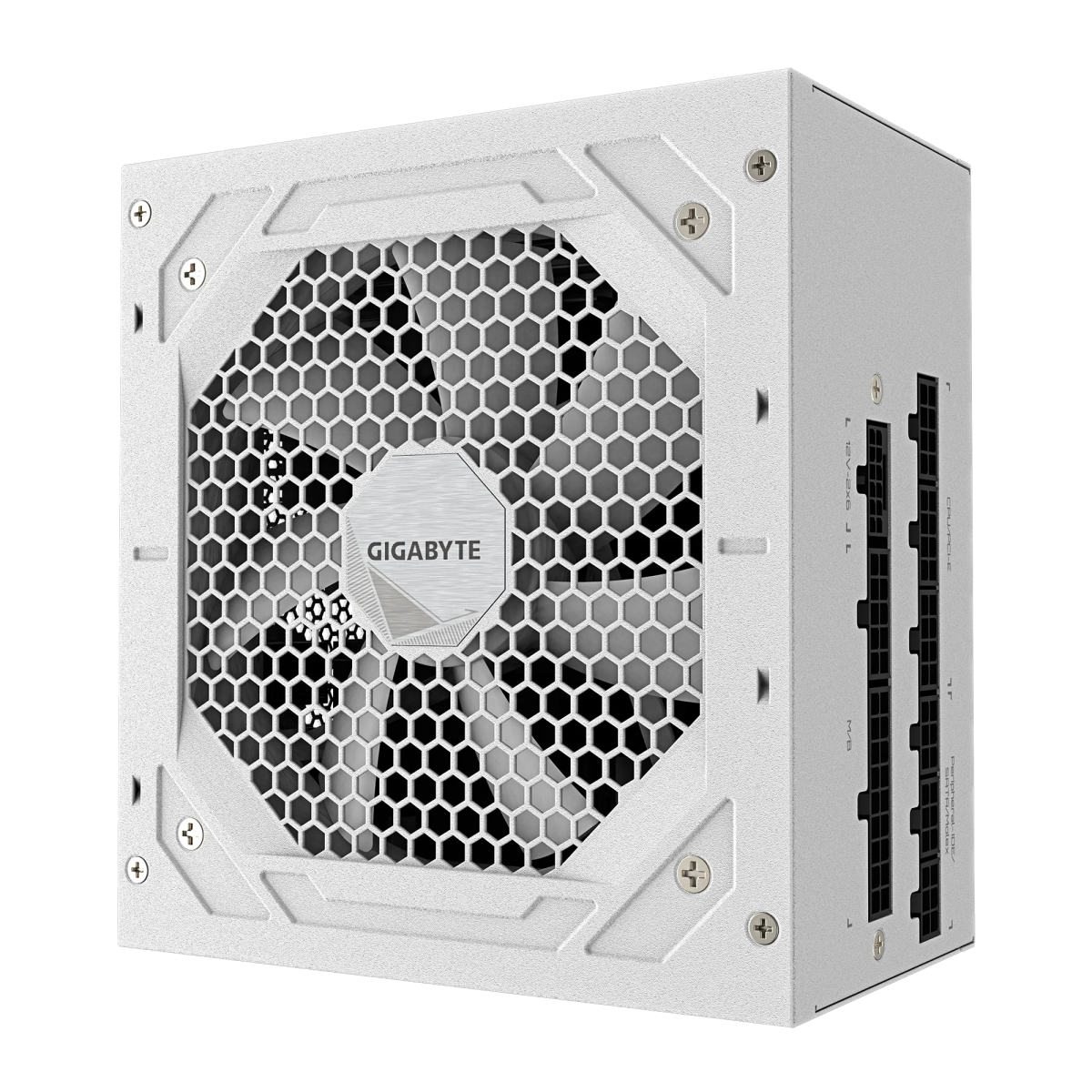

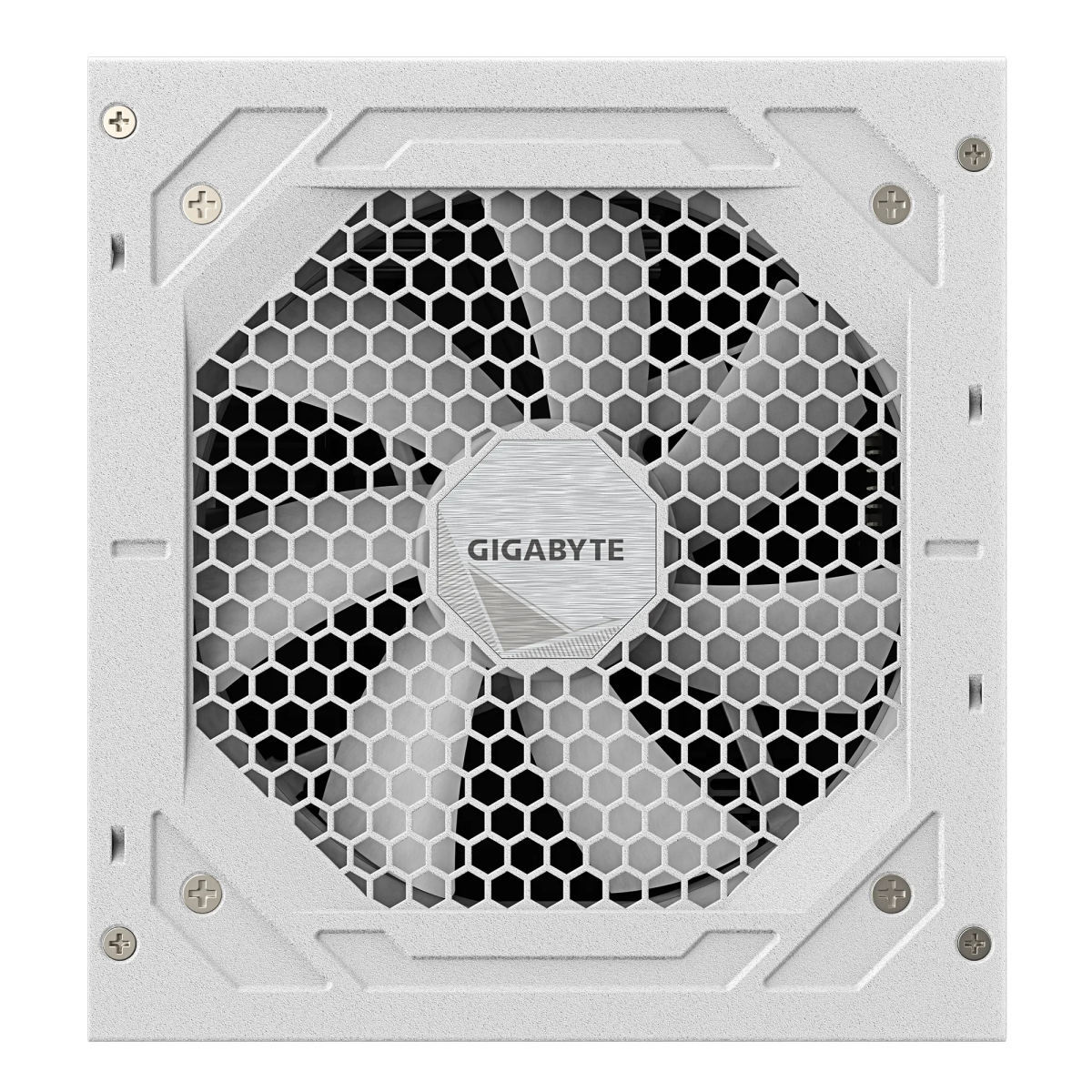

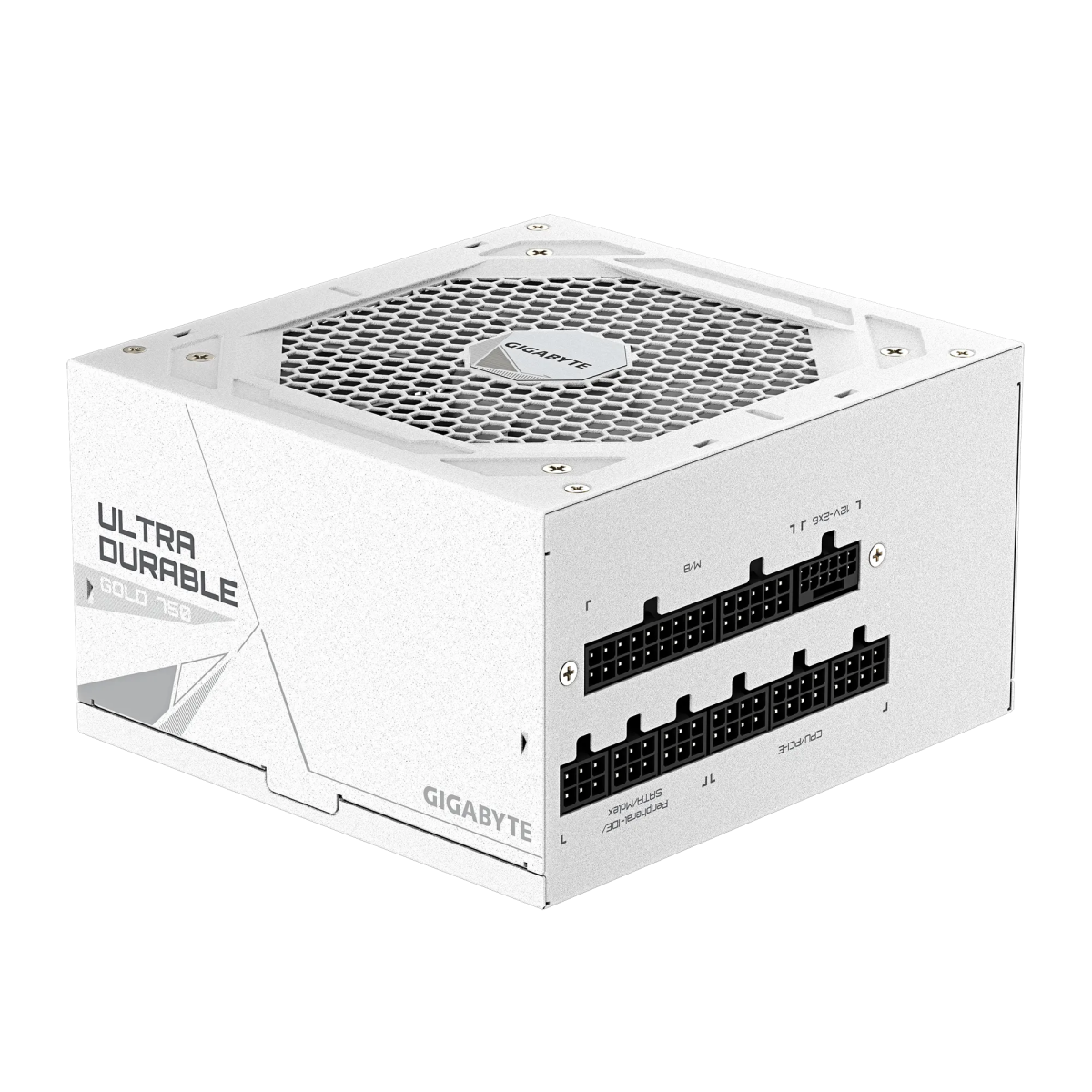

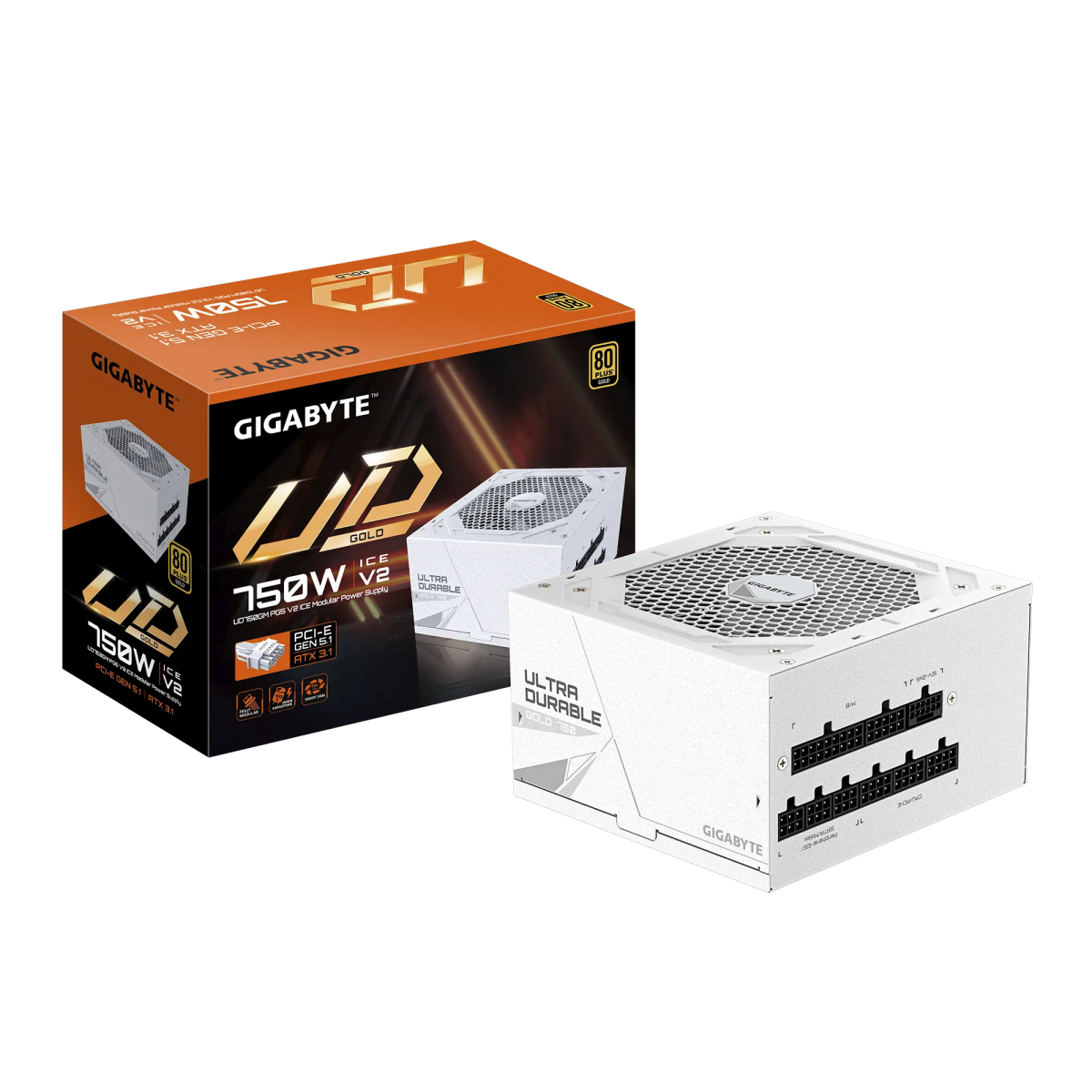

Barošanas bloks Gigabyte GP-UD750GM PG5 ICE 750W White
ID: 43685
Īsi par preci
- Jauda: 750 W
- Standarts: ATX12V 3.1
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
Pilnas specifikācijas
Basic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
GP-UD750GM PG5 ICE
Jauda ........................................................................................................................................................................................................
750 W
Standarts ........................................................................................................................................................................................................
ATX12V 3.1
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm

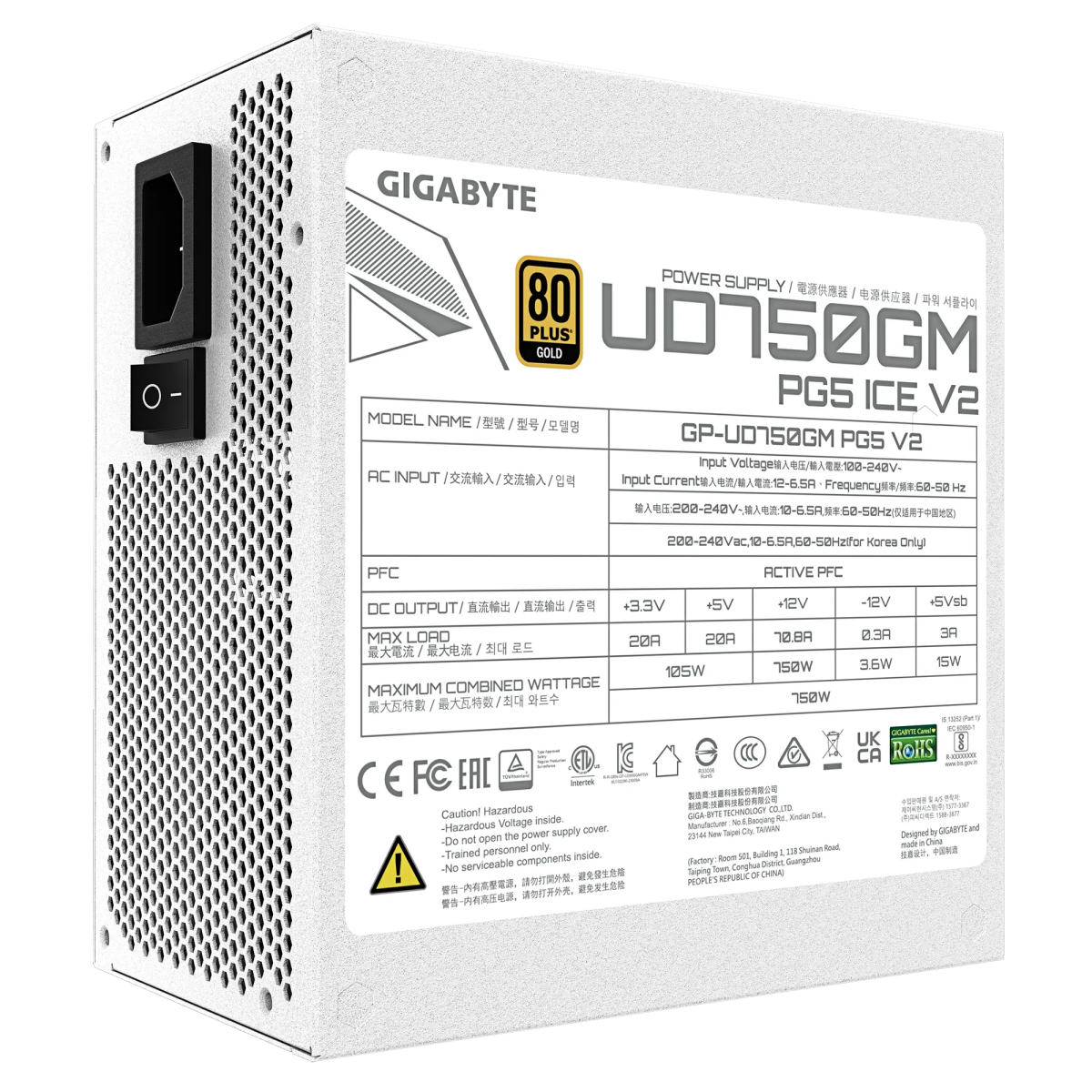

Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
70.8 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts

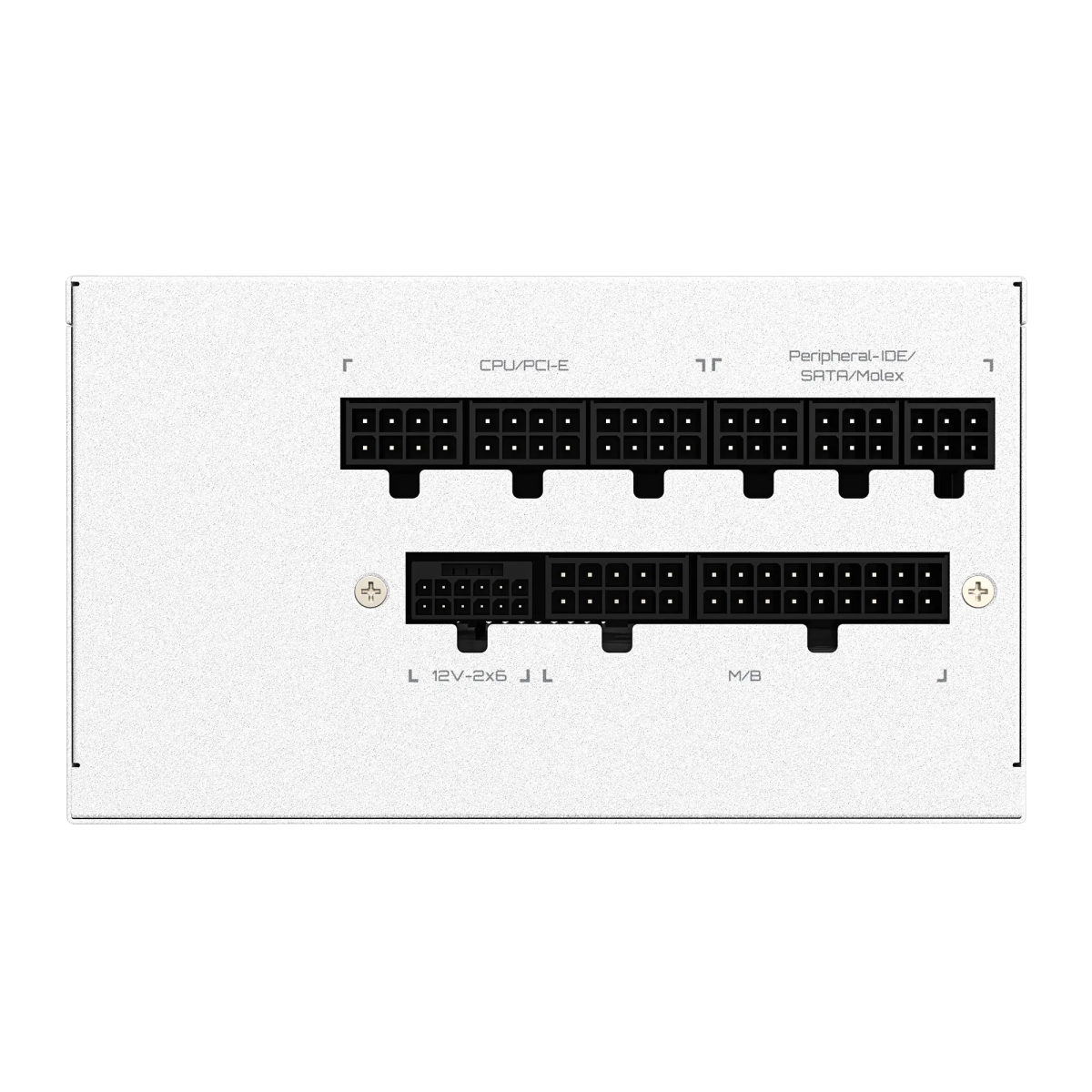

Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
2
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
4
12+4-pin PCI-E 5.0 (12VHPWR) ligzdu skaits ........................................................................................................................................................................................................
1
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
8
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 140 x 86 mm
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
